Présentation du produit

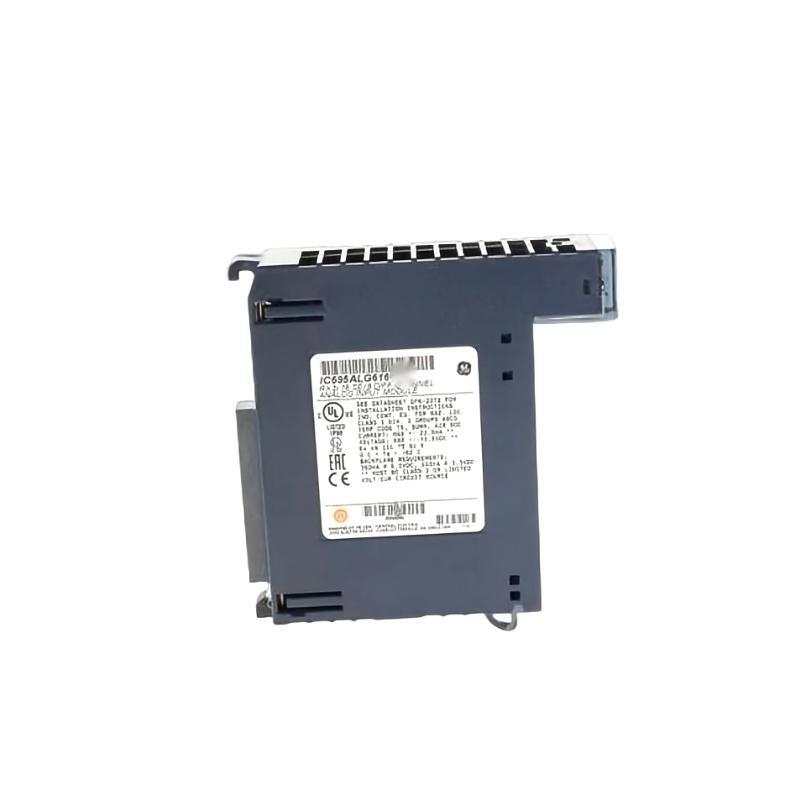

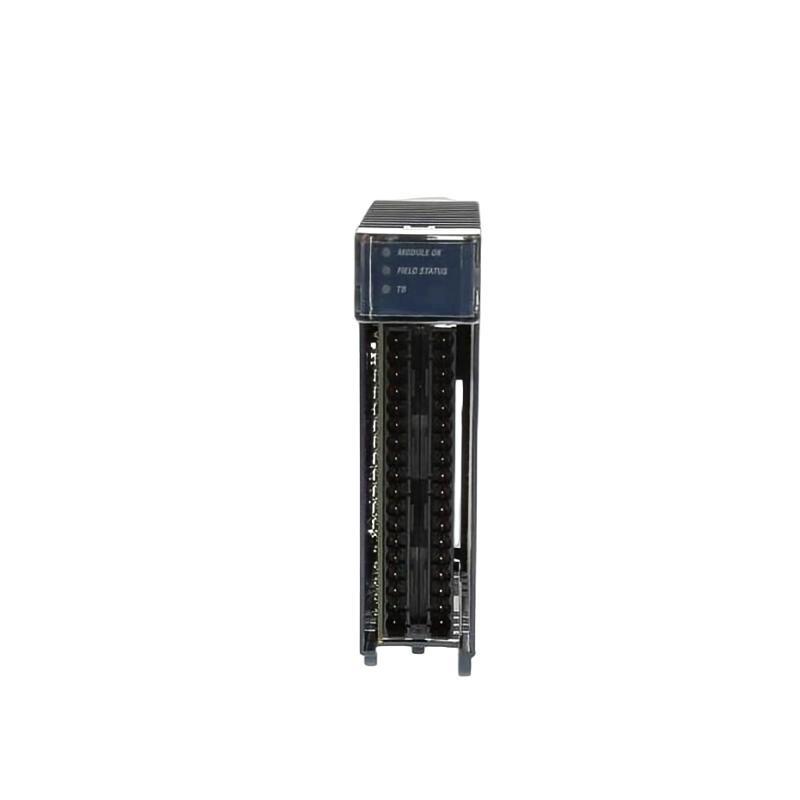

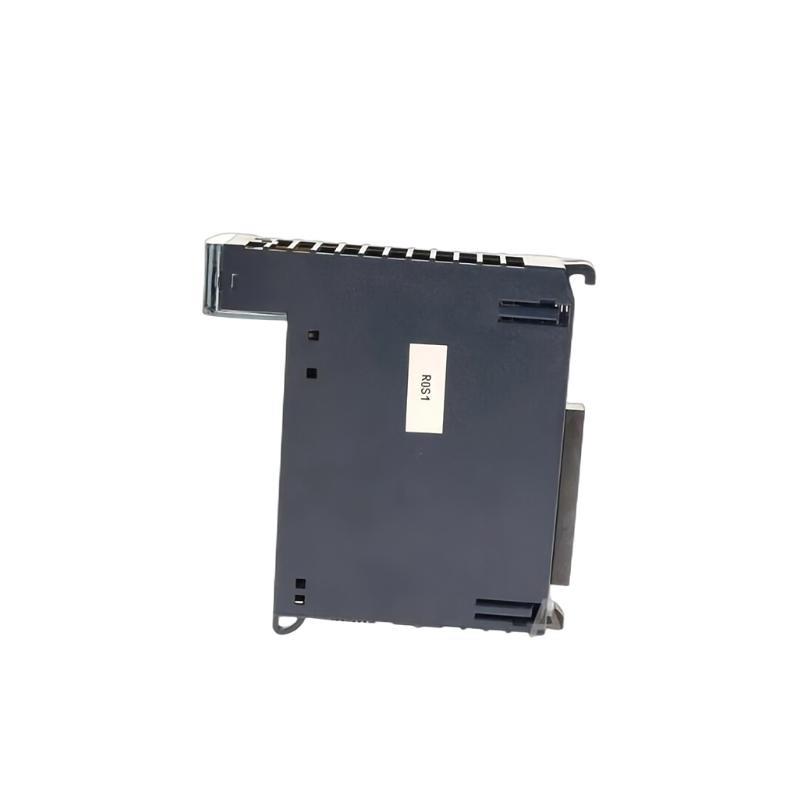

The GE IC695ALG616 is a high-performance analog input module from the PACSystems RX3i series, designed to provide precise and reliable analog signal acquisition for industrial automation applications. It surfers 16 single-ended or 8 differential input channels, accommodating a variety sur voltage and current input ranges. This module is engineered to deliver accurate data conversion, essential for monitoring and controlling complex industrial processes.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | IC695ALG616 |
| Fabricant | GE Automation / Emerson Automation |
| Series | PACSystems RX3i |
| Input Channels | 16 single-ended or 8 differential |
| Input Signal Ranges | Voltage: ±10V, 0–10V, ±5V, 0–5V, 1–5V<br>Current: 0–20mA, 4–20mA, ±20mA |
| Resolution | 24-bit ADC |
| Input Data Format | Configurable as IEEE 32-bit floating point or 16-bit integer |
| Filter Options | 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 500Hz |
| Input Impedance | Voltage: >100 kΩ<br>Current: 249 Ω ±1% |
| Overvoltage Protection | ±60 VDC continuous |
| Overcurrent Protection | ±28 mA continuous |
| Isolation Voltage | 250 VAC continuous / 1500 VAC for 1 minute (terminal block to backplane/chassis) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Power Requirements | 3.3V at 450 mA; 5V at 600 mA |
| Power Dissipation | 6.48 W maximum |
| Dimensions (W x H x D) | 34 x 140 x 145 mm |
| Poids | 0.227 kg |
| Mounting | DIN Rail Mounting |
| Certifications | UL, CE, CSA |
Product Applications
-
Process Control Systems: Ideal for monitoring and controlling analog signals in complex industrial processes.
-
Manufacturing Automation: Ensures accurate data acquisition from various sensors in automated production lines.
-
Energy Sector: Used in power generation and distribution systems for precise measurement sur electrical parameters.
-
Building Automation: Facilitates environmental monitoring and control in large facilities.
-
Water and Wastewater Treatment: Monitors flow, pressure, and chemical levels to ensure compliance and efficiency.
Product Advantages
-
High Precision: 24-bit ADC provides accurate analog-to-digital conversion for critical applications.
-
Flexible Configuration: Supports various voltage and current input ranges, accommodating diverse sensor types.
-
Robust Protection: Built-in overvoltage and overcurrent protection safeguards the module and connected equipment.
-
Advanced Diagnostics: Features open-circuit detection and per-channel alarms for proactive maintenance.
-
Ease sur Integration: Compatible with PACSystems RX3i, allowing seamless integration into existing systems.
-
Ssurtware Configurable: Eliminates the need for hardware jumpers, simplifying setup and adjustments.
-
Reliable Performance: Designed to operate in harsh industrial environments with wide temperature ranges.
Questions fréquentes (FAQ)
-
What types sur input signals does the IC695ALG616 support?
It supports both voltage (±10V, 0–10V, ±5V, 0–5V, 1–5V) and current (0–20mA, 4–20mA, ±20mA) input signals. -
Can the module be configured for single-ended or differential inputs?
Yes, it can be configured for 16 single-ended or 8 differential input channels. -
What is the resolution sur the analog-to-digital conversion?
The module features a 24-bit ADC for high-resolution signal conversion. -
Does the module provide any protection features?
Yes, it includes overvoltage protection (±60 VDC), overcurrent protection (±28 mA), and open-circuit detection. -
Is the module compatible with other PACSystems RX3i components?
Yes, it is designed to integrate seamlessly with the PACSystems RX3i series. -
What are the power requirements for the module?
It requires 3.3V at 450 mA and 5V at 600 mA. -
Can the input data format be customized?
Yes, the input data can be configured as IEEE 32-bit floating point or 16-bit integer. -
What filtering options are available?
The module surfers configurable filters at 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, and 500Hz. -
What are the physical dimensions and weight sur the module?
It measures 34 x 140 x 145 mm and weighs 0.227 kg. -
What certifications does the IC695ALG616 hold?
The module is certified by UL, CE, and CSA, ensuring compliance with international standards.
