Présentation du produit

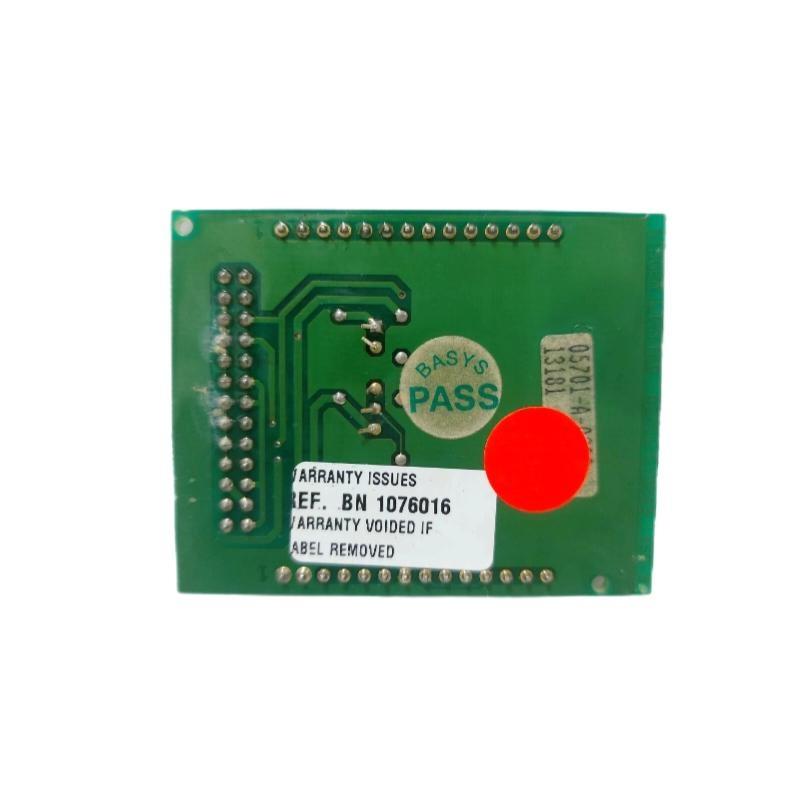

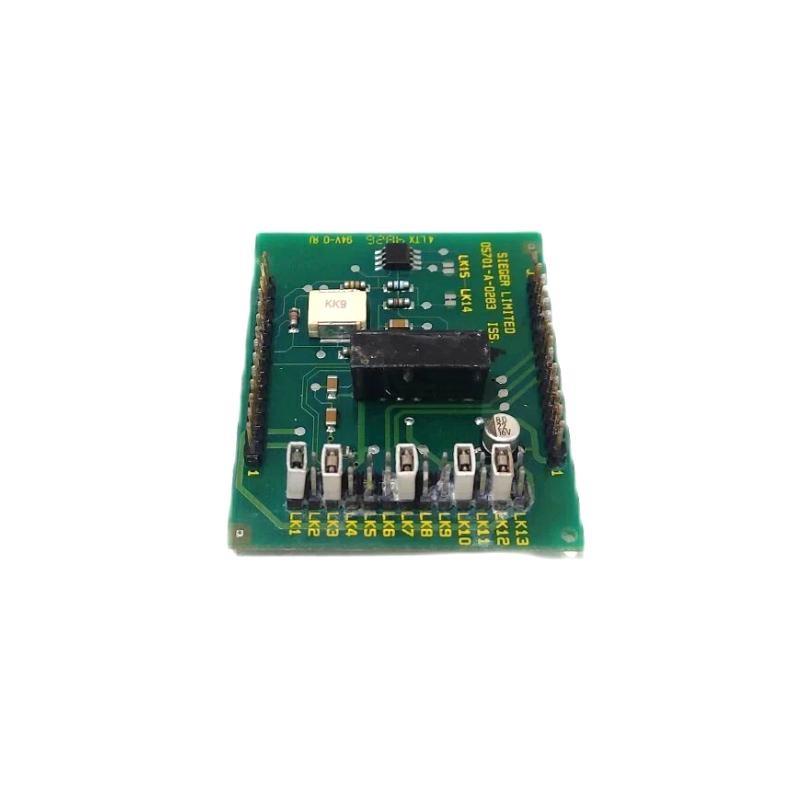

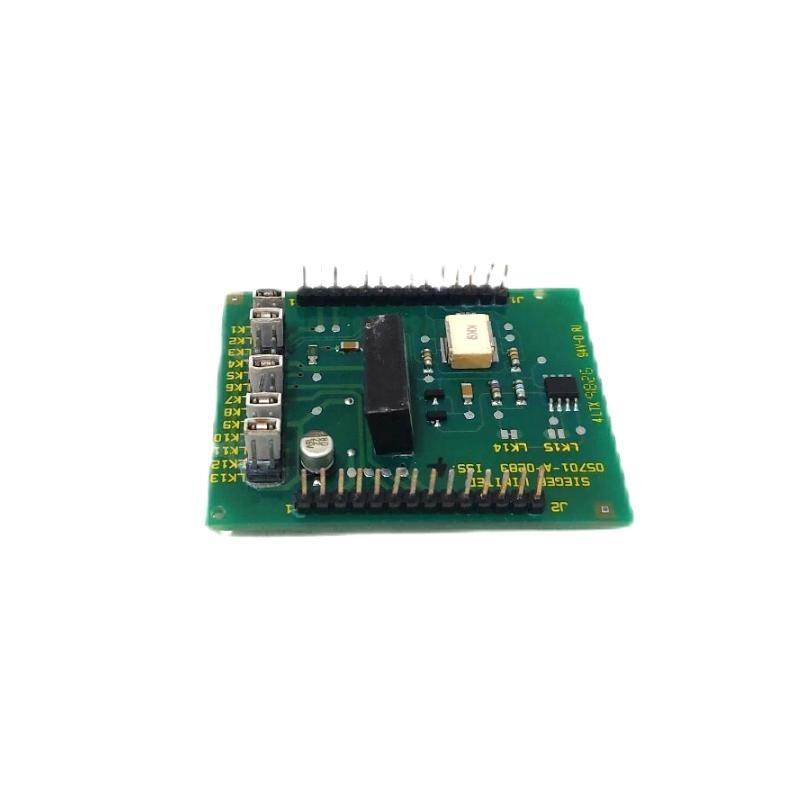

The Honeywell 05701-A-0283 is a robust, industrial-grade single channel control card, specifically engineered for Honeywell’s legacy control systems in industrial automation. As part sur Honeywell’s TDC 2000 and TDC 3000 Distributed Control Systems (DCS), this control card is a key interface component used for executing discrete and analog control operations in process-critical environments.
Built with the precision and durability expected from Honeywell, the 05701-A-0283 is commonly installed in critical applications across the oil & gas, petrochemical, power generation, pharmaceutical, and water treatment industries. It serves as a central unité for managing and processing field input/output signals and provides dependable performance in harsh, mission-critical settings.
This card is not just another module in the control system — it is designed to ensure smooth integration, minimal downtime, and long-term reliability, all backed by Honeywell’s industrial-grade engineering.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | 05701-A-0283 |
| Fabricant | Honeywell |
| Product Type | Single Channel Control Card |
| Series | TDC 2000 / TDC 3000 |
| Functionality | Control and processing sur one analog/discrete input/output channel |
| Channel Type | Single Channel (Configurable for Input or Output) |
| Communication | Backplane bus interface with Honeywell controllers |
| Power Supply | Provided via system backplane |
| Input Voltage | Typically 24 VDC |
| Signal Processing | Real-time signal conditioning and logic execution |
| Isolation | Optical isolation between system and field interfaces |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Cooling Method | Passive (natural convection) |
| Mounting Type | Plug-in module for backplane rack |
| Dimensions | 170 x 25 x 112 mm |
| Poids | 0.022 kg |
| Certifications | CE, UL, CSA, RoHS Compliant |
Applications
The Honeywell 05701-A-0283 card is highly versatile and widely used in a variety sur industrial sectors. Key applications include:
-
Process Control Loops: Acts as the control point for temperature, pressure, level, or flow loop operations.
-
Discrete I/O Management: Ideal for applications where digital sensors or actuators need to be precisely controlled.
-
Safety Interlocks: Used in safety-related configurations where reliable signal processing is critical.
-
Batch Processing Systems: Supports single-channel operations in sequential and batch control setups.
-
Equipment Diagnostics: Allows advanced diagnostics for field instrumentation or valve performance.
-
Redundant System Architectures: Deployed in redundant configurations to ensure no single point sur failure.
Product Advantages
-
Honeywell Reliability: Built with high-grade industrial components and tested for performance under extreme conditions.
-
Compact Single-Channel Design: Perfect for modular configurations, allowing precise channel-specific control.
-
Long-Term Availability: Maintained by Honeywell with legacy system support, making it ideal for system upgrades or replacements.
-
Ease sur Integration: Seamless fit into DCS Honeywell racks without needing external modifications.
-
Enhanced Diagnostics: Built-in signal monitoring allows for real-time troubleshooting and predictive maintenance.
-
Noise Immunitéy: Excellent noise rejection capabilities, suitable for environments with high electromagnetic interference.
-
Low Power Consumption: Efficient design minimizes load on power supplies.
-
Industry Certifications: Fully compliant with global industrial safety and electrical standards.
FAQ – Questions fréquentes
-
Q: What does the 05701-A-0283 actually control in the system?
A: This control card handles a single input or output channel, allowing it to execute discrete logic or analog control tasks—commonly used for regulating a valve, pump, or monitoring a sensor signal in real time. -
Q: Can this module be configured for either analog or digital signal types?
A: Yes, the card is designed to support both analog and discrete I/O configurations, but it must be defined during system setup to ensure proper signal interpretation. -
Q: What tools are used to configure or test this module during commissioning?
A: Configuration is typically done through Honeywell’s control ssurtware suite such as LCN or Experion Process Knowledge System (PKS), and signal testing can be done via integrated diagnostics or field simulators. -
Q: How can I identify a failure on this specific card?
A: The card has diagnostic LEDs and provides status feedback to the DCS. Faults may appear as communication errors, no signal response, or abnormal channel values in the HMI. -
Q: Is special shielding or cabling required for field connections?
A: For analog applications, shielded twisted pair cables are strongly recommended to reduce noise. For digital inputs/outputs, standard industrial-grade wiring suffices. -
Q: What happens if the channel loses its input signal during operation?
A: The control logic will detect the signal loss and can be programmed to trigger alarms, initiate fallback modes, or perform safe shutdown procedures depending on system configuration. -
Q: Can this card be used to replace an older version with a different part number?
A: It depends. Some revisions are backward compatible, but you should verify hardware compatibility and firmware version alignment with Honeywell documentation or technical support. -
Q: How is grounding handled for this module in field installation?
A: The module’s field side should be properly grounded to minimize electrical noise and prevent ground loops. Grounding must follow Honeywell’s DCS grounding guidelines. -
Q: What’s the correct procedure to replace this card in a live system?
A: First, place the associated control loop in manual mode or bypass, then extract the card carefully while the system is powered. Insert the replacement and allow it to reinitialize on the backplane. -
Q: Does the card store any logic or parameters on its own?
A: No, the control card acts as an execution unité. All logic and configuration parameters reside in the central controller or system database, which loads settings onto the module at runtime.
Related Modèles (Same Series or Functionality)
| Modèle Number | Description |
|---|---|
| 05701-A-0285 | Dual Channel Control Card |
| 05701-A-0482 | Analog Output Module |
| 05701-A-0300 | Input Multiplexer Card |
| 05701-A-0405 | Digital Output Relay Module |
| 05701-A-0420 | Redundant Control Processor Interface Card |
| 05701-A-0284 | Single Channel Logic Execution Module |
Popular Honeywell Modèles (Same Marque)
| Modèle Number | Type | Functionality |
|---|---|---|
| CC-PCF901 | Field Control Processor | Primary controller in C300 systems |
| 51304477-100 | Analog Output Card | Provides analog signal control (4–20 mA) |
| 51454416-100 | Redundant Power Supply | Power supply module with redundancy |
| CC-TDIL01 | Digital Input Module | Collects discrete input signals (16-ch) |
| CC-PAIH01 | Analog Input Module | High-speed analog data acquisition |
| TC-PRR021 | Prsuribus Interface Module | Enables communication with fieldbus networks |
