Overview

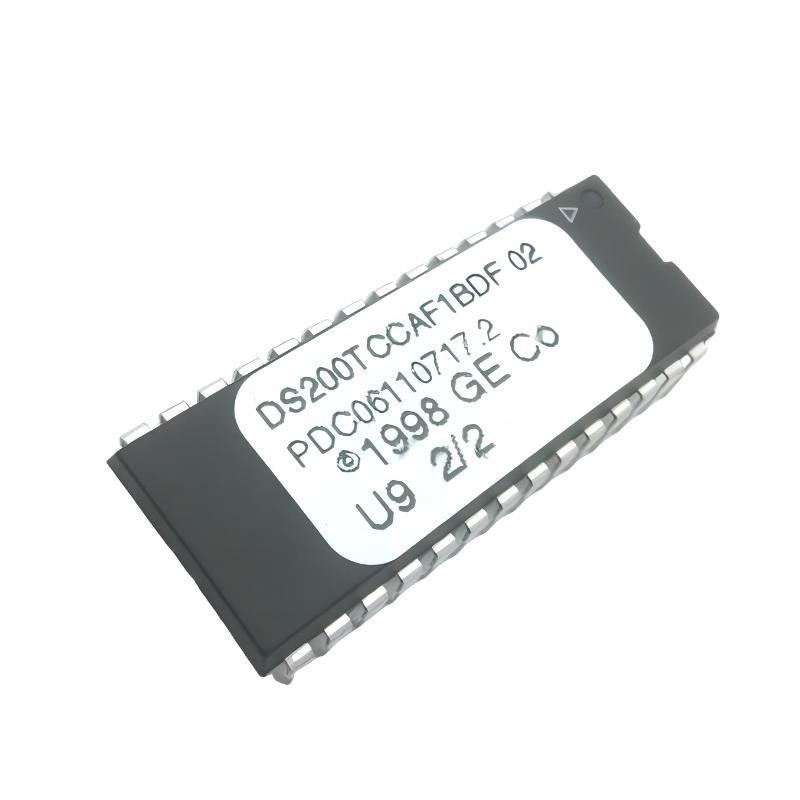

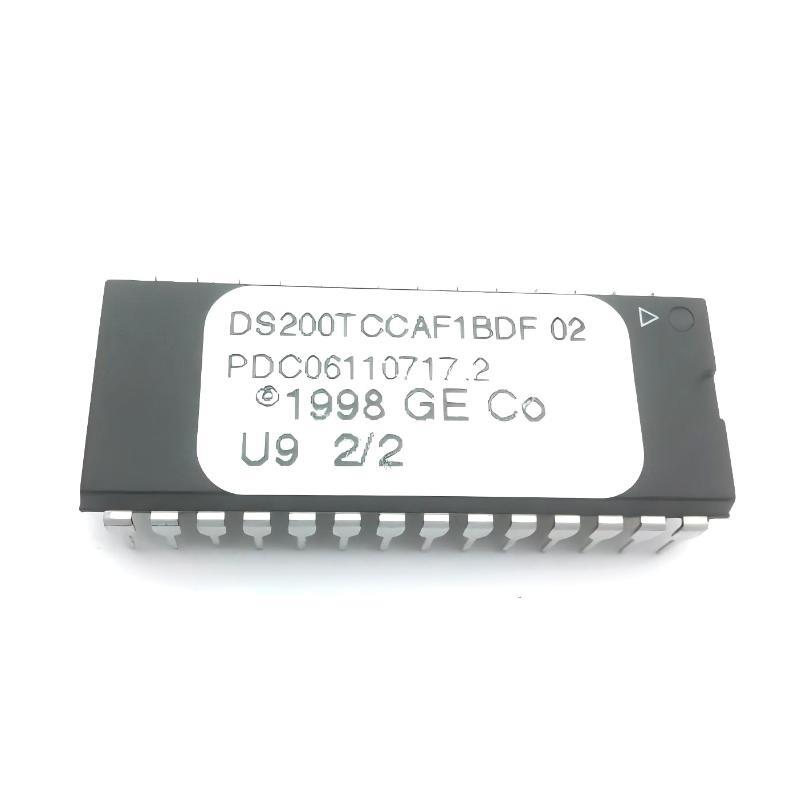

The DS200TCCAF1BDF is an industrial-grade control and conditioning interface module designed for GE Mark V and Mark VIe systems. It functions as a precision signal conditioning board, ensuring reliable voltage and current feedback processing, while maintaining communication integrity with the central processor. This module is particularly valued in high-reliability environments where precise control and monitoring sur power electronics is critical.
Technical Specifications
| Parameter | Description |
|---|---|
| Module Type | Control & Étating Interface |
| System Compatibility | GE Mark V / Mark VIe Systems |
| Primary Function | Signal conditioning for voltage/current inputs, communication to main processor |
| Input Channels | Analog voltage/current, digital logic signals |
| Output Channels | Étated analog/digital signals, feedback to controller |
| Protection | Overvoltage, undervoltage, and isolation safeguards |
| Power Requirement | +5 VDC logic supply via rack backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Dimensions | 320 × 140 × 35 mm |
| Poids | approx. 1.1 kg |
| Construction | Multilayer PCB with reinforced isolation paths |
Applications
-
Voltage and current monitoring for industrial drives
-
Motor control systems requiring accurate feedback loops
-
Turbine auxiliary power monitoring
-
Rectifier and inverter control systems
-
High-reliability process control systems
-
Safety interlocks in critical industrial equipment
Advantages
-
Accurate signal conditioning reduces measurement errors
-
Isolation between high-voltage inputs and control logic
-
Supports multiple redundant feedback loops
-
Robust against electrical noise in industrial environments
-
Easy integration into GE drive racks
-
Reliable long-term performance under high-load conditions
