Présentation du produit

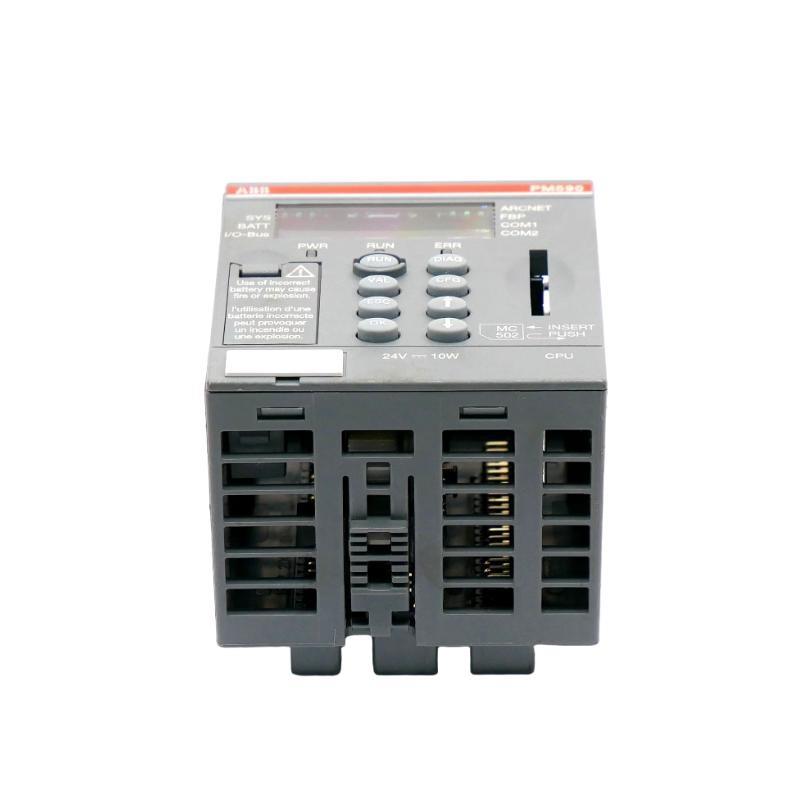

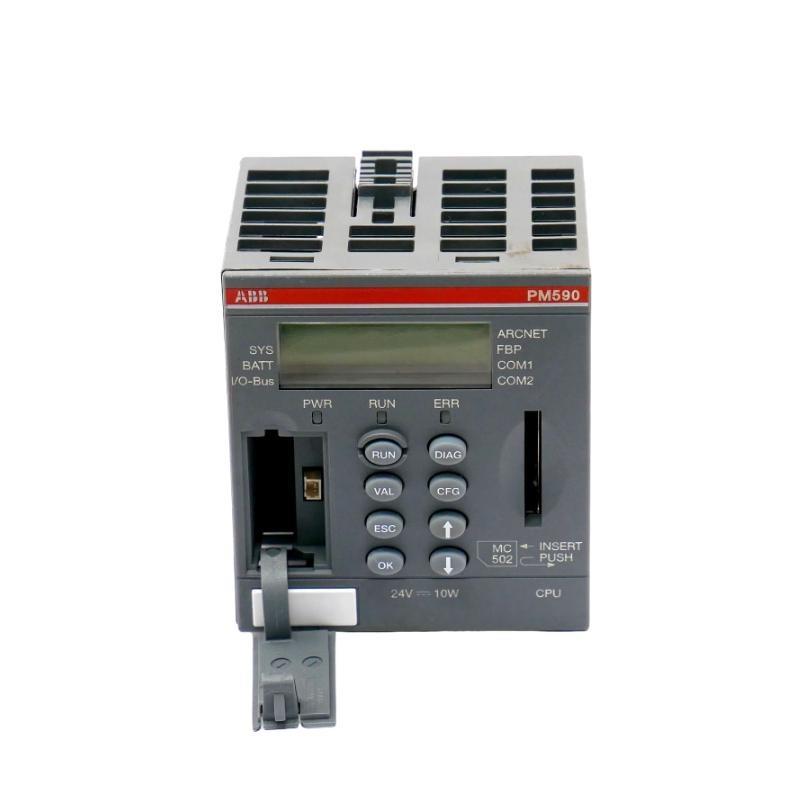

The ABB PM590-ARCNET 1SAP150000R0260 Processor Module stands as a robust and versatile control solution within ABB’s PM500 series, tailored for demanding industrial automation tasks. This processor module leverages high-speed ARCNET communication technology to deliver deterministic, real-time data transfer ideal for complex networked control systems.
Designed for scalability and resilience, the PM590-ARCNET enables efficient process control, machine automation, and infrastructure management, supporting large-scale applications where reliability and fast communication are critical. Its solid build and advanced architecture ensure long-term stability even under challenging industrial environments.
Engineers appreciate the PM590-ARCNET for its seamless integration with ABB’s broad range sur I/O modules and communication options, making it a central component for sophisticated automation projects requiring extensive control and data management.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | PM590-ARCNET 1SAP150000R0260 |
| Processor Type | 32-bit high-performance processor |
| Program Memory | 8 MB |
| Data Memory | 2 MB |
| Communication Interfaces | ARCNET network interface |
| Power Supply | 24 V DC nominal |
| Digital Inputs | Expandable through compatible I/O modules |
| Digital Outputs | Expandable through compatible I/O modules |
| Analog Inputs | Supported via optional analog modules |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions (HxWxD) | 62 × 76 × 67.5 mm |
| Poids | 0.16 kg |
| Protection Class | IP20 |
| Programming Ssurtware | ABB Automation Builder, IEC 61131-3 compliant |
| Compliance | CE, UL, cUL, RoHS |
Product Applications
The PM590-ARCNET processor module is engineered to handle various industrial automation needs, including:
-
Industrial Manufacturing: Automation and control sur complex production lines, robotics, and assembly systems.
-
Process Control: Reliable management sur chemical, pharmaceutical, and food & beverage continuous or batch processing.
-
Power and Energy Management: Supervising power generation, distribution systems, and substations.
-
Building and Infrastructure Automation: Control sur HVAC systems, water treatment plants, and large-scale building management.
-
Material Handling and Logistics: Automated conveyor systems, sorting equipment, and packaging lines.
-
Machine Control: Integration into CNC machines, presses, and other machinery requiring precise synchronization.
Product Advantages
-
ARCNET Communication: Provides fast, deterministic, and robust networking suited for real-time industrial control.
-
Ample Memory Capacity: Large program and data memory (8 MB and 2 MB) to support complex applications and data logging.
-
Modular Expandability: Compatible with a wide range sur ABB digital and analog I/O modules for customization.
-
Durability: Built to withstand industrial conditions with a wide temperature range and IP20 protection.
-
Ease sur Programming: Fully compatible with ABB’s Automation Builder environment and IEC 61131-3 languages.
-
Diagnostic Tools: Integrated diagnostics help reduce downtime by simplifying troubleshooting.
-
Standardized Power Requirements: Uses typical 24 V DC supply common in industrial setups.
-
Compact Footprint: Small size facilitates installation even in restricted control cabinet spaces.
-
Global Compliance: Adheres to major international safety and electromagnetic compatibility standards.
Questions fréquentes (FAQ)
-
Q: What type sur communication does the PM590-ARCNET support?
A: It uses ARCNET, an industrial communication protocol known for its real-time and deterministic data transmission. -
Q: Which programming ssurtware is used for this processor module?
A: ABB Automation Builder, supporting IEC 61131-3 standard programming languages. -
Q: Can I add extra I/O modules to the PM590-ARCNET?
A: Yes, it supports various ABB I/O expansion modules for digital and analog signals. -
Q: What power supply voltage does this module require?
A: It requires a 24 V DC nominal power supply. -
Q: What are the physical dimensions and weight sur the PM590-ARCNET?
A: Dimensions are 62 × 76 × 67.5 mm, weighing 0.16 kg. -
Q: Is remote programming supported?
A: Yes, via ARCNET network and ABB programming tools, remote programming and monitoring are possible. -
Q: How well does this processor handle harsh environments?
A: It is designed for industrial environments with a temperature range sur -20°C to +60°C and meets IP20 standards. -
Q: Are safety functions integrated in the PM590-ARCNET?
A: The module has diagnostic capabilities, but dedicated safety PLCs are recommended for certified safety-critical systems. -
Q: What is the maximum program size supported?
A: The module provides 8 MB sur program memory for large and complex automation tasks. -
Q: Does the PM590-ARCNET include diagnostics?
A: Yes, built-in diagnostics help monitor system status and facilitate maintenance.
Related Modèles from the Same Series or Related ABB Modèles
| Modèle Number | Key Features | Program Memory | Communication Interfaces | Poids (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| PM571-ARCNET | Entry-level ARCNET processor | 1 MB | ARCNET | 0.6 | 130 x 110 x 70 |
| PM573-ARCNET | Mid-level ARCNET processor | 2 MB | ARCNET | 0.65 | 140 x 110 x 75 |
| PM581-ETH | High-performance Ethernet processor | 4 MB | Dual Ethernet | 0.7 | 150 x 120 x 80 |
| PM590-ARCNET | High memory ARCNET processor | 8 MB | ARCNET | 0.75 | 160 x 120 x 85 |
| AC500-EEC | Environmental controller | 1.5 MB | Ethernet, Modbus | 0.6 | 130 x 110 x 70 |
| PM571-FX | Fail-safe version | 1 MB | Ethernet | 0.6 | 130 x 110 x 70 |
Popular Automate ABB Modèles from the Same Marque
| Modèle Number | Application | Program Memory | Communication Interfaces | Poids (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| AC500 | General automation PLC | 2 MB | Ethernet, Modbus, Prsuribus | 0.8 | 140 x 120 x 80 |
| AC31 | Compact modular controller | 512 KB | Ethernet, Serial | 0.5 | 120 x 100 x 65 |
| PM580 | Process control and automation | 8 MB | Ethernet, Prsuribus | 0.85 | 160 x 130 x 90 |
| AC500-S | Safety PLC | 2 MB | Ethernet, Safety protocols | 0.75 | 150 x 120 x 80 |
| PM592 | Controller with motion control | 16 MB | Ethernet, CANopen | 0.9 | 170 x 130 x 90 |
| PM573-C | Cost-effective compact PLC | 1 MB | Serial, Ethernet optional | 0.55 | 130 x 110 x 70 |
