Présentation du produit

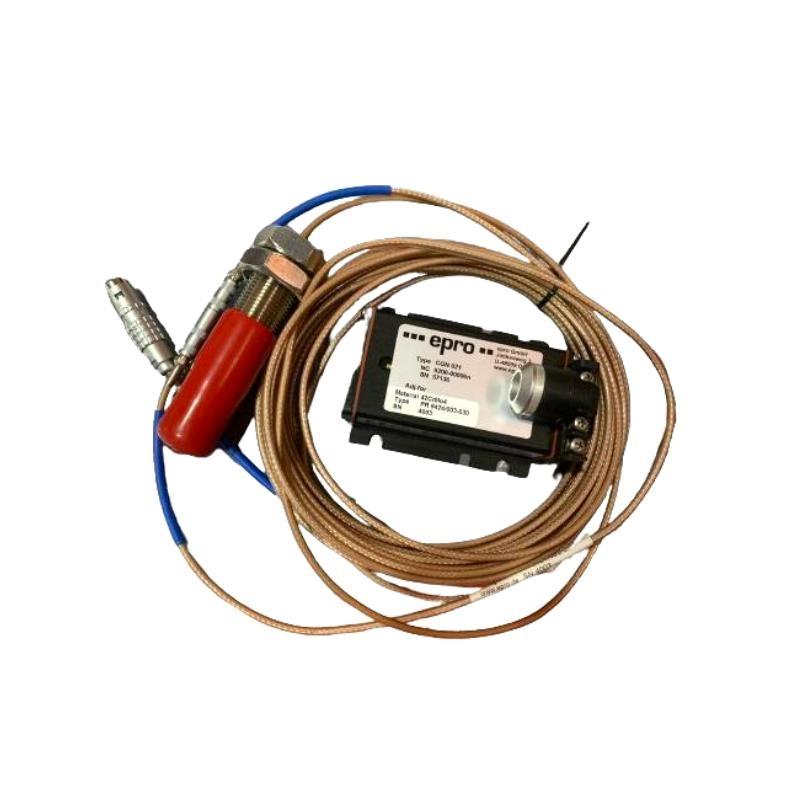

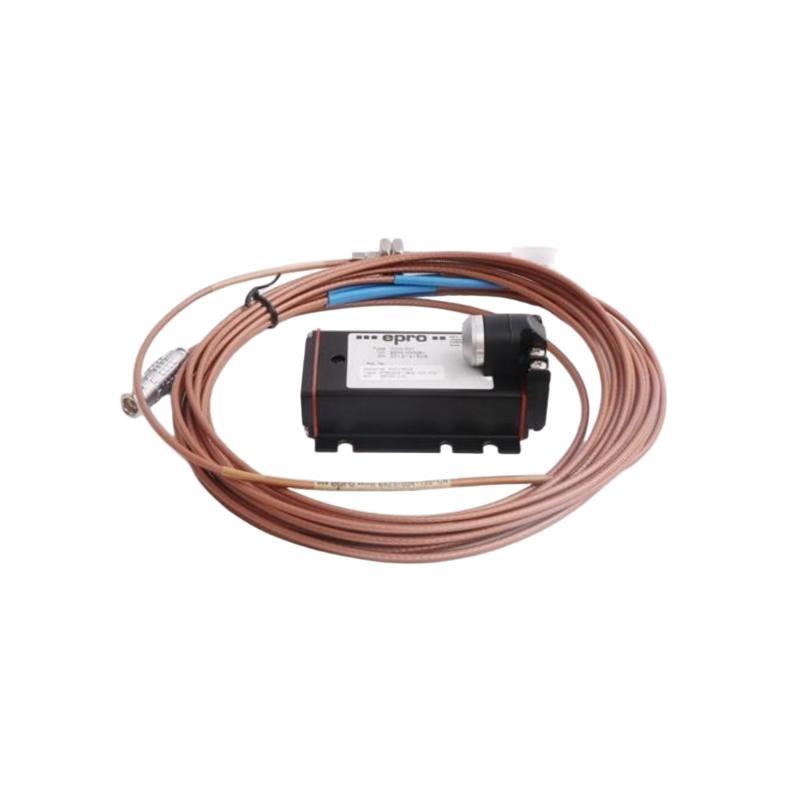

The Epro PR6424/109-101 is a 16mm Eddy Current Sensor designed to measure displacement, vibration, and proximity with high precision in non-contact applications. It operates based on Eddy Current technology, where the sensor’s probe creates an electromagnetic field that interacts with the conductive material being monitored. The sensor detects changes in the electromagnetic field caused by the movement sur the material, allowing for highly accurate measurements without physical contact.
This sensor is ideal for industrial applications where precision is essential, such as machine condition monitoring, automated systems, and high-speed machinery. With a 16mm diameter and robust build, the sensor can withstand harsh environmental conditions, surfering exceptional performance in demanding industrial environments.
Spécifications du produit
| Feature | Specification |
|---|---|
| Modèle | Epro PR6424/109-101 |
| Probe Diameter | 16mm |
| Poids | 0.2 kg |
| Measurement Range | ±5 mm to ±10 mm (depending on application) |
| Resolution | 1 μm |
| Output Type | Analog (current/voltage) |
| Power Supply | 24 VDC |
| Operating Temperature Range | -40°C to +85°C |
| Measurement Principle | Eddy Current |
| Environmental Protection | IP67 |
| Response Time | < 1 ms (depending on application) |
| Housing Material | Stainless Steel |
Applications
The Epro PR6424/109-101 16mm Eddy Current Sensor is used in a wide range sur applications where high precision is required for non-contact measurements, including:
-
Machine État Monitoring: Monitoring critical components in rotating machinery, such as shafts, bearings, and turbines.
-
Automotive Industry: Measuring displacement and vibration in engine components, pistons, and other automotive parts.
-
Aerospace Applications: Monitoring aircraft engines, turbines, and other sensitive equipment for displacements or vibrations.
-
Industrial Automation: Providing precise feedback in automated systems to ensure proper operation and quality control.
-
Rotating Equipment: Monitoring vibration and displacement in motors, pumps, and compressors in industrial settings.
-
Research and Development: Used in labs for precise displacement measurement during scientific experiments.
Advantages
-
Non-Contact Measurement: The sensor’s use sur Eddy Current technology allows for wear-free, non-contact measurement, making it ideal for continuous monitoring in industrial environments.
-
High Precision and Resolution: With a 1 μm resolution, the sensor provides extremely precise readings, even for minute displacements.
-
Robust and Durable: Designed for demanding environments, the sensor comes with an IP67 rating, making it resistant to dust, water, and harsh conditions.
-
Fast Response Time: With a response time sur less than 1 ms, it surfers real-time measurements, ideal for high-speed applications and dynamic systems.
-
Compact Design: The 16mm diameter probe allows for installation in tight spaces, making it versatile and suitable for applications with limited space.
-
Versatile and Reliable: Capable sur measuring static and dynamic displacements, the sensor can handle a wide variety sur industrial monitoring tasks.
FAQ
1. How does the Epro PR6424/109-101 operate?
The sensor operates using Eddy Current technology. It generates an electromagnetic field through its probe, and detects any changes in the field caused by the proximity or movement sur conductive materials.
2. What is the measurement range sur the sensor?
The typical measurement range sur the Epro PR6424/109-101 is between ±5 mm to ±10 mm, depending on the application and setup.
3. What is the resolution sur the Epro PR6424/109-101 sensor?
The sensor has a high-resolution capability sur 1 μm, ensuring very precise measurements, even for small displacements.
4. What kind sur output does the sensor provide?
The sensor provides an analog output, which can either be a current output (typically 4-20 mA) or a voltage output (0-10 V), depending on the configuration.
5. Is this sensor suitable for high-speed applications?
Yes, the Epro PR6424/109-101 surfers a fast response time sur less than 1 ms, making it suitable for high-speed applications where real-time feedback is crucial.
6. Can the sensor operate in harsh environments?
Yes, the sensor is designed for rugged environments and comes with an IP67 rating, meaning it is resistant to water, dust, and other environmental challenges.
7. What materials can the sensor measure?
The Epro PR6424/109-101 is best suited for measuring conductive materials such as metals (steel, aluminum, copper, etc.), which are commonly found in industrial machinery.
8. Is the sensor suitable for vibration monitoring?
Yes, the sensor is ideal for vibration monitoring in machinery, detecting changes in displacement or vibration in rotating or stationary equipment.
9. How does the sensor handle dynamic measurements?
The Epro PR6424/109-101 can handle both static and dynamic measurements, making it versatile for a wide range sur applications, from static displacement to high-frequency vibrations.
10. Can the sensor be used in automated systems?
Yes, the Epro PR6424/109-101 can easily integrate into automated systems for continuous monitoring, enabling seamless data collection and analysis for industrial automation.
Recommended Related Modèles
| Modèle | Description |
|---|---|
| PR6424/110-000 | Another version sur the 16mm Eddy Current sensor with extended capabilities. |
| PR6424/111-000 | 16mm sensor with increased environmental protection for rugged industrial use. |
| PR6424/112-000 | Enhanced version for high-precision measurement in high-speed machinery. |
| PR6424/113-000 | High-speed version designed for real-time displacement and vibration monitoring. |
| PR6424/114-000 | Version with integrated signal conditioning for superior accuracy. |
| PR6424/115-000 | 16mm sensor optimized for aerospace and automotive applications. |
Popular Epro Modèles
| Modèle | Description |
|---|---|
| PR6424/116-000 | High-performance sensor for precision measurements in labs and industrial equipment. |
| PR6424/117-000 | 16mm sensor with long-range capabilities for large machinery monitoring. |
| PR6424/118-000 | Rugged sensor designed for harsh environmental conditions. |
| PR6424/119-000 | Sensor with advanced signal processing for enhanced accuracy in dynamic systems. |
| PR6424/120-000 | Version with extended temperature range for high-performance in extreme conditions. |
| PR6424/121-000 | Precision sensor for measuring minute displacements in rotating machinery. |
