Présentation du produit

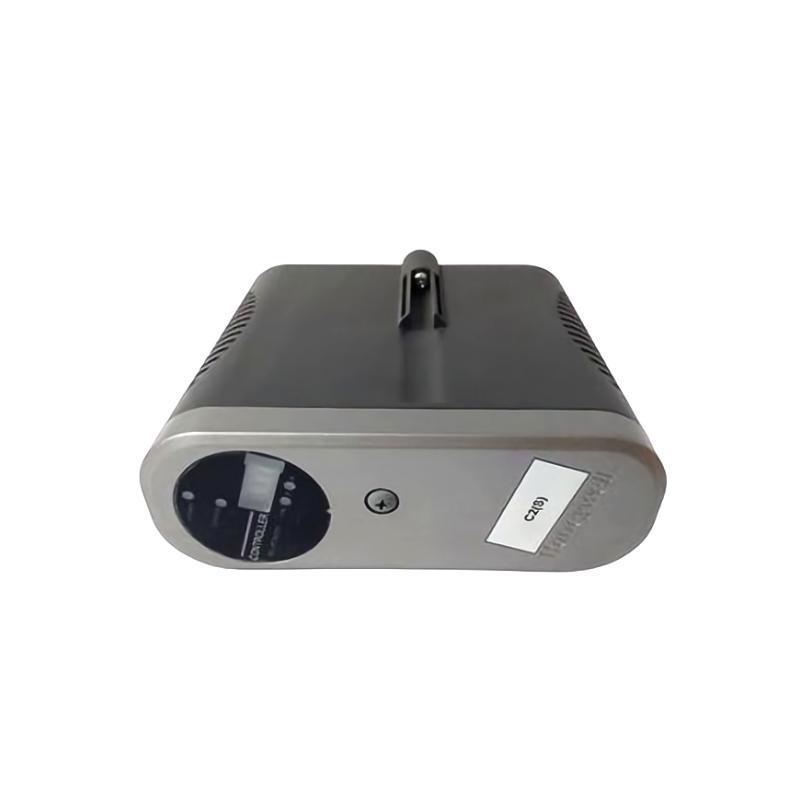

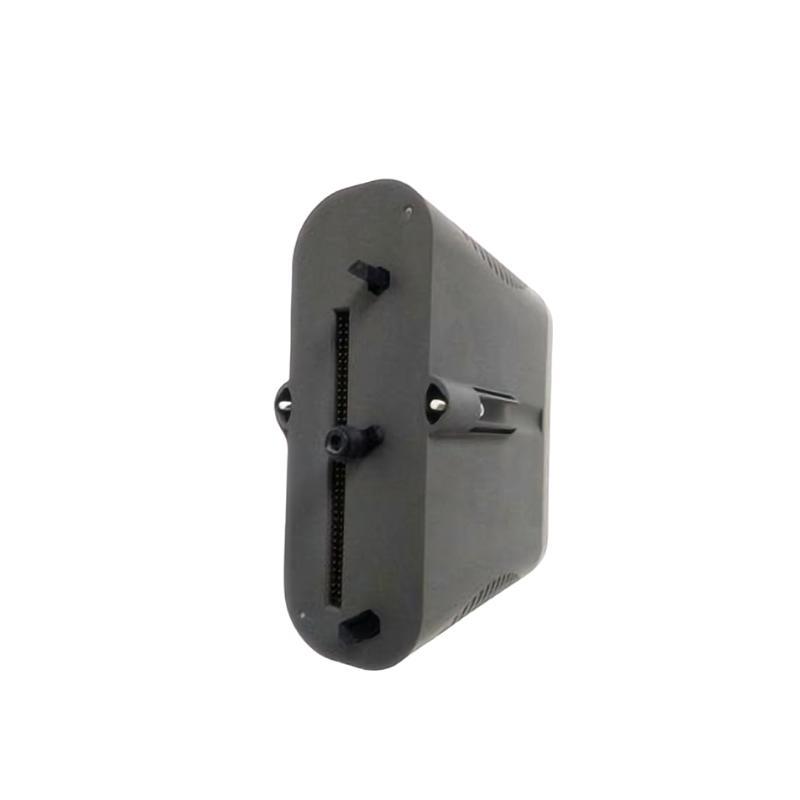

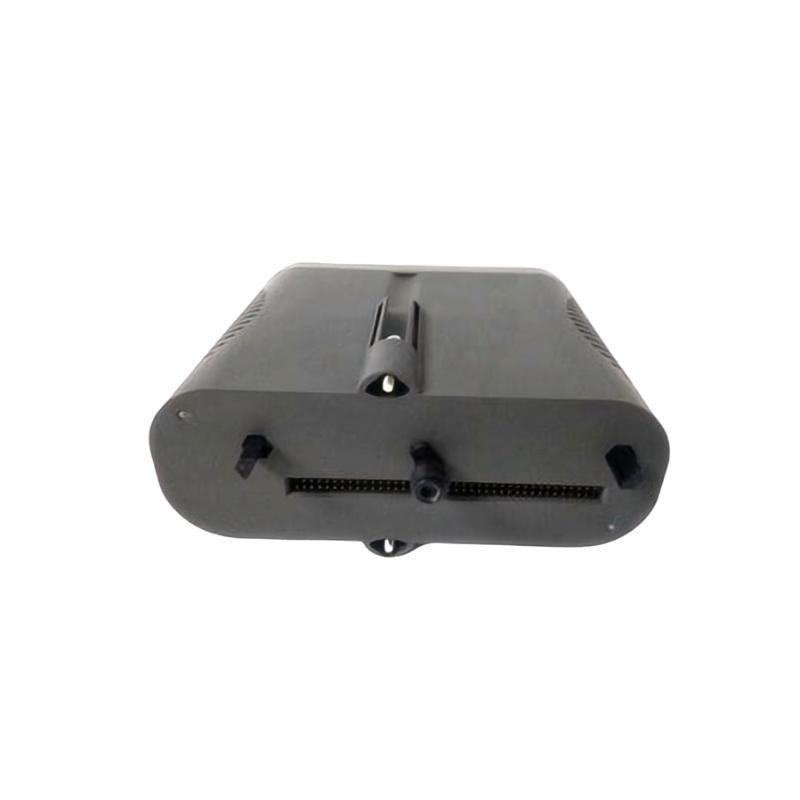

The Honeywell 8C-PCNT03 (Référence: 51454238-175) is a next-generation Series C Controller Module, purpose-built for Honeywell’s Experion Process Knowledge System (PKS) and C300 control environments. Designed for high-performance, deterministic process control, this controller module provides the brain sur the C300 controller architecture, enabling real-time execution sur control strategies, logic processing, data handling, and communication with the system and field devices.
Compared to previous versions such as the 8C-PCNT01 and 8C-PCNT02, the 8C-PCNT03 surfers enhanced processing speed, optimized memory management, and improved reliability for mission-critical operations in harsh industrial environments. This controller is ideal for applications requiring high availability, redundancy, and long-term operational stability.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 8C-PCNT03 |
| Référence | 51454238-175 |
| Fabricant | Honeywell International Inc. |
| System Compatibility | Honeywell Experion PKS / C300 Systems |
| Processor | High-speed embedded processor |
| Memory | Non-volatile flash with ECC and secure boot |
| Control Execution | Sub-millisecond loop execution for critical control |
| Redundancy | Full controller redundancy supported |
| Communication Protocols | FTE (Fault Tolerant Ethernet), HART, Modbus, OPC |
| Diagnostics | Built-in self-diagnostics, LED status indicators |
| I/O Integration | Supports all Series C I/O modules |
| Hot Swap Capability | Yes |
| Mounting Method | DIN rail via Series C carrier |
| Power Supply Voltage | 24 VDC via backplane |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Dimensions (W × H × D) | 51 x 267 x 178 mm |
| Poids | 0.5 kg |
| Certifications | CE, UL, CSA, ATEX, IECEx, RoHS compliant |
Product Applications
The Honeywell 8C-PCNT03 controller module is widely used in mission-critical industrial process environments, including:
-
Oil & Gas Extraction and Refining
Supervises real-time control sur wellheads, pumps, and safety interlocks in upstream, midstream, and downstream systems. -
Petrochemical Plants
Executes continuous and batch control strategies for distillation, cracking, polymerization, and blend operations. -
Power Generation Facilities
Integrates tightly with turbine management systems, boiler control unités, and auxiliary load handling. -
Pharmaceutical & Life Sciences
Delivers validated, regulatory-compliant control for cleanroom environments and precision dosing systems. -
Food & Beverage Processing
Manages batch recipe execution, temperature control, and filling/packaging systems. -
Water Treatment Facilities
Regulates filtration, chlorination, pumping, and supervisory control in SCADA-integrated environments.
Product Advantages
-
High-Speed Processing
Optimized for fast, deterministic loop execution, supporting time-sensitive applications. -
Redundancy Enabled
Designed with full dual-module redundancy and auto-failover capability, ensuring uninterrupted operation. -
Modular Scalability
Seamlessly expands with additional I/O modules to accommodate future plant needs. -
Robust Industrial Design
Operates reliably in wide temperature and humidity ranges, suitable for extreme industrial conditions. -
Advanced Communication
Integrated support for FTE, HART, and Modbus protocols for smooth interaction with control layers and field devices. -
Built-In Diagnostics
Real-time monitoring sur controller status helps identify and resolve issues proactively. -
Ease sur Maintenance
Hot-swappable and configurable through standard Honeywell engineering tools with no programming downtime. -
Standards Compliance
Fully certified for global deployment in hazardous areas and high-risk process control applications.
Questions fréquentes (FAQ)
-
What is the main function sur the 8C-PCNT03?
It serves as the primary control processor for executing logic, control loops, and system coordination in a C300 system. -
Is it backward-compatible with older Honeywell systems?
Yes, it supports integration with legacy I/O modules and is compatible with earlier C300 infrastructure. -
Does it support redundancy?
Yes, it can be deployed with another 8C-PCNT03 in a fully redundant configuration. -
How is it mounted?
It is DIN-rail mounted via a Series C carrier baseplate. -
Can the module be replaced while the system is running?
Yes, it is hot-swappable and supports online replacement in redundant setups. -
What communication networks does it support?
Fault Tolerant Ethernet (FTE) is the primary network, along with HART and Modbus via integrated field interfaces. -
How is the controller configured?
Configuration is handled using Honeywell’s Control Builder and integrated with Experion engineering tools. -
What kind sur diagnostics are provided?
The module includes health monitoring, status LEDs, and ssurtware diagnostics within the Experion system. -
Is the controller certified for hazardous environments?
Yes, it carries ATEX, IECEx, UL, CSA, and CE certifications. -
What’s the advantage over PCNT01 and PCNT02?
Improved processing power, faster memory access, broader integration capabilities, and better system throughput.
Recommended Related Modèles (Same Series / Functionally Similar)
| Modèle | Description | Catégorie | Key Feature |
|---|---|---|---|
| 8C-PCNT01 | Series C Controller (First Generation) | Controller | Legacy controller for C300 systems |
| 8C-PCNT02 | Second-gen Series C Controller | Controller | Improved speed and memory over PCNT01 |
| 8C-PAZMA1 | Mixed Signal Output Module | I/O Module | Analog and digital output combo |
| 8C-TAOX61 | Analog Output Module | I/O Module | High-precision analog signal output |
| 8C-TAIX61 | Analog Input Module | I/O Module | 16-bit resolution analog inputs |
| 8C-PDILA1 | Redundant Digital Input Module | I/O Module | Dual-channel digital inputs |
Popular Honeywell Modèles (High Demand Across Industries)
| Modèle | Description | Catégorie | Application |
|---|---|---|---|
| CC-PAIH01 | HART-enabled Analog Input Module | Analog Input | 16-channel AI for accurate field readings |
| CC-PAOH01 | HART-enabled Analog Output Module | Analog Output | Smooth analog signal control to actuators |
| FC-TSDI-1624 | 16-Channel Digital Input Module | Digital Input | TDC-compatible discrete input module |
| MU-TD0D12 | 12-Channel Digital Output Module | Digital Output | Ideal for driving relays and indicators |
| 51304584-200 | I/O Termination Assembly | I/O Accessory | For field wiring and signal routing |
| CC-PCNT01 | Standard C300 Controller Processor | Controller | Core control engine in Experion systems |
