Présentation du produit

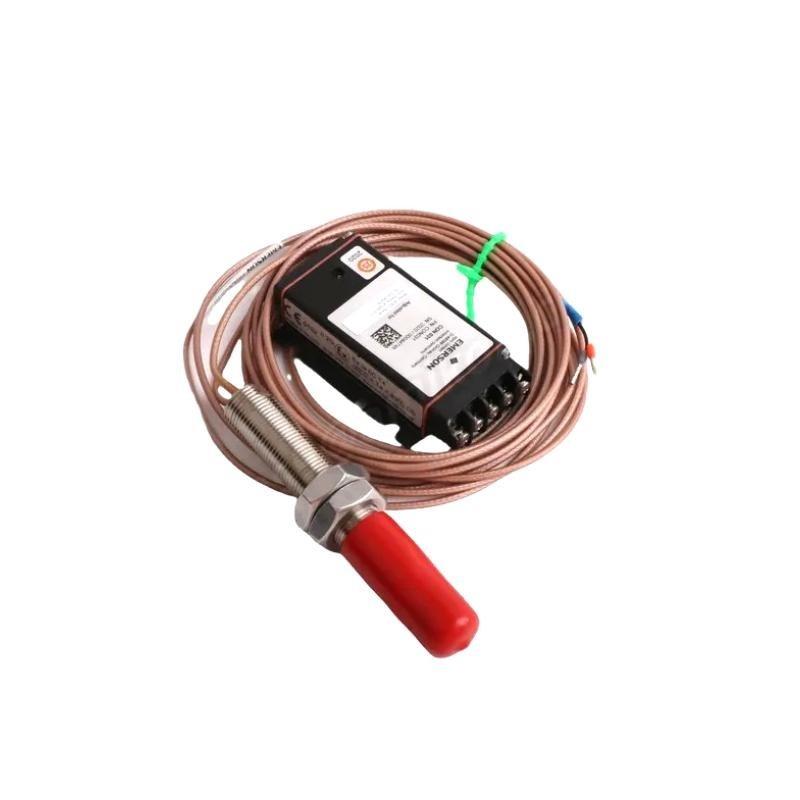

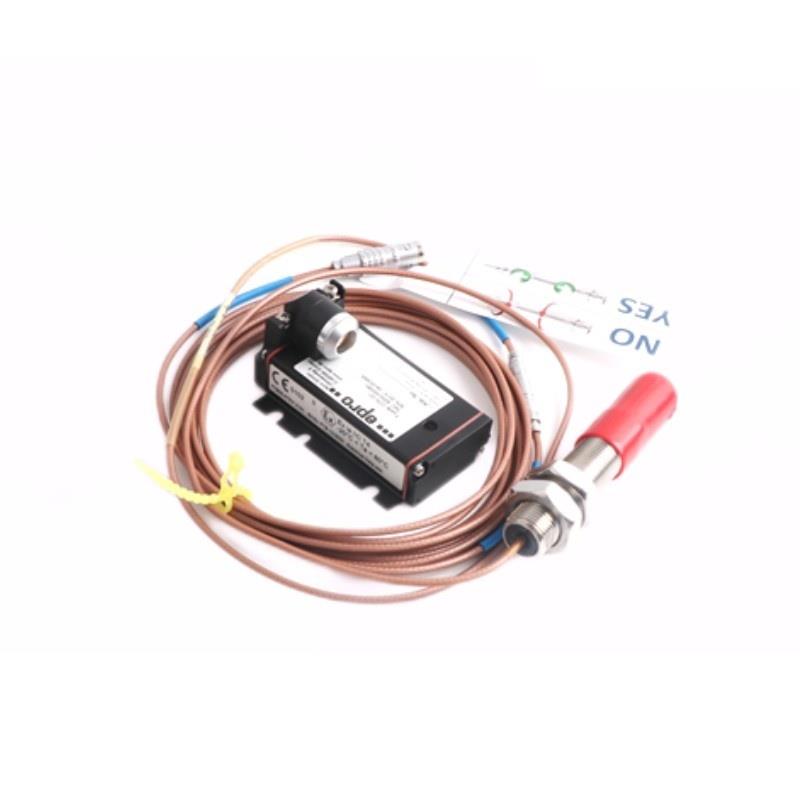

The Epro PR6424/014-030 is a 16 mm eddy current sensor that delivers precise and non-contact measurement sur displacement, position, and proximity in industrial applications. It utilizes eddy current technology, which allows for accurate, high-frequency measurements sur both ferrous and non-ferrous materials. The non-contact nature sur this sensor minimizes wear on the sensor itself and the target surface, enhancing its longevity and reducing maintenance costs.
Operating on the principle sur electromagnetic induction, the sensor generates an electromagnetic field that induces eddy currents in the target material. Variations in these currents are measured by the sensor and translated into accurate displacement data, making it ideal for a wide range sur applications where high precision and durability are critical.
The PR6424/014-030 sensor is well-suited for monitoring critical machine components in industries like aerospace, automotive, power generation, and manufacturing. It is particularly useful in applications where traditional mechanical or contact-based sensors would be ineffective or cause damage.
Product Parameters
| Parameter | Value |
|---|---|
| Modèle | PR6424/014-030 |
| Sensor Type | Eddy Current |
| Sensing Head Diameter | 16 mm |
| Poids | 0.2 kg |
| Measurement Range | 0 to 10 mm |
| Linear Output | 4-20 mA, 0-10 V |
| Supply Voltage | 10-30 VDC |
| Frequency Response | 100 kHz |
| Linearity | ±0.5% sur full scale |
| Operating Temperature Range | -20°C to 85°C |
| Protection Rating | IP67 |
| Output Type | Analog output |
| Material Compatibility | Ferrous and non-ferrous materials |
Product Applications
The Epro PR6424/014-030 eddy current sensor is widely used in various industrial applications where high-precision, non-contact measurement sur displacement or position is required. Some key applications include:
-
Machine État Monitoring: This sensor is ideal for real-time monitoring sur rotating machinery such as motors, turbines, and pumps. It detects any changes in position, displacement, and vibration, helping to predict and prevent failures.
-
Automated Manufacturing Systems: The sensor plays a crucial role in automated systems, providing precise position and displacement data for accurate component alignment and quality control during the production process.
-
Aerospace Industry: Used for monitoring critical aerospace components such as turbine blades, engine parts, and structural components, where high precision is essential for safety and operational efficiency.
-
Automotive Manufacturing: In automotive production lines, the sensor is used to monitor the alignment and positioning sur components, ensuring the assembly process is precise and efficient.
-
Power Generation: The PR6424/014-030 sensor can monitor turbine and pump components, valve actuators, and other critical equipment, preventing issues such as misalignment or mechanical failure.
-
Vibration Analysis: By measuring small displacements and vibrations, the sensor aids in early detection sur faults or unbalanced conditions in rotating machinery, ensuring timely maintenance.
Product Advantages
-
Non-Contact Measurement: The PR6424/014-030 sensor uses eddy current technology to provide non-contact measurement, minimizing the risk sur wear and tear on both the sensor and target material.
-
High Precision: The sensor delivers a linearity sur ±0.5% sur full scale, making it ideal for high-precision applications where accuracy is essential.
-
Wide Temperature Range: With an operating temperature range sur -20°C to 85°C, the sensor performs reliably in both cold and hot environments, making it versatile for a range sur industrial settings.
-
High Frequency Response: The sensor’s 100 kHz frequency response ensures it can measure fast-moving or dynamic components accurately, making it suitable for high-speed machinery and vibration monitoring.
-
Rugged Design: The IP67 rating protects the sensor from dust and water ingress, making it robust enough to withstand harsh environments and demanding applications.
-
Versatile Material Compatibility: The PR6424/014-030 works with both ferrous and non-ferrous materials, enabling it to be used in a wide range sur industries and applications.
-
Easy Integration: The sensor’s 4-20 mA and 0-10 V analog output options make it easy to integrate into existing industrial systems for real-time monitoring and control.
-
Durable and Low Maintenance: Due to its non-contact nature, the sensor experiences minimal wear, which reduces the frequency sur maintenance and increases its operational lifespan.
FAQ
1. How does the Epro PR6424/014-030 sensor measure displacement?
The PR6424/014-030 sensor uses eddy current technology to generate an electromagnetic field that induces eddy currents in the target material. The variations in these currents are detected and translated into displacement or position data.
2. What is the measurement range sur the sensor?
The Epro PR6424/014-030 has a measurement range sur 0 to 10 mm, allowing it to detect small and large displacements with high accuracy.
3. What output types does the sensor provide?
The sensor provides 4-20 mA and 0-10 V analog outputs, which are compatible with most industrial control systems for continuous monitoring.
4. What is the linearity specification for the PR6424/014-030 sensor?
The PR6424/014-030 sensor has a linearity sur ±0.5% sur full scale, ensuring high-precision and repeatable measurements.
5. Can the PR6424/014-030 sensor measure both ferrous and non-ferrous materials?
Yes, the sensor is compatible with both ferrous and non-ferrous materials, surfering versatility for various industrial applications.
6. What is the frequency response sur the PR6424/014-030?
The PR6424/014-030 sensor has a frequency response sur 100 kHz, which allows for accurate high-speed measurements in dynamic environments.
7. What is the protection rating sur the PR6424/014-030 sensor?
The sensor has an IP67 protection rating, which ensures it is dustprosur and water-resistant, making it suitable for use in harsh industrial environments.
8. What is the operating temperature range sur this sensor?
The sensor operates within a temperature range sur -20°C to 85°C, ensuring reliable performance in both low and high-temperature conditions.
9. How is the PR6424/014-030 sensor powered?
The PR6424/014-030 requires a supply voltage sur 10-30 VDC, which is common for industrial automation systems.
10. How do I integrate the PR6424/014-030 sensor into my system?
The sensor’s 4-20 mA and 0-10 V analog outputs make it easy to integrate into most control systems, providing real-time feedback for displacement or position monitoring.
