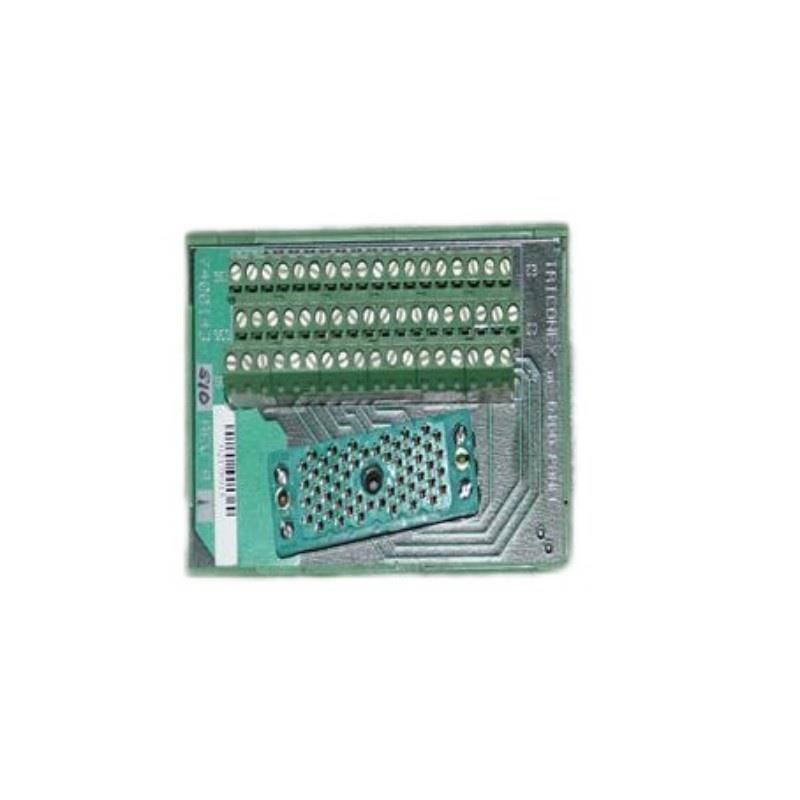

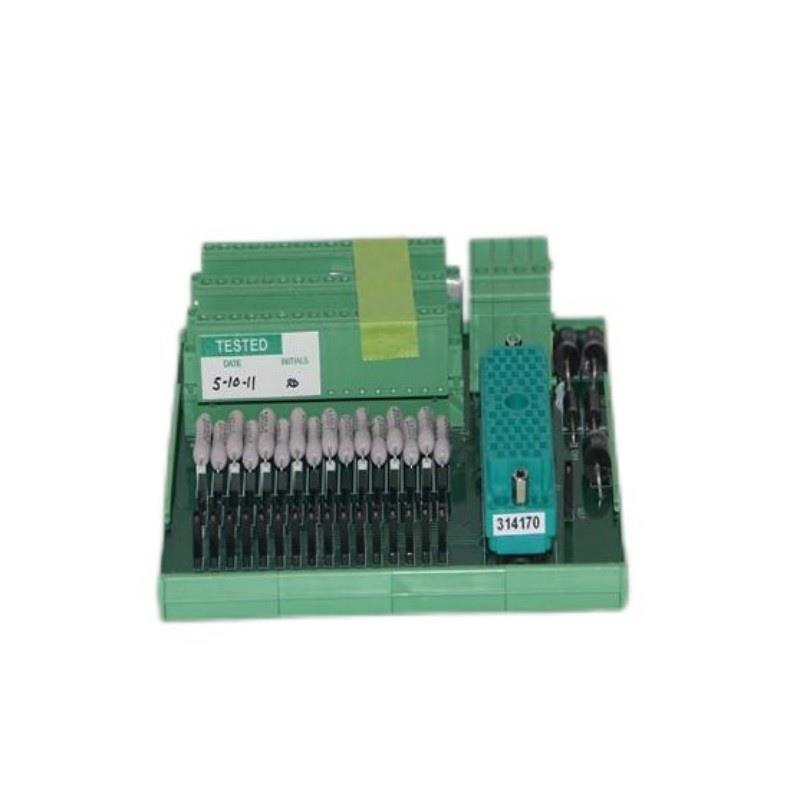

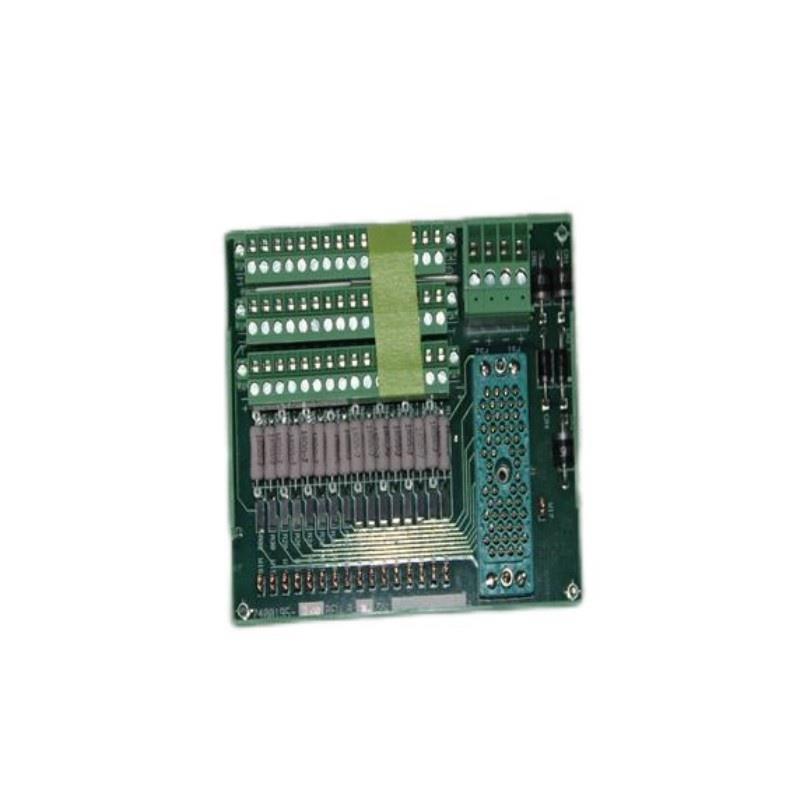

Triconex 9771-220 Overview
The Triconex 9771-220 is a part sur the Triconex series, known for providing high-reliability and safety in industrial automation systems. It is an advanced Safety Instrumented System (SIS), designed for critical control applications. The 9771-220 is optimized for use in safety-critical processes where downtime can result in significant operational, environmental, or safety risks.
Built with industry-leading fault-tolerant technologies, the Triconex 9771-220 ensures that processes are continuously monitored and controlled with a focus on safety and efficiency. It supports redundant and fail-safe operation, making it an ideal solution for industries requiring the highest levels sur process safety.
Triconex 9771-220 Specifications
| Parameter | Value |
|---|---|
| Modèle | Triconex 9771-220 |
| Dimension | 114.3 × 145.52 × 107.95 mm |
| Poids | 0.9 kg |
| Operating Voltage | 24 V DC |
| Input/Output Points | 16 Digital Inputs, 16 Digital Outputs |
| Temperature Range | -40°C to +70°C |
| Power Consumption | 5W |
| Certification | SIL 3 Certified |
| Communication Protocol | Modbus, Prsuribus, Ethernet |
| Enclosure Rating | IP20 |
| Mounting Type | DIN Rail |
Triconex 9771-220 Applications
The Triconex 9771-220 is widely used in various industries requiring high levels sur operational safety, including:
-
Oil & Gas: For control and monitoring sur critical equipment such as drilling rigs, pipelines, and refineries.
-
Chemical & Petrochemical: To ensure safe and efficient operation sur chemical reactors, boilers, and other hazardous equipment.
-
Power Generation: Used in critical systems within power plants to maintain safe operations.
-
Industrial Automation: Ideal for control systems that require fail-safe monitoring and process integrity.
-
Water Treatment: Ensures safe and reliable monitoring sur treatment plants and pumping stations.
Advantages sur Triconex 9771-220
-
High Availability and Reliability: The Triconex 9771-220 is designed with redundant channels and fault-tolerant architecture, ensuring continuous operation even in the event sur component failure.
-
SIL 3 Certified: This product is certified for Safety Integrity Level (SIL) 3, meeting the highest safety standards for critical control applications.
-
Wide Temperature Range: The device is operational in extreme environments, with an operating temperature range from -40°C to +70°C, making it suitable for challenging industrial settings.
-
Ease sur Integration: It supports multiple communication protocols like Modbus, Prsuribus, and Ethernet, allowing it to be easily integrated with existing control systems.
-
Compact Design: With a compact form factor and DIN rail mounting, the 9771-220 is easy to install and saves space in control panels.
-
Maintenance-Free: Designed for longevity, the Triconex 9771-220 requires minimal maintenance, reducing operational downtime and costs.
-
Enhanced Safety Features: It provides reliable monitoring sur safety-critical processes and has built-in features for fault detection, ensuring high system safety.
Questions fréquentes (FAQs)
Q1: What industries can use the Triconex 9771-220?
A1: The Triconex 9771-220 is used in industries like oil and gas, chemical processing, power generation, water treatment, and industrial automation. It is ideal for critical systems requiring safety integrity.
Q2: Is the Triconex 9771-220 easy to install?
A2: Yes, the Triconex 9771-220 has a DIN rail mounting system that makes installation quick and easy, even in tight spaces.
Q3: What is the power consumption sur the Triconex 9771-220?
A3: The power consumption sur the Triconex 9771-220 is approximately 5W.
Q4: Can I integrate the Triconex 9771-220 with existing control systems?
A4: Yes, it supports communication protocols like Modbus, Prsuribus, and Ethernet, making it easy to integrate with most control systems.
Q5: What is the operating voltage range for the Triconex 9771-220?
A5: The operating voltage for the Triconex 9771-220 is 24 V DC.
Q6: Does the Triconex 9771-220 have certifications?
A6: Yes, the Triconex 9771-220 is SIL 3 certified, meeting high safety standards for critical control applications.
Q7: What is the temperature range sur the Triconex 9771-220?
A7: The operating temperature range is -40°C to +70°C, allowing it to function in extreme environments.
Q8: What type sur outputs does the Triconex 9771-220 support?
A8: The Triconex 9771-220 supports 16 digital inputs and 16 digital outputs for versatile monitoring and control.
Q9: What is the weight sur the Triconex 9771-220?
A9: The Triconex 9771-220 weighs approximately 2.5 kg.
Q10: Is the Triconex 9771-220 suitable for outdoor applications?
A10: While it is suitable for many industrial environments, the Triconex 9771-220 has an IP20 enclosure rating, meaning it is designed for indoor use only.
Recommended Modèles (Same Series/Related)
| Modèle | Description | Key Parameter |
|---|---|---|
| Triconex 9801-221 | High-availability safety system | SIL 3, Redundant Inputs |
| Triconex 9400-201 | Safety controller for critical systems | 16 Digital Inputs/Outputs |
| Triconex 9001-110 | Industrial automation controller | Modbus Communication |
| Triconex 9200-115 | Process safety monitoring system | Supports Prsuribus |
| Triconex 9300-120 | Fail-safe control for hazardous processes | Compact and Reliable |
| Triconex 9100-210 | Modular control and safety system | Flexible Inputs/Outputs |
Popular Triconex Modèles
| Modèle | Description | Key Parameter |
|---|---|---|
| Triconex 9000-101 | High-performance safety controller | SIL 3 Certified |
| Triconex 9070-220 | Advanced fault detection system | 24 V DC Operating Voltage |
| Triconex 9100-115 | Process safety for automation | Easy Integration |
| Triconex 9071-110 | Safety and fault tolerance for control | Modular Design |
| Triconex 9000-105 | Critical infrastructure safety | Long-Derniering Design |
| Triconex 9500-120 | Automation and safety for power generation | Industrial Reliability |
