Présentation du produit

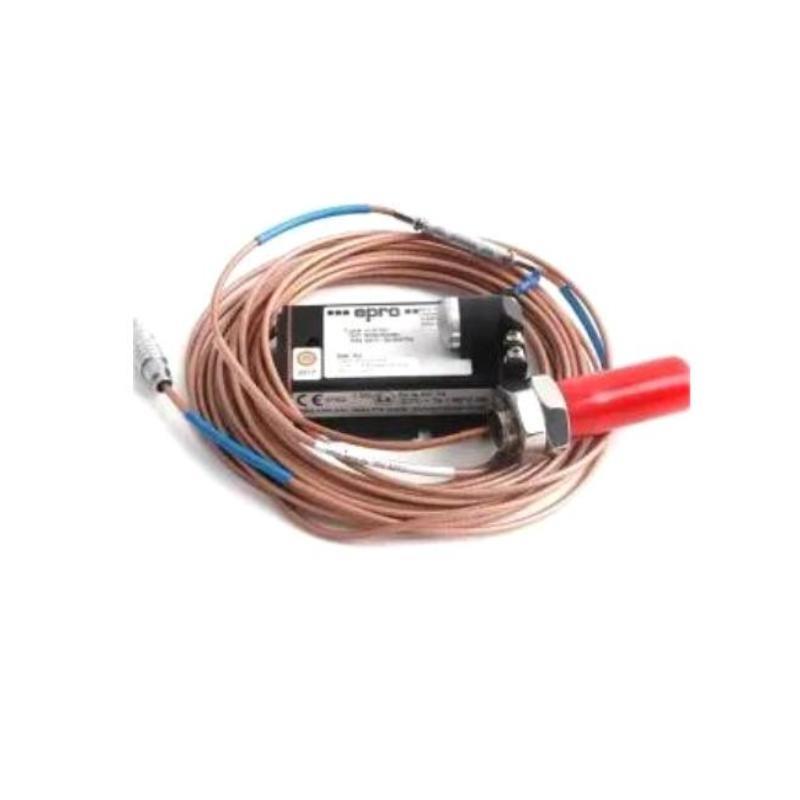

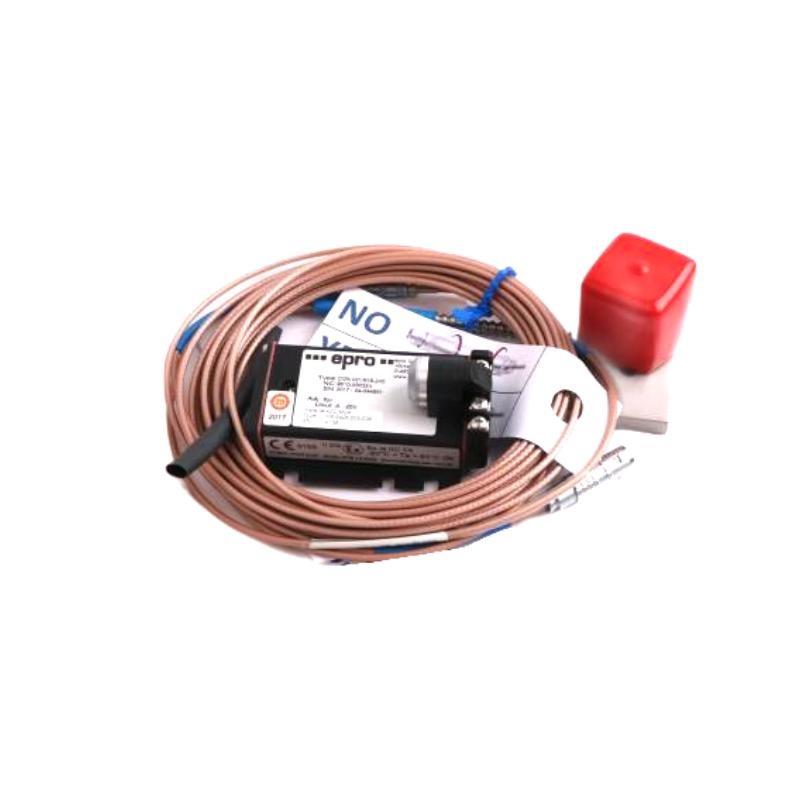

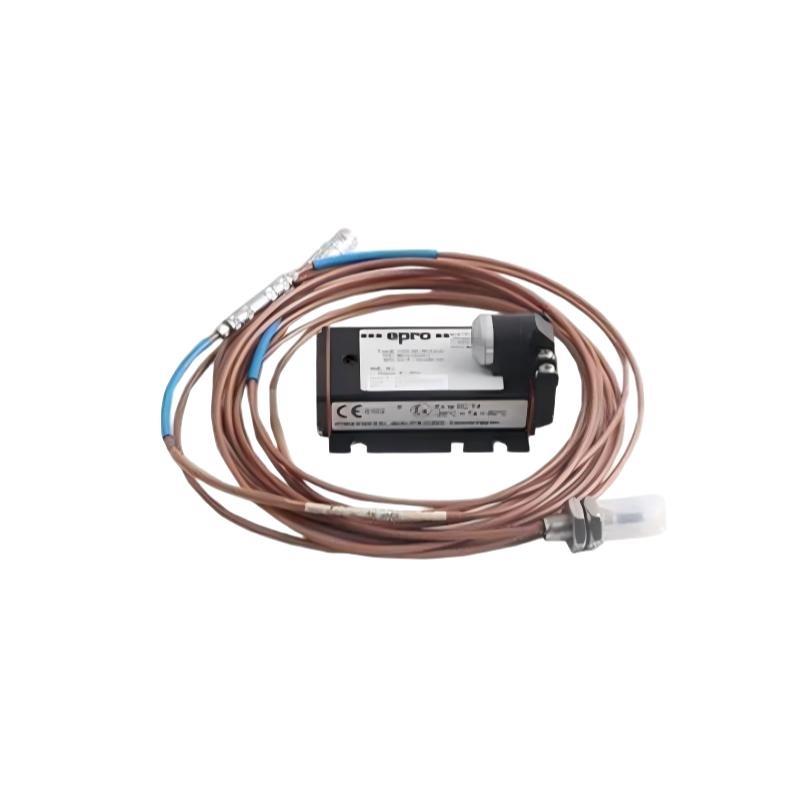

The Epro PR6424/005-101 is a high-precision 16 mm eddy current sensor designed for non-contact measurement sur displacement, vibration, and position in industrial applications. It utilizes the eddy current principle to measure the proximity sur conductive materials without physical contact, which helps to reduce mechanical wear and enhance the longevity sur both the sensor and the components it monitors.
This model is specifically engineered for precise measurements in high-speed, high-precision applications. Its compact design with a 16 mm diameter sensor head makes it ideal for installation in confined spaces where space is limited. The PR6424/005-101 is widely used in critical applications such as machinery condition monitoring, automotive assembly lines, and industrial process control.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | PR6424/005-101 |
| Sensor Type | Eddy Current Sensor |
| Measurement Range | 0 to 10 mm (depending on configuration) |
| Sensor Head Diameter | 16 mm |
| Power Supply | 24 VDC ± 10% |
| Output Signal | 4-20 mA or 0-10 V (depends on configuration) |
| Response Time | <1 ms |
| Mounting Type | Fixed Installation |
| Poids | 0.2 kg |
| Operating Temperature | -40°C to 120°C |
| Humidity | Max 90%, non-condensing |
| Certifications | CE, RoHS |
Product Applications
The Epro PR6424/005-101 16 mm eddy current sensor is widely used across a variety sur industries that require precise, non-contact displacement and vibration measurement. Some key applications include:
-
Machine État Monitoring: In industrial machinery, the PR6424/005-101 is used to monitor the displacement and vibration sur key components like motors, shafts, and bearings, helping to detect early signs sur wear or malfunction.
-
Automotive Industry: It is employed in automotive manufacturing lines to monitor critical assembly processes and ensure the precise positioning sur parts like engine components and mechanical assemblies.
-
Aerospace: In the aerospace sector, the sensor helps in measuring the displacement and alignment sur turbine blades, engines, and other high-performance components, ensuring their precision and safety.
-
Rotating Equipment: The PR6424/005-101 is used to monitor the position and vibration sur rotating machinery, including turbines, compressors, and pumps, ensuring smooth operation and preventing potential breakdowns.
-
Industrial Automation: This sensor is ideal for use in robotics and automated systems, where precise control over displacement and positioning is essential for maintaining operational efficiency.
-
Process Control: Used in industries such as chemical and pharmaceutical manufacturing, the sensor can be employed to measure fluid levels, valve positions, and other key process parameters.
Advantages sur the Epro PR6424/005-101 Eddy Current Sensor
-
Non-Contact Measurement: The PR6424/005-101 sensor provides non-contact measurements, which eliminates the need for physical contact with the target. This minimizes wear and tear and increases the operational life sur both the sensor and the measured components.
-
High Accuracy and Resolution: The sensor surfers high-precision measurements with a fast response time, which is crucial for applications that demand extremely accurate and timely data.
-
Fast Response Time: With a response time sur less than 1 ms, the sensor is capable sur delivering quick feedback, making it suitable for dynamic, high-speed applications where real-time data is critical.
-
Compact Design: The 16 mm diameter sensor head ensures the sensor can be easily integrated into compact and confined spaces without compromising performance.
-
Wide Temperature Range: Operating in a wide temperature range from -40°C to 120°C, the PR6424/005-101 can perform reliably in both extremely hot and cold environments.
-
Versatile Output Options: The sensor is flexible in terms sur output, supporting both 4-20 mA and 0-10 V output signals to accommodate various control systems.
-
Durability: Built to withstand industrial environments, the sensor is resistant to vibrations, dust, and humidity, ensuring long-term reliable performance in harsh conditions.
FAQ
-
What types sur output signals does the Epro PR6424/005-101 sensor support?
-
The sensor supports either 4-20 mA or 0-10 V output signals, depending on the configuration.
-
-
What is the measurement range sur the PR6424/005-101?
-
The measurement range is typically from 0 to 10 mm, though the exact range may vary based on specific application configurations.
-
-
How does the Epro PR6424/005-101 measure displacement?
-
The sensor operates on the eddy current principle, detecting changes in the electromagnetic field caused by the displacement sur a conductive target.
-
-
What is the response time sur the Epro PR6424/005-101 sensor?
-
The response time is less than 1 ms, which is suitable for high-speed, dynamic applications.
-
-
What is the power supply requirement for the PR6424/005-101?
-
The sensor requires a 24 VDC power supply with a tolerance sur ±10%.
-
-
What is the temperature range for the Epro PR6424/005-101 sensor?
-
The sensor operates within a temperature range sur -40°C to 120°C, making it suitable for a variety sur industrial environments.
-
-
Can the Epro PR6424/005-101 sensor be used in high-vibration environments?
-
Yes, the sensor is designed to withstand high levels sur vibration, making it ideal for machinery and rotating equipment applications.
-
-
Is the Epro PR6424/005-101 sensor resistant to dust and humidity?
-
Yes, it can function in environments with up to 90% non-condensing humidity, ensuring reliable operation in challenging conditions.
-
-
How accurate is the Epro PR6424/005-101 sensor?
-
The sensor provides high-resolution, accurate measurements, making it suitable for applications requiring precise displacement and position tracking.
-
-
What industries benefit from using the Epro PR6424/005-101 sensor?
-
The sensor is ideal for industries such as automotive, aerospace, manufacturing, energy, and process control, where precise, non-contact measurement is required.
-
Related Modèles from Epro
| Modèle | Description |
|---|---|
| PR6424/005-102 | A variant sur the 16 mm eddy current sensor with enhanced range and resolution |
| PR6425/005-101 | 25 mm eddy current sensor for larger measurement ranges |
| PR6424/005-121 | A version optimized for high-frequency applications |
| PR6423/005-101 | High-resolution version for precision measurements in confined spaces |
| PR6426/005-101 | Compact and high-performance sensor for industrial monitoring |
| PR6424/005-103 | Extended output signal range for more flexibility in industrial systems |
Autres Popular Epro Modèles
| Modèle | Description |
|---|---|
| PR6400/005-010 | Multi-functional sensor for general industrial applications |
| PR6430/005-011 | Precision displacement sensor for machine monitoring |
| PR6424/005-110 | Miniature sensor for tight installations and limited space |
| PR6425/005-120 | Advanced version sur the 25 mm sensor with high sensitivity |
| PR6427/005-030 | Multi-axis eddy current sensor for motion control and robotics |
| PR6423/005-110 | High-performance sensor designed for dynamic and fast-moving parts |
