Présentation du produit

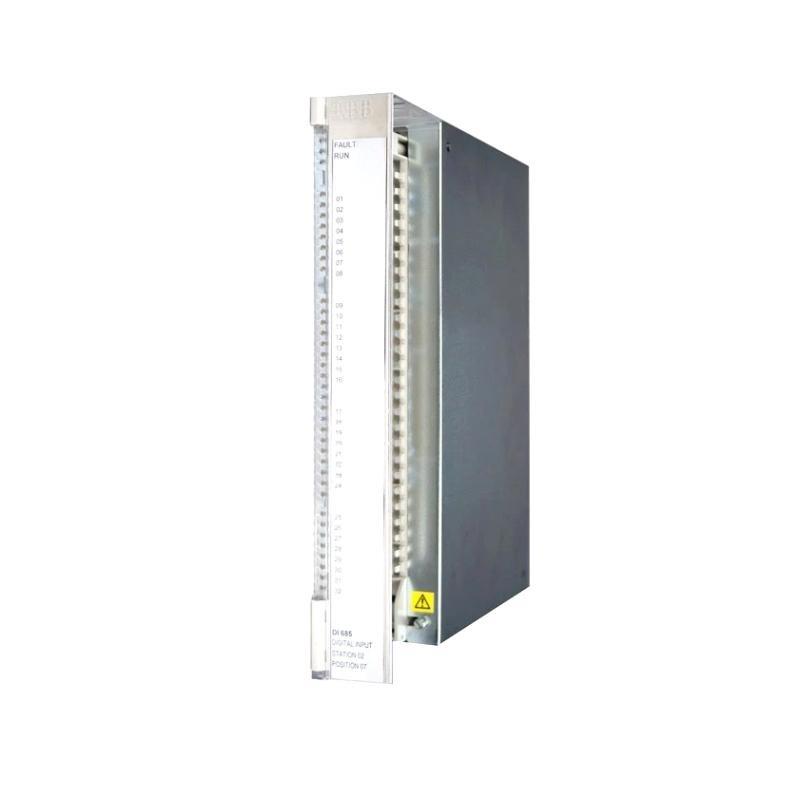

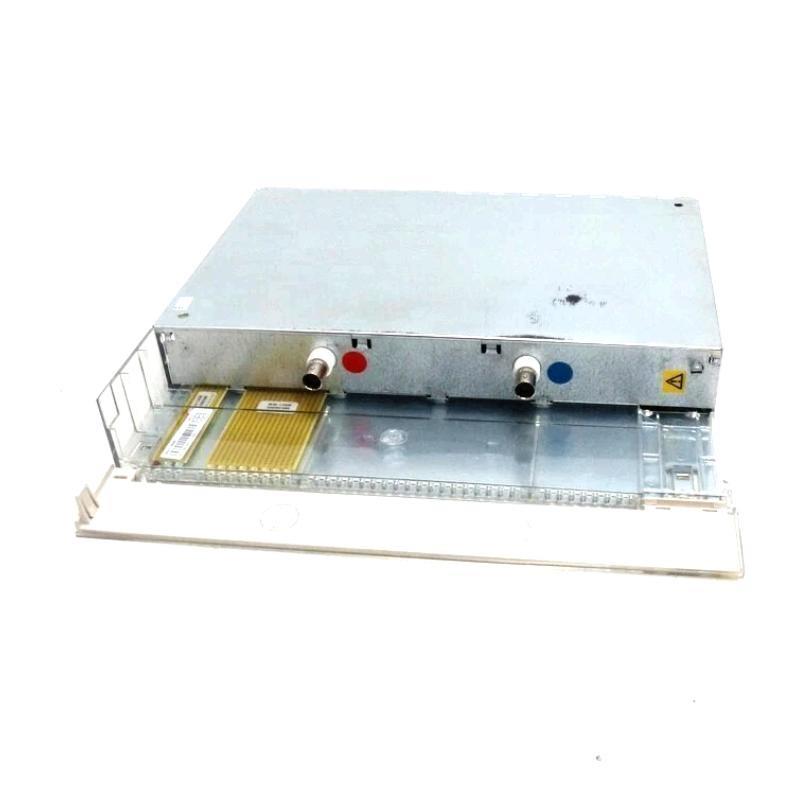

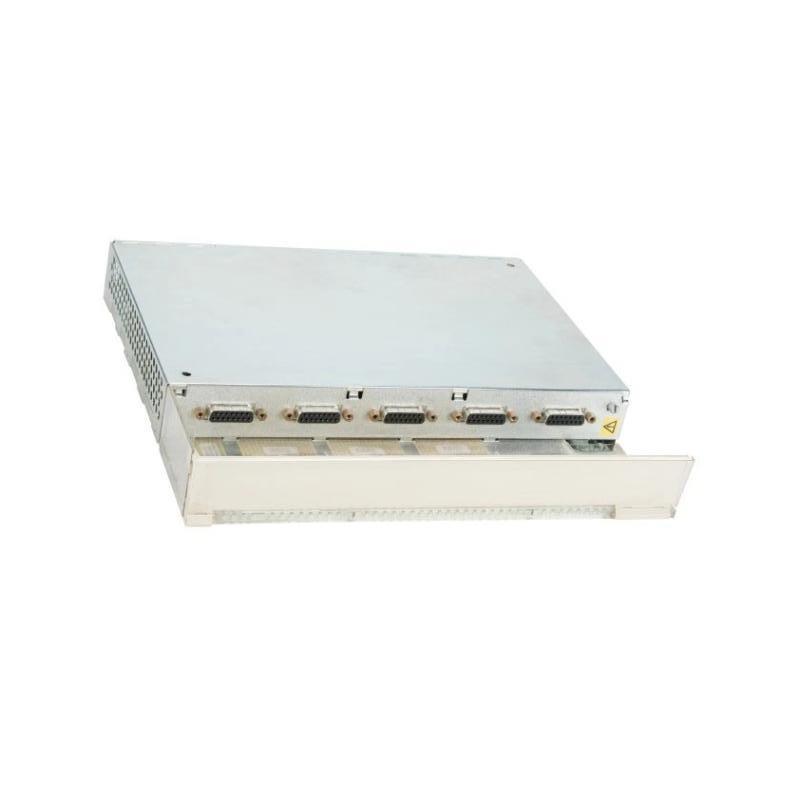

The ABB DI685 (3BDS005833R1) is a digital input module designed for use in ABB’s AC 800M control system, part sur the 800xA DCS (Distributed Control System) platform. This module plays a critical role in capturing binary signals from field devices like push buttons, proximity sensors, limit switches, and other industrial digital input sources.
With 32 isolated digital input channels, the DI685 provides reliable and fast data acquisition for control, interlocking, and safety functions. The module supports both positive and negative logic configurations and is engineered to operate under the harsh environmental conditions typical sur process and factory automation.
Designed with robust diagnostics, high channel density, and integration-ready connectivity, the DI685 is ideal for complex industrial environments requiring scalable, real-time digital input capabilities.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | DI685 |
| Order Code | 3BDS005833R1 |
| Module Type | Digital Input Module |
| Number sur Channels | 32 digital inputs |
| Signal Type | 24 VDC, sink/source selectable |
| Input Voltage Range | 18–30 VDC |
| Logic Type | Configurable (positive or negative logic) |
| Channel Isolation | Channel-to-bus and group isolation |
| Input Current (nominal) | 5 mA @ 24 VDC |
| Status LEDs | Individual channel diagnostics |
| Connection Type | Screw terminals (via TU840 or TU841 base) |
| Field Wiring | Grouped in blocks sur 8 channels |
| Hot Swappable | Yes (with appropriate configuration) |
| Backplane Communication | PROFIBUS / S800 I/O bus |
| Power Consumption | Approx. 5 W |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Protection Class | IP20 |
| Certifications | CE, UL, cULus, RoHS, IEC 61131-2 compliant |
| Dimensions (W x H x D) | 252 x 273 x 40 mm |
| Poids | 1.24 kg |
Product Applications
The ABB DI685 is utilized in a wide range sur industrial applications that require fast, safe, and reliable detection sur digital signals:
-
Process Automation: Monitoring valve position switches, emergency shutdowns, and discrete sensors in refineries, chemical plants, and power plants.
-
Factory Automation: Integration into packaging lines, robotic cells, conveyor systems, and assembly stations.
-
Utilities and Infrastructure: Monitoring sur field contacts in substations, water treatment facilities, and building automation systems.
-
Safety Systems: Ideal for interlock inputs and critical fault signal acquisition in SIL-rated systems.
-
Mining and Metals: Used in heavy-duty control panels to read sensors, gates, or limit switches.
-
Marine Automation: For shipboard monitoring systems with high channel density requirements and rugged reliability.
Product Advantages
-
High Channel Density: 32 channels in a single module reduce rack space and wiring complexity.
-
Flexible Logic Configuration: Each input can be set for positive or negative logic as per field wiring.
-
Robust Diagnostics: Channel-level diagnostics simplify fault detection and troubleshooting.
-
Hot Swappable: Allows maintenance without system shutdown when used with supported base unités.
-
Backplane Integration: Fully compatible with ABB S800 I/O and AC 800M controller platforms.
-
Wide Operating Range: Designed for -25°C to +70°C, making it suitable for extreme environments.
-
Industry Certifications: Compliant with global standards for safety, reliability, and interoperability.
-
Simplified Wiring: Grouped channel terminals for easier and faster installation.
-
Proven Field Performance: Trusted in large-scale 24/7 industrial automation installations globally.
-
Ssurtware Integration: Seamless integration with ABB’s Control Builder and 800xA engineering tools.
Questions fréquentes (FAQ)
-
Q: How many digital signals can the DI685 handle?
A: The DI685 supports 32 independent digital inputs. -
Q: Is the module compatible with ABB’s AC 800M controller?
A: Yes, it’s specifically designed for the AC 800M and integrates over the S800 I/O bus. -
Q: Can the inputs detect both logic high and logic low signals?
A: Yes. Inputs are configurable for positive or negative logic based on the wiring. -
Q: Does the module support hot swapping?
A: Yes, provided it is used with base unités that allow it, like TU840 or TU841. -
Q: What happens if an input wiring fault occurs?
A: The module provides diagnostic feedback through status LEDs and the system ssurtware. -
Q: Can I mix DI685 modules with analog modules in the same rack?
A: Absolutely. The S800 I/O system allows mixing sur digital and analog modules. -
Q: What’s the minimum signal voltage required for a logic HIGH?
A: The input voltage should be at least 18 VDC to register as HIGH. -
Q: Does the module require an external power supply?
A: Field power must be supplied externally, while module logic is powered through the bus. -
Q: Can this module be used in hazardous areas?
A: Not directly, but it can be used with appropriate isolation and barriers in classified zones. -
Q: What kind sur terminal base should I use with this module?
A: Recommended bases include TU840, TU841, or similar from ABB’s terminal base range.
Related Modèles in the Same Series
| Modèle Number | Description | Key Features |
|---|---|---|
| DI810 | 16 ch Digital Input Module | Lower channel count, 24 VDC |
| DI811 | 8 ch Digital Input Module | Isolated inputs for safety applications |
| DI840 | 16 ch Isolated Digital Input Module | Enhanced isolation, 24 VDC |
| DO820 | 16 ch Digital Output Module | Sourcing outputs |
| AI810 | 8 ch Analog Input Module | Voltage/current signal acquisition |
| AO810 | 8 ch Analog Output Module | Analog signal output control |
Popular ABB Modules and Devices
| Modèle Number | Description | Primary Application |
|---|---|---|
| PM866 | AC 800M CPU Module | Central controller for ABB 800xA systems |
| CI854A | PROFIBUS DP Communication Module | Fieldbus connectivity for AC 800M |
| CP651 | Operator Panel (HMI) | Graphic user interface for ABB systems |
| AI835 | High-density Analog Input Module | 16 ch, RTD/TC support |
| DO830 | Relay Output Module (8 ch) | High current switching |
| S800 I/O Bus Terminals | Modular base unités for I/O modules | System wiring and communication interface |
