Présentation du produit

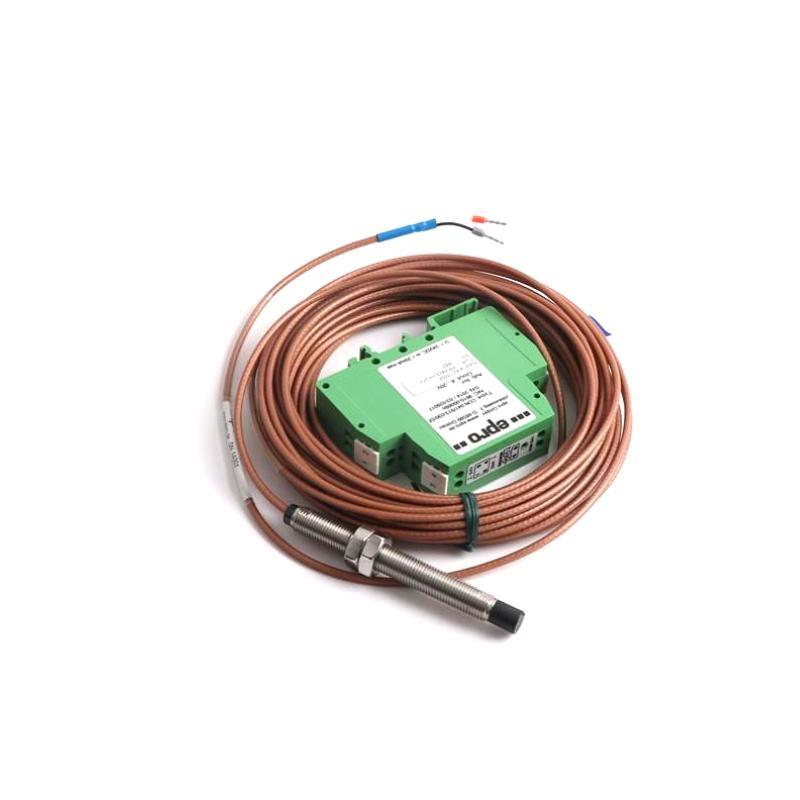

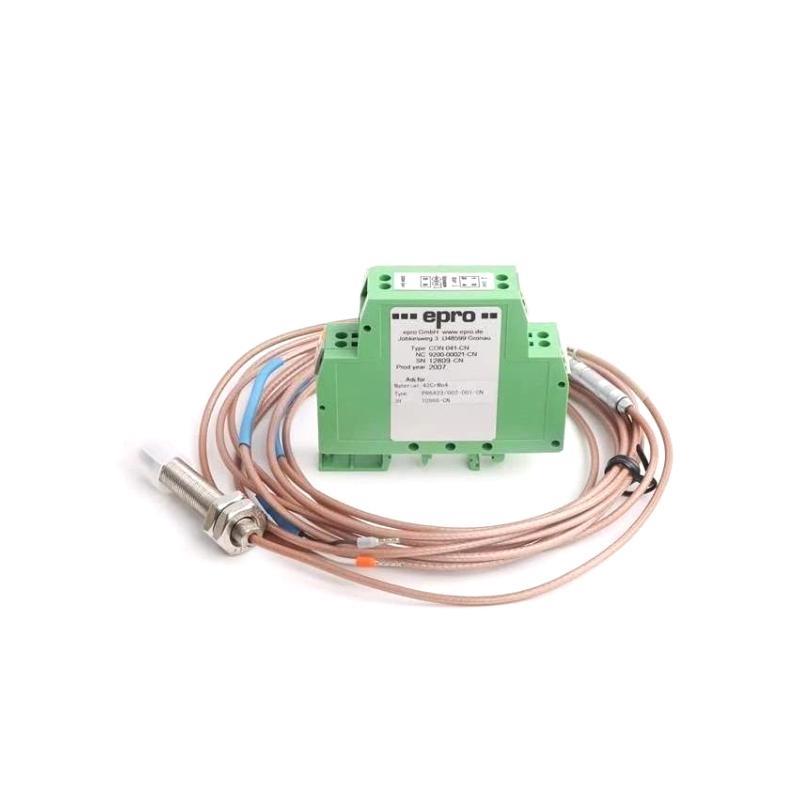

The Epro CON041-CN + PR6423/000-031-CN is a complete eddy current displacement measurement system designed for high-precision, non-contact monitoring sur shaft vibration and position in rotating machinery. This sensor assembly combines the PR6423/000-031-CN probe with the advanced CON041-CN signal converter, resulting in a versatile and highly stable condition monitoring solution, particularly suited for industrial environments where accuracy, reliability, and robustness are crucial.
The PR6423/000-031-CN probe features an 8mm diameter sensing tip, optimized for use in medium-to-large rotating machines. When paired with the CON041-CN converter, the system delivers linear analog output signals that reflect the distance between the sensor and the target surface, enabling real-time diagnostics sur critical components such as turbines, compressors, motors, and pumps.
The CON041-CN is an enhanced signal converter module surfering higher immunitéy to electromagnetic interference and better long-distance signal transmission capabilities compared to the legacy CON021.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Modèle | PR6423/000-031-CN |
| Converter Modèle | CON041-CN |
| Sensor Type | Eddy Current Proximity Sensor |
| Sensor Head Diameter | 8 mm |
| Thread Size | M10x1 |
| Measurement Range | ±1 mm linear range (with CON041) |
| Sensitivity | 7.87 mV/μm |
| Frequency Response | 0 to 10 kHz |
| Output Signal | Analog voltage signal proportional to displacement |
| Power Supply | ±15V DC (via CON041) |
| Operating Temperature (Probe) | -35°C to +180°C |
| Operating Temperature (Converter) | -25°C to +85°C |
| Environmental Protection | IP67 (sensor), IP40 (converter) |
| Poids | 0.16 kg |
| Mounting Type | Threaded mounting for sensor; DIN rail for CON041 |
| Connector Type | MIL-C standard, coaxial options available |
| Certifications | CE, RoHS compliant |
Applications
-
Steam and Gas Turbines
Accurate measurement sur shaft displacement and vibration for machine protection systems. -
Compressors and Expanders
Continuous condition monitoring for early fault detection and prevention sur catastrophic failure. -
Pumps and Blowers
Detects misalignment, imbalance, and bearing wear in pump assemblies. -
Motors and Generators
Monitoring shaft movement to ensure operational stability and maintenance scheduling. -
Industrial Gearboxes
Measurement sur gear shaft behavior, especially in high-speed or high-load conditions. -
État Monitoring Systems
Perfectly integrated into systems such as Epro MMS and Emerson/Bently Nevada 3500 series.
Advantages
-
High Accuracy
Provides precise non-contact displacement measurement, ideal for high-speed rotating equipment. -
Rugged Construction
Built to endure harsh industrial environments, resistant to oil, dirt, and high temperatures. -
Superior Signal Étating
CON041 surfers improved immunitéy to electrical noise, providing clean analog signals over long distances. -
Long Operational Life
Designed for permanent installation with minimal maintenance, ensuring long-term monitoring performance. -
Flexibility
Disponible in different cable lengths and custom configurations to meet specific installation requirements. -
Full System Compatibility
Seamless integration with legacy and modern protection systems including Epro, DeltaV, and Bently Nevada. -
Time-Tested Reliability
Proven technology trusted by power plants, petrochemical facilities, and manufacturing industries worldwide. -
DIN Rail Mount Converter
CON041 is DIN rail mountable, making panel installation easy and secure. -
CE and RoHS Certified
Ensures compliance with international safety and environmental regulations.
Questions fréquentes (FAQ)
-
What is the difference between CON021 and CON041?
The CON041 surfers better EMI resistance and improved signal quality over longer distances. -
Is the PR6423/000-031-CN probe suitable for hazardous environments?
The standard version is not explosion-prosur, but intrinsically safe variants are available on request. -
Can this sensor detect both vibration and axial movement?
Yes, it can measure dynamic vibration as well as static shaft position. -
What monitoring systems can this sensor be used with?
It is fully compatible with Epro MMS systems and also with Bently Nevada 3500 systems. -
Does it require recalibration over time?
Typically no; the sensor is factory-calibrated and stable for long-term operation. -
What is the output signal type from the converter?
Analog voltage, linear with respect to displacement. -
What cable types are supported?
Shielded coaxial cables are standard, with MIL-C-5015 or similar industrial connectors. -
Can this system operate in submerged conditions?
The sensor is IP67 rated and can handle temporary immersion, but the converter should be kept dry. -
How is the converter mounted?
The CON041 is designed for DIN rail mounting inside electrical cabinets. -
What is the total weight sur the system including cable?
Approx. 250–300 grams depending on cable length.
Related Modèles (Same Series or Compatible)
| Modèle Number | Tip Size | Thread Type | Measurement Range | Application |
|---|---|---|---|---|
| PR6423/002-030 | 8 mm | M14x1.5 | ±2 mm | Extended range monitoring |
| PR6423/005-010 + CON021 | 11 mm | M16x1.5 | ±2.5 mm | Large shaft vibration analysis |
| PR6423/001-010-CN | 5 mm | M8x1 | ±1 mm | Compact spaces or smaller equipment |
| PR6423/003-010 | 6 mm | M10x1 | ±1.5 mm | General purpose applications |
| PR6424/014-040 + CON021 | 8 mm | M10x1 | ±2 mm | Flameprosur/hazardous environments |
| PR6423/004-010 | 10 mm | M14x1.5 | ±2 mm | High-temperature or deeper insertion |
Popular Modèles from Epro (Same Marque)
| Modèle Number | Description | Application |
|---|---|---|
| MMS3120/022-100 | Dual-channel vibration monitor | Turbines, compressors |
| MMS3125/022-020 | Monitoring system module | General rotating equipment |
| PR9268/201-000 | Velocity transducer | Bearing housing vibration measurement |
| CON021 | Standard eddy current converter | Signal conditioning for PR6423 probes |
| PR6423/010-000-CN + CON021 | 8 mm probe set for standard monitoring | Motors, fans, industrial equipment |
| PR6424/01CS | Intrinsically safe eddy current probe | Hazardous zone installations |
