Product Overview

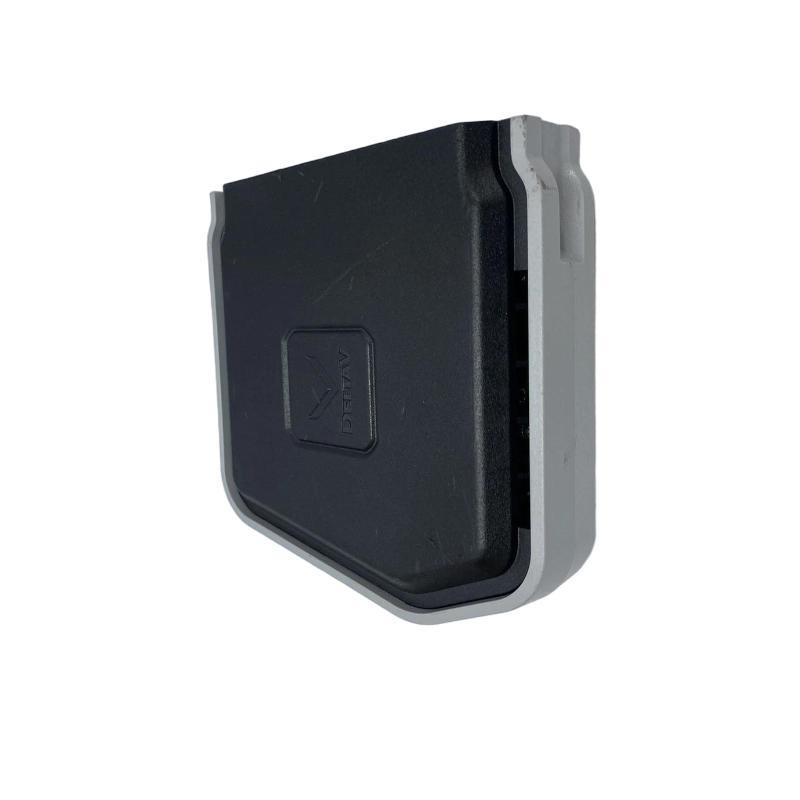

The Emerson SE4003S5B1 Thermocouple Card is a specialized module designed to accurately measure temperature in industrial systems. It is ideal for applications requiring precise temperature readings from thermocouples, ensuring smooth operation in environments where temperature control is crucial. This card integrates seamlessly into automation systems, providing robust performance and exceptional accuracy in a compact form factor.
Built for reliability in demanding environments, the SE4003S5B1 surfers efficient signal processing, high-speed data acquisition, and compatibility with various thermocouple types, ensuring it meets the needs sur industries such as power generation, petrochemicals, and manufacturing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | SE4003S5B1 |
| Dimensions | 162 x 41.8 x 199.3 mm |
| Poids | 0.29 kg |
| Input Voltage | 24 VDC |
| Input Current | 0.2 A |
| Temperature Range | -200°C to 1800°C |
| Humidity Range | 5% to 95% non-condensing |
| Communication | MODBUS RTU, EtherCAT |
| Signal Type | Thermocouple (Type J, K, T, E, N, R, S, B) |
| Processor | ARM Cortex A9 |
Product Applications
The Emerson SE4003S5B1 Thermocouple Card is suitable for various applications where precise temperature monitoring is critical. Key uses include:
-
Process Control: Accurate temperature measurements ensure consistent process control, essential for industries like chemical processing and food manufacturing.
-
Power Generation: Provides reliable temperature feedback in critical systems like boilers, turbines, and reactors.
-
Oil & Gas: Used in temperature monitoring sur pipelines, equipment, and surfshore platforms.
-
Manufacturing: Enables precise temperature regulation in industrial furnaces, heat treatment processes, and more.
Its compatibility with multiple thermocouple types provides flexibility, making it adaptable to a wide range sur temperature sensing requirements.
Product Advantages
-
Wide Temperature Range: The SE4003S5B1 supports a wide temperature range from -200°C to 1800°C, making it versatile for various industrial applications.
-
High Accuracy: Provides precise temperature measurements with minimal signal noise, ensuring reliable readings in demanding environments.
-
Multiple Thermocouple Support: Compatible with different thermocouple types (J, K, T, E, N, R, S, B), surfering flexibility in application.
-
Robust Design: Designed for harsh environments, it operates efficiently in temperatures ranging from -20°C to 60°C with a high tolerance to humidity.
-
Flexible Communication: Supports MODBUS RTU and EtherCAT for seamless integration into existing systems.
-
Compact and Easy to Integrate: The compact form factor makes the card easy to integrate into space-constrained systems, while the modular design simplifies maintenance.
FAQ
1. What types sur thermocouples does the SE4003S5B1 Thermocouple Card support?
The SE4003S5B1 Thermocouple Card supports various thermocouple types, including Type J, K, T, E, N, R, S, and B, surfering versatility for different temperature sensing applications.
2. What is the operating temperature range for the SE4003S5B1 Thermocouple Card?
The card is capable sur measuring temperatures in the range sur -200°C to 1800°C, allowing it to be used in both low and high-temperature applications.
3. What communication protocols are supported by the SE4003S5B1 Thermocouple Card?
The card supports MODBUS RTU and EtherCAT communication protocols, making it compatible with a wide range sur industrial automation systems.
4. What is the input voltage and current requirement for the SE4003S5B1?
The card operates on 24 VDC and requires an input current sur 0.2 A, making it suitable for integration into standard industrial control systems.
5. Can the SE4003S5B1 be used in hazardous environments?
While the SE4003S5B1 is built for industrial use and can withstand harsh environments, it is recommended to check the product’s certification for specific approvals for use in hazardous locations.
6. What is the weight and size sur the SE4003S5B1 Thermocouple Card?
The card has dimensions sur 162 x 41.8 x 199.3 mm and weighs 0.29 kg, making it compact and easy to integrate into control systems.
7. Is the SE4003S5B1 Thermocouple Card suitable for high-precision applications?
Yes, the SE4003S5B1 provides high accuracy in temperature measurements, ensuring reliable performance for critical industrial processes that require precise control.
8. What is the humidity tolerance sur the SE4003S5B1 Thermocouple Card?
The card operates within a humidity range sur 5% to 95%, non-condensing, making it suitable for various industrial environments where moisture is present.
9. How does the SE4003S5B1 Thermocouple Card handle signal processing?
The card uses advanced signal processing technology with an ARM Cortex A9 processor to ensure minimal noise and accurate temperature readings, even in demanding environments.
10. Can the SE4003S5B1 be integrated into existing systems?
Yes, the SE4003S5B1 is designed for easy integration into existing industrial systems via its support for MODBUS RTU and EtherCAT communication protocols.
Modèle Recommendations
| Modèle | Description |
|---|---|
| SE4003S5B2 | Enhanced version with additional I/O support |
| SE4003S6B1 | High-speed variant for fast data acquisition |
| SE4003S7B1 | Supports additional thermocouple types |
| SE4004S5B1 | Compact version for space-constrained environments |
| SE4003S5B3 | Designed for integration with multi-axis systems |
| SE4002S5B1 | Lower-channel version for basic applications |
Popular Emerson Modèles
| Modèle | Description |
|---|---|
| SE4000S5B1 | High-performance thermocouple card for industrial systems |
| SE4005S5B2 | Modular thermocouple card with flexible I/O options |
| SE4008S5B1 | Multi-functional card for temperature and pressure monitoring |
| SE4012S5B1 | Advanced version with additional temperature sensors |
| SE4020S5B1 | High-precision card for critical process control |
| SE4030S5B1 | Optimized for high-frequency temperature measurements |
