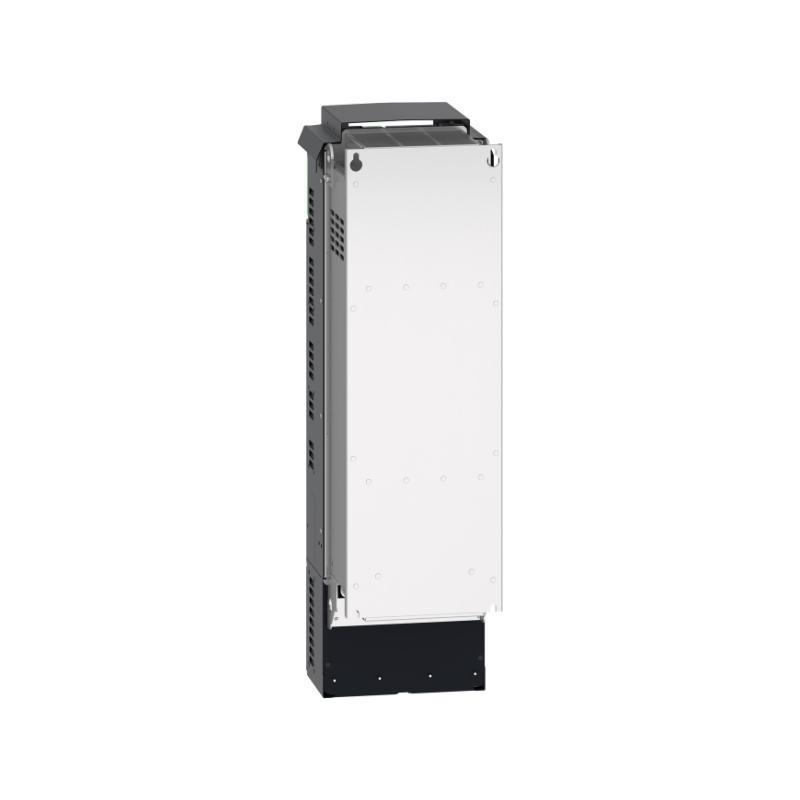

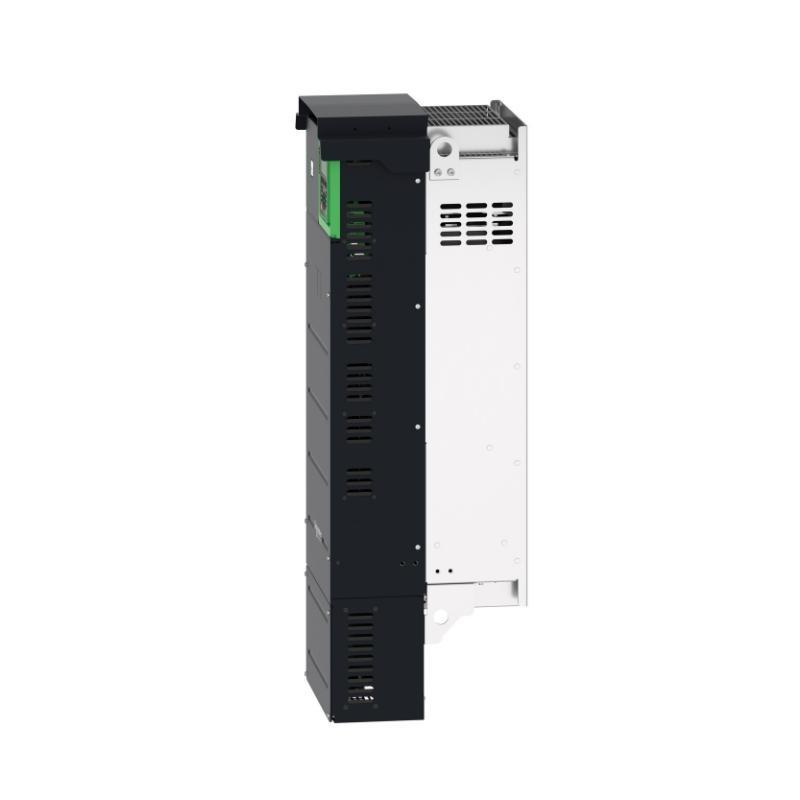

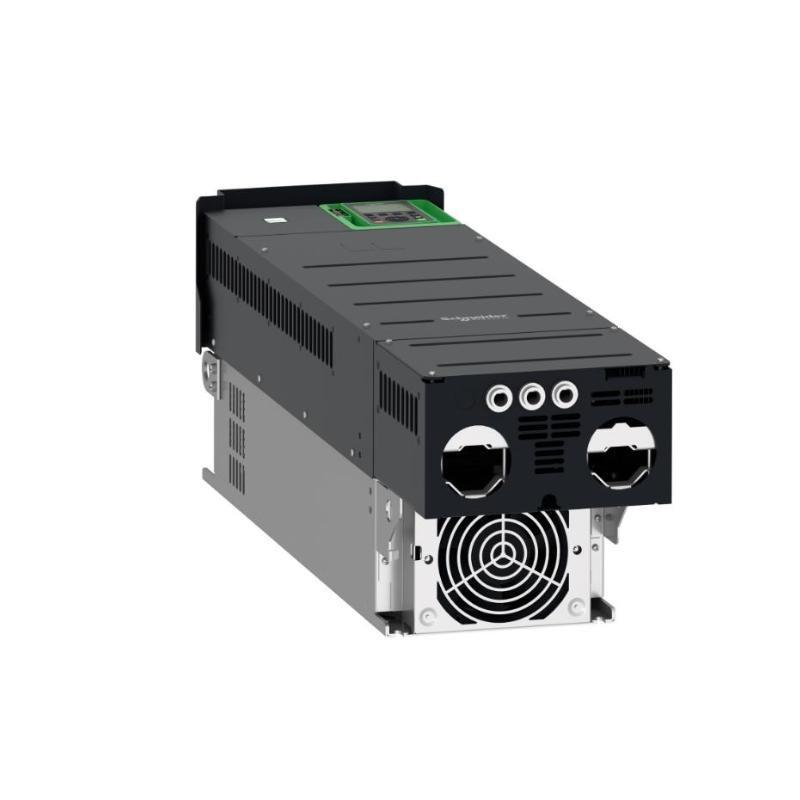

Schneider ATV930D75N4 Variable Speed Drive
The Schneider ATV930D75N4 is a high-performance variable speed drive designed for demanding industrial applications. It provides precise motor control, energy efficiency, and advanced connectivity to enhance process performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Power Rating | 75 kW (100 HP) |
| Voltage | 380…480 V AC, 50/60 Hz |
| Current | 140 A nominal |
| Output Frequency | 0.1 to 500 Hz |
| Control Method | Vector control with/without sensor |
| Communication | Modbus, Ethernet/IP, CANopen |
| Protection Degree | IP21 |
| Dimensions (W x H x D) | 290 x 922 x 325.5 mm |
| Poids | 59 kg |
Applications
-
Pumps, fans, compressors
-
Material handling and conveyors
-
Mixers, crushers, centrifuges
-
HVAC and water treatment systems
Advantages
-
High energy savings through efficient motor control
-
Supports synchronous and asynchronous motors
-
Advanced process and machine control features
-
Embedded Ethernet and Modbus for seamless integration
-
Robust design for harsh industrial environments
FAQ
Q1: What is the maximum motor power supported?
A1: It supports motors up to 75 kW (100 HP).
Q2: Can it be used with synchronous motors?
A2: Yes, it supports both synchronous and asynchronous motors.
Q3: What is its protection rating?
A3: The drive has an IP21 protection rating.
Q4: Does it have built-in communication interfaces?
A4: Yes, it comes with Modbus, Ethernet/IP, and CANopen.
Q5: Can it operate without a motor sensor?
A5: Yes, it can operate in both sensorless and sensored modes.
Q6: What is the maximum output frequency?
A6: It can output frequencies up to 500 Hz.
Q7: Is it suitable for HVAC applications?
A7: Yes, it is ideal for HVAC and water systems.
Q8: How heavy is the drive?
A8: It weighs 59 kg.
Q9: Does it support remote monitoring?
A9: Yes, via its Ethernet and fieldbus connectivity.
Q10: What is the enclosure size?
A10: Its dimensions are 290 x 922 x 325.5 mm.
Recommended Related Modèles (Same Series or Catégorie)
| Modèle | Power Rating | Voltage Range | Dimensions (mm) | Poids |
|---|---|---|---|---|
| ATV930D55N4 | 55 kW | 380–480 V | 290 x 800 x 325.5 | 47 kg |
| ATV930D90N4 | 90 kW | 380–480 V | 290 x 1000 x 325.5 | 65 kg |
| ATV930C13N4 | 132 kW | 380–480 V | 350 x 1200 x 370 | 110 kg |
| ATV930C16N4 | 160 kW | 380–480 V | 350 x 1200 x 370 | 120 kg |
| ATV930C22N4 | 220 kW | 380–480 V | 450 x 1500 x 450 | 180 kg |
| ATV930C30N4 | 315 kW | 380–480 V | 450 x 1600 x 450 | 220 kg |
Popular Schneider Modèles
| Modèle | Description | Power Rating | Voltage Range | Dimensions (mm) | Poids |
|---|---|---|---|---|---|
| ATV320U75N4B | Compact variable speed drive | 7.5 kW | 380–480 V | 142 x 184 x 153 | 4 kg |
| ATV340D22N4E | High-performance drive | 22 kW | 380–480 V | 210 x 500 x 250 | 23 kg |
| ATV630D90N4 | Process drive | 90 kW | 380–480 V | 290 x 1000 x 325.5 | 63 kg |
| ATV12H075M2 | Basic drive | 0.75 kW | 200–240 V | 72 x 143 x 148 | 1.5 kg |
| ATV61HD45N4 | HVAC drive | 45 kW | 380–480 V | 220 x 700 x 300 | 35 kg |
| ATV71HD30N4 | Industrial drive | 30 kW | 380–480 V | 220 x 600 x 300 | 28 kg |
