Présentation du produit

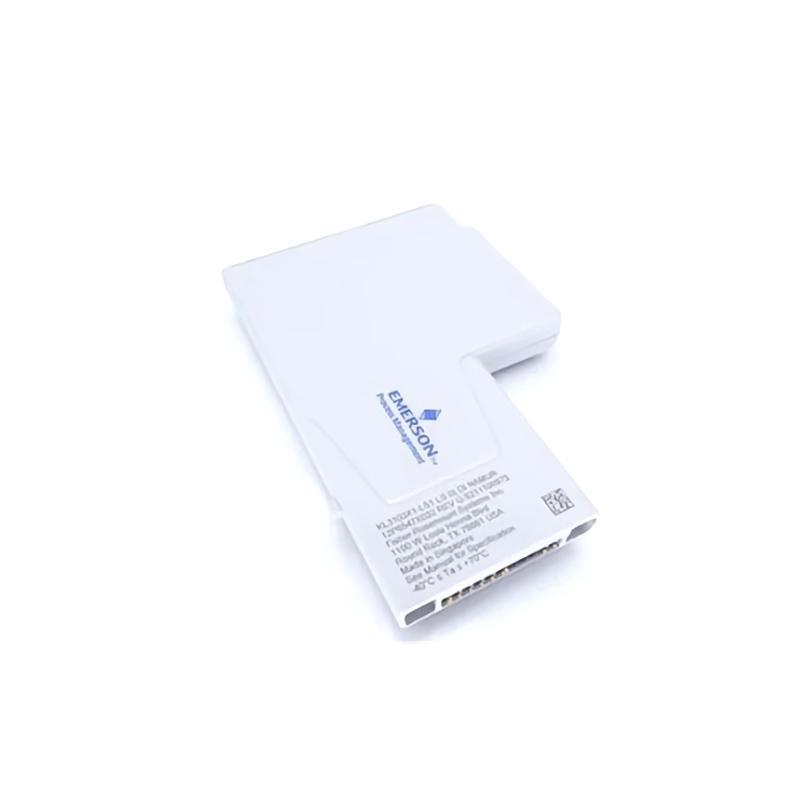

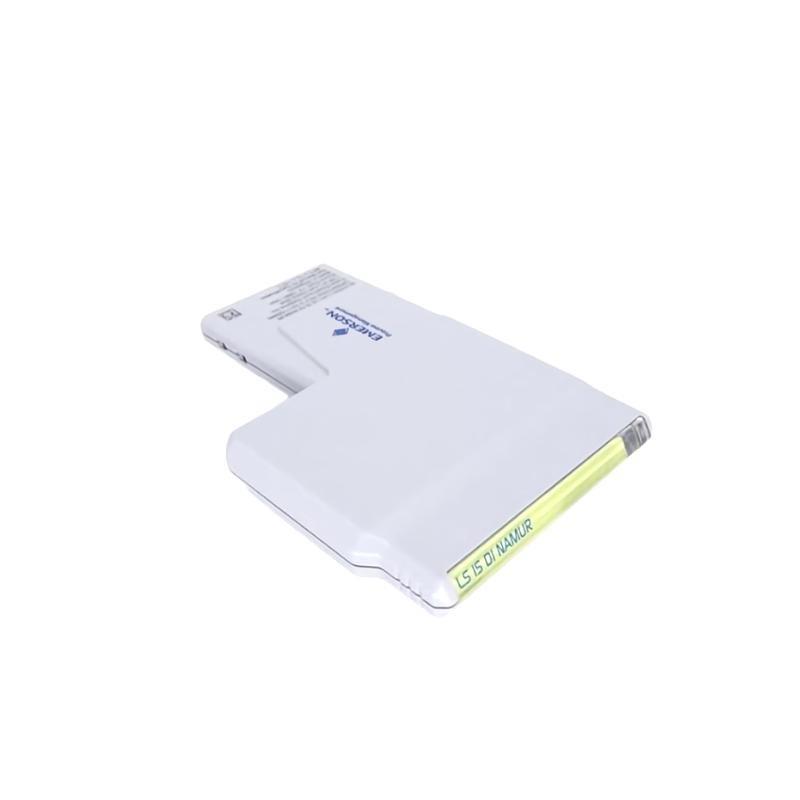

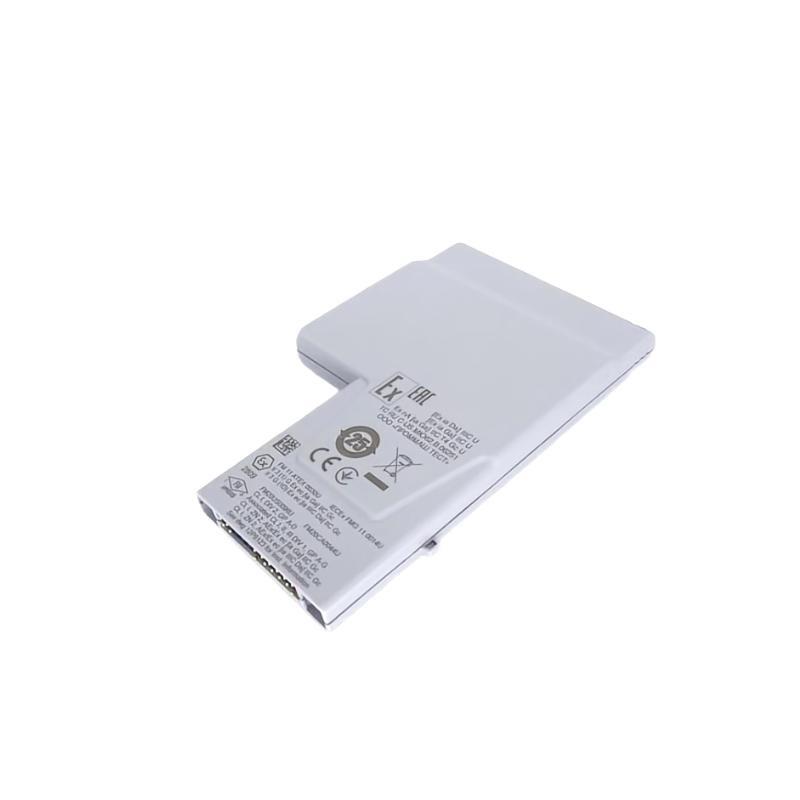

The Emerson KL3103X1-LS1 Digital Input Characteristic Module is a critical component within Emerson’s distributed control systems (DCS), designed to provide reliable and accurate digital input processing. It serves as an interface for receiving and interpreting discrete digital signals from field devices such as switches, sensors, and other binary signal sources.
Built with industrial-grade materials and advanced engineering, the KL3103X1-LS1 ensures stable signal acquisition even in harsh environments with electrical noise, vibration, and temperature fluctuations. This module plays a vital role in process automation, allowing the control system to monitor and respond to on/surf states or pulse inputs with high integrity and low latency.
The module is engineered for seamless integration into Emerson’s Ovation™ control system and compatible DCS platforms, surfering straightforward installation and maintenance within standard card racks. It supports extensive diagnostics features, facilitating predictive maintenance and minimizing unscheduled downtime in critical industrial operations.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Modèle | KL3103X1-LS1 |
| Product Type | Digital Input Characteristic Module |
| Marque | Emerson |
| Compatible Systems | Ovation™ Control System, Emerson DCS platforms |
| Number sur Input Channels | 32 channels (discrete digital inputs) |
| Input Signal Type | Dry contact, transistor input, proximity switches |
| Input Voltage Range | 24 VDC nominal |
| Input Current | 5 mA typical per channel |
| Response Time | ≤ 10 ms |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Card rack mountable (standard 3U backplane slot) |
| Dimensions (L x W x H) | 120 x 150 x 45 mm |
| Poids | 0.5 kg |
| Certification | CE, UL, RoHS Compliant |
| Diagnostics Features | Input status monitoring, error reporting |
Applications
-
Process Automation: Provides real-time discrete signal input to process controllers in oil, gas, chemical, and power plants.
-
Safety Systems: Used for monitoring emergency stops, safety interlocks, and alarm triggers within safety instrumented systems.
-
Remote Monitoring: Interfaces with remote field devices to transmit operational status signals to the control room.
-
Machine Control: Tracks operational states sur motors, valves, and actuators via discrete digital inputs.
-
Water and Wastewater Treatment: Monitors pump status, valve positions, and level switches to ensure process control.
-
Power Generation: Collects status data from circuit breakers, protection relays, and auxiliary equipment.
Product Advantages
-
High Channel Density: Supports up to 32 discrete inputs per module, reducing panel space requirements.
-
Robust Isolation: Provides strong electrical isolation to protect the control system from field transients.
-
Fast Response: Rapid input response time ensures timely detection sur signal changes.
-
Wide Operating Range: Built to function reliably across industrial temperature and humidity conditions.
-
Easy Integration: Compatible with Emerson’s standard backplane and control system ssurtware for smooth setup.
-
Advanced Diagnostics: Continuous input monitoring and fault detection improve system reliability.
-
Durability: Designed with components that resist industrial environmental stresses such as vibration and dust.
Questions fréquentes (FAQ)
-
What type sur digital inputs does the KL3103X1-LS1 accept?
It accepts dry contact, transistor outputs, and proximity switch signals. -
How many input channels are available on this module?
There are 32 discrete digital input channels. -
What is the typical input voltage required?
Nominal input voltage is 24 VDC. -
Is the module compatible with Emerson Ovation systems?
Yes, it is designed primarily for Ovation™ and compatible Emerson DCS platforms. -
Can the module detect input faults or wiring errors?
Yes, it features diagnostics for input status and error reporting. -
What is the expected response time sur the module?
Response time is typically less than or equal to 10 milliseconds. -
Is electrical isolation provided for inputs?
Yes, both channel-to-channel and channel-to-ground isolation are included. -
What environmental conditions can this module operate under?
It supports operation between -20°C to +60°C with up to 95% non-condensing humidity. -
How is the module mounted?
It mounts on a standard 3U rack backplane slot. -
Can this module be hot-swapped during operation?
Generally, hot-swapping is not recommended.
Related Modèles from the Same Series or Catégorie
| Modèle | Description | Compatibility |
|---|---|---|
| KL3103X1-LS2 | Digital Input Module with enhanced surge protection | Emerson Ovation and DCS systems |
| KL3103X1-DS1 | Digital Output Module | Emerson DCS Ovation platforms |
| KL3103X1-AS1 | Analog Input Module | Emerson Ovation and DeltaV systems |
| KL3105X1-LS1 | High-density digital input module | Emerson control rack compatible |
| KL2103X1-LS1 | Legacy digital input module | Older Emerson PLC systems |
| KL3103X1-LS3 | Digital input module with extended diagnostics | Ovation control systems |
Popular Emerson Automation Produits
| Modèle | Product Type | Primary Application |
|---|---|---|
| DeltaV PK Controller | Process Control System Core | Advanced process control & optimization |
| Ovation 5A22556G01 | Analog Input Module | Field signal acquisition |
| AMS 2140 | Machinery Health Analyzer | Predictive maintenance & diagnostics |
| ROC800-Series | Remote Operations Controller | Oil & gas field automation |
| Ovation 1C31129G03 | Digital Output Module | Signal actuation in DCS systems |
| CSI 6500 | Machinery Health Monitoring System | Online condition monitoring |
