Présentation du produit

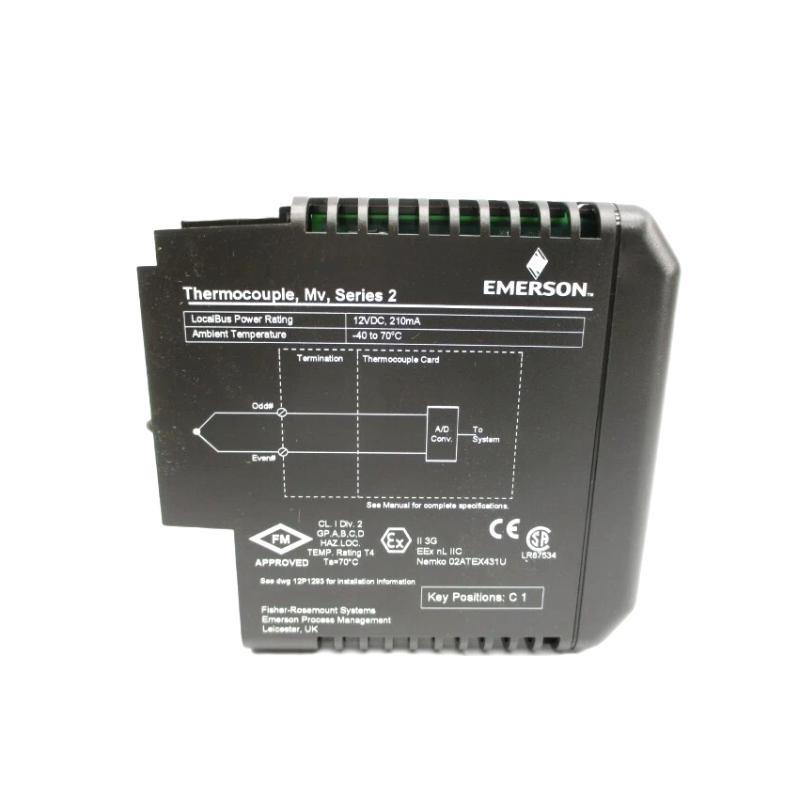

The Emerson KJ3224X1-BA1 Thermocouple Module is a highly reliable input module developed for industrial process automation systems. It is specifically designed to receive temperature data from thermocouple sensors and convert the raw signal into stable, precise digital information for control systems.
This module integrates advanced signal processing, cold junction compensation, and diagnostic functions to ensure consistent performance even in demanding industrial environments. With its wide thermocouple compatibility and robust isolation, the KJ3224X1-BA1 guarantees secure data acquisition, making it an essential component in distributed control systems used in power generation, petrochemical refining, and heavy manufacturing industries.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | KJ3224X1-BA1 |
| Type | Thermocouple Input Module |
| Supported Sensor Types | J, K, T, E, N, R, S, B thermocouples |
| Input Range | Type dependent (e.g., -210 °C to +1820 °C) |
| Accuracy | ±0.1% sur reading (typical) |
| Resolution | 16-bit A/D conversion |
| Cold Junction Compensation | Integrated and automatic |
| Input Impedance | >10 MΩ |
| Isolation | Channel-to-channel and system isolation |
| Signal Update Time | <250 ms (typical) |
| Diagnostics | Open circuit detection, out-sur-range alarms, self-check |
| Power Consumption | ~3.5 W |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity Tolerance | 5% – 95% non-condensing |
| Dimensions (H × W × D) | 130 × 35 × 110 mm |
| Poids | 0.45 kg |
| Mounting | Emerson system carrier rail |
| Compatibility | DeltaV and DCS Ovation platforms |
Product Applications
The KJ3224X1-BA1 plays a key role in industries where precise and reliable temperature measurement is vital for safe operation and efficiency:
-
Power Plants – Used for turbine monitoring, boiler supervision, and flue gas measurement.
-
Oil & Gas – Ideal for refineries, LNG terminals, and upstream process monitoring.
-
Chemical & Petrochemical – Provides temperature control in reactors, distillation, and heat exchangers.
-
Steel & Metallurgy – Ensures accuracy in furnaces, smelting, and continuous casting processes.
-
Pharmaceutical Industry – Supports compliance in controlled batch processing and sterilization systems.
-
Food & Beverage – Monitors ovens, sterilizers, and thermal process controls.
Product Advantages
-
Wide Sensor Compatibility – Supports multiple thermocouple types across broad temperature ranges.
-
High Precision – Advanced 16-bit resolution with integrated cold junction compensation ensures accuracy.
-
Industrial Robustness – Designed for environments with electrical noise, vibration, and temperature extremes.
-
Integrated Diagnostics – Early detection sur open circuits and sensor faults reduces downtime.
-
Seamless DCS Integration – Fully compatible with Emerson DeltaV and Ovation systems.
-
Hot-Swappable Design – Enables replacement without interrupting plant operations.
-
Optimized Performance – Fast signal update ensures real-time responsiveness in process control.
FAQ
-
What types sur thermocouples are supported by the KJ3224X1-BA1?
It supports J, K, T, E, N, R, S, and B thermocouple types. -
How is cold junction compensation managed in the module?
It is fully integrated and automatically applied for all thermocouple inputs. -
What is the resolution sur the signal conversion?
The module uses 16-bit analog-to-digital conversion for precise temperature measurement. -
Does the module include fault detection features?
Yes, it provides open circuit detection, out-sur-range alarms, and continuous self-checks. -
What kind sur isolation is provided?
The module ensures channel-to-channel and channel-to-system isolation for electrical protection. -
Is the module suitable for high-noise industrial environments?
Yes, it includes filtering and noise immunitéy features to guarantee reliable operation. -
How fast does the module update the input signals?
The typical signal update time is less than 250 milliseconds. -
Can the module be installed or replaced without shutting down the system?
Yes, it supports hot-swapping depending on system configuration. -
What power supply does the module require?
It typically consumes around 3.5 W, supplied by the Emerson control system backplane. -
Which Emerson systems are compatible with this module?
It integrates seamlessly with Emerson DeltaV and Ovation distributed control systems.
