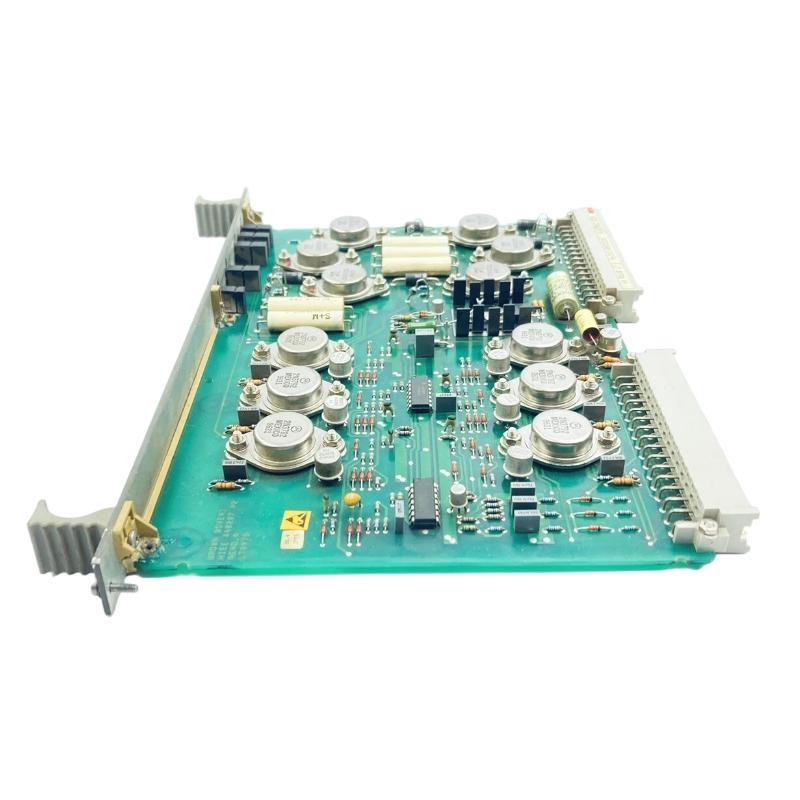

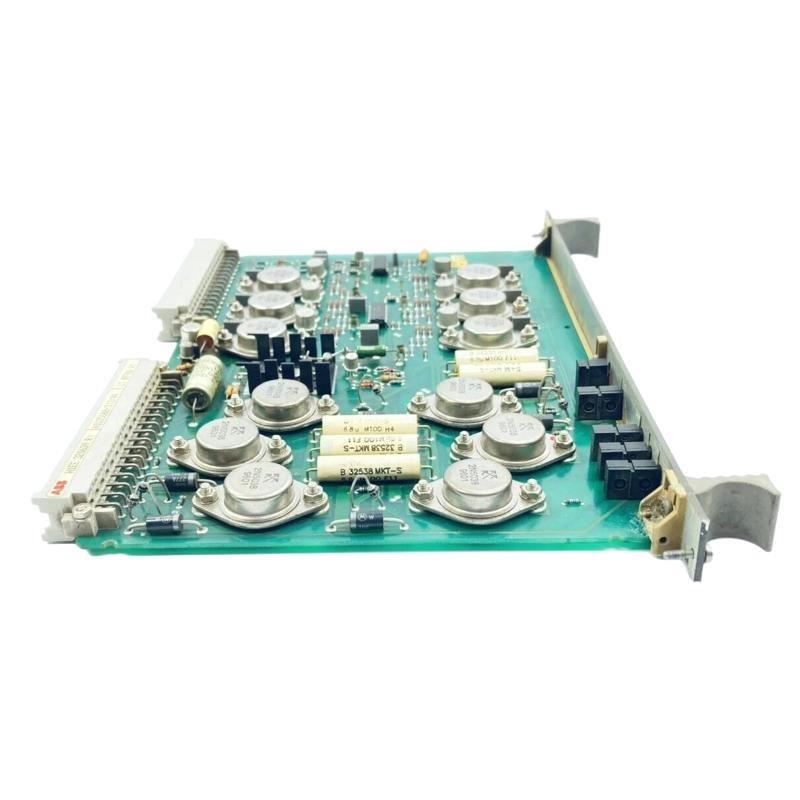

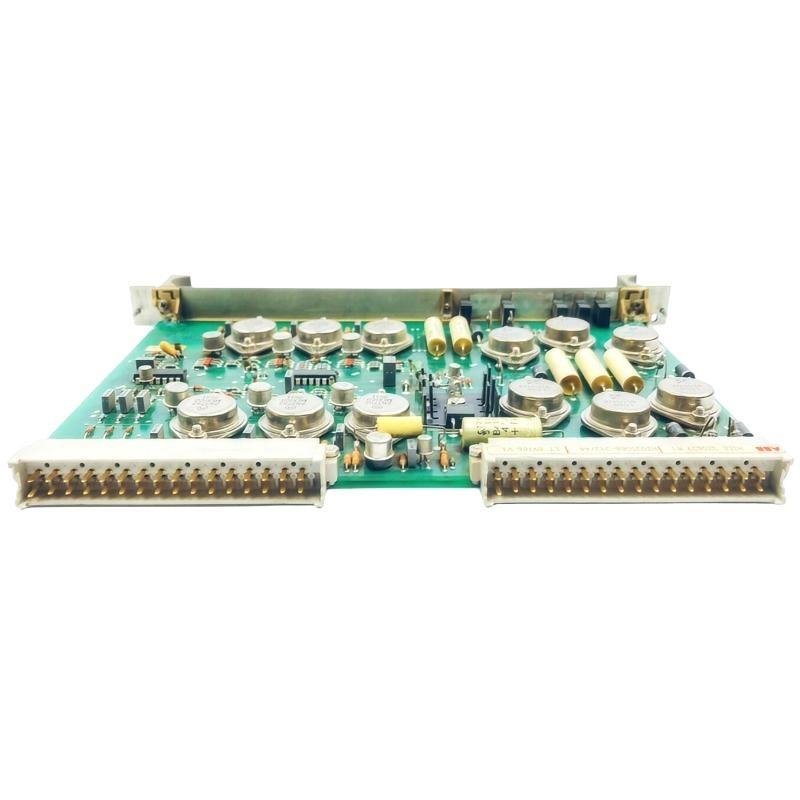

The ABB LT 8978B V1 HIEE320639R1 is a high-performance circuit board engineered for use in complex industrial automation systems. As a critical component in ABB’s control and signal processing architecture, this board delivers reliable, deterministic performance in environments where downtime is not an option.
Developed under rigorous manufacturing standards and fully compatible with ABB’s legacy and current control systems, the LT 8978B V1 ensures robust system communication, signal routing, and hardware-level logic processing. Its modular design allows easy integration into existing system infrastructures such as ABB’s Advant OCS or Symphony series, making it a practical choice for system maintenance or upgrades.
Thanks to its robust build, multi-layer design, and industrial-grade electronics, the board has earned a reputation for stability, electromagnetic compatibility, and seamless operation in a wide range sur critical applications.
Spécifications du produit
| Parameter | Value |
|---|---|
| Product Name | Circuit Board |
| Modèle | LT 8978B V1 |
| ABB Référence | HIEE320639R1 |
| Function | Signal interface, routing, and processing |
| System Compatibility | ABB Advant OCS, MOD300, Symphony |
| Input Type | Analog/Digital (depending on system configuration) |
| Output Type | Logic-level signal interface |
| Power Requirement | 5 VDC (via backplane) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Communication Interface | Internal backplane/system bus |
| Diagnostic Features | Onboard status LEDs |
| Mounting Style | Modular chassis/rack mounting |
| PCB Structure | Multi-layer FR4, lead-free soldering |
| Certifications | CE, RoHS, UL compliant |
| Dimensions (L x W x H) | 295 × 180 × 28 mm |
| Poids | 0.62 kg |
| Manufacturing Standard | ISO 9001, IEC 61131 compliant |
| Application Catégorie | Industrial automation and signal control systems |
Product Applications
-
Process Control Systems
Used in distributed control environments for signal collection and routing within core processing unités. -
Energy and Utilities Sector
Installed in turbine controls, substation automation, and monitoring frameworks for power generation and distribution. -
Oil & Gas Refining Facilities
Deployed in hazardous area monitoring, control loop execution, and plant-wide diagnostics. -
Pulp & Paper Mills
Interfaces with field-level devices and logic controllers for real-time monitoring sur mechanical subsystems. -
Pharmaceutical Manufacturing
Integrated into automation systems where strict validation and data integrity are required. -
Steel and Heavy Industries
Controls industrial actuators, relay switches, and production lines under challenging environmental conditions.
Product Advantages
-
High Signal Integrity
Engineered with superior trace layout and shielding for minimal signal distortion and electrical noise. -
Easy System Integration
Fully compatible with ABB’s existing control infrastructure, enabling plug-and-play deployment. -
Industrial Durability
Withstands extreme temperatures and electrical stress, making it ideal for continuous-duty applications. -
Built-in Diagnostics
LED indicators on the board surface surfer real-time feedback for operational status and troubleshooting. -
Low Maintenance Footprint
Proven longevity and low failure rates reduce the need for frequent replacements or recalibrations. -
Backward Compatibility
Works seamlessly with legacy ABB platforms, ensuring support for system upgrades without requiring full overhauls.
FAQ
-
What communication architecture does the LT 8978B V1 use within ABB systems?
It interfaces via ABB’s internal system bus, ensuring synchronized communication with processors and I/O modules. -
Can this circuit board be used in both analog and digital signal environments?
Yes, depending on the control system configuration, it supports both analog and digital I/O signal processing. -
Does the LT 8978B V1 support real-time control feedback loops?
Absolutely. It is optimized for time-critical control cycles and deterministic response behavior. -
How is onboard error detection handled in this board?
The board integrates hardware-based diagnostic circuitry and LED indicators to identify faults during runtime. -
Is this module hot-swappable within the rack system?
Generally, it should not be hot-swapped. A full power-down is recommended prior to installation or removal. -
What signal filtering features are built into the board?
It includes built-in filtering capacitors and ferrite components to minimize transient noise and EMI. -
How does the board synchronize with the main CPU module?
Synchronization occurs via clock signals and bus arbitration logic, maintaining timing integrity across the system. -
Is there any built-in protection against reverse polarity or overcurrent?
Yes, the board is designed with onboard protection elements such as PTC fuses and diode clamping. -
What is the typical input impedance sur the signal channels?
The input impedance varies by configuration but is typically designed for high-impedance signal lines to avoid load effects. -
How does the module handle watchdog or system reset signals?
It supports hardware watchdog timers and can receive system reset pulses via the control bus to reinitialize operations.
