Présentation du produit

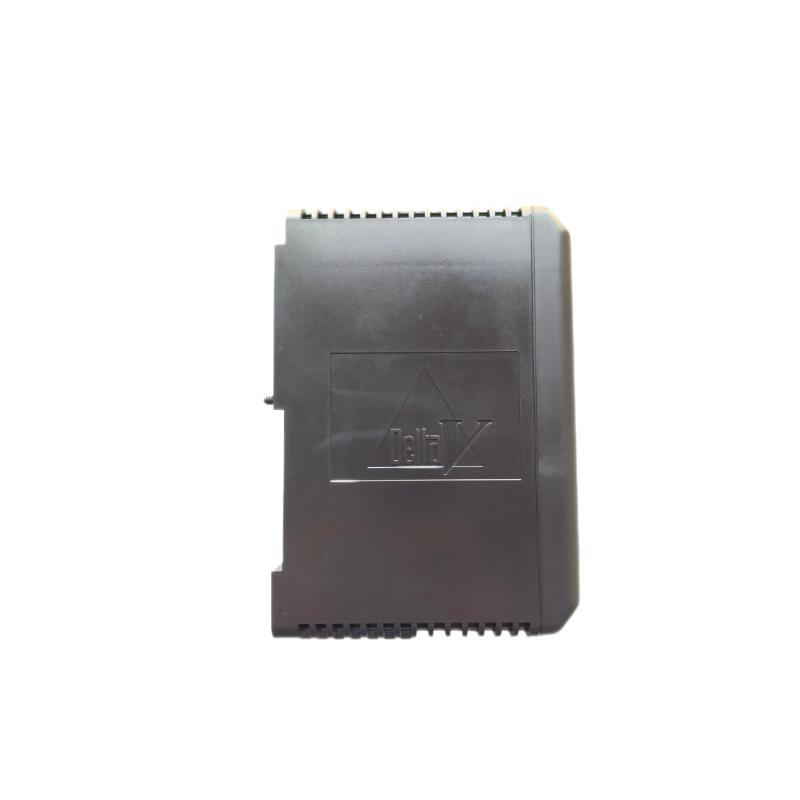

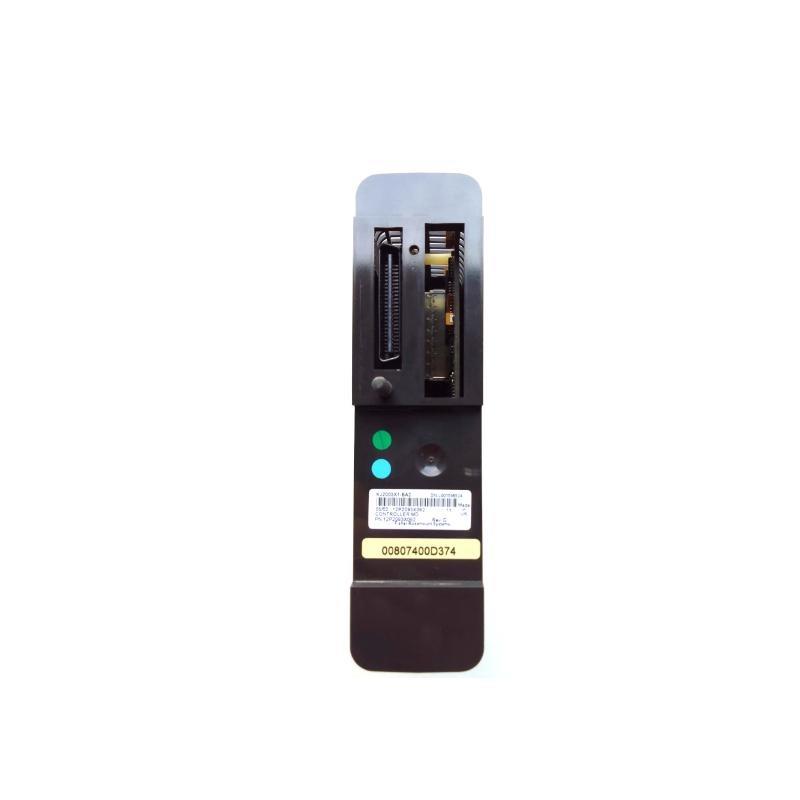

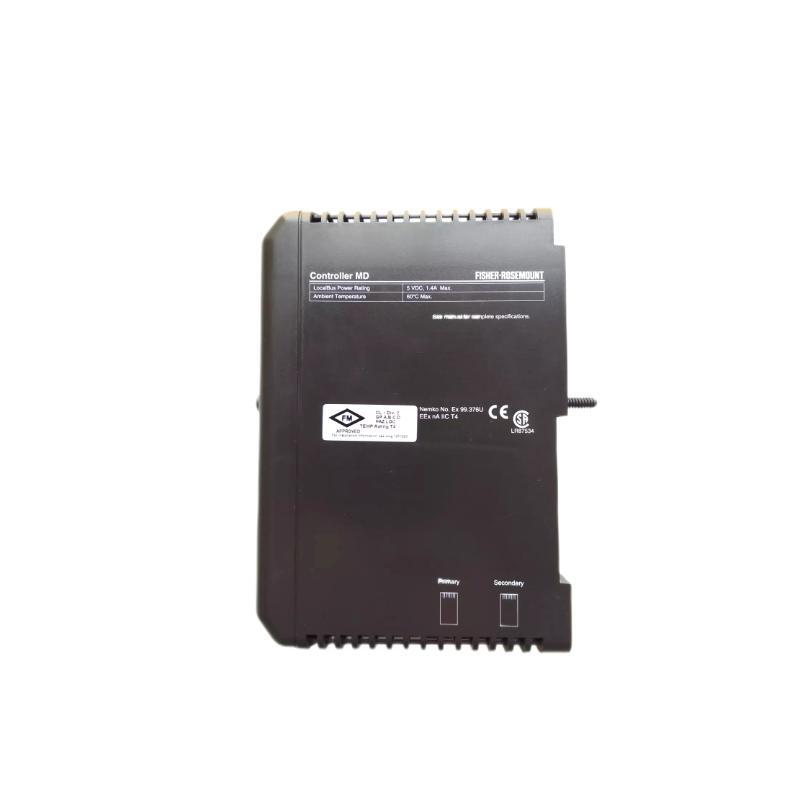

The Emerson KJ2003X1-BA2 is a powerful and highly reliable controller module designed for use in DeltaV™ distributed control systems (DCS). As part sur the DeltaV automation architecture, this controller plays a central role in process control, real-time data acquisition, and system-wide coordination. Engineered for critical process environments, it integrates seamlessly with the broader DeltaV system, providing fast, deterministic control performance with built-in redundancy and system diagnostics.
The KJ2003X1-BA2 supports complex control strategies, including regulatory, sequential, and advanced process control (APC), all managed within the DeltaV control strategy framework. With native communication to field devices, peer controllers, and operator stations, this module ensures tight integration and high system availability.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Name | KJ2003X1-BA2 |
| Fabricant | Emerson Electric Co. |
| Product Type | DeltaV Controller Module |
| System Platform | DeltaV Distributed Control System (DCS) |
| Processor | High-performance embedded CPU |
| Control Capacity | Supports up to 750 I/O channels (per controller) |
| Communication Interface | 2 × 10/100 Mbps Ethernet Ports |
| Protocol Support | DeltaV, OPC, Modbus TCP/IP, FOUNDATION Fieldbus |
| Internal Memory | Up to 32 MB DRAM for fast logic execution |
| Program Storage | Flash-based non-volatile memory for control strategies |
| Power Supply Voltage | 24 VDC nominal (range: 18–30 VDC) |
| Power Consumption | Approx. 5.5 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Shock/Vibration Resistance | IEC 60068 compliant |
| Redundancy Support | Yes (controller and communication redundancy) |
| Diagnostics | Built-in self-checks, watchdog timer, LED indicators |
| Dimensions (H × W × D) | 250 x 200 x 100 mm |
| Poids | 2.5 kg |
| Certifications | CE, CSA, ATEX Zone 2, GOST, FM Class 1 Div 2, RoHS |
| Mounting | DIN rail or system carrier mounting within DeltaV enclosure |
| Ssurtware Compatibility | DeltaV Control Studio, DeltaV Explorer |
Product Applications
The Emerson KJ2003X1-BA2 controller is widely used in process industries that require high-availability, distributed control. Its robust design and tight integration with Emerson’s DeltaV platform make it suitable for a broad range sur industries:
-
Oil and Gas: Real-time monitoring and control sur upstream and midstream operations.
-
Power Generation: Turbine control, boiler sequencing, and plant-wide integration.
-
Chemical Processing: Batch and continuous process control with recipe management.
-
Pharmaceutical Manufacturing: GMP-compliant process automation and control validation.
-
Water and Wastewater: Distribution, treatment, and discharge monitoring.
-
Pulp and Paper: Paper machine controls, chemical dosing, and pulp refining systems.
-
Mining and Metals: Crusher and mill control, leaching, and flotation automation.
Product Advantages
-
High Control Capacity: Supports large-scale installations with hundreds sur I/O points.
-
Deterministic Performance: Provides fast loop execution and tight process control.
-
System Redundancy: Enables seamless failover for critical operations.
-
Seamless Integration: Natively communicates within DeltaV architecture, reducing engineering time.
-
Advanced Diagnostics: Real-time health monitoring and status LEDs for rapid fault detection.
-
Secure Operation: Designed with cybersecurity in mind, with integrated secure communications.
-
Long Lifecycle: Industrial-grade components ensure extended service life in demanding environments.
-
Environmental Robustness: Wide operating temperature and shock/vibration resistance for harsh sites.
-
Ease sur Configuration: Fully compatible with DeltaV’s drag-and-drop engineering environment.
-
Reduced Downtime: Hot-swappable and easily replaceable without shutting down the system.
Questions fréquentes (FAQ)
-
What system is the KJ2003X1-BA2 designed for?
→ It is specifically designed for Emerson’s DeltaV DCS platform. -
How many I/O channels can a single controller handle?
→ A single KJ2003X1-BA2 can manage up to 750 I/O channels, depending on configuration. -
Is this controller hot-swappable?
→ Yes, it can be replaced while the system remains powered and running. -
Does it support controller redundancy?
→ Yes, redundant controllers can be configured for high-availability systems. -
What communication protocols are supported?
→ DeltaV native protocol, OPC, Modbus TCP/IP, and FOUNDATION Fieldbus. -
Can the controller be used in hazardous environments?
→ Yes, it is certified for ATEX Zone 2 and FM Class 1 Div 2 hazardous areas. -
What kind sur diagnostics are available?
→ Real-time health monitoring, internal watchdog, and status LEDs for system faults. -
What is the power requirement for the module?
→ It operates at 24 VDC nominal, with a range sur 18–30 VDC. -
Is programming complex with this controller?
→ No, it is configured via DeltaV Control Studio with a user-friendly graphical interface. -
What makes the KJ2003X1-BA2 reliable for critical processes?
→ Its redundant architecture, robust communication, and deterministic execution make it ideal for mission-critical operations.
