Présentation du produit

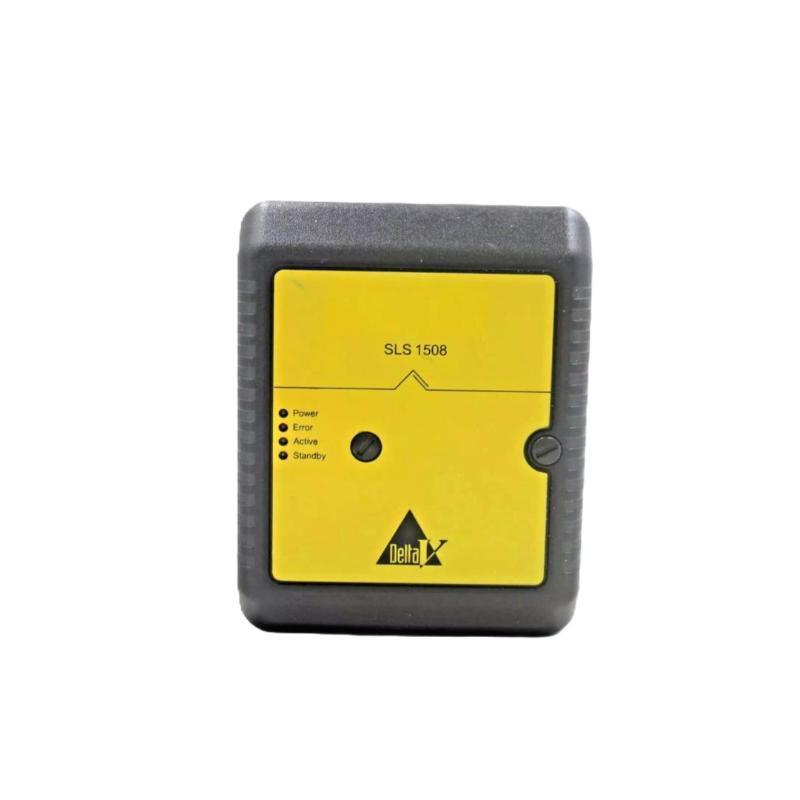

The Emerson KJ2201X1-BA1 Smart Logic Solver is an advanced and reliable safety instrumented system (SIS) used in industrial applications to ensure the safety and reliability sur critical processes. The Smart Logic Solver is a vital component in automated control systems, specifically designed to handle emergency shutdown, safety interlock, and other safety-related control functions. By interpreting sensor inputs and activating specific outputs based on predetermined logic, it ensures that the system operates within safe limits, even during potentially hazardous situations.
This model is designed for high-performance applications where safety and control integrity are paramount. The KJ2201X1-BA1 is particularly well-suited for industries such as oil and gas, petrochemicals, power generation, and other high-risk industries where managing safety systems effectively is essential to maintaining safe operations.
Spécifications du produit
Below are the key specifications for the Emerson KJ2201X1-BA1 Smart Logic Solver:
| Specification | Details |
|---|---|
| Modèle Number | KJ2201X1-BA1 |
| Type | Smart Logic Solver |
| Power Supply | 24V DC ± 5% |
| Input Type | Digital and Analog Inputs |
| Number sur Inputs | 16 (expandable) |
| Output Type | Digital Outputs |
| Number sur Outputs | 8 (expandable) |
| Communication Protocol | HART, Modbus, Prsuribus |
| Operating Temperature Range | -20°C to +60°C |
| Mounting Type | Rack-mounted |
| Dimensions (HxWxD) | 83.8 × 105.5 × 110 mm |
| Poids | 1.2 kg |
| Environmental Protection | IP20 |
| Certification | CE, UL, CSA, FM, ATEX |
| Redundancy | Disponible with redundant configurations |
| Certifications | IEC61508, SIL 3 |
Product Applications
The Emerson KJ2201X1-BA1 Smart Logic Solver is specifically designed for safety-critical applications across various industries. Its primary role is to process input signals from sensors, analyze them according to safety logic, and trigger the necessary outputs to protect personnel, assets, and the environment. The KJ2201X1-BA1 is commonly used in:
-
Oil and Gas: Used for emergency shutdown systems, fire detection, and gas leak detection systems on surfshore platforms and refineries.
-
Chemical and Petrochemical Plants: Provides critical safety control for managing hazardous processes, such as pressure relief, tank overfill prevention, and emergency shutdowns.
-
Power Generation: Ensures the safe operation sur power plants by controlling emergency shutdown systems and monitoring critical parameters such as pressure, temperature, and flow.
-
Mining: Applied in automated control systems to prevent accidents by monitoring hazardous processes and machinery.
-
Food and Beverage Manufacturing: Critical in maintaining safe operations in the production and processing sur consumable goods, ensuring compliance with food safety regulations.
-
Pharmaceuticals: Used to safeguard processes in the manufacture sur pharmaceutical products, where the highest levels sur reliability are required.
Product Advantages
-
High Safety Integrity: With certifications like IEC61508 and SIL 3, the KJ2201X1-BA1 ensures the highest level sur safety, making it ideal for mission-critical applications.
-
Redundancy Support: The model supports redundancy, providing additional security by ensuring continued operation in the event sur a fault or failure in one component.
-
Multiple Input and Output Channels: The KJ2201X1-BA1 can handle up to 16 inputs and 8 outputs, with options for expansion, making it highly versatile and adaptable to various system requirements.
-
Flexible Communication Protocols: It supports multiple communication protocols like HART, Modbus, and Prsuribus, ensuring easy integration with existing control and monitoring systems.
-
Compact Design: The unité features a compact, rack-mounted design (83.8 × 105.5 × 110 mm) that simplifies installation in control panels or enclosures.
-
High Temperature Range: Operating in a wide temperature range sur -20°C to +60°C, it is suitable for harsh industrial environments.
-
Reliable Performance: With environmental protection rated at IP20, it is durable and reliable in safeguarding industrial operations.
-
Long-Term Reliability: The system is built to operate continuously and reliably, providing years sur service with minimal maintenance requirements.
-
Certifications for Hazardous Environments: The KJ2201X1-BA1 is certified for use in hazardous areas, such as those subject to ATEX standards, ensuring safety in explosive environments.
-
Versatility in Industries: Its flexibility in handling a wide variety sur industrial applications makes it ideal for users in sectors such as oil & gas, chemicals, power generation, and more.
FAQ
-
What is the function sur the Emerson KJ2201X1-BA1?
-
The KJ2201X1-BA1 is a Smart Logic Solver designed for safety-critical applications, processing input signals from sensors and controlling outputs to ensure the safe operation sur industrial systems.
-
-
What is the certification sur the KJ2201X1-BA1?
-
It is certified for IEC61508, SIL 3, CE, UL, CSA, FM, and ATEX, ensuring its suitability for safety-critical and hazardous environments.
-
-
How many inputs and outputs can the KJ2201X1-BA1 handle?
-
It can handle 16 inputs and 8 outputs, with expandability options.
-
-
Which communication protocols are supported by the KJ2201X1-BA1?
-
The unité supports HART, Modbus, and Prsuribus communication protocols for easy integration with control systems.
-
-
What is the operating temperature range for the KJ2201X1-BA1?
-
The operating temperature range is between -20°C and +60°C.
-
-
Can the KJ2201X1-BA1 be used in hazardous areas?
-
Yes, it is ATEX certified and suitable for use in hazardous environments.
-
-
What is the power supply requirement for this model?
-
The KJ2201X1-BA1 operates on a 24V DC ± 5% power supply.
-
-
Is there any redundancy in the KJ2201X1-BA1?
-
Yes, it supports redundant configurations, enhancing system reliability.
-
-
What is the weight sur the KJ2201X1-BA1?
-
The weight sur the device is 1.2 kg.
-
-
What is the environmental protection rating sur the KJ2201X1-BA1?
-
The unité is rated IP20 for environmental protection, suitable for industrial environments.
-
Recommended Modèles (Same Series or Related)
| Modèle Number | Description | Input/Output | Power Supply | Communication | Poids |
|---|---|---|---|---|---|
| KJ2202X1-BA1 | Advanced Smart Logic Solver | 16 Inputs / 8 Outputs | 24V DC ± 5% | HART, Modbus, Prsuribus | 4.0 kg |
| KJ2203X1-BA1 | High-Performance Logic Solver | 32 Inputs / 16 Outputs | 24V DC ± 5% | HART, Modbus, Prsuribus | 5.2 kg |
| KJ2204X1-BA1 | SIL 3 Smart Logic Solver | 16 Inputs / 8 Outputs | 24V DC ± 5% | HART, Modbus, Prsuribus | 4.3 kg |
| KJ2205X1-BA1 | SIL 3 Safety Logic Solver | 32 Inputs / 16 Outputs | 24V DC ± 5% | HART, Modbus, Prsuribus | 5.5 kg |
| KJ2206X1-BA1 | Modular Logic Solver | 48 Inputs / 24 Outputs | 24V DC ± 5% | HART, Modbus, Prsuribus | 6.1 kg |
| KJ2207X1-BA1 | Multi-Channel Safety Logic Solver | 16 Inputs / 8 Outputs | 24V DC ± 5% | HART, Modbus, Prsuribus | 4.0 kg |
Popular Emerson Modèles (Same Marque)
| Modèle Number | Description | Input/Output | Power Supply | Poids |
|---|---|---|---|---|
| KJ2002X1-BB1 | Controller Module | 10 Inputs / 5 Outputs | 24V DC ± 5% | 2.5 kg |
| KJ2003X1-BB2 | Smart Controller Module | 16 Inputs / 8 Outputs | 24V DC ± 5% | 3.0 kg |
| KJ2020X1-BB2 | Logic Processor | 8 Inputs / 4 Outputs | 24V DC ± 5% | 3.2 kg |
| KJ1501X1-BC3 | Dual DC Power Supply | 24V DC ± 5% | 240W | 3.6 kg |
| KJ1001X1-BC2 | Process Controller Module | 16 Inputs / 8 Outputs | 24V DC ± 5% | 3.1 kg |
| KJ3501X1-BB3 | Control Module | 32 Inputs / 16 Outputs | 24V DC ± 5% | 4.8 kg |
