Présentation du produit

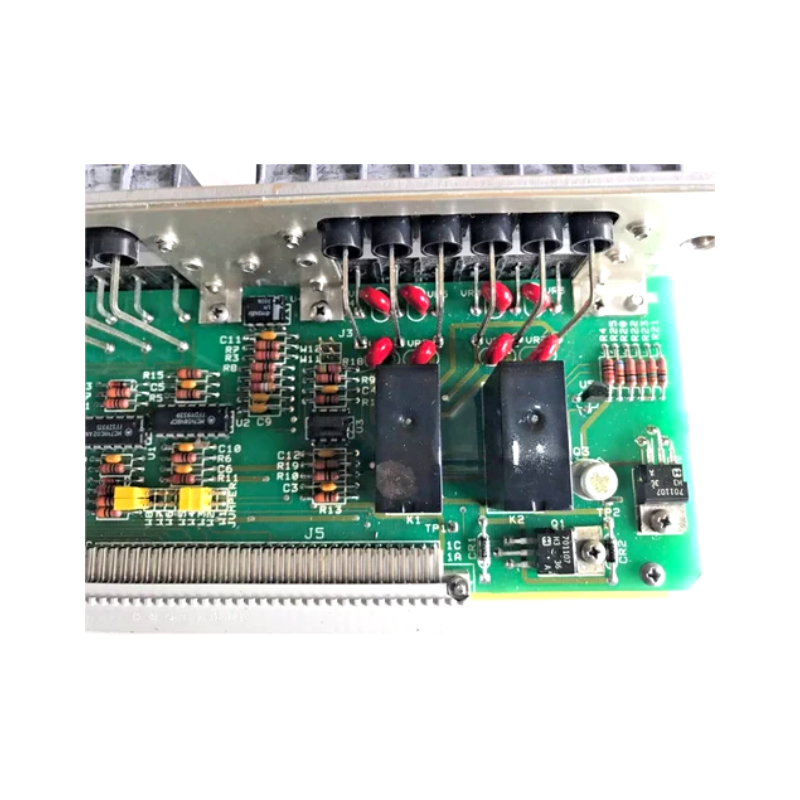

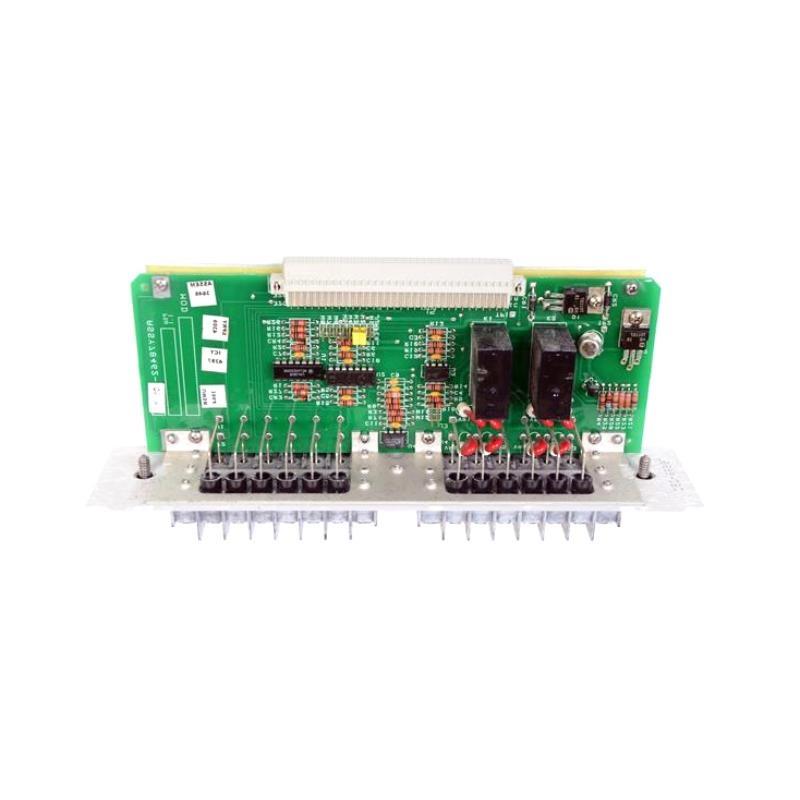

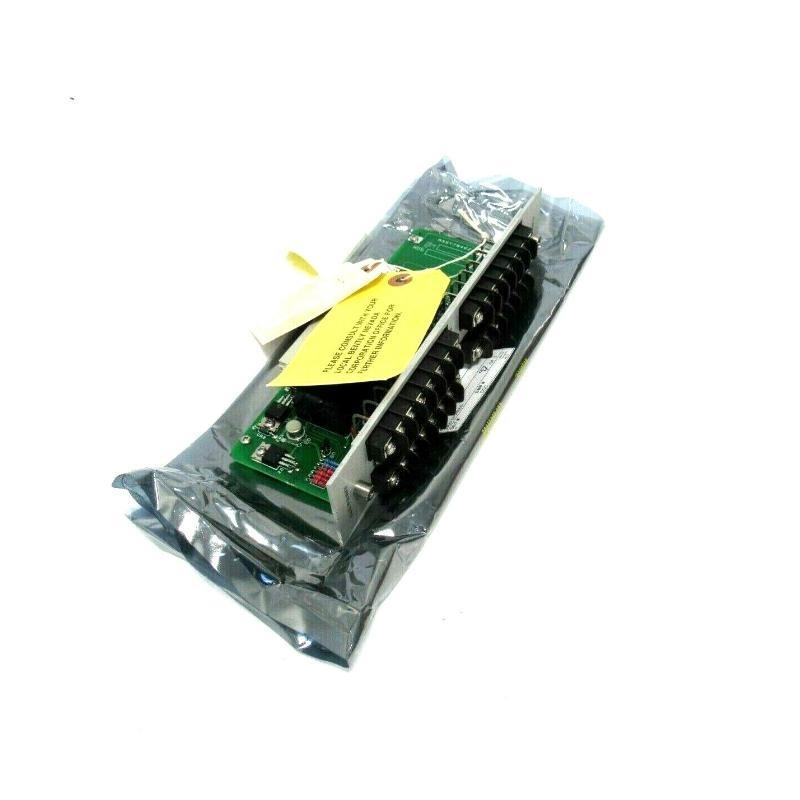

The Bently Nevada 82365-01 Signal Input/Alarm Output Module is a high-performance interface module designed for advanced machinery monitoring and protection systems. It provides reliable signal acquisition from sensors and precise alarm output control, ensuring critical machinery data is accurately processed and operational anomalies are promptly reported. This module is widely used in industrial applications requiring robust monitoring, early fault detection, and effective alarm management.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 82365-01 |
| Function | Signal Input / Alarm Output |
| Input Type | Voltage, Current, and Switch Signals |
| Output Type | Alarm Relays |
| Signal Channels | Up to 8 discrete inputs |
| Alarm Outputs | Up to 4 relay outputs |
| Accuracy | ±0.5% full scale |
| Response Time | < 50 ms |
| Operating Voltage | 24 VDC ± 10% |
| Power Consumption | 6 W |
| Communication Interface | 4–20 mA, optional Modbus/Fieldbus support |
| Operating Temperature | -20°C to +70°C |
| Enclosure | Industrial-grade metal housing |
| Dimensions | 160 x 160 x 120 mm |
| Poids | 0.8 kg |
| Mounting | Panel or DIN-rail compatible |
Product Applications
-
Machinery vibration monitoring and protection
-
Rotating equipment condition monitoring in turbines, compressors, and pumps
-
Alarm management and fault reporting in industrial plants
-
Integration with Bently Nevada monitoring systems for continuous machinery diagnostics
-
Real-time data acquisition for predictive maintenance programs
-
Control system interface for safety shutdowns
Product Advantages
-
Reliable Signal Processing: Supports multiple input types with high accuracy, ensuring precise monitoring.
-
Rapid Alarm Response: Fast relay outputs allow immediate action for critical equipment conditions.
-
Robust Industrial Design: Durable metal housing suitable for harsh industrial environments.
-
Flexible Integration: Compatible with a wide range sur Bently Nevada sensors and monitoring systems.
-
Scalable Configuration: Supports multiple channels and relays, allowing adaptation to different monitoring setups.
-
Predictive Maintenance Support: Provides real-time data for condition-based maintenance strategies, reducing unplanned downtime.
FAQ
Q1: What types sur signals can the 82365-01 module accept?
A1: The module supports voltage, current, and discrete switch signals from sensors.
Q2: How many input channels are available on this module?
A2: It supports up to 8 discrete input channels.
Q3: How many alarm outputs does the module provide?
A3: The module provides up to 4 relay-based alarm outputs.
Q4: What is the typical response time for alarms?
A4: The response time is less than 50 milliseconds.
Q5: What communication protocols are supported?
A5: Standard 4–20 mA output is provided; optional Modbus and Fieldbus interfaces are available.
Q6: What is the operating voltage for the module?
A6: The module operates on 24 VDC ±10%.
Q7: Is the module suitable for high-temperature environments?
A7: Yes, it operates reliably in temperatures ranging from -20°C to +70°C.
Q8: Can the module be mounted on a DIN rail?
A8: Yes, it supports both panel and DIN-rail mounting options.
Q9: What is the power consumption sur the module?
A9: The typical power consumption is 6 W.
Q10: Is the module compatible with other Bently Nevada monitoring systems?
A10: Yes, it integrates seamlessly with other Bently Nevada monitoring systems for data acquisition and alarm management.
Recommended 6 Same-Series or Related Modèles
| Modèle Number | Function | Input Channels | Alarm Outputs |
|---|---|---|---|
| 82360-01 | Signal Input Module | 8 | 2 |
| 82361-01 | Alarm Output Module | 4 | 4 |
| 82362-01 | Signal Étating Module | 6 | 2 |
| 82363-01 | High-Speed Input Module | 8 | 4 |
| 82364-01 | Dual Channel Input/Alarm Module | 4 | 2 |
| 82366-01 | Vibration Signal Interface Module | 8 | 4 |
Recommended 6 Popular Bently Nevada Modèles
| Modèle Number | Function | Key Feature |
|---|---|---|
| 3500/22M | Vibration Sensor | Magnetic probe |
| 3500/33 | Monitor Unité | Multi-channel vibration monitoring |
| 3500/34 | Proximity Probe | Shaft displacement measurement |
| 330103-17-22-10 | Monitor Module | Rolling element bearing monitoring |
| 3300/10 | Tachometer Probe | Speed and phase reference |
| 3500/FC | Fault Collector | Real-time signal collection |
