Product Overview

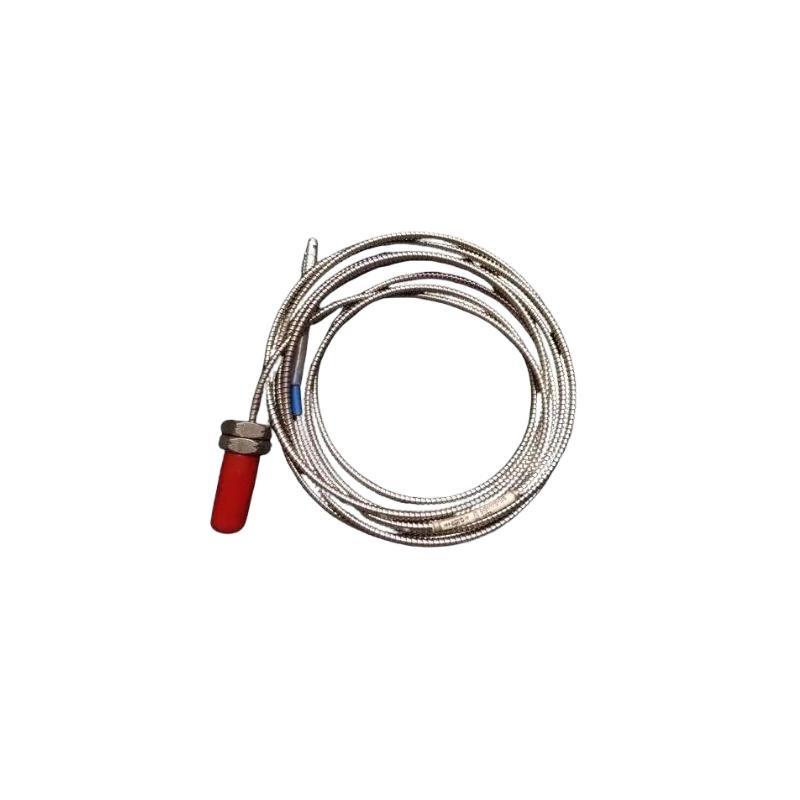

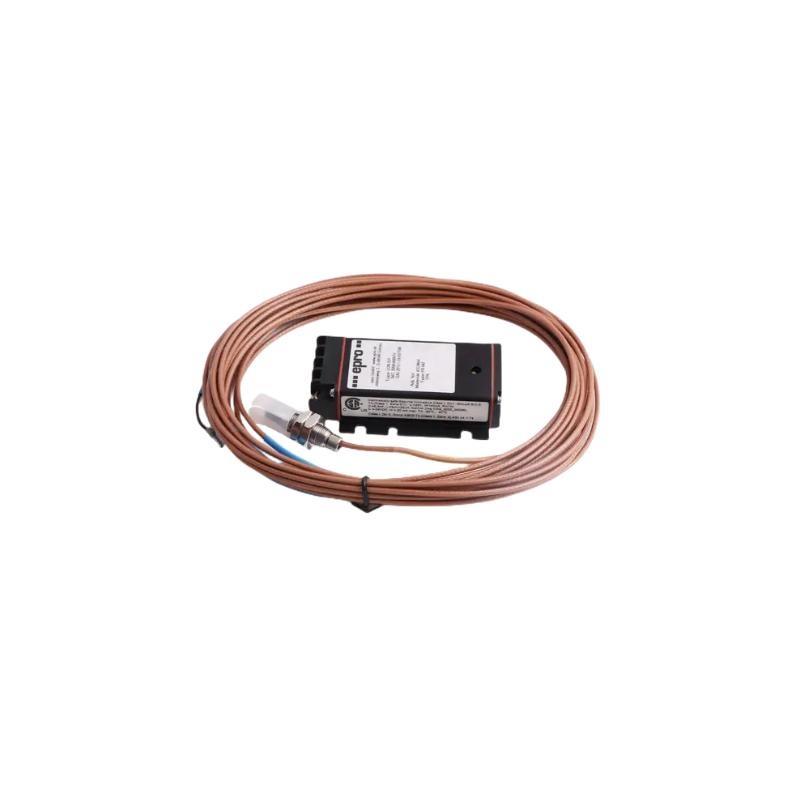

The Epro PR6426/010-110+CON021/916-240 is a high-performance 32mm eddy current sensor system designed for precise non-contact measurement sur displacement, position, and vibration in industrial applications. This sensor surfers high accuracy and sensitivity, making it ideal for measuring small displacements or vibrations in various rotating and stationary equipment. The PR6426/010-110 sensor, combined with the CON021/916-240 signal conditioner, provides a comprehensive solution for monitoring applications that require real-time, accurate measurements.
The Epro PR6426/010-110 sensor uses eddy current technology, which is widely used for its non-contact nature and high measurement precision. This sensor can be used in harsh environments due to its robust design and high resistance to contamination and electromagnetic interference.
With a 32 mm sensor head diameter and a 0.92 kg weight, this eddy current sensor system is compact yet powerful enough for accurate measurements. It is an essential tool in industries such as vibration monitoring, machine condition monitoring, quality control, and automated systems.
Technical Parameters
| Parameter | Specification |
|---|---|
| Modèle | Epro PR6426/010-110+CON021/916-240 |
| Sensor Head Diameter | 32 mm |
| Poids | 0.92 kg |
| Measurement Principle | Eddy Current |
| Measuring Range | ±1.5 mm |
| Resolution | 0.1 µm |
| Output Type | Analog (4-20 mA) |
| Frequency Range | 0-10 kHz |
| Temperature Range | -40°C to 120°C |
| Power Supply | 24 V DC |
| Response Time | <1 ms |
| Material | Stainless Steel |
| Protection Class | IP67 |
| Signal Étater | CON021/916-240 |
Applications
The Epro PR6426/010-110+CON021/916-240 eddy current sensor system is designed for precise measurements in a wide variety sur industrial applications. Some common applications include:
-
Vibration Monitoring: Detects vibration in rotating machinery such as turbines, compressors, and motors to prevent potential equipment failures.
-
État Monitoring: Provides real-time displacement and vibration data for monitoring machinery health, helping detect early signs sur wear or faults.
-
Industrial Automation: Used in automated systems for precise position control, ensuring accurate operation sur mechanical processes and equipment.
-
Machine Tool Monitoring: Measures displacement in CNC machines and other precision equipment, ensuring accurate performance and reducing downtime.
-
Quality Control: Ensures the precise positioning and alignment sur parts during manufacturing processes, improving the quality sur finished products.
-
High-Speed Rotating Equipment: Ideal for high-speed applications where precise measurement sur displacement or vibration is critical to maintaining equipment performance.
Advantages
-
Non-Contact Measurement: The Epro PR6426/010-110 sensor uses eddy current technology to provide non-contact measurements, which reduces wear and tear on both the sensor and the equipment.
-
High Accuracy: The sensor provides a 0.1 µm resolution, surfering high-precision measurements for critical industrial applications.
-
Fast Response Time: With a response time sur <1 ms, the sensor provides real-time data, making it suitable for high-speed applications.
-
Wide Temperature Range: The sensor operates efficiently in extreme temperatures, with a range sur -40°C to 120°C, making it suitable for harsh environments.
-
Durability: The sensor has an IP67 protection rating, meaning it is resistant to dust, moisture, and other contaminants.
-
Robust Design: With a stainless steel housing, the sensor is designed to withstand physical stress, vibrations, and harsh industrial conditions.
-
Easy Integration: The system includes the CON021/916-240 signal conditioner, which ensures easy integration into existing control and monitoring systems.
FAQ
-
What measurement principle is used by the Epro PR6426/010-110+CON021/916-240 sensor?
The sensor uses eddy current technology to measure displacement and vibration without physical contact with the target. -
What is the measuring range sur the sensor?
The sensor surfers a measuring range sur ±1.5 mm, making it suitable for small displacement measurements. -
What output signal does the sensor provide?
The Epro PR6426/010-110 sensor provides an analog 4-20 mA output signal for easy integration into control systems. -
What is the temperature range for the sensor?
The sensor operates within a wide temperature range sur -40°C to 120°C, ensuring reliable performance in both extreme cold and heat. -
How fast is the response time sur the sensor?
The sensor has a fast response time sur <1 ms, making it suitable for high-speed applications. -
What is the resolution sur the Epro PR6426/010-110 sensor?
The sensor surfers a resolution sur 0.1 µm, providing high-accuracy measurements for precise applications. -
What is the power supply requirement for the Epro PR6426/010-110+CON021/916-240?
The sensor requires a 24 V DC power supply. -
What is the protection rating sur the Epro PR6426/010-110+CON021/916-240 sensor?
The sensor is rated IP67, making it resistant to dust, moisture, and harsh environments. -

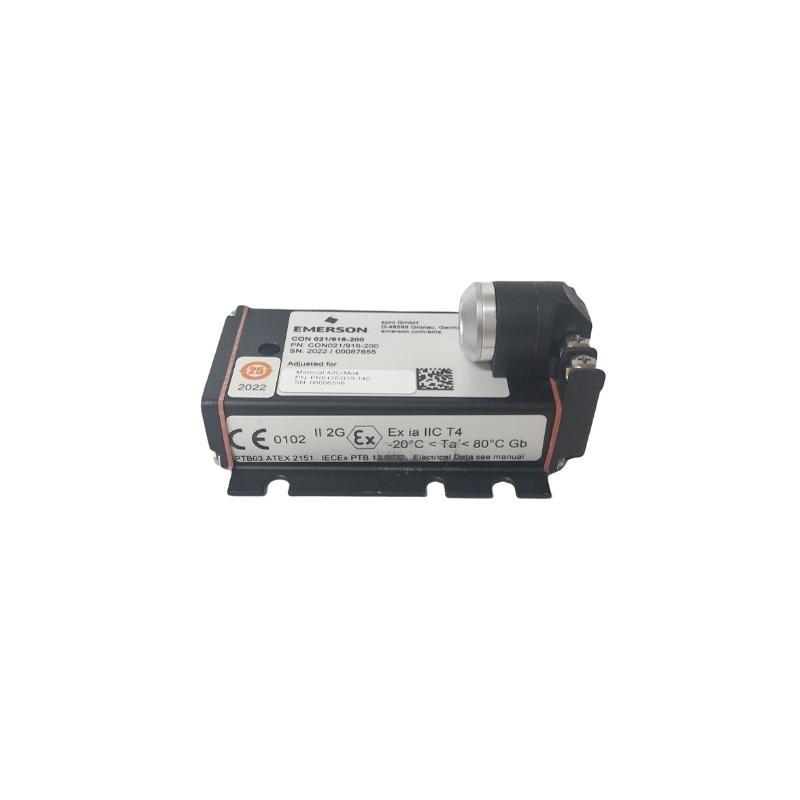

How does the CON021/916-240 signal conditioner help the sensor?
The CON021/916-240 signal conditioner ensures that the analog output from the sensor is stable and compatible with industrial control systems. -
Can this sensor be used in rotating equipment?
Yes, the Epro PR6426/010-110 sensor is ideal for use in rotating equipment, providing accurate displacement and vibration data in real-time.
