Présentation du produit

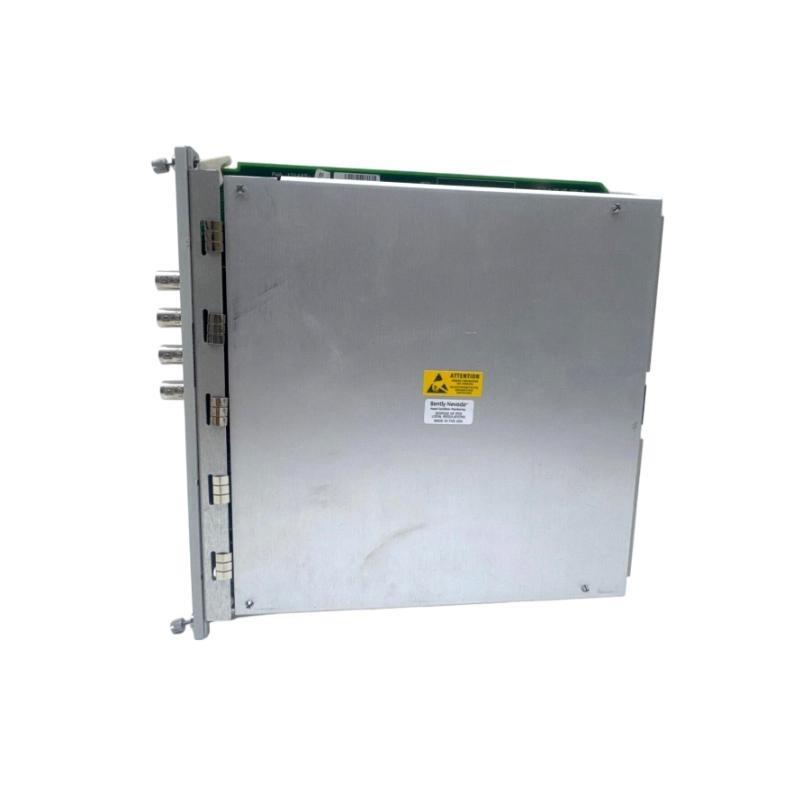

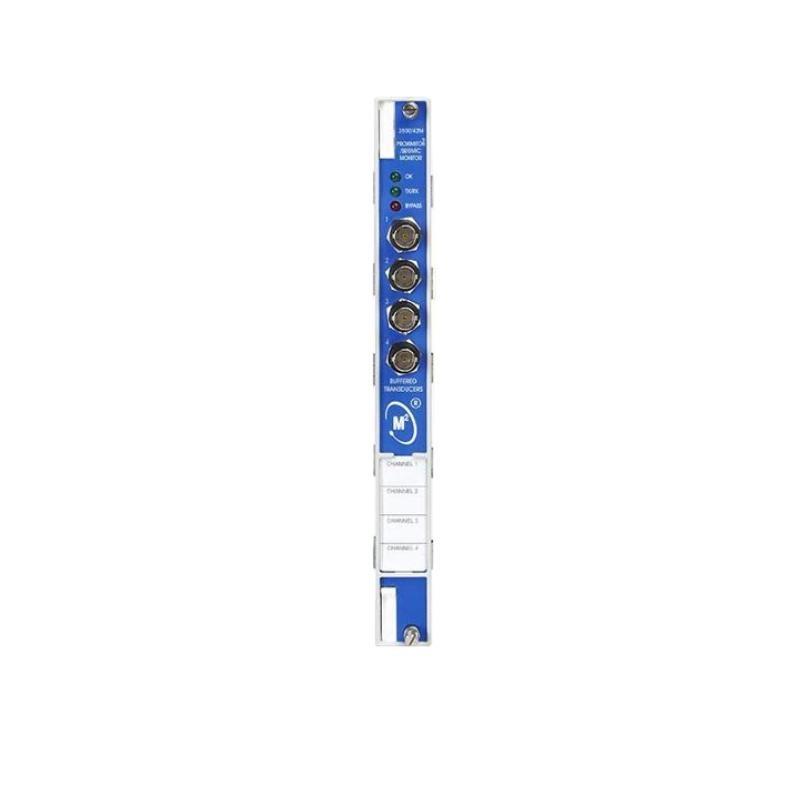

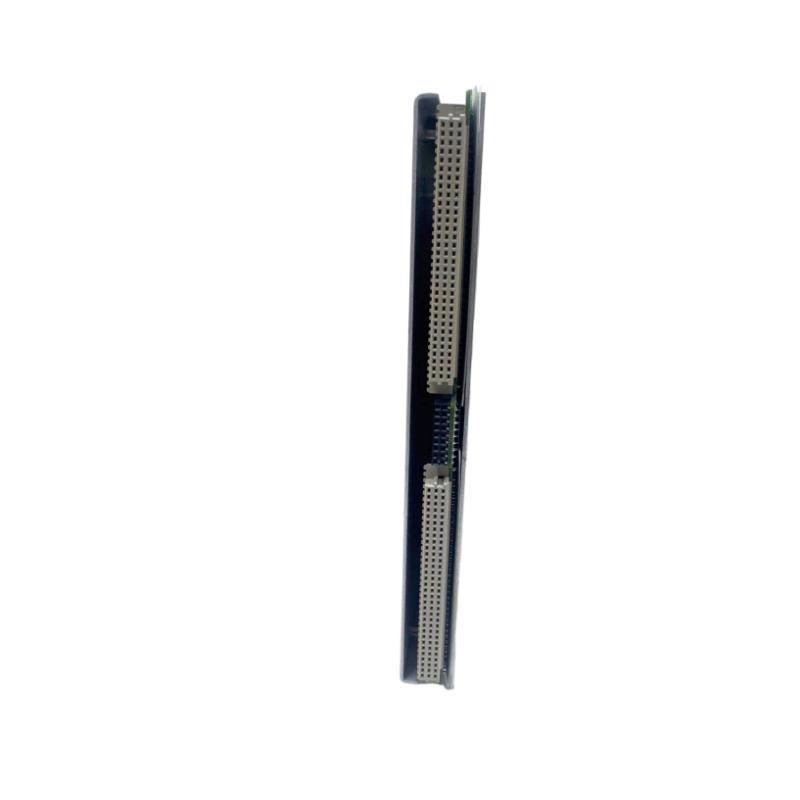

The Bently Nevada 3500/42 176449-02 + 135489-01 Proximitor Seismic Monitor is a state-sur-the-art seismic and vibration monitoring device designed for the protection and health monitoring sur critical industrial machinery. As part sur the Bently Nevada 3500 series, it surfers highly precise detection sur seismic disturbances and vibrations, ensuring that potential issues are detected early before they can cause serious damage or result in unplanned downtime.
The 3500/42 is primarily used in industries such as power generation, oil & gas, mining, and manufacturing, where it plays a vital role in monitoring turbines, compressors, generators, and other key equipment. By continuously monitoring seismic activity and vibrations, this device provides real-time data that allows operators to make informed decisions about machinery maintenance and performance.
Built to endure harsh environments, the 3500/42 is housed in a durable NEMA 4X-rated enclosure, ensuring protection from moisture, dust, and extreme temperatures. Its integration with other Bently Nevada monitoring systems creates a robust machinery health network that provides real-time alerts and helps mitigate costly repairs and equipment failure.
Spécifications du produit
| Feature | Specification |
|---|---|
| Modèle Number | 3500/42 176449-02 + 135489-01 |
| Dimensions (L x W x H) | 241.3 x 24.4 x 241.8 mm |
| Poids | 0.91 kg |
| Power Supply | 24 VDC |
| Input Type | Seismic sensor input |
| Output Type | Digital (RS-485) |
| Operating Temperature | -40°C to 70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Enclosure Rating | NEMA 4X |
| Signal Range | 4-20 mA, 0-10 VDC |
| Mounting Type | Panel mount |
Product Applications
The 3500/42 Proximitor Seismic Monitor has a wide range sur applications in various industries, particularly in environments where the detection sur abnormal seismic or vibrational activity is critical for maintaining the safety and performance sur machinery. Some sur the key applications include:
-
Power Generation: The 3500/42 is used in power plants to monitor turbines, generators, and other critical equipment. It helps identify vibrations and seismic disturbances that could impact equipment performance and reliability.
-
Oil & Gas: This device is used in surfshore drilling rigs, refineries, and production facilities to monitor seismic activity and vibrations that could threaten the safety and efficiency sur equipment and operations.
-
Mining: In mining operations, the 3500/42 monitors heavy machinery such as drills, crushers, and conveyors to detect any potential issues caused by seismic or vibration disturbances.
-
Manufacturing: The 3500/42 protects industrial machinery, such as presses, mills, and conveyors, by detecting abnormal vibrations or seismic events that could affect production quality or cause equipment failure.
-
HVAC Systems: The device is used in HVAC systems to detect vibrations and seismic events, ensuring that equipment operates smoothly and does not experience failures due to external disturbances.
Product Advantages
-
High Precision: The 3500/42 provides highly accurate seismic and vibration measurements, enabling operators to detect even the slightest disturbances that could indicate potential equipment failure.
-
Durability: With its NEMA 4X-rated enclosure, the 3500/42 is built to withstand harsh environmental conditions, including exposure to moisture, dust, and extreme temperatures.
-
Easy Integration: The 3500/42 can be seamlessly integrated with other Bently Nevada monitoring systems, enabling a unified solution for comprehensive machinery health monitoring.
-
Real-Time Alerts: The device provides immediate real-time alerts when abnormal seismic or vibration events are detected, allowing operators to take swift corrective actions.
-
Minimal Maintenance: The 3500/42 is designed for low-maintenance operation, surfering continuous protection with minimal need for servicing or downtime.
-
Cost Efficiency: By preventing equipment failure and minimizing downtime, the 3500/42 helps to reduce maintenance costs and prolong the life sur critical machinery, leading to significant cost savings.
FAQ (Questions fréquentes)
-
What is the primary function sur the 3500/42 Proximitor Seismic Monitor?
-
The 3500/42 is designed to monitor seismic activity and vibrations in machinery, helping to identify abnormal conditions before they lead to equipment failure or costly downtime.
-
-
How is the 3500/42 powered?
-
The 3500/42 operates using a 24 VDC power supply.
-
-
What type sur output does the 3500/42 provide?
-
The device provides a digital output via RS-485 communication.
-
-
Can the 3500/42 be used outdoors?
-
Yes, the 3500/42 is housed in a NEMA 4X-rated enclosure, which makes it suitable for outdoor use and harsh environments.
-
-
What is the operating temperature range sur the 3500/42?
-
The 3500/42 operates in a temperature range from -40°C to 70°C.
-
-
How is the 3500/42 mounted?
-
The 3500/42 is designed for panel mounting, making it easy to install in industrial control systems.
-
-
Can the 3500/42 be integrated with other Bently Nevada systems?
-
Yes, the 3500/42 integrates seamlessly with other Bently Nevada monitoring devices, enabling a comprehensive monitoring solution for industrial machinery.
-
-
What types sur seismic sensors are compatible with the 3500/42?
-
The 3500/42 works with seismic sensors that provide input signals such as 4-20 mA and 0-10 VDC.
-
-
Which industries benefit from using the 3500/42?
-
The 3500/42 is used across a range sur industries, including power generation, oil & gas, mining, manufacturing, and HVAC systems.
-
-
What are the main advantages sur using the 3500/42?
-
The 3500/42 surfers high-precision monitoring, real-time alerts, easy integration, rugged durability, minimal maintenance, and cost efficiency.
-
Related Modèles (Same Series)
| Modèle Number | Description |
|---|---|
| 3500/45 | Vibration Monitor |
| 3500/41 | Process Variable Monitor |
| 3500/22 | Keyphasor Sensor Module |
| 3500/25 | Temperature Monitoring System |
| 3500/90 | Rack System |
| 3500/10 | Power Supply Unité |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 3500/42M-09-00 | Seismic Monitoring System – Modèle 09 |
| 3500/42M-09-01 | Seismic Monitoring System – Modèle 09 |
| 3500/42M-09-02 | Seismic Monitoring System – Modèle 09 |
| 3500/42M-XX-00 | Seismic Monitoring System – Modèle XX |
| 3500/42M-XX-01 | Seismic Monitoring System – Modèle XX |
| 3500/42M-XX-02 | Seismic Monitoring System – Modèle XX |
