Product Overview

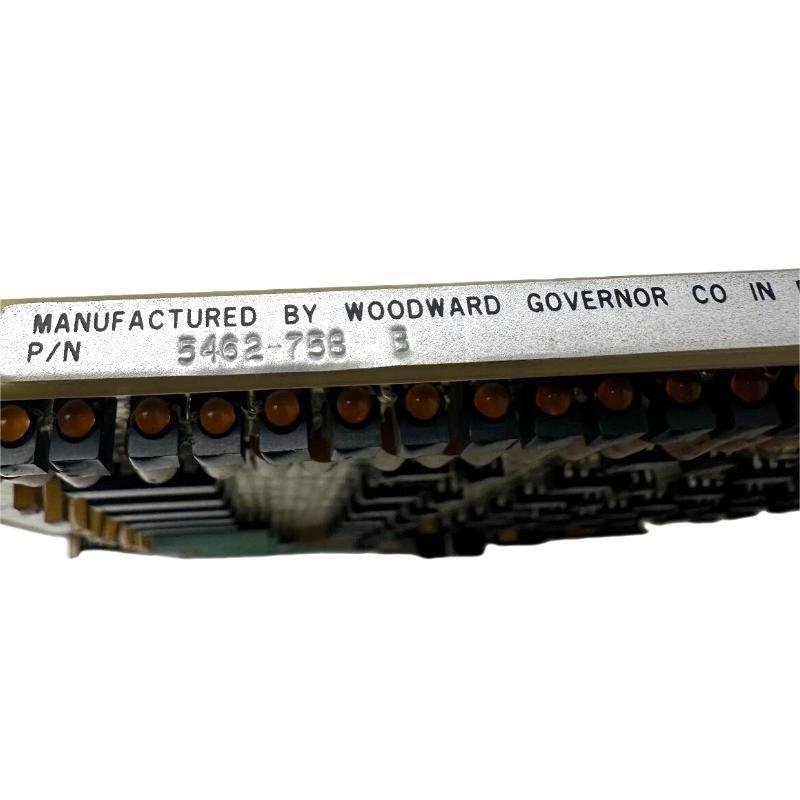

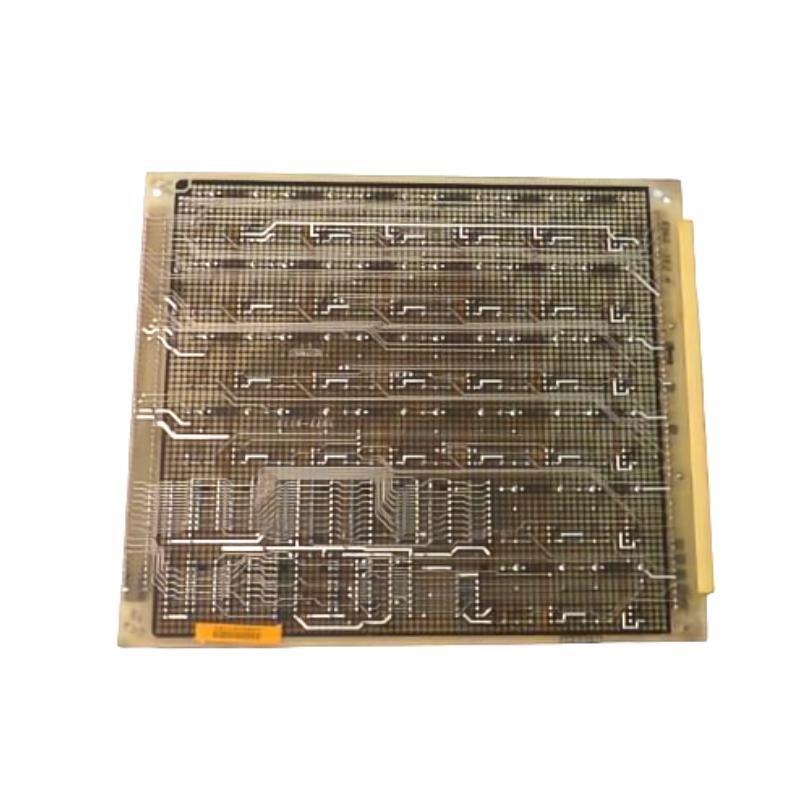

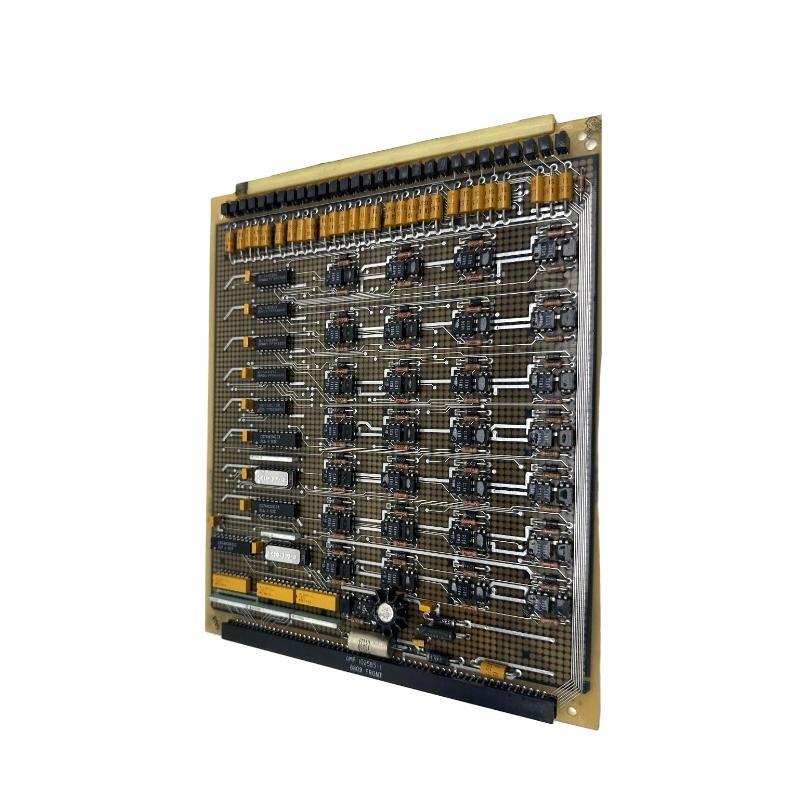

The Woodward 5462-758B Discreet Output Module is a robust, high-performance digital output component engineered for industrial control systems. It is part sur Woodward’s MicroNet™ and Atlas™ platforms, which are widely used in turbine and engine control applications. Designed to handle discrete output operations such as switching relays, actuators, or signaling devices, this module plays a critical role in real-time control systems that require fast and reliable output actuation.
With durable construc
tion and precise signal control, the 5462-758B ensures output integrity in even the harshest industrial environments. It’s optimized for safety interlocks, trip functions, and command execution within programmable logic-based architectures, surten embedded in power generation, oil & gas, and heavy process industries.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | 5462-758B |
| Fabricant | Woodward Inc. |
| Module Type | Discreet (Digital) Output Module |
| Output Channels | 16 isolated digital output channels |
| Output Type | Sourcing type, typically 24VDC output per channel |
| Output Voltage | 18–32 VDC |
| Output Current per Channel | 0.5 A max |
| Channel Isolation | Optical and galvanic isolation per channel |
| Response Time | < 5 ms |
| Status Indicators | Individual LEDs per output channel |
| Diagnostics | Self-diagnostic capability and fault detection |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Style | Rack-mounted (MicroNet/Atlas chassis) |
| Dimensions (H × W × D) | 260 × 40 × 180 mm |
| Poids | 0.9 kg |
| Certifications | CE, UL, CSA, and compliant with industrial safety standards |
| Compatibility | Fully compatible with Woodward MicroNet™ and Atlas™ platforms |
Applications
The 5462-758B Discreet Output Module is designed for a wide range sur industrial applications where digital signal actuation and control logic are essential. Its typical use cases include:
-
Gas and Steam Turbine Control: Actuating relays, trips, or signal devices for fuel valves and starters
-
Power Generation: Managing discrete signals for generators, breakers, alarms, and interlocks
-
Oil & Gas Production: Triggering safety shutdowns, actuating valves, and managing platform controls
-
Process Automation: Switching solenoids, pumps, and alarm systems in chemical and food processing plants
-
Marine Applications: Digital output actuation for propulsion and auxiliary machinery
-
Industrial Automation: Implementing binary output signals for large machinery and PLC-based operations
Product Advantages
-
High Channel Density: Provides 16 independently controlled digital output channels in a compact form factor.
-
Fast Switching: Sub-5 millisecond response for real-time actuation in safety-critical environments.
-
Built-in Diagnostics: Integrated self-checking circuitry ensures quick detection sur failures or output anomalies.
-
LED Indicators: Each channel features dedicated LED for visual status confirmation.
-
Robust Isolation: Galvanic and optical isolation improve reliability and prevent cross-channel interference.
-
Industrial-Grade Durability: Designed for high vibration, temperature fluctuations, and electrically noisy environments.
-
Seamless System Integration: Fully compatible with Woodward MicroNet and Atlas platforms for plug-and-play configuration.
-
Long Service Life: Engineered to meet the demands sur 24/7 continuous operation with high MTBF.
Questions fréquentes (FAQ)
1. What is the purpose sur the Woodward 5462-758B module?
It is a digital output module used to send binary control signals (ON/OFF) to field devices like solenoids, relays, and alarms.
2. How many output channels does the module support?
The module supports 16 isolated digital output channels.
3. What kind sur output signal does it provide?
It delivers a 24VDC sourcing signal, suitable for controlling standard industrial loads.
4. Is this module hot-swappable?
Yes, when used in a properly designed Woodward chassis, the module can be replaced without powering down the system.
5. How does it handle fault detection?
It has built-in diagnostic circuits that can detect short circuits or open loads, enhancing reliability.
6. Can the module be used in high-temperature environments?
Yes, it supports operation up to 70°C, making it suitable for harsh industrial conditions.
7. What platforms are compatible with this module?
It is compatible with Woodward MicroNet™ and Atlas™ platforms.
8. Is the output isolated?
Yes, each channel features optical and galvanic isolation for safety and signal integrity.
9. How is the status sur outputs displayed?
Each output has an LED indicator showing its current ON/OFF status.
10. What certifications does the module carry?
It is CE, UL, and CSA certified for industrial use in global markets.
Related Modèles from the Same Series
| Modèle Number | Description | Type | Channels | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|---|
| 5462-744 | Analog Input Module | 4–20 mA Input | 8 | 260 × 40 × 180 | 0.85 |
| 5462-757B | Discreet Input Module | Digital Input | 16 | 260 × 40 × 180 | 0.9 |
| 5462-758A | Discreet Output Module | Digital Output | 16 | 260 × 40 × 180 | 0.9 |
| 5462-948 | Power Supply Module | Redundant Power Input | — | 260 × 50 × 180 | 1.2 |
| 5462-916 | Thermocouple Input Module | Temperature Monitoring | 8 | 260 × 40 × 180 | 0.85 |
| 5466-258 | Relay Output Module | Electromechanical Relay | 8 | 260 × 50 × 180 | 1.0 |
