Présentation du produit

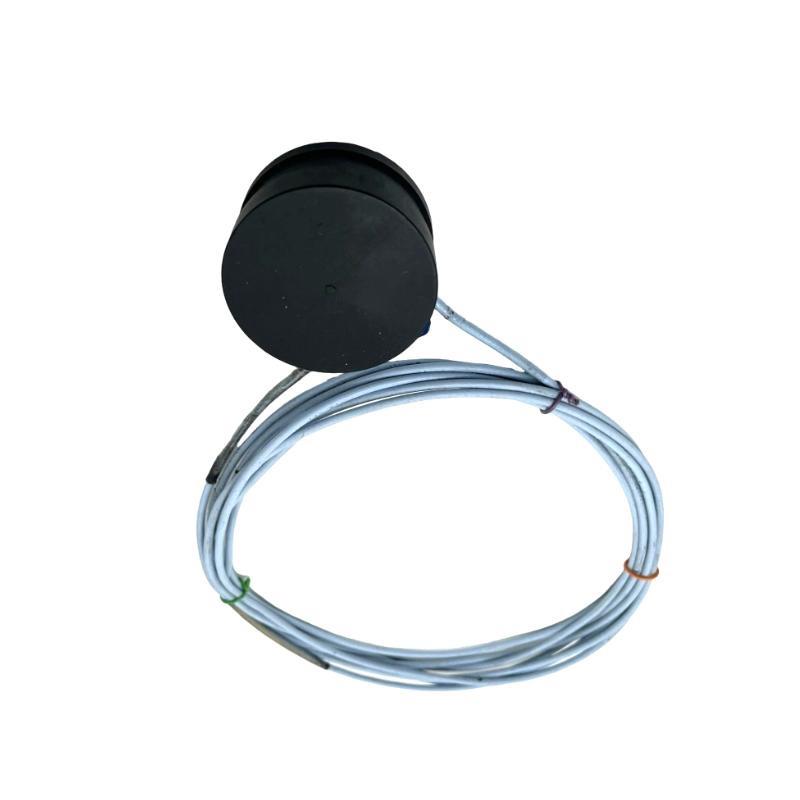

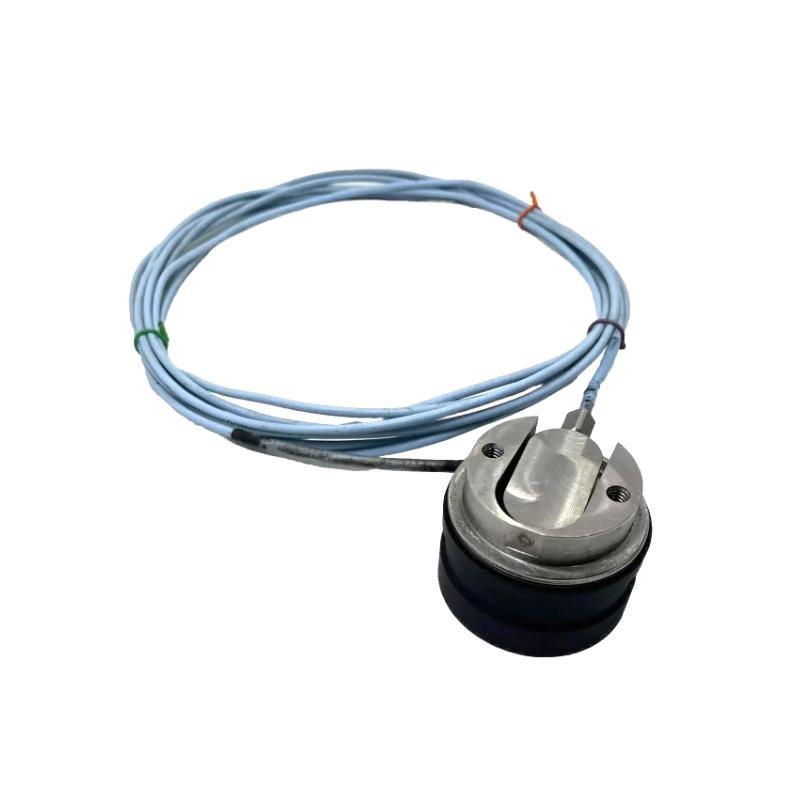

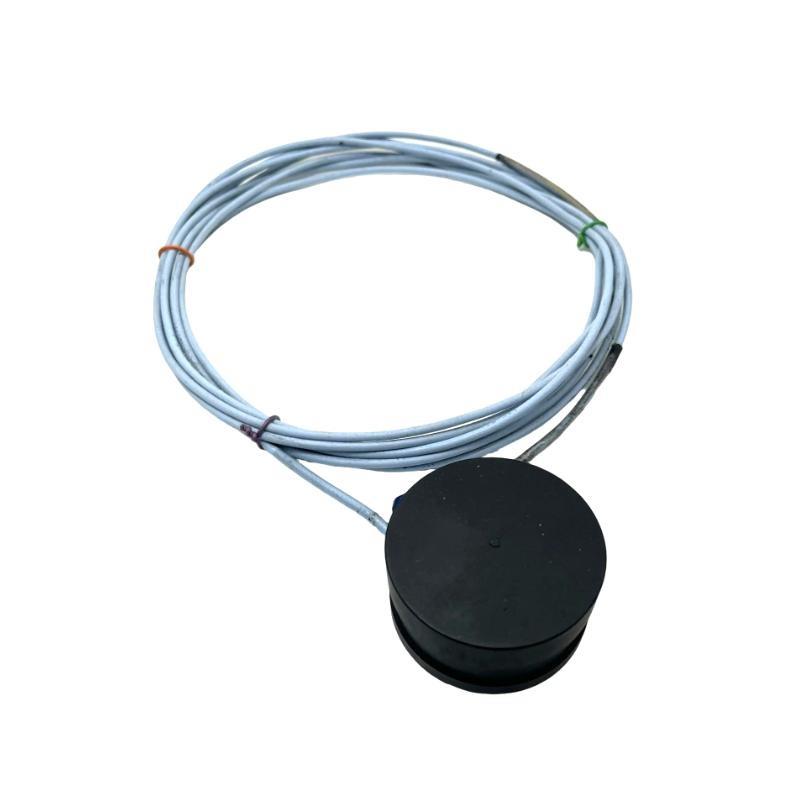

The Bently Nevada 330876-03-10-01-00 3300 XL 50 mm Proximity Probe is a high-precision, non-contact sensor designed for monitoring shaft displacement and vibration in critical industrial machinery. Part sur the 3300 XL series, this probe delivers accurate, high-fidelity measurements essential for condition monitoring and machinery protection systems. With a 50 mm probe tip, it is optimized for larger machinery applications such as turbines, compressors, and generators. The probe converts mechanical displacement into an electrical signal compatible with Bently Nevada Proximitor® sensors and monitoring systems, providing reliable early detection sur misalignment, imbalance, or mechanical degradation.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | 330876-03-10-01-00 |
| Probe Type | 3300 XL 50 mm Proximity Probe |
| Linear Range | 5–50 mm (depending on installation) |
| Sensitivity | 7.87 mV/µm nominal |
| Frequency Response | 0 Hz – 10 kHz (±3 dB) |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +177 °C |
| Pressure Rating | Up to 2000 psi (137 bar) |
| Insulation Resistance | >10 MΩ @ 500 VDC |
| Cable Type | Factory-integrated, armored |
| Total Cable Length | 1.0 meter |
| Livraison Poids | 3 kg |
Applications
-
Large Turbines – Shaft displacement and vibration monitoring for steam, gas, and hydro turbines.
-
Compressors – Continuous monitoring sur high-speed compressors to prevent bearing damage or misalignment.
-
Electric Generators – Rotor position tracking for generator protection and performance optimization.
-
Industrial Pumps – Shaft vibration monitoring in critical process applications.
-
Petrochemical Plants – État monitoring in high-pressure, high-temperature process equipment.
-
Heavy Industrial Equipment – Detects imbalance, rubs, or misalignment in large rotating machinery.
Advantages
-
High Accuracy – Provides precise linear measurement over a wide range with minimal thermal drift.
-
API 670 Compliance – Meets international standards for machinery protection and vibration monitoring.
-
Robust Design – Stainless steel construction and armored cable ensure durability in harsh industrial environments.
-
Wide Operating Range – Operates reliably under extreme temperatures, pressure, and vibration conditions.
-
Seamless System Integration – Fully compatible with 3300 XL Proximitor® sensors and monitoring systems.
-
Non-Contact Measurement – Reduces wear and maintenance while providing reliable continuous monitoring.
-
Easy Installation – Designed for rapid deployment in large machinery applications.
FAQ
-
What target material provides the most accurate measurement?
AISI 4140 or similar carbon steel is recommended for calibration and best accuracy. -
How is electromagnetic interference minimized?
The probe uses a coaxial design with grounded shielding to reduce external electrical noise. -
Can the probe operate in high-vibration environments?
Yes, it is designed to maintain stable measurements even under severe vibration. -
What is the typical output impedance sur the probe system?
Approximately 50 Ω when connected to the specified Proximitor sensor. -
How does the probe compensate for temperature changes?
Internal materials and factory calibration minimize thermal drift across the operating temperature range. -
Is this probe compatible with older Bently Nevada drivers?
It is recommended to use with 3300 XL or 3500 series Proximitor drivers for full performance. -
What is the recommended gap voltage for optimal linearity?
Typically around –10 VDC at mid-gap position. -
How does cable length affect signal quality?
The probe is calibrated for a total system length; any modification requires recalibration. -
What protection does the probe provide against moisture ingress?
The assembly meets IP67 sealing when installed with proper hardware. -
What is the maximum static pressure rating at the probe tip?
The probe tip can withstand pressures up to 2000 psi (137 bar).
Recommended Related Modèles
| Modèle | Description |
|---|---|
| 330876-03-10-01-01 | 3300 XL 50 mm Proximity Probe, alternate configuration |
| 330877-03-10-01-00 | 3300 XL 50 mm Proximity Probe, high-temperature variant |
| 330878-03-10-01-00 | 3300 XL 50 mm Reverse-Mount Probe |
| 330879-03-10-01-00 | 3300 XL 50 mm Dual-Purpose Probe |
| 330880-03-10-01-00 | 3300 XL 50 mm Long-Range Probe |
| 330881-03-10-01-00 | 3300 XL 50 mm NSv Narrow Side-View Probe |
Popular Bently Nevada Modèles
| Modèle | Application |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Proximitor/Seismic Monitoring Module |
| 3500/50E | Keyphasor Module |
| 3500/60 | Temperature Monitoring Module |
| 3701/55 | Reciprocating Compressor Monitor |
| 330500 | Velomitor Velocity Transducer |
