Présentation du produit

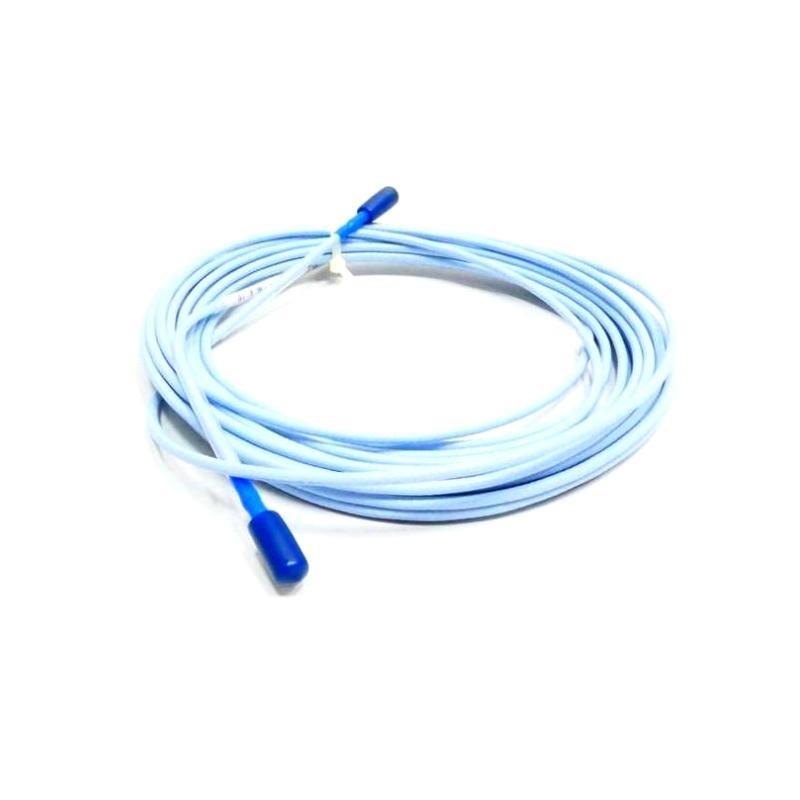

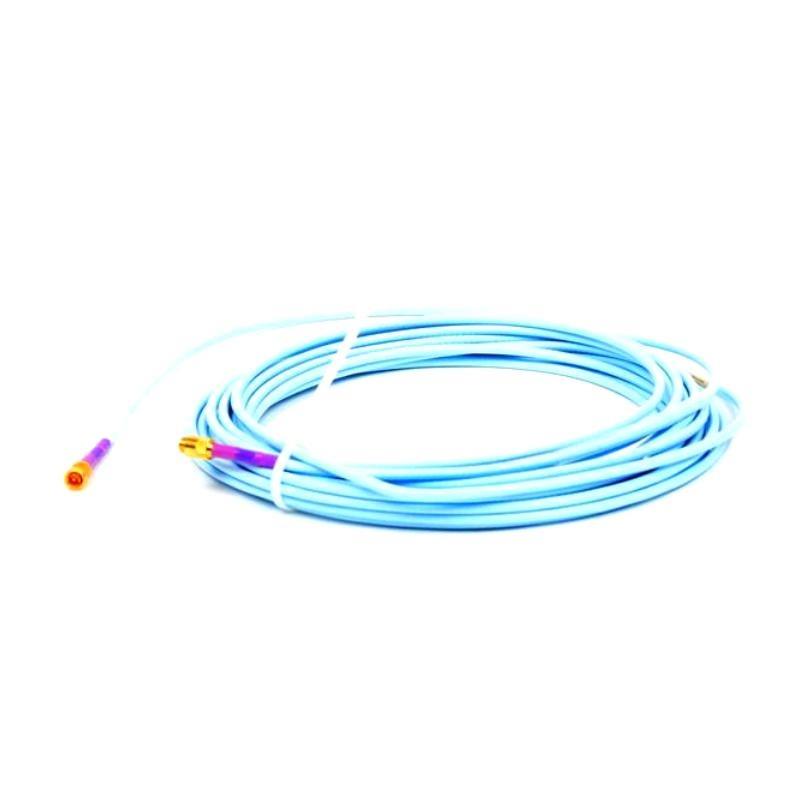

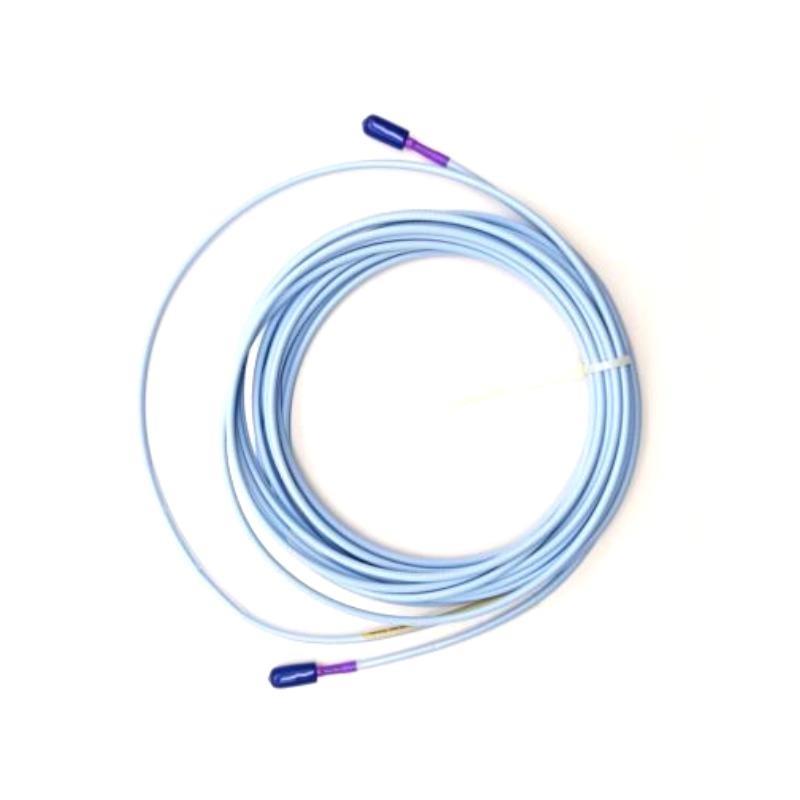

The Bently Nevada 330703-000-090-50-02-00 3300 XL 11 mm Proximity Probe is a high-performance monitoring sensor designed to provide precise proximity measurements for machinery condition monitoring. This probe is part sur the 3300 XL Series, which is known for its rugged construction and high accuracy in industrial applications. The probe measures the distance between itself and the target machine surface, typically for monitoring vibration and shaft movement in rotating machinery.
Spécifications du produit
| Specification | Details |
|---|---|
| Modèle | 330703-000-090-50-02-00 |
| Probe Type | 3300 XL 11 mm Proximity Probe |
| Total Length | 5 m |
| Poids | 0.35 kg |
| Frequency Response | 0-10 kHz |
| Sensing Technology | Eddy Current |
| Housing Material | Stainless Steel |
| Operating Temperature | -40°C to +85°C |
| Connection Type | Integral cable |
Product Applications
-
Vibration Monitoring: The probe is typically installed in critical rotating machinery to detect abnormal vibration, which can indicate potential failures or wear.
-
Rotational Speed Measurement: It helps in determining the rotational speed sur shafts or other rotating components, essential for machinery diagnostics.
-
Shaft Position Monitoring: The probe accurately measures the position sur a shaft relative to the machine casing, which is crucial in preventing mechanical failure due to misalignment.
-
État Monitoring: The sensor’s data aids in predictive maintenance programs, allowing for early detection sur faults such as imbalance, misalignment, and bearing wear.
Product Advantages
-
High Accuracy: Provides precise measurements with excellent resolution, ensuring that even minor deviations in machine operation can be detected early.
-
Durable Construction: Built with high-quality materials that ensure long-term reliability in harsh industrial environments.
-
Long Cable Length: With a 5-meter cable, it allows flexibility in installation and monitoring sur machinery across a wide area.
-
Wide Temperature Range: The sensor operates in a wide temperature range, ensuring reliable performance in various environmental conditions.
-
Eddy Current Sensing: This advanced technology reduces interference and enhances measurement stability in environments with electrical noise.
-
Easy Integration: Compatible with other Bently Nevada monitoring systems, allowing for seamless integration into existing infrastructure.
FAQ
1. What is the main application sur the 3300 XL proximity probe?
The 3300 XL proximity probe is mainly used for vibration, shaft position, and speed monitoring in industrial rotating machinery. It helps in predictive maintenance by providing real-time condition data.
2. How does the proximity probe detect vibration?
The probe uses eddy current technology to detect the movement between the probe and the machine surface. This allows it to measure displacement caused by vibration, which is critical for machinery diagnostics.
3. What is the typical installation process for the 3300 XL proximity probe?
Installation generally involves mounting the probe on the machine housing at a position that can accurately measure the shaft’s displacement. The 5-meter cable allows for flexible installation depending on machine layout.
4. What types sur machinery can benefit from using the 3300 XL probe?
The 3300 XL probe is suitable for monitoring critical rotating machinery such as motors, turbines, pumps, and compressors, especially those in industries like oil and gas, power generation, and manufacturing.
5. Can the 3300 XL probe be used in hazardous environments?
Yes, the 3300 XL probe is designed to work in harsh environments, including high temperatures and industrial settings, making it suitable for use in challenging applications like power plants or surfshore rigs.
6. Does the probe require regular calibration?
The 3300 XL probe is designed for high accuracy with minimal maintenance. However, periodic calibration is recommended as part sur a regular maintenance schedule to ensure continued accuracy.
7. How does the 3300 XL probe communicate with monitoring systems?
The 3300 XL probe typically connects to Bently Nevada’s monitoring systems, such as the 3500 series, where data is transmitted for analysis, trending, and diagnostics.
8. What is the maximum operating temperature sur the 3300 XL probe?
The maximum operating temperature is +85°C, ensuring that the probe can function in high-temperature environments common in industrial applications.
9. Can the 3300 XL probe be used for non-rotating machinery?
While the probe is primarily designed for rotating machinery, it may also be applicable in situations where precise displacement measurements are required for stationary equipment, but its full capabilities are best utilized in rotating machinery.
10. Is the 3300 XL probe compatible with other Bently Nevada products?
Yes, the 3300 XL probe is designed to integrate seamlessly with other Bently Nevada products, including vibration monitoring and machinery protection systems.
Related Modèles
| Modèle | Description | Cable Length | Frequency Response | Poids |
|---|---|---|---|---|
| 330703-000-050-50-02-00 | 3300 XL 5 mm Proximity Probe | 5 m | 0-10 kHz | 0.35 kg |
| 330703-000-060-50-02-00 | 3300 XL 6 mm Proximity Probe | 5 m | 0-10 kHz | 0.37 kg |
| 330703-000-070-50-02-00 | 3300 XL 7 mm Proximity Probe | 5 m | 0-10 kHz | 0.39 kg |
| 330703-000-100-50-02-00 | 3300 XL 10 mm Proximity Probe | 5 m | 0-10 kHz | 0.40 kg |
| 330703-000-110-50-02-00 | 3300 XL 11 mm Proximity Probe (Standard) | 5 m | 0-10 kHz | 0.35 kg |
| 330703-000-130-50-02-00 | 3300 XL 13 mm Proximity Probe | 5 m | 0-10 kHz | 0.42 kg |
Popular Modèles from Bently Nevada
| Modèle | Description | Specifications | Poids |
|---|---|---|---|
| 330500-000-001-50-02 | 3300 XL Transducer/Probe | Eddy Current Technology, High Sensitivity | 0.45 kg |
| 3500/22M | Vibration Monitor for Large Machines | Dual Channel Monitoring | 2.1 kg |
| 3300/02-11 | Accelerometer for Vibration Monitoring | 5 m Cable Length, Wide Range | 0.5 kg |
| 3500/42M | Vibration Monitoring System | Dual Channel, High Range | 3.2 kg |
| 330703-000-090-50-02 | 3300 XL 11 mm Proximity Probe | 5 m Cable, High Precision | 0.35 kg |
| 3500/53 | Machinery Protection Module | Multi-Function Monitoring | 2.5 kg |
