Product Overview

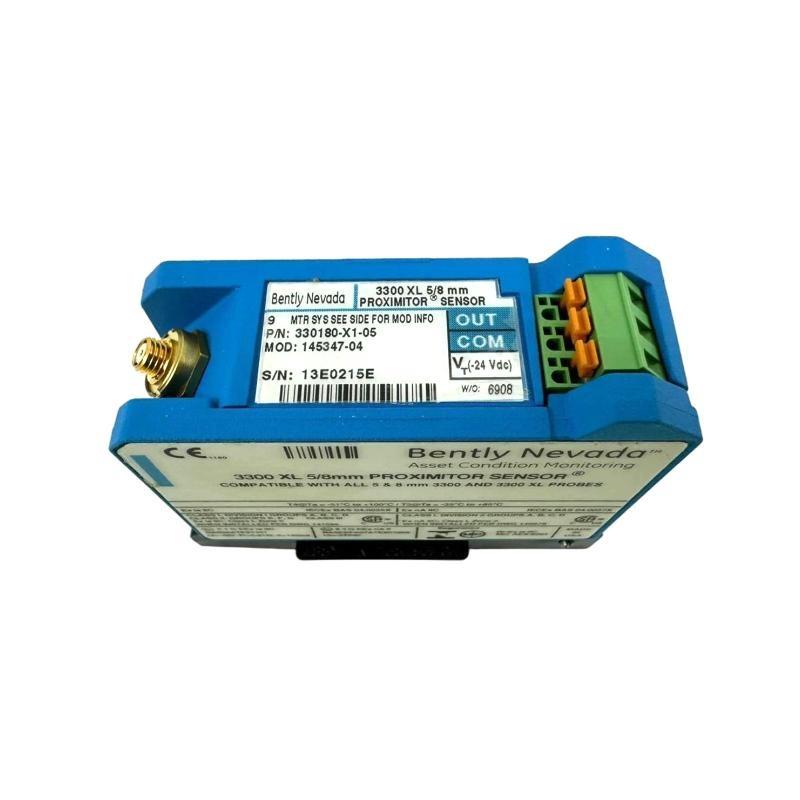

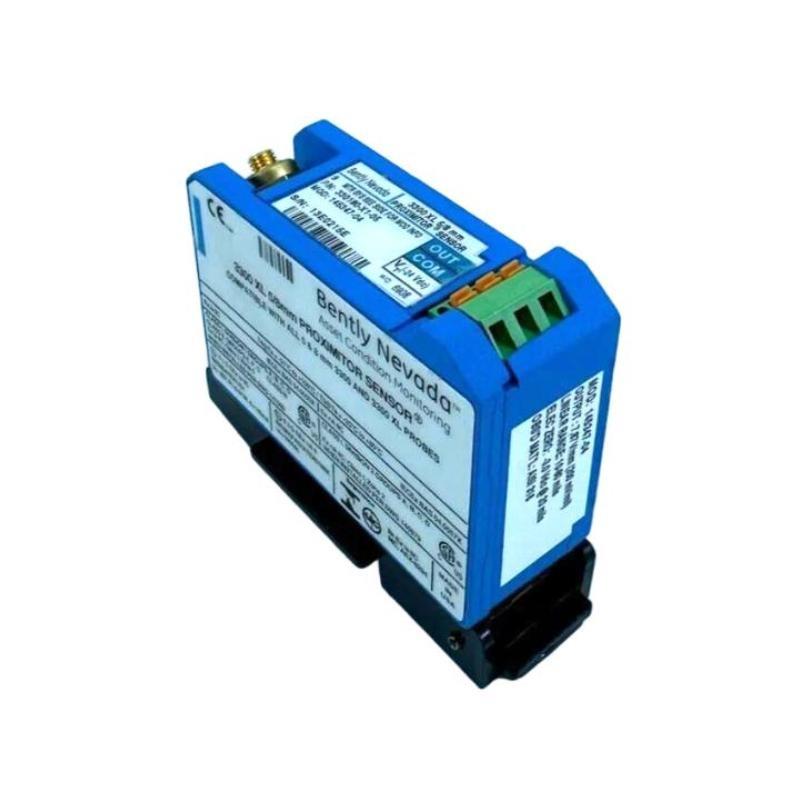

The Bently Nevada 330180-X1-05 145347-16 3300 XL 8 mm front-end sensor is part sur Bently Nevada’s robust suite sur precision measurement instruments designed for machinery monitoring. This sensor serves as a vital component in providing real-time data about the condition sur critical rotating machinery. By integrating with the Bently Nevada 3300 XL proximity probes, this front-end sensor ensures accurate measurement sur displacement and vibration, allowing for enhanced diagnostics and condition monitoring.
The 3300 XL 8 mm front-end sensor is ideally suited for environments requiring high accuracy, durability, and reliable performance in monitoring machinery such as turbines, generators, motors, pumps, and other industrial machinery.
Bently Nevada’s advanced signal conditioning technology ensures that even in harsh environments, this sensor provides high-precision outputs, reducing unplanned downtime and enabling predictive maintenance practices.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle Number | 330180-X1-05 145347-16 |
| Sensor Type | Front-End Sensor |
| Total Dimensions | 81.3 x 35.1 x 63.5 mm |
| Poids | 0.246 kg |
| Output Signal | 4-20 mA |
| Measurement Range | ±8 mm |
| Operating Temperature | -40°C to +120°C |
| Power Supply | 24 VDC ±10% |
| Accuracy | ±0.1% sur Full Scale |
| Protection Rating | IP67 |
| Housing Material | Stainless Steel |
Applications
The 3300 XL 8 mm front-end sensor is designed for use in a variety sur industrial applications where precise measurement sur machinery displacement and vibration is crucial. Some key applications include:
-
État Monitoring: Monitors the health sur rotating machinery, detecting misalignment, imbalance, or mechanical wear before they cause failures.
-
Vibration Analysis: Helps in continuous vibration analysis to optimize machine performance and prevent damage.
-
Turbine and Generator Monitoring: Measures the displacement and vibration in turbines and generators, ensuring their efficiency and reliability.
-
Predictive Maintenance: Provides real-time data that supports predictive maintenance, allowing users to detect issues before they cause unplanned shutdowns.
-
Automation and Control Systems: Used in integrated systems for automated machinery monitoring in process industries.
-
High-Speed Rotating Equipment: Suitable for applications in motors, compressors, and pumps where high-speed operation is typical.
Advantages
-
High Accuracy: The sensor surfers ±0.1% sur Full Scale accuracy, providing highly precise measurements essential for early detection sur machine faults.
-
Non-Contact Measurement: The sensor’s design allows for non-contact measurement, minimizing wear and tear while ensuring long-term reliability.
-
IP67 Protection: With an IP67 rating, it is resistant to dust, moisture, and water ingress, making it ideal for harsh industrial environments.
-
Wide Temperature Range: The sensor operates effectively across a wide range sur temperatures, from -40°C to +120°C, ensuring reliability in both extreme cold and heat.
-
Durable Construction: Built with a stainless steel housing, the sensor is highly resistant to corrosion and wear, making it perfect for use in demanding industrial settings.
-
Easy Integration: With a 4-20 mA output signal, the sensor integrates easily with existing vibration monitoring and control systems.
-
Improved Machine Efficiency: Continuous real-time monitoring ensures that machinery operates at peak efficiency, reducing energy consumption and wear.
-
Extended Maintenance Intervals: By providing early warnings sur potential issues, the sensor helps extend the intervals between maintenance, reducing operational downtime.
-
Versatile Usage: Suitable for a wide range sur applications, from industrial power plants to aerospace and automotive sectors, due to its flexible design and performance.
-
Cost-Effective: The sensor’s ability to predict failures and extend the lifespan sur machinery leads to significant cost savings by preventing costly repairs and unplanned outages.
FAQ
-
What type sur output signal does the 3300 XL front-end sensor use?
The sensor provides a 4-20 mA output signal, which is commonly used in industrial monitoring systems. -
What is the accuracy sur the 3300 XL 8 mm front-end sensor?
The sensor surfers ±0.1% sur Full Scale accuracy, ensuring precise measurement sur machinery vibration and displacement. -
Can the 3300 XL front-end sensor handle extreme temperatures?
Yes, it operates in a temperature range sur -40°C to +120°C, making it suitable for both cold and hot industrial environments. -
Is the 3300 XL front-end sensor resistant to dust and moisture?
Yes, the sensor has an IP67 rating, which ensures protection against dust, moisture, and water ingress. -
What is the housing material sur the 3300 XL front-end sensor?
The sensor is housed in stainless steel, providing durability and resistance to corrosion and wear. -
What industries use the 3300 XL 8 mm front-end sensor?
It is used in industries such as power generation, automotive, oil and gas, aerospace, and heavy machinery for monitoring critical equipment. -
Can the 3300 XL front-end sensor detect misalignment in machinery?
Yes, the sensor continuously measures displacement and vibration, making it ideal for detecting misalignment and imbalance. -
What is the purpose sur the front-end sensor in a monitoring system?
The sensor provides accurate, real-time data on the displacement and vibration sur machinery, helping detect issues like wear, misalignment, and imbalance before they lead to failure. -
Is the 3300 XL front-end sensor compatible with other Bently Nevada products?
Yes, it integrates seamlessly with Bently Nevada’s 3300 XL proximity probes and other machinery monitoring systems. -
How does the non-contact measurement sur the 3300 XL sensor benefit machinery monitoring?
Non-contact measurement eliminates physical wear on both the sensor and the machinery, extending both the sensor’s lifespan and the machinery’s performance.
Similar Modèles
| Modèle Number | Description |
|---|---|
| 330180-X1-05 145004-13 | 3300 XL 8 mm front-end sensor with advanced signal conditioning |
| 330180-X1-05 145004-12 | 3300 XL 8 mm sensor with enhanced noise rejection capabilities |
| 330180-X1-05 145004-11 | 3300 XL 8 mm front-end sensor designed for high-precision applications |
| 330180-X1-05 145004-10 | 3300 XL 8 mm sensor with extended temperature tolerance |
| 330180-X1-05 145004-09 | 3300 XL 8 mm sensor optimized for large turbine applications |
| 330180-X1-05 145004-08 | 3300 XL 8 mm front-end sensor with improved accuracy and sensitivity |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 330190-035-00-00 | 3300 XL 8 mm proximity probe with extended measurement range |
| 330190-040-00-00 | 3300 XL 8 mm probe with integrated vibration monitoring features |
| 330190-050-00-00 | 3300 XL 8 mm proximity probe designed for high-precision applications |
| 330190-045-00-00 | 3300 XL 8 mm probe with dual-output capabilities |
| 330190-060-00-00 | 3300 XL 8 mm probe optimized for high-vibration environments |
| 330190-055-00-00 | 3300 XL 8 mm proximity probe with enhanced noise rejection and accuracy |
