Product Overview

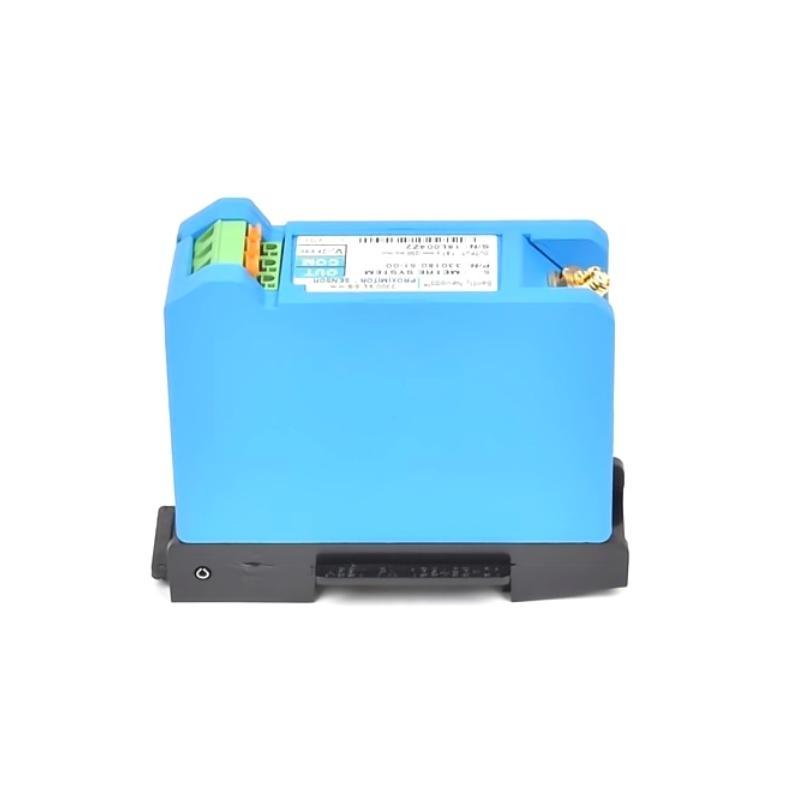

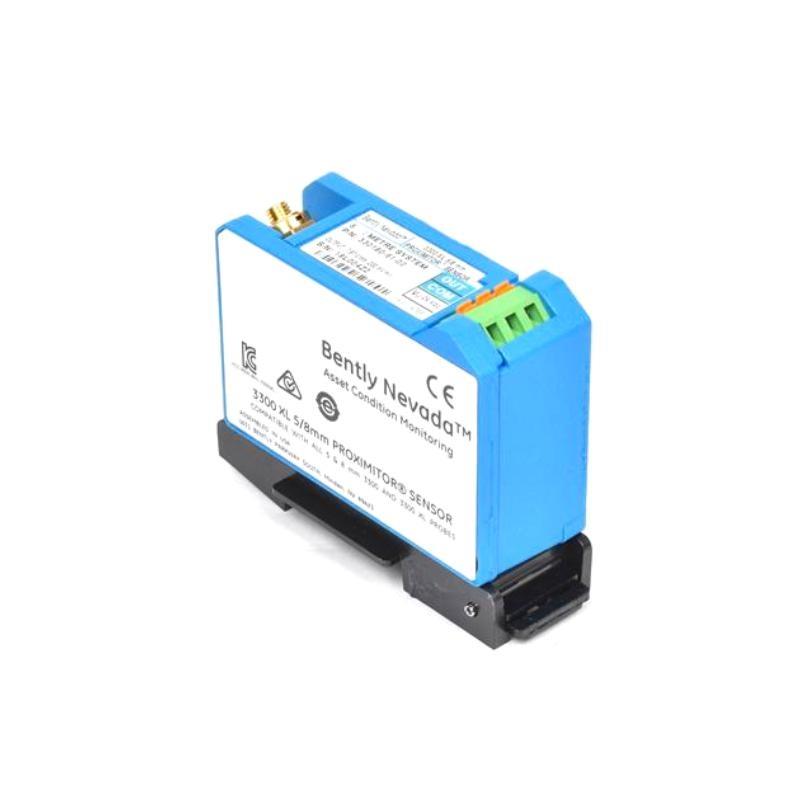

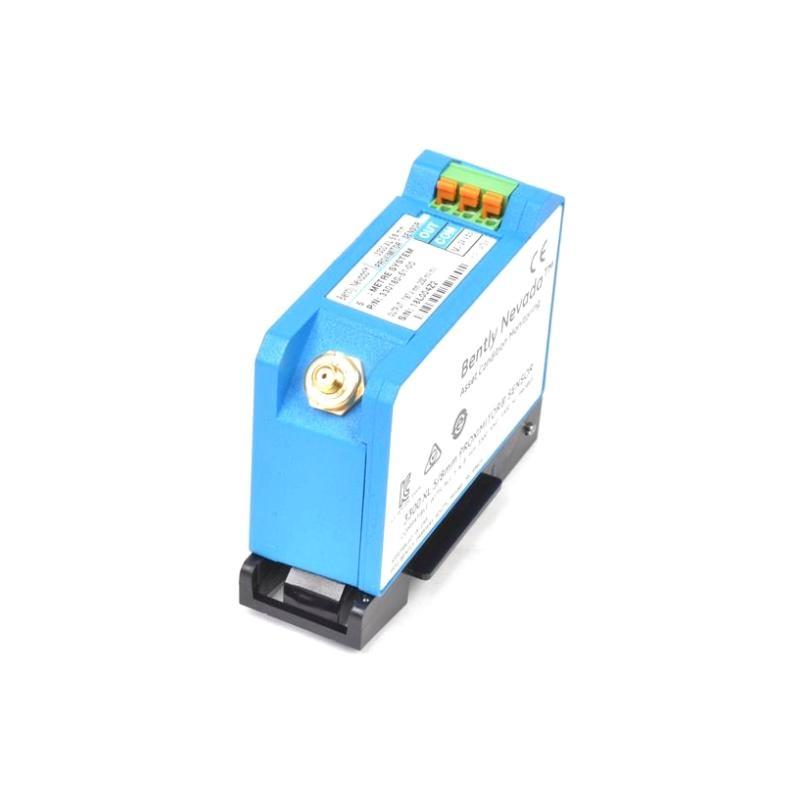

The 330180-51-00 Proximitor Sensor is part sur Bently Nevada’s 3300 XL 8mm Proximity Transducer System, which includes a probe, extension cable, and Proximitor sensor. This system is designed to measure the distance between the probe tip and the observed surface, delivering critical data for assessing machine health. The 3300 XL series is recognized for its high performance, reliability, and compliance with industry standards, making it a preferred choice for condition monitoring and machinery protection.
Spécifications du produit
The following table outlines the key specifications sur the Bently Nevada 330180-51-00 3300 XL 8mm Proximitor Sensor:
| Parameter | Specification |
| Probe Tip Diameter | 8 mm |
| Linear Range | 2 mm (approximately 80 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Power Supply Voltage | -24 VDC nominal |
| Operating Temperature | -35°C to +177°C (-31°F to +350°F) |
| Probe Pressure Rating | Up to 34 bar (500 psi) |
| Poids | 0.246 kg |
| Total Length | 5 m |
| Connector Type | ClickLoc™ connectors with corrosion-resistant, gold-plated contacts |
Applications
The 330180-51-00 Proximitor Sensor is utilized in a wide range sur industrial applications, including:
-
Rotating Equipment Monitoring: Measures shaft position and vibration in turbines, compressors, pumps, and motors.
-
Thrust Position Monitoring: Assesses axial displacement in thrust bearing applications.
-
Eccentricity Measurement: Evaluates shaft eccentricity in large rotating machinery.
-
État Monitoring Systems: Integrates with Bently Nevada’s 3500 series machinery protection systems for continuous monitoring.
-
Hydrocarbon Processing Industries: Suitable for use in environments with hazardous gases and liquids.
Advantages
The Bently Nevada 330180-51-00 surfers several notable advantages:
-
High Accuracy and Linearity: Provides precise measurements essential for effective machine diagnostics.
-
Robust Environmental Tolerance: Operates reliably in extreme temperatures and harsh industrial conditions.
-
Enhanced RFI/EMI Immunitéy: Minimizes interference from radio frequency and electromagnetic sources, allowing installation in various enclosures without special shielding.
-
Ease sur Installation and Maintenance: ClickLoc™ connectors facilitate secure connections without the need for special tools.
-
Interchangeability: Supports complete interchangeability sur probes, extension cables, and Proximitor sensors, eliminating the need for individual component matching or bench calibration.
-
Compliance with Industry Standards: Meets API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.
Questions fréquentes (FAQ)
-
What is the primary function sur the 330180-51-00 Proximitor Sensor?
-
It measures the distance between the probe tip and a conductive surface, providing data on vibration and position for machinery monitoring.
-
-
Can the 330180-51-00 be used in high-temperature environments?
-
Yes, it operates effectively in temperatures ranging from -35°C to +177°C (-31°F to +350°F).
-
-
Is the sensor compatible with other Bently Nevada systems?
-
Yes, it is designed to integrate seamlessly with Bently Nevada’s 3500 series monitoring systems.
-
-
What type sur machinery is the sensor typically used with?
-
It is commonly used with turbines, compressors, pumps, and motors for monitoring shaft position and vibration.
-
-
Does the sensor require special shielding against electromagnetic interference?
-
No, it has enhanced RFI/EMI immunitéy, allowing installation without special shielded conduit or metallic housings.
-
-
How is the sensor installed?
-
It features ClickLoc™ connectors for secure, tool-free installation.
-
-
What is the linear measurement range sur the sensor?
-
It has a linear range sur 2 mm (approximately 80 mils).
-
-
Is the sensor resistant to corrosive environments?
-
Yes, it is designed with materials and construction that withstand corrosive industrial environments.
-
-
Can the sensor be used in hazardous locations?
-
Yes, it is suitable for use in environments with hazardous gases and liquids, common in hydrocarbon processing industries.
-
-
What maintenance is required for the sensor?
-
It requires minimal maintenance; however, regular inspections are recommended to ensure optimal performance.
-
Related Modèles from the Same Series or Catégorie
| Modèle Number | Description |
| 330180-50-00 | 3300 XL 8mm Proximitor Sensor, standard configuration |
| 330180-91-00 | 3300 XL 8mm Proximitor Sensor with extended cable length |
| 330180-1E05 | 3300 XL 8mm Proximitor Sensor with special extension configuration |
| 330130-040-00-00 | 3300 XL 8mm Proximity Probe, 4.0 m probe and 0.5 m cable |
| 330130-080-00-00 | 3300 XL 8mm Proximity Probe, 8.0 m probe and 0.5 m cable |
| 330105-02-12-05-02-00 | 3300 XL Extension Cable, 5 m, ClickLoc connectors |
| 330106-05-30-10-02-05 | 3300 XL Extension Cable, 10 m, rugged build |
| 3300/16-13-01-01-00 | 3300 XL 8mm Proximitor Monitor, 1 channel, standard rack-mount module |
Popular Modèles from Bently Nevada (Same Marque)
| Modèle Number | Description |
| 3500/22M | Key Interface Module for Bently Nevada 3500 Machinery Protection System |
| 3500/42M | Proximitor/Seismic Monitor Module, 4-channel |
| 3500/20 | Rack Interface Module with Display |
| 330104-00-05-10-02-00 | 3300 XL 11mm Proximity Probe, high-pressure version |
| 330106-05-30-10-02-05 | Extension Cable for XL series probes and sensors |
| 330930-065-02-05 | Velomitor Piezo-Velocity Sensor, general machinery monitoring |
| 7200-180 | Proximitor Sensor, legacy model in the 7200 series |
| 3500/15 | Power Supply Module for Bently Nevada 3500 System |
