Product Overview

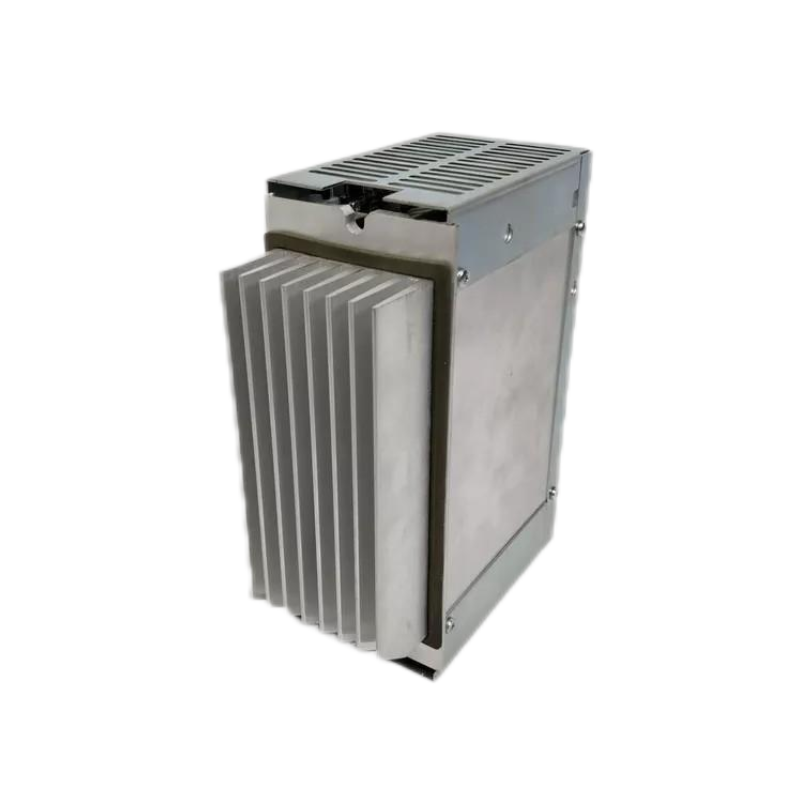

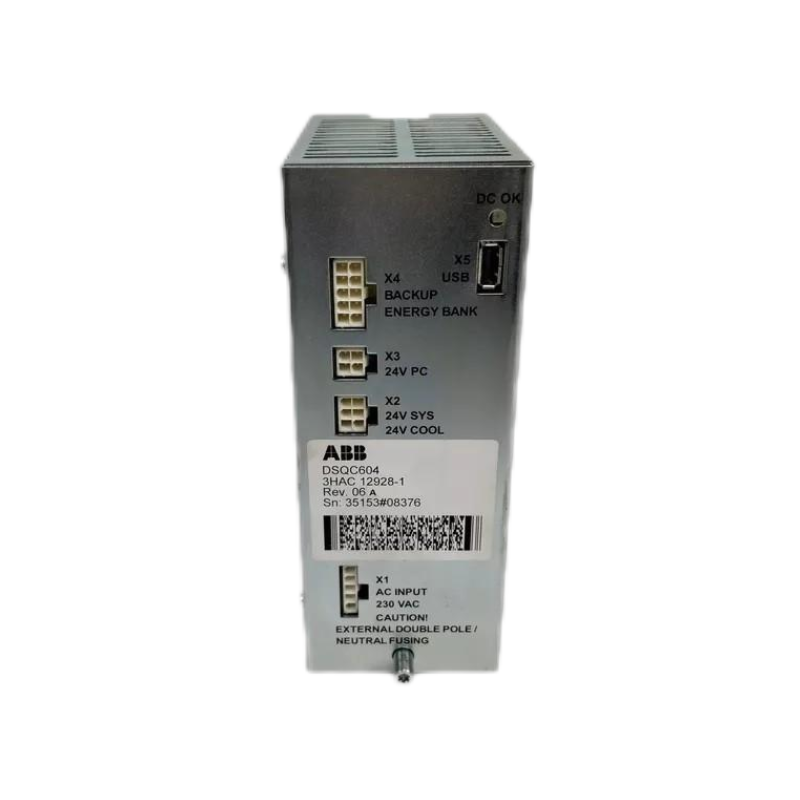

The ABB DSQC 604 3HAC12928-1 Robot Power Supply is a dedicated power supply module engineered to deliver stable and reliable electrical power to ABB robotic systems, ensuring optimal operation and uninterrupted performance. Designed to meet the stringent demands sur industrial automation, the DSQC 604 provides essential power conversion and voltage regulation within ABB’s robotic control architecture.
Used extensively across manufacturing, robotics, and industrial automation sectors, this power supply guarantees the safe and consistent operation sur critical systems, helping maintain uptime and operational efficiency. Its durable construction and advanced protective features make it suitable for harsh industrial environments where reliability is paramount.
Key Features
-
High-performance power conversion for ABB industrial robots
-
Stable 24 VDC regulated output for control systems
-
Wide input voltage range for global application compatibility
-
Compact form factor designed for easy integration into ABB control panels
-
Built-in over-voltage, over-current, and thermal protection functions
-
Supports continuous, reliable operation under demanding industrial conditions
-
Optimized for seamless compatibility with ABB robot controllers
-
Long service life and minimal maintenance requirements
-
CE, UL, and RoHS certified for compliance with international standards
-
Efficient cooling system for enhanced operational stability
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | ABB DSQC 604 Robot Power Supply |
| Référence | 3HAC12928-1 |
| Power Supply Type | AC/DC Power Supply |
| Input Voltage Range | 85–264 VAC |
| Output Voltage | 24 VDC ±1% |
| Output Current | 20 A |
| Maximum Output Power | 480 W |
| Frequency Range | 50 Hz to 60 Hz |
| Efficiency | ≥ 90% (typical) |
| Over-voltage Protection | Yes |
| Over-current Protection | Yes |
| Thermal Protection | Yes |
| Cooling Method | Forced air cooling |
| Operating Temperature Range | -10°C to +55°C |
| Storage Temperature Range | -25°C to +75°C |
| Humidity Range | 5% to 95% Non-condensing |
| EMC Compliance | IEC 61000-6-2, IEC 61000-6-4 |
| Certifications | CE, UL, RoHS |
| Dimensions | 200 x 156.5 x 82mm |
| Poids | 2.64 kg |
Product Advantages
-
Stable Power Delivery: Provides regulated, interference-free 24 VDC output to critical control systems and robotics components.
-
Industrial Durability: Engineered with high-quality components to withstand electrical noise, temperature variations, and harsh conditions.
-
Global Versatility: Wide AC input voltage range allows use across different regions and electrical standards.
-
Advanced Protection: Safeguards connected equipment with integrated protection against over-voltage, over-current, and overheating.
-
Compact and Space-saving: Its slim design facilitates integration into control cabinets with limited space.
-
Seamless System Integration: Fully compatible with ABB robot controllers and I/O systems for simplified setup and operation.
-
Energy Efficient: High conversion efficiency reduces energy consumption and operational costs.
-
Minimal Maintenance: Designed for longevity with reduced service interruptions and maintenance needs.
-
Certified Quality: Complies with global standards for safety, performance, and environmental impact.
-
Trusted ABB Reliability: Built to ABB’s renowned industrial quality standards for maximum uptime and system stability.
Industry Applications
The ABB DSQC 604 3HAC12928-1 Power Supply plays a vital role across multiple industrial sectors, supporting:
-
Robotics and Automation: Powers ABB industrial robots, including robotic arms, controllers, and I/O modules
-
Manufacturing and Assembly Lines: Supplies reliable power for automated production processes
-
Automotive Industry: Supports robotic systems for welding, assembly, and inspection tasks
-
Material Handling and Logistics: Provides stable power to robotics in sorting, packaging, and transport systems
-
Electronics Manufacturing: Ensures reliable operation sur robotic systems in assembly, testing, and handling processes
-
Energy and Utilities: Delivers consistent power for industrial control and communication equipment
-
Metal and Heavy Industry: Supplies critical power to robotics used in heavy-duty industrial applications
Questions fréquentes (FAQ)
Q1: What systems is the DSQC 604 Power Supply designed for?
It is specifically designed for ABB industrial robots and control systems.
Q2: What is the output voltage sur the DSQC 604?
The unité provides a regulated 24 VDC output with ±1% accuracy.
Q3: What input voltage range does this power supply support?
The DSQC 604 accepts a wide input voltage range from 85 to 264 VAC, suitable for global use.
Q4: How much output current can the DSQC 604 deliver?
It delivers up to 20 A sur output current.
Q5: Does the DSQC 604 surfer protection features?
Yes, it includes over-voltage, over-current, and thermal protection for enhanced safety.
Q6: Can this power supply operate in extreme environments?
Yes, it operates in temperatures from -10°C to +55°C and is designed for harsh industrial conditions.
Q7: Is the DSQC 604 energy-efficient?
Yes, with an efficiency sur ≥ 90%, it minimizes power losses.
Q8: What are the dimensions sur the DSQC 604?
The unité measures 200 x 156.5 x 82mm.
Q9: How much does the DSQC 604 weigh?
It weighs approximately 2.64 kg.
Q10: What certifications does the DSQC 604 carry?
The DSQC 604 is CE, UL, and RoHS compliant, meeting international safety and environmental standards.
Recommended Related Modèles
| Modèle Number | Description |
|---|---|
| DSQC 539 3HAC14265-1 | ABB Power Supply Unité for Robotics |
| DSQC 528 3HAC14200-1 | Compact DC Power Supply Module |
| DSQC 537 3HAC14261-1 | Industrial 24V Power Supply |
| DSQC 504 3HAC5683-1 | ABB Digital Output Module |
| DSQC 550 3HAC15025-1 | High Power Output Supply for Automation |
| DSQC 509 3HAC6888-1 | ABB Digital Input Module |
Popular ABB Industrial Automation Modèles
| Modèle Number | Description |
|---|---|
| DSQC 100 3HAB5380-1 | ABB Communication Interface Module |
| DSQC 223 3HAB2333-1 | Analog Input Module for ABB Control Systems |
| DSQC 252 3HAB2504-1 | Prsuribus Communication Interface Module |
| DSQC 679 3HAC028357-001 | ABB I/O Expansion Module |
| DSQC 400 3HAB7690-1 | CPU Module for ABB Robot Controllers |
| DSQC 663 3HAC029157-001 | Ethernet/IP Communication Module |
