Product Overview

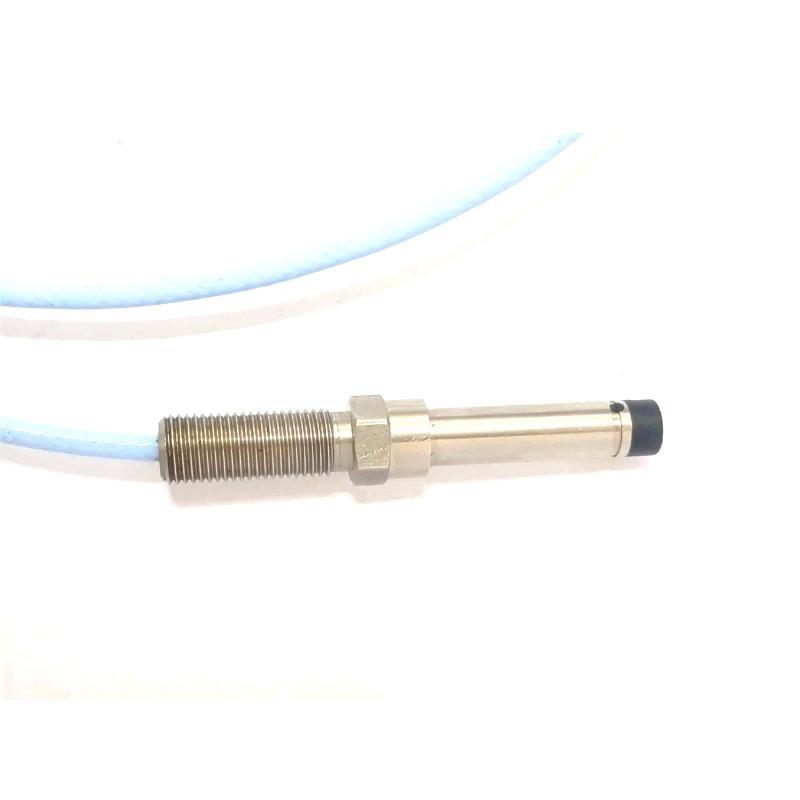

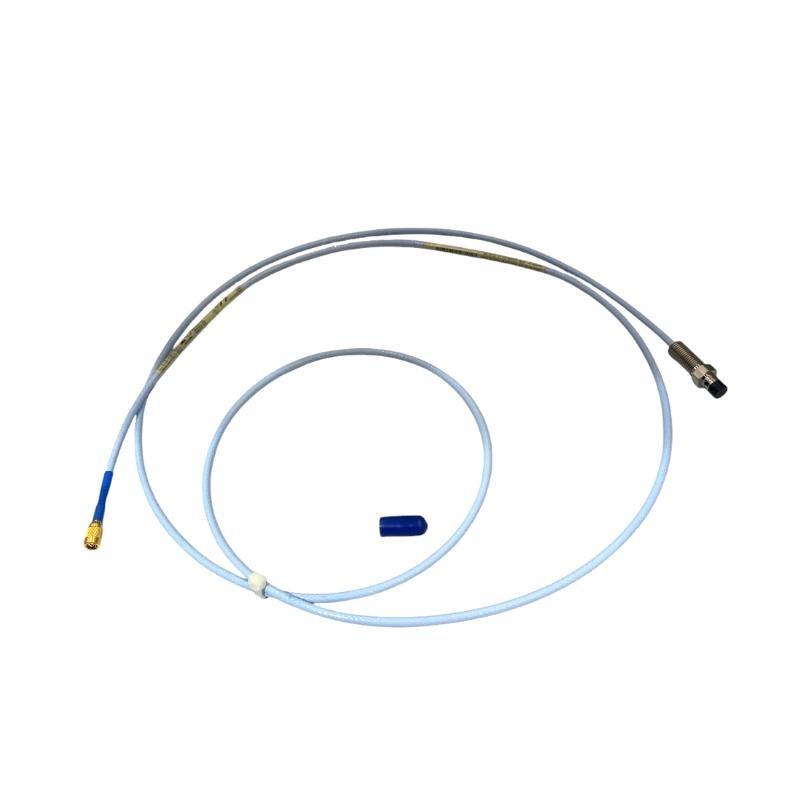

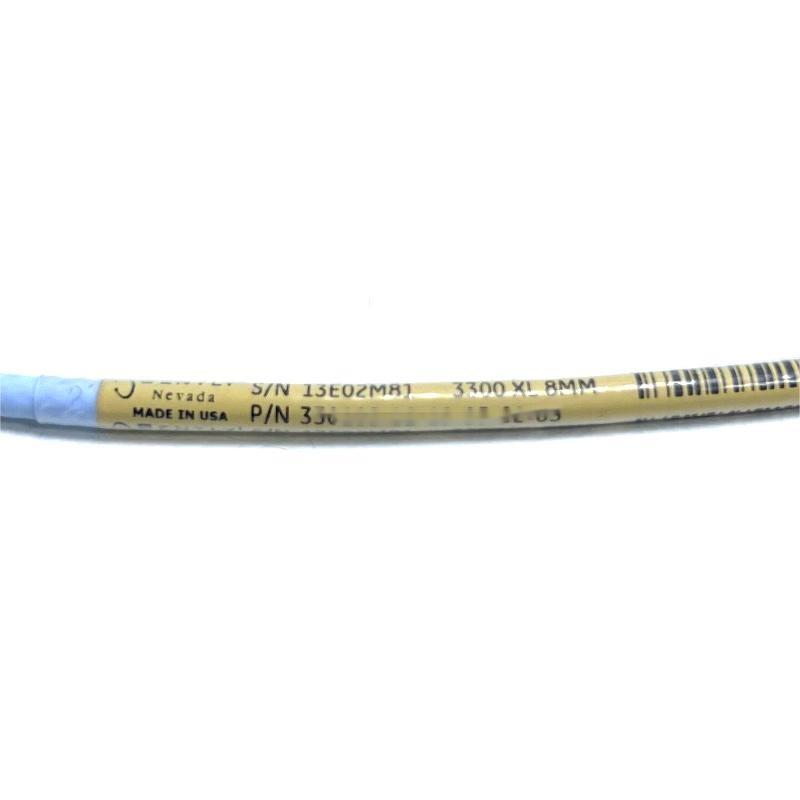

The Bently Nevada 330105-XX-XX-10-02-05 (part number 157310-09) is a reverse-mount 8 mm proximity probe, part sur the 3300 XL series. It works with a Proximitor sensor and extension cable to deliver high-precision measurements for static and dynamic shaft position and vibration. Designed for reverse mounting, this probe is suitable for applications where forward mounting is impractical.
Applications
-
Turbine shaft vibration monitoring
-
Rotating equipment radial/axial position detection
-
Fluid-film bearing condition monitoring
-
Overspeed and Keyphasor® measurements
-
Harsh industrial environments requiring reverse-mounting
Product Advantages
-
Complies with API 670 standard
-
Reverse-mountable in limited-access locations
-
Improved TipLoc and CableLoc construction for enhanced durability
-
Excellent RFI/EMI immunitéy
-
Fully interchangeable components — no matching required
-
Wide operating temperature range
-
Optional FluidLoc cable to prevent oil ingress
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | Reverse Mount |
| Tip Diameter | 8.0 mm |
| Thread Type | 3/8-24 UNF-2A |
| Case Material | AISI 303 or 304 SST |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Connector Type | ClickLoc miniature coaxial (finger-tight) |
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Operating Temperature | -52°C to +177°C (standard) |
| Extended Temp Range (optional) | -52°C to +218°C (tip), up to +260°C (cable) |
| Pressure Seal | Viton® O-ring (differential pressure sealing) |
| Recommended Gap Voltage | -9 VDC (approx. 1.27 mm or 50 mils gap) |
| Linear Range | 2.0 mm (80 mils) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) ±5% (standard) |
| Mounting Torque (Recommended) | 7.5 N•m (66 in•lbf) |
| Minimum Target Size | 15.2 mm (0.6 in) flat |
| Shaft Diameter (Min/Recommended) | 50.8 mm / 76.2 mm |
| Frequency Response | 0–10 kHz, +0/-3 dB with up to 305 m wiring |
Questions fréquentes (FAQ)
Q1: What is the key feature sur the 330105 reverse mount probe?
A1: Its reverse-mount design enables installation in tight or confined spaces.
Q2: Can the 330105 probe be used in high-temperature environments?
A2: Yes. The standard model supports up to 177°C, and the ETR version up to 218°C.
Q3: Is the 330105 probe compatible with other Bently Nevada systems?
A3: Yes. It is electrically and physically compatible with non-XL 3300 5 mm and 8 mm systems.
Q4: What kind sur connector is used in this probe?
A4: A gold-plated miniature ClickLoc connector, requiring no tools for tightening.
Q5: Does this probe support API 670 compliance?
A5: Yes, the 3300 XL system meets API 670 standards for accuracy and linearity.
Q6: Can this probe be used with a FluidLoc cable?
A6: Yes, but the sleeve on most reverse-mount models minimizes the need for it.
Q7: Is calibration needed before installation?
A7: N° The system is fully pre-calibrated and interchangeable.
Q8: What is the output signal sensitivity?
A8: The sensitivity is 200 mV/mil or 7.87 V/mm.
Q9: How much weight does a 1.0-meter probe add to the system?
A9: Approximately 0.323 kg.
Q10: What industries typically use the 330105 probe?
A10: Power generation, petrochemical, refining, and rotating machinery monitoring.
Related Modèles (Same Series)
| Modèle Number | Description | Length | Temp Rating | Mount Type |
|---|---|---|---|---|
| 330101-00-08-10-02-05 | 3300 XL 8 mm Standard Probe | 1.0 m | -52 to +177°C | Forward |
| 330105-02-12-05-02-05 | 3300 XL 8 mm Reverse Mount Probe | 0.5 m | -52 to +177°C | Reverse |
| 330106-05-30-10-02-05 | 3300 XL 8 mm Reverse Mount Probe (Metric) | 1.0 m | -52 to +177°C | Reverse (M10x1) |
| 330140-00-08-10-02-05 | 3300 XL 8 mm Smooth Case Probe | 1.0 m | -52 to +177°C | Smooth Mount |
| 330191-00-08-10-02-05 | 3300 XL 8 mm ETR Forward Mount | 1.0 m | Up to +218°C tip | Forward |
| 330195-02-12-10-02-05 | 3300 XL 8 mm ETR Reverse Mount | 1.0 m | Up to +218°C tip | Reverse |
Popular Bently Nevada Modèles
| Modèle Number | Description | Function | Compatibility |
|---|---|---|---|
| 3300/20 | Dual Vibration Monitor | État Monitoring | 3300 Series Sensors |
| 3300/16 | Vibration Monitor | Single-Channel Monitoring | 3300 Proximitor Systems |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Shaft Vibration | 3500 Rack |
| 3500/22M-01-01 | Transient Data Interface (TDI) | Data Acquisition | 3500 System |
| 330180-91-CN | 3300 XL Proximitor Sensor (DIN Mount) | Proximity Signal Processing | 3300 XL Probe |
| 330104-00-06-10-11-00 | 3300 XL 8 mm Probe | Forward Mount Probe | 3300 XL System |
