Présentation du produit

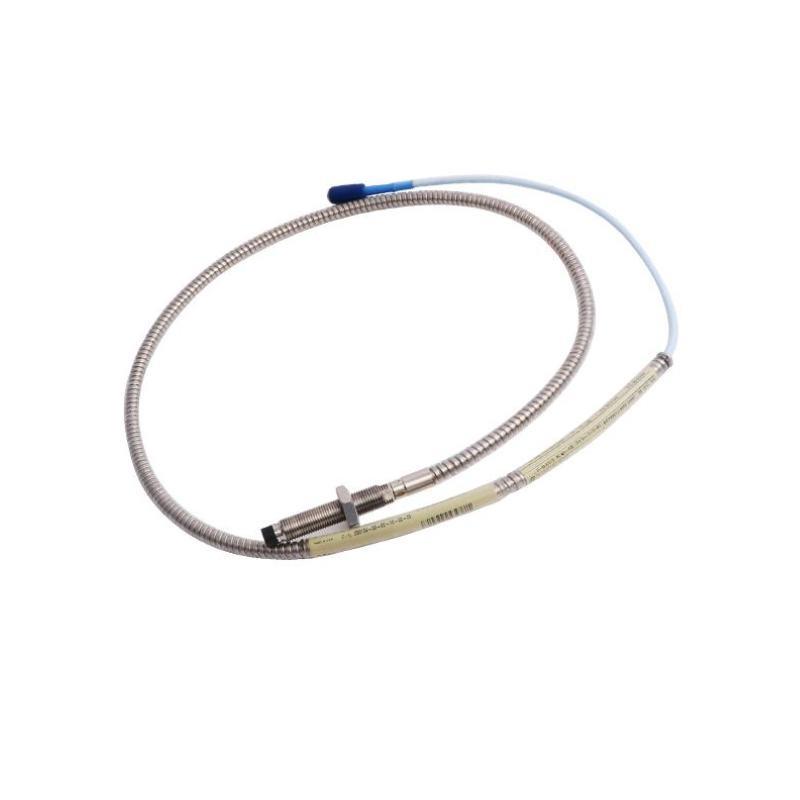

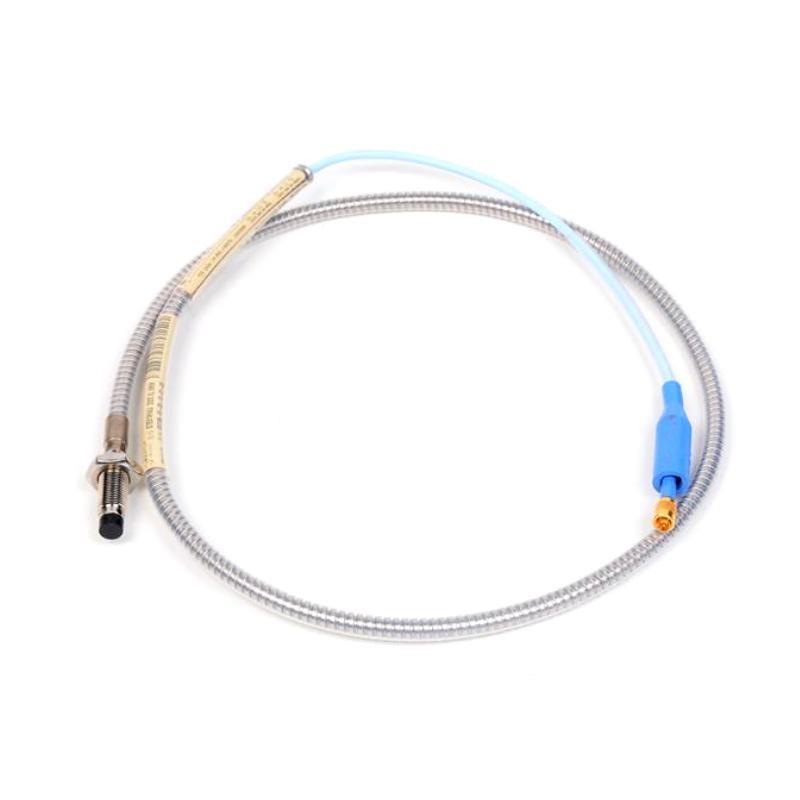

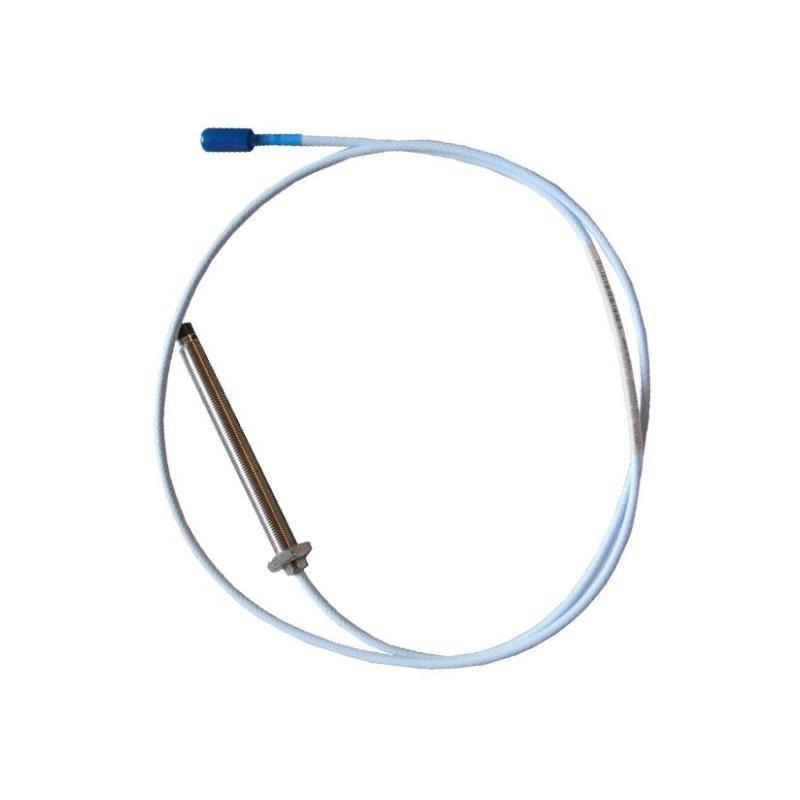

The Bently Nevada 330104-05-13-10-02-00 3300 XL 8 mm Proximity Probe is a precision sensor designed for non-contact measurement sur shaft vibration and displacement in rotating machinery. Built on the reliable 3300 XL platform, this probe surfers robust performance, excellent signal stability, and superior resistance to harsh industrial environments. It is specifically engineered to provide consistent performance in applications involving turbines, compressors, pumps, and other critical machinery where accurate shaft position monitoring is essential.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle | 330104-05-13-10-02-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 8 mm nominal |
| Linearity | ±0.25% sur full scale |
| Frequency Response | DC to 10 kHz |
| Operating Temp. | -35 °C to +177 °C |
| Storage Temp. | -55 °C to +100 °C |
| Cable Type | Triaxial, low-noise, molded |
| Total Length | 1 m |
| Poids | 0.323 kg |
| Connector Type | Standard BNC / compatible with 3300 XL extension cables |
| Compliance | API 670 standard |
Product Applications
-
Shaft vibration monitoring in steam and gas turbines
-
Radial and axial displacement measurements in compressors
-
Bearing and seal monitoring in industrial pumps
-
État monitoring sur motors and generators
-
Integration with Bently Nevada 3300 XL series monitoring systems
Product Advantages
-
High measurement accuracy: Maintains precision in harsh conditions.
-
Robust design: Resistant to oil, moisture, and contaminants.
-
API 670 compliance: Meets international standards for machinery protection.
-
Wide operating temperature range: Suitable for demanding industrial environments.
-
Compatibility: Fully compatible with 3300 XL extension cables and Proximitor sensors.
-
Stable output: Low noise and minimal drift for reliable long-term monitoring.
FAQ
Q1: What type sur signal does this probe generate?
A1: The probe generates a voltage signal proportional to the shaft-to-probe gap displacement, which is processed by the Proximitor module.
Q2: Is the probe compatible with older Bently Nevada monitoring systems?
A2: Yes, it is backward-compatible with many older 3300 series systems, though optimal performance is achieved with 3300 XL Proximitors.
Q3: How does the probe handle electrical noise interference?
A3: It uses a triaxial low-noise cable design and shielding to minimize electrical interference.
Q4: Can the probe be used for thrust position measurements?
A4: Yes, it can measure both radial and axial shaft positions when properly installed.
Q5: What is the typical output sensitivity sur the probe?
A5: The standard sensitivity is 200 mV per mil (7.87 mV per micron).
Q6: How is temperature stability achieved in this probe?
A6: The probe is constructed with specialized materials that ensure minimal thermal drift across its wide operating temperature range.
Q7: Is this probe suitable for hazardous area applications?
A7: Yes, certain configurations sur the probe are available with approvals for hazardous environments depending on system requirements.
Q8: What Proximitor modules are compatible with this probe?
A8: It is fully compatible with 3300 XL Proximitor modules designed for 8 mm probes.
Q9: Does the probe require calibration before use?
A9: The probes are factory calibrated, but system-level calibration is recommended to ensure full compliance with API 670.
Q10: How does this probe ensure long-term durability in oil-contaminated environments?
A10: The molded cable design and hermetic sealing provide resistance against oil ingress and environmental contamination.
Recommended Related Modèles
| Modèle Number | Description |
|---|---|
| 330104-05-12-10-02-00 | 3300 XL 8 mm Proximity Probe, 1 m length |
| 330104-05-10-50-11-00 | 3300 XL 8 mm Proximity Probe, 5 m length |
| 330104-05-12-90-02-CN | 3300 XL 8 mm Proximity Probe, 9 m length |
| 330104-05-11-90-11-00 | 3300 XL 8 mm Proximity Probe, 9 m, angled |
| 330104-04-12-10-02-00 | 3300 XL 8 mm Probe, standard configuration |
| 330104-04-12-90-02-CN | 3300 XL 8 mm Probe, extended configuration |
