Présentation du produit

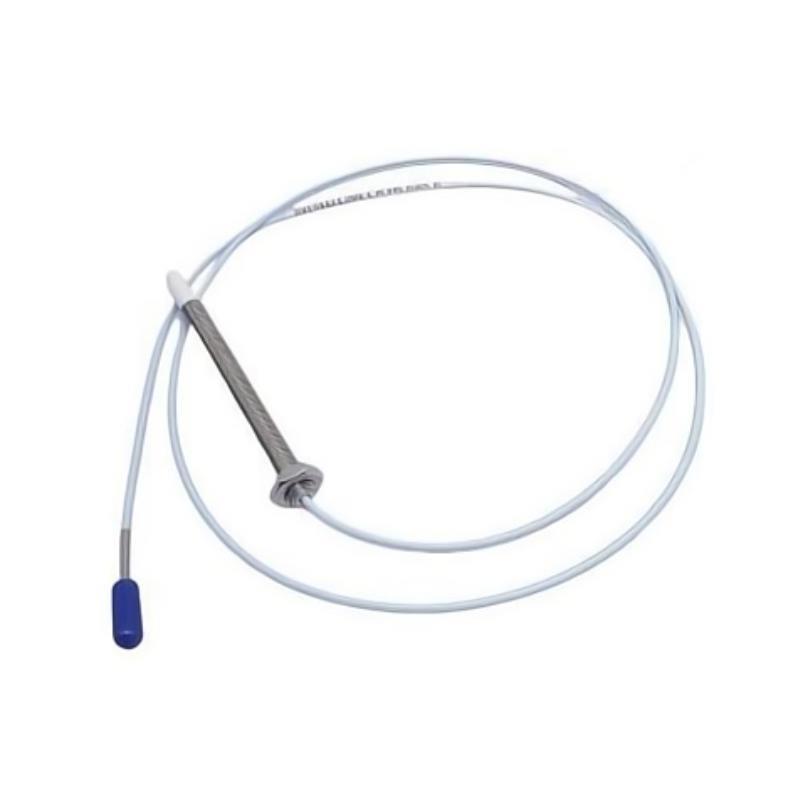

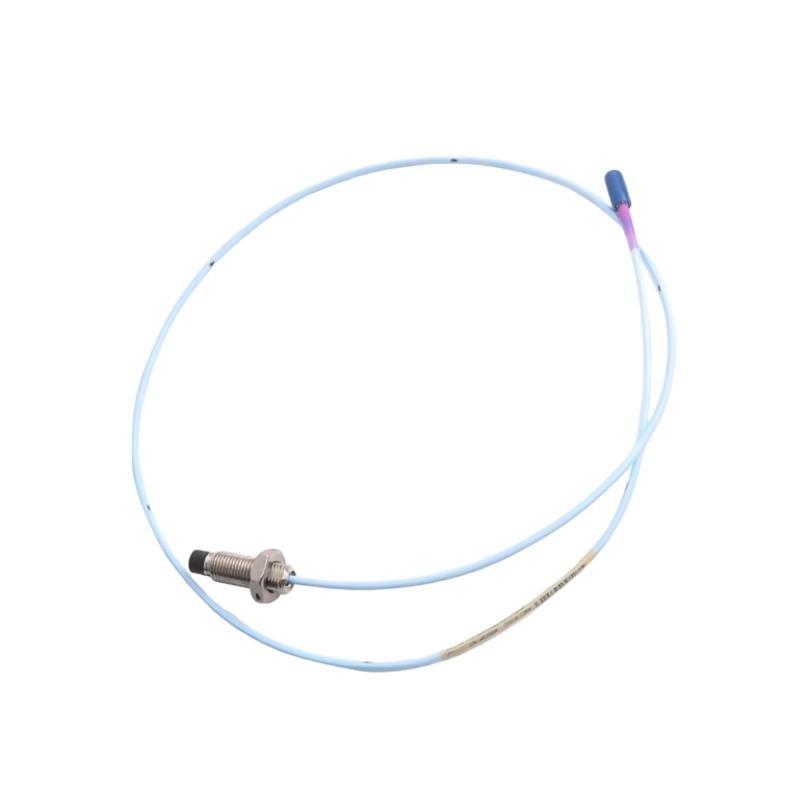

The Bently Nevada 330104-00-06-05-01-00 is part sur the 3300 XL 8 mm Proximity Probe System, designed for highly accurate non-contact measurement sur shaft vibration and displacement in critical rotating machinery. Built on Bently Nevada’s long-standing expertise in machinery protection and condition monitoring, this probe ensures stable performance in demanding industrial conditions such as turbines, compressors, pumps, and motors.
Its 8 mm tip design enables precise proximity measurements with excellent linearity across its operating range. This model is engineered for compatibility with the 3300 XL extension cables and Proximitor® sensors, forming a complete system that converts mechanical movement into a reliable electrical signal for diagnostics and protection.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | 330104-00-06-05-01-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 0.5 meter |
| Poids | 0.162 kg |
| Linear Range | 2 mm typical |
| Frequency Response | Up to 10 kHz |
| Operating Temperature | -35 °C to +177 °C |
| Probe Material | Stainless steel with hermetically sealed tip |
| Connection Type | Coaxial connector with click-lock mechanism |
| Compatible Target Material | Optimized for 4140 steel (with conversion factors for others) |
| System Components | Probe + Extension Cable + Proximitor® Module |
Product Applications
The 3300 XL 8 mm proximity probe is widely adopted in industrial monitoring systems where precision and reliability are critical. Typical applications include:
-
Monitoring shaft vibration in turbines, compressors, and pumps.
-
Measuring shaft axial position and thrust clearance in rotating equipment.
-
Detecting radial displacement for predictive maintenance and fault prevention.
-
Integration into machinery protection systems to prevent catastrophic failures.
-
Supporting condition monitoring programs for early fault detection.
-
Providing reliable data for rotor dynamics analysis in research and development.
Product Advantages
The Bently Nevada 330104-00-06-05-01-00 proximity probe surfers several advantages:
-
High Accuracy – Provides precise non-contact measurement sur shaft vibration and position.
-
Durability – Built with corrosion-resistant materials and hermetically sealed for harsh environments.
-
Wide Temperature Range – Operates reliably across extreme industrial temperatures.
-
System Compatibility – Works seamlessly with 3300 XL extension cables and Proximitor® sensors.
-
Noise Immunitéy – Designed with shielding and robust connectors to resist EMI and signal interference.
-
Versatility – Supports both static and dynamic measurements, making it suitable for various machinery types.
-
Proven Reliability – Backed by decades sur Bently Nevada’s expertise in machinery monitoring technology.
FAQ
-
What is the linear measurement range sur the 3300 XL 8 mm proximity probe?
It provides a linear measurement range sur approximately 2 mm, optimized for 4140 steel targets. -
Which target materials can this probe accurately measure?
While optimized for 4140 steel, it can measure other conductive materials using calibration factors. -
How does the probe integrate with the Proximitor® module?
It connects via coaxial cabling and works as part sur a three-component system (probe, cable, Proximitor). -
What kind sur electrical output does the probe generate?
It produces a voltage proportional to the distance between the probe and the target surface. -
Can the probe handle high-frequency vibration monitoring?
Yes, it supports dynamic response up to 10 kHz, making it suitable for high-speed machinery. -
Is recalibration required after replacing the probe?
Yes, calibration with its dedicated Proximitor® is recommended to maintain accuracy. -
How is the probe protected against contamination and harsh conditions?
It has a hermetically sealed stainless-steel body resistant to oil, dust, and moisture. -
Does temperature variation affect the probe’s accuracy?
The system is temperature-compensated within its specified operating range to reduce drift. -
Can it be used for both vibration and position monitoring?
Yes, it measures both static displacement and dynamic vibration simultaneously. -
How does the system ensure immunitéy against electromagnetic interference?
The probe and cables use shielding and grounded connections to minimize EMI effects.
Recommended Related Modèles (Same Series)
| Modèle Number | Description | Cable Length | Poids |
|---|---|---|---|
| 330104-00-04-50-02-00 | 3300 XL 8 mm Proximity Probe | 5.0 m | 1.615 kg |
| 330104-00-05-20-01-05 | 3300 XL 8 mm Proximity Probe | 2.0 m | 0.646 kg |
| 330104-00-05-50-02-RU | 3300 XL 8 mm Proximity Probe | 5.0 m | 1.615 kg |
| 330104-00-05-50-12-00 | 3300 XL 8 mm Proximity Probe | 5.0 m | 1.615 kg |
| 330104-00-06-05-01 | 3300 XL 8 mm Proximity Probe | 0.5 m | 0.162 kg |
| 330104-00-06-05-01-00 | 3300 XL 8 mm Proximity Probe | 0.5 m | 0.162 kg |
Recommended Popular Modèles (Same Marque)
| Modèle Number | Description | Application |
|---|---|---|
| 330130-040-00 | 3300 XL Extension Cable | Connects probe to Proximitor® |
| 330180-91-05 | 3300 XL Proximitor® Sensor | Converts probe signal to voltage |
| 330400-50-05 | Velomitor® Piezo-Velocity Sensor | Vibration monitoring in motors/pumps |
| 3500/22M | Transient Data Interface Module | Data capture and diagnostics |
| 3500/42M | Proximitor®/Seismic Monitor Module | Machinery protection and monitoring |
| 3500/93 | System Rack Interface | Centralized monitoring system |
