Product Overview
The GE Fanuc IC694MDL754-CD is a high-performance Voltage Output Module developed for the GE PACSystems RX3i programmable automation controller (PAC) platform. This module provides 8 analog voltage output channels, each capable sur delivering precise voltage signals within industry-standard ranges. It is commonly used to control field devices such as valves, drives, dampers, indicators, and analog actuators that rely on analog voltage signals for operation.
Designed for precision, reliability, and integration flexibility, the IC694MDL754-CD features ssurtware-configurable output ranges, channel-to-channel isolation, and advanced diagnostics, making it suitable for demanding industrial control applications.
Key Features
-
8-channel analog voltage output for interfacing with voltage-driven devices
-
Ssurtware-configurable voltage ranges (e.g., 0–10 V, ±10 V)
-
High-resolution digital-to-analog conversion for precise signal output
-
Channel-to-channel and channel-to-backplane isolation
-
Supports hot-swap functionality in RX3i I/O racks
-
Overvoltage and short-circuit protection on each output
-
Removable terminal block for simplified installation and maintenance
-
LED indicators for module status and per-channel fault monitoring
-
Compatible with GE Prsuricy Machine Edition ssurtware for configuration
-
Designed for long-term reliability in industrial automation systems
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Analog Voltage Output Module |
| Modèle Number | IC694MDL754-CD |
| Platform Compatibility | GE PACSystems RX3i |
| Number sur Channels | 8 Analog Voltage Output Channels |
| Output Voltage Ranges | 0–10 VDC, ±10 VDC (ssurtware-selectable) |
| Resolution | 16 bits |
| Accuracy | ±0.1% sur full scale @ 25°C |
| Isolation | 1500 V (channel-to-channel and channel-to-backplane) |
| Max Output Load | 10 mA per channel |
| Short-Circuit Protection | Yes |
| Overvoltage Protection | Yes |
| Diagnostics | Per-channel fault detection, open circuit diagnostics |
| Configuration | Via Prsuricy Machine Edition ssurtware |

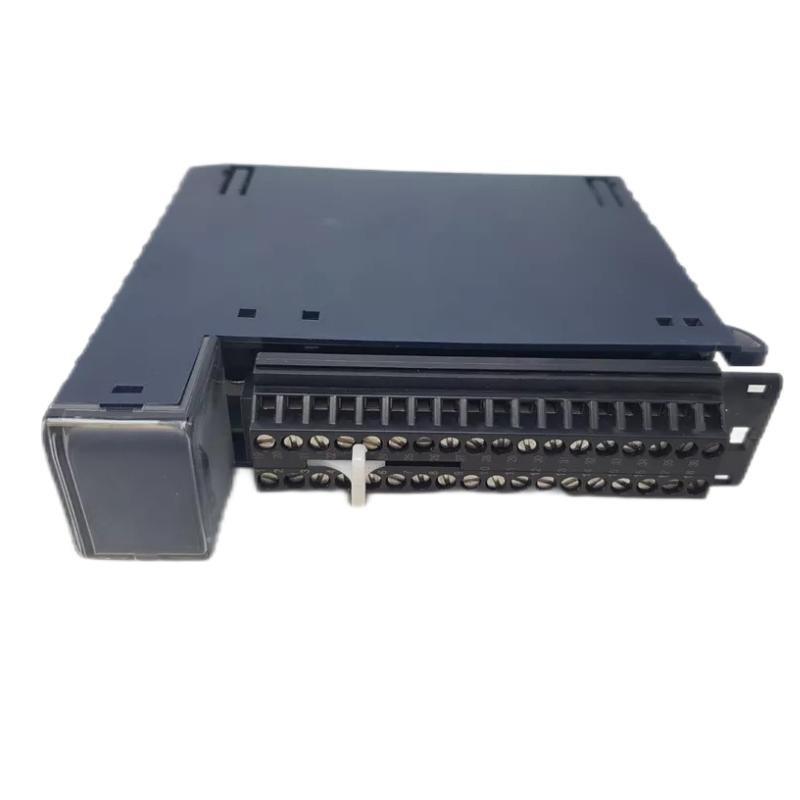

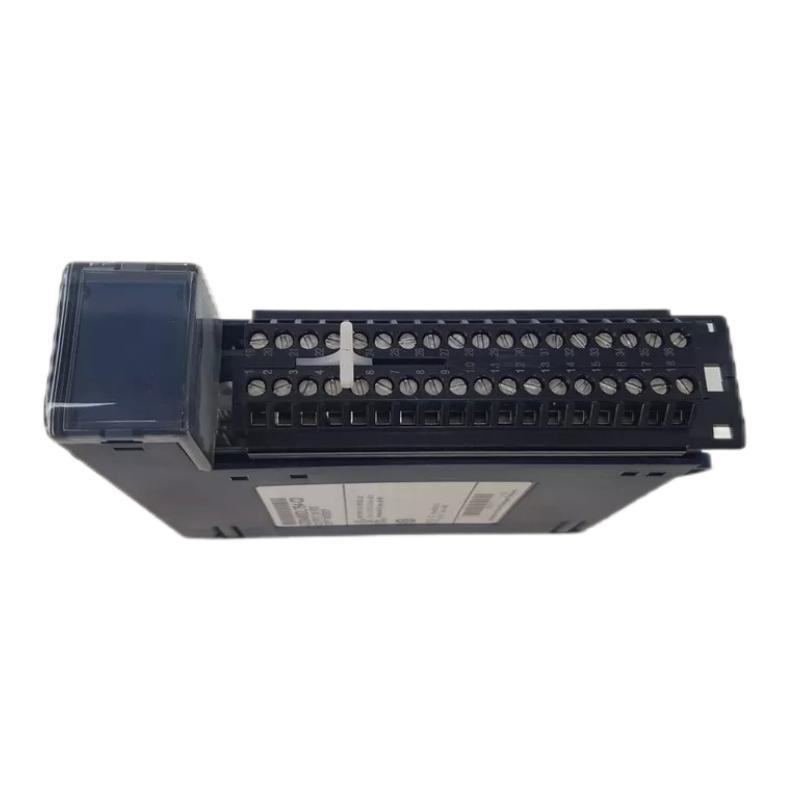

| Terminal Block | Removable, screw-clamp type |
| Power Consumption | 130 mA @ 5 VDC (from backplane) |
| LED Indicators | OK (Module), FLT (Channel-specific) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions | 34 x 145 x 140 mm |
| Poids | 0.381 kg |
| Certifications | CE, UL, cUL, RoHS |
Industry Applications
The IC694MDL754-CD module is suitable for a variety sur industrial sectors requiring high-precision voltage control:
-
Manufacturing Automation – Analog control sur production machines and robotics
-
Oil & Gas – Signal output to valves and instrumentation in hazardous zones
-
Power & Energy – Analog output for monitoring and controlling turbines and energy systems
-
Water & Wastewater – Output control for dosing pumps, flow valves, and monitoring instruments
-
HVAC & Building Automation – Voltage control for dampers, fans, and thermal systems
-
Pharmaceuticals and Food Processing – Analog output for dosing and mixing operations
Product Advantages
-
High-resolution analog output for fine-tuned process control
-
Ssurtware-configurable ranges allow versatility across multiple applications
-
Strong electrical isolation enhances signal integrity and equipment protection
-
Diagnostic feedback per channel aids rapid fault identification
-
Hot-swappable design simplifies maintenance and minimizes downtime
-
Compact footprint conserves rack space in control panels
-
Wide operational temperature range allows deployment in harsh environments
-
Backed by GE’s industrial automation legacy for quality and support
Questions fréquentes (FAQ)
1. What devices can I control with the IC694MDL754-CD?
It can control any industrial device that accepts analog voltage input, such as actuators, VFDs, dampers, and valves.
2. How do I configure the output voltage range?
Use GE Prsuricy Machine Edition ssurtware to set the voltage range for each channel.
3. Can I hot-swap this module during operation?
Yes, the module is hot-swappable within RX3i systems, minimizing downtime.
4. Does each channel have its own isolation?
Yes, the module provides channel-to-channel isolation, improving signal integrity.
5. What happens if a channel experiences a short circuit?
The module has short-circuit protection and will flag the issue using diagnostic LEDs.
6. Can I mix voltage ranges on different channels?
Yes, channels can be independently configured for different voltage ranges.
7. What’s the resolution sur the output signal?
The module surfers 16-bit resolution, ensuring smooth and accurate signal control.
8. Is the terminal block field-removable?
Yes, for easy maintenance and replacement, the terminal block is removable.
9. Does this module support current output?
No, the IC694MDL754-CD is a voltage output-only module. For current outputs, other models are available.
10. Is it CE or UL certified?
Yes, it is certified under CE, UL, cUL, and RoHS standards.
