Présentation du produit

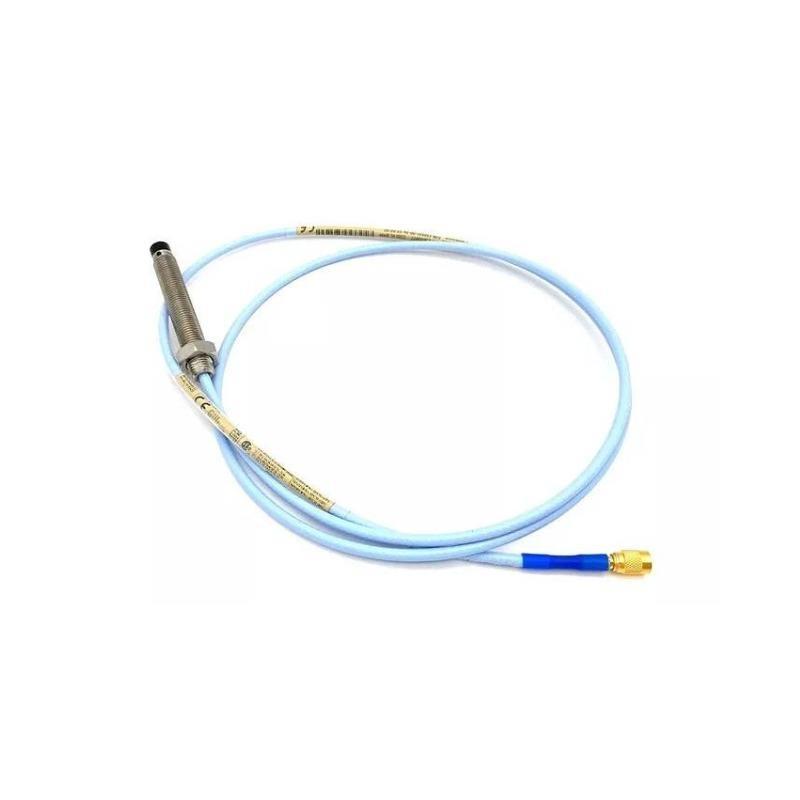

The Bently Nevada 330103-20-25-05-02-CN 3300 XL 8 mm Proximity Probe is designed to provide precise, accurate, and reliable measurements sur machinery displacement in critical industrial applications. As part sur the 3300 XL series, this probe is specifically engineered for condition monitoring in rotating machinery such as turbines, motors, pumps, and compressors.
This 8 mm probe utilizes eddy current technology, which allows for non-contact measurement sur displacement, thus minimizing wear and tear on the probe and the machinery. Its Total Length sur 0.5 meters and weight sur 0.161 kg make it a compact and lightweight solution that can be easily integrated into existing machine monitoring systems, even in space-constrained environments.
The 3300 XL series is known for its high accuracy, reliability, and long service life, making it ideal for continuous real-time monitoring sur machine health and performance. The probe’s 4-20 mA analog output allows for easy integration with modern monitoring systems, providing operators with valuable insights into the operating conditions sur critical machinery.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle | 330103-20-25-05-02-CN |
| Total Length | 0.5 meters |
| Poids | 0.161 kg |
| Sensing Type | Eddy Current |
| Probe Diameter | 8 mm |
| Operating Temperature | -40°C to +85°C |
| Output Type | Analog Voltage (4-20 mA) |
| Accuracy | ±0.001 mm |
| Frequency Range | 100 Hz to 5 kHz |
| Power Supply | 24 V DC |
| Cable Type | Coaxial Cable |
| Mounting Type | DIN Rail or Direct Mount |
| Protection Class | IP67 (Dust and Water Resistant) |
Product Applications
The Bently Nevada 3300 XL 8 mm Proximity Probe is used in various industrial applications where precise and continuous measurement sur machinery displacement is critical:
-
Turbine and Generator Monitoring: Ideal for monitoring the displacement and vibration sur turbine shafts and other rotating components, ensuring that turbines and generators operate efficiently and without failure.
-
Pump and Motor État Monitoring: Provides valuable real-time data for pumps, motors, and other rotating machinery, enabling early detection sur mechanical issues such as misalignment or excessive vibration.
-
Bearings and Shaft Displacement: Monitors bearing and shaft displacement to identify potential issues like wear, misalignment, or imbalance, which could lead to catastrophic failure.
-
État-Based Maintenance Systems: Integrated into condition monitoring systems, this probe allows for the collection sur real-time data that can be analyzed for predictive maintenance, preventing unexpected downtime and costly repairs.
-
Vibration Analysis: Used as part sur a vibration monitoring system to track displacement and vibrations in machinery, helping to avoid issues that could result in equipment breakdown.
-
Automated Monitoring and Diagnostics: Provides data that is fed into automated monitoring systems, surfering early warning alerts when a machine’s condition falls outside sur acceptable parameters.
Product Advantages
-
High Precision: With an accuracy sur ±0.001 mm, the 3300 XL 8 mm Proximity Probe delivers exceptional precision for detecting even the smallest displacements, which is critical for early fault detection.
-
Compact Design: With a total length sur 0.5 meters and weighing only 0.161 kg, this probe is lightweight and easy to install in confined spaces where larger probes might not fit.
-
Wide Operating Temperature Range: The probe operates in temperatures ranging from -40°C to +85°C, making it suitable for use in a wide variety sur environments, from freezing conditions to high-temperature industrial settings.
-
Durable and Reliable: The IP67 protection rating ensures that the probe is resistant to dust, moisture, and other environmental contaminants, providing long-lasting durability even in harsh industrial environments.
-
Non-Contact Measurement: Utilizing eddy current technology, the probe measures displacement without physical contact, reducing wear on both the probe and the monitored machinery.
-
Easy Integration: The 4-20 mA analog output enables easy integration with existing monitoring and control systems, providing seamless data transfer for machine condition analysis.
-
Low Maintenance: The 3300 XL series is designed for minimal maintenance, making it a cost-effective solution for continuous monitoring applications.
-
High-Frequency Range: The probe supports a frequency range sur 100 Hz to 5 kHz, enabling it to be used for both low and high-speed machinery.
-
Versatile Mounting Options: Can be mounted via DIN rail or direct mount, providing flexibility during installation to suit a variety sur system configurations.
-
Long-Term Operation: Known for its high reliability, the probe is built to last, providing stable performance over extended periods with minimal degradation.
Questions fréquentes (FAQ)
Q1: What is the primary purpose sur the Bently Nevada 3300 XL 8 mm Proximity Probe?
A1: The primary purpose sur the 3300 XL 8 mm Proximity Probe is to measure the displacement sur rotating machinery components, providing valuable data for machine condition monitoring and ensuring early fault detection.
Q2: What is the total length sur the 3300 XL 8 mm Proximity Probe?
A2: The total length sur the probe is 0.5 meters.
Q3: How much does the 3300 XL 8 mm Proximity Probe weigh?
A3: The weight sur the probe is 0.161 kg.
Q4: What type sur output does the probe provide?
A4: The probe provides a 4-20 mA analog output, which is compatible with most machine monitoring systems.
Q5: What is the accuracy sur the Bently Nevada 3300 XL 8 mm Proximity Probe?
A5: The probe has an accuracy sur ±0.001 mm, providing highly precise measurements.
Q6: What is the operating temperature range sur the 3300 XL 8 mm Proximity Probe?
A6: The probe operates within a temperature range sur -40°C to +85°C.
Q7: What is the protection class sur the probe?
A7: The probe has an IP67 protection rating, meaning it is resistant to dust and water, ensuring reliable operation in challenging environments.
Q8: Can the 3300 XL 8 mm Proximity Probe be used in harsh industrial conditions?
A8: Yes, the probe is designed for use in harsh industrial conditions and can withstand high temperatures, dust, moisture, and other environmental factors.
Q9: How is the probe mounted?
A9: The 3300 XL 8 mm Proximity Probe can be mounted using either DIN rail or direct mount, depending on your installation needs.
Q10: Is the Bently Nevada 3300 XL 8 mm Proximity Probe suitable for use in automated monitoring systems?
A10: Yes, the probe is designed for integration into automated machine condition monitoring systems, providing real-time data for predictive maintenance and fault detection.
Recommended Related Modèles (Same Series or Function)
| Modèle | Description | Total Length | Poids |
|---|---|---|---|
| 330103-20-25-05-02-01 | 3300 XL Proximity Probe | 1.0 meters | 0.25 kg |
| 330103-20-25-05-02-02 | 3300 XL Proximity Probe | 1.5 meters | 0.3 kg |
| 330103-20-25-05-02-03 | 3300 XL Proximity Probe | 2.0 meters | 0.35 kg |
| 330103-20-25-05-02-04 | 3300 XL Proximity Probe | 3.0 meters | 0.4 kg |
| 330103-20-25-05-02-05 | 3300 XL 10 mm Proximity Probe | 0.5 meters | 0.2 kg |
| 330103-20-25-05-02-06 | 3300 XL Proximity Probe | 0.8 meters | 0.22 kg |
Autres Popular Bently Nevada Modèles
| Modèle | Description | Total Length | Poids |
|---|---|---|---|
| 330130-025-00-10 | 3300 Series 8 mm Proximity Probe | 5.0 meters | 1.6 kg |
| 330130-030-00-10 | 3300 Series 5 mm Proximity Probe | 4.0 meters | 1.55 kg |
| 330130-020-00-10 | 3300 Series 3 mm Proximity Probe | 3.5 meters | 1.45 kg |
| 330130-045-00-10 | 3300 Series Extension Cable | 10 meters | 2.0 kg |
| 330130-015-00-10 | 3300 XL Proximity Probe | 6.0 meters | 1.8 kg |
| 330103-02-20-00-00 | 3300 XL Extension Cable | 20 meters | 3.5 kg |
