Product Overview

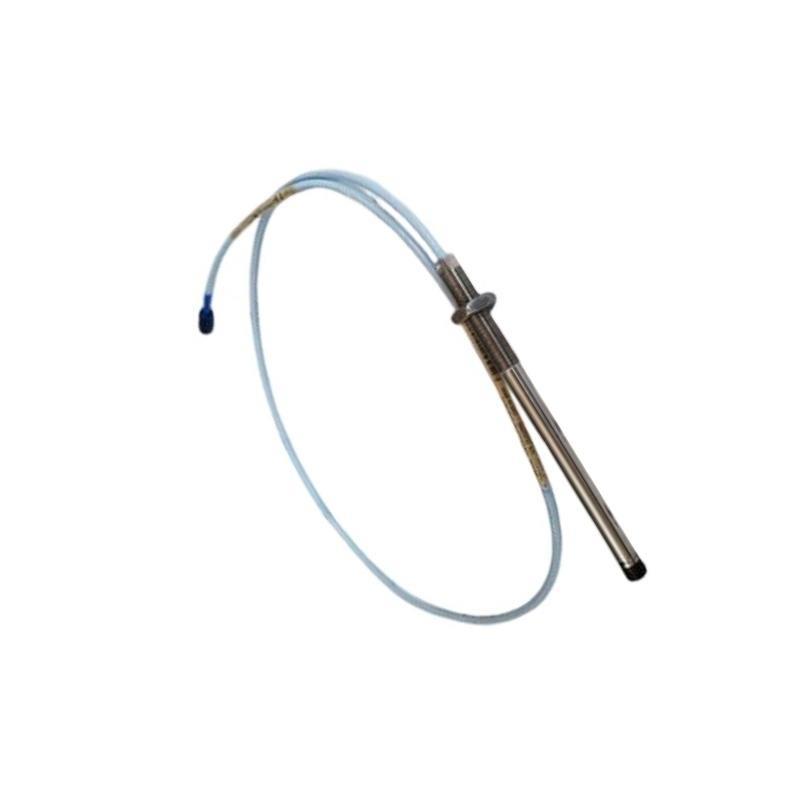

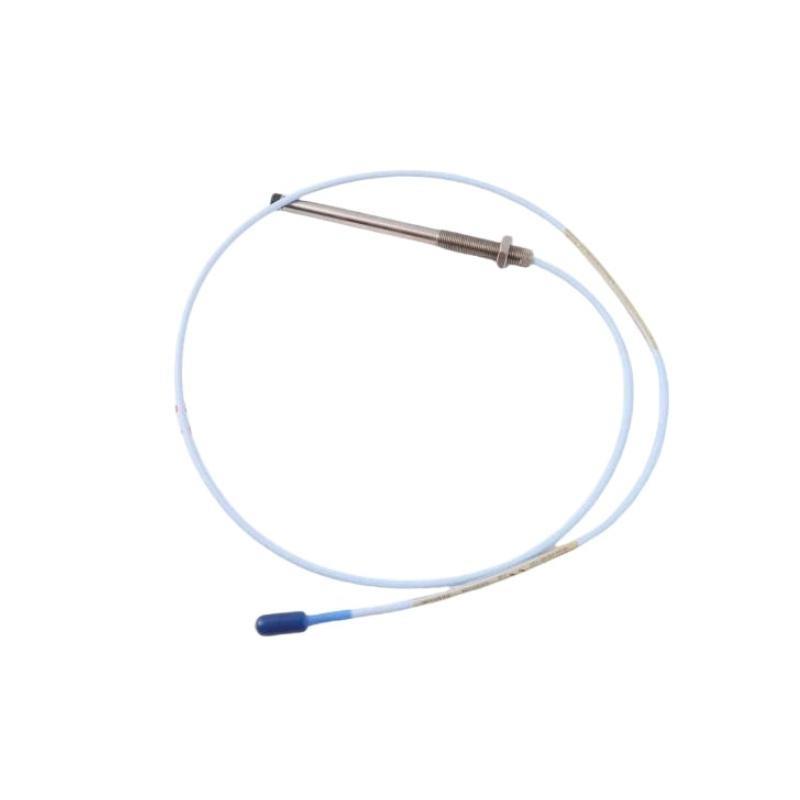

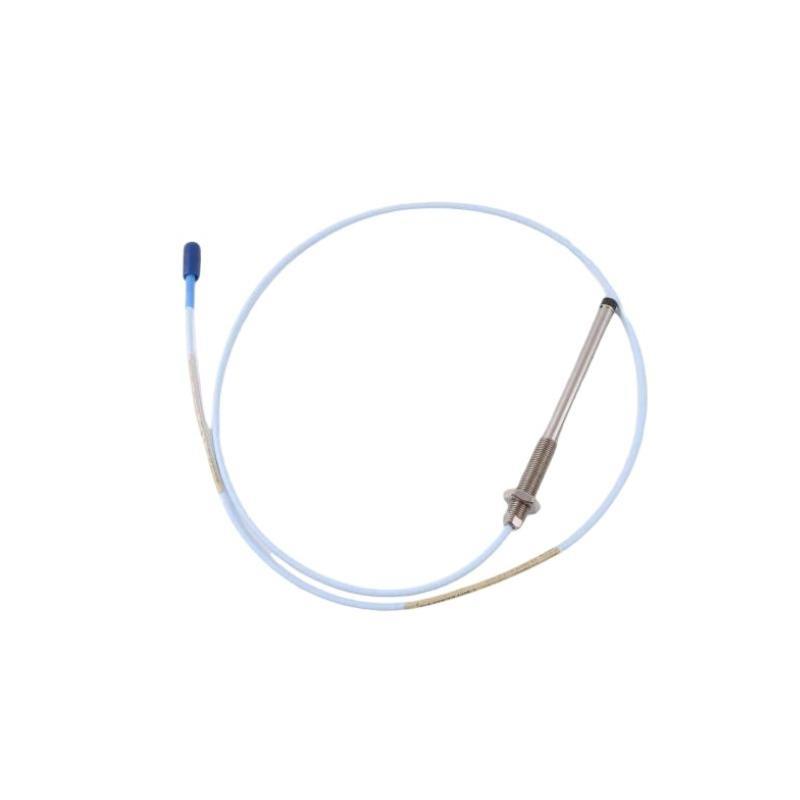

The Bently Nevada 330103-08-13-10-02-CN is part sur the renowned 3300 XL 8 mm proximity probe series, engineered for high-performance shaft position and vibration monitoring in rotating machinery. With a cable length sur 13 feet and a durable, corrosion-resistant probe body, this proximity probe is optimized for industrial applications requiring precise and reliable measurements in medium-distance installations.
Designed for seamless compatibility with Bently Nevada’s 3300 XL Proximitor® sensors and extension cables, the probe ensures accurate, stable signal output even in electrically noisy or harsh mechanical environments. Its rugged construction and precise sensing range make it a trusted choice across power generation, petrochemical, marine, and manufacturing sectors.
Key Features
-
8 mm probe diameter ensures accurate shaft position and vibration detection
-
13-foot (3.96 m) cable molded for durability and electrical integrity
-
Threaded stainless steel housing resists corrosion in industrial settings
-
Polyphenylene sulfide (PPS) tip provides chemical and thermal resistance
-
Compatible with 3300 XL Proximitor® sensors and extension cables
-
Excellent electromagnetic interference (EMI) shielding
-
Reverse polarity and overvoltage protection
-
Fully compliant with API 670 standards
-
Designed to operate in high-temperature, high-vibration environments
Technical Specifications
| Item | Specification |
|---|---|
| Product Modèle | 330103-08-13-10-02-CN |
| Series | 3300 XL 8 mm |
| Probe Tip Diameter | 8 mm |
| Sensing Range | 0.5 to 2.0 mm (20 to 80 mils) |
| Cable Length | 13 feet (3.96 meters) |
| Connector Type | Miniature coaxial molded connector |
| Thread Size | 3/8-24 UNF |
| Body Material | AISI 303 Stainless Steel |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Shock Limit | 1000 g, 1 ms, ½ sine |
| Vibration Limit | 10 g peak, 10–2000 Hz |
| Environmental Rating | IP68 (probe only) |
| Poids | 0.323 kg |
| Dimensions | Total Length : 1.0 meters |
Industry Applications
-
Steam and gas turbines
-
Compressors and centrifugal pumps
-
Large electric motors and generators
-
Marine propulsion systems
-
Oil & gas and petrochemical facilities
-
Paper and pulp mills
-
Mining and metal processing plants
-
Aerospace test stands and equipment monitoring
Product Advantages
-
High Accuracy: Delivers precise vibration and displacement measurements for critical equipment.
-
Extended Reach: 13-foot cable supports versatile installation in mid-to-large machinery.
-
Durability: IP68-rated construction and stainless steel build surfer excellent environmental protection.
-
Safety Compliance: Meets API 670 requirements for machinery protection and diagnostics.
-
EMI Shielding: Ensures signal stability even in electrically noisy environments.
-
Thermal Resilience: Performs reliably under a wide operating temperature range.
-
Easy Integration: Designed to work seamlessly with existing 3300 XL monitoring systems.
-
Low Maintenance: Factory-calibrated and built for long operational life with minimal servicing.
Questions fréquentes (FAQ)
-
What is the length sur the cable on this probe?
It features a 13-foot (3.96 meters) molded coaxial cable. -
Is this model compatible with all 3300 XL Proximitor® sensors?
Yes, it’s fully compatible with Bently Nevada’s 3300 XL Proximitor® systems. -
What thread type does this probe use?
It uses a 3/8-24 UNF thread suitable for standard mounting ports. -
Can this probe withstand extreme industrial conditions?
Yes, its IP68 rating and durable materials allow for operation in harsh environments. -
Does it comply with machinery protection standards?
It meets API 670 compliance for vibration and displacement monitoring. -
What materials are used for the probe tip and housing?
The tip is PPS, and the body is made sur stainless steel (AISI 303). -
Can it be used in high-vibration zones?
Yes, it’s rated for up to 10 g peak between 10–2000 Hz. -
Is field calibration required?
The probe comes factory-calibrated but can be verified in the field for specific applications. -
Is the connector weather-sealed?
The molded design ensures resistance to moisture and contaminants. -
What type sur signal output does the probe provide?
It transmits a non-contact voltage signal proportional to the gap between the probe tip and the target surface.
Related Modèles
| Modèle Number | Description |
|---|---|
| 330103-08-10-10-02-00 | 10-foot cable version with UNF thread |
| 330103-08-15-10-02-00 | 15-foot cable version with UNF thread |
| 330104-00-05-05-01-05 | Shorter probe with 5-foot cable |
| 330104-00-08-10-01-CN | 8-foot probe with CN localization |
| 330103-07-18-10-02-00 | 18-foot probe, 3/8-24 UNF thread |
| 330103-07-16-05-02-00 | 16-foot probe with M10 × 1.0 thread |
