Présentation du produit

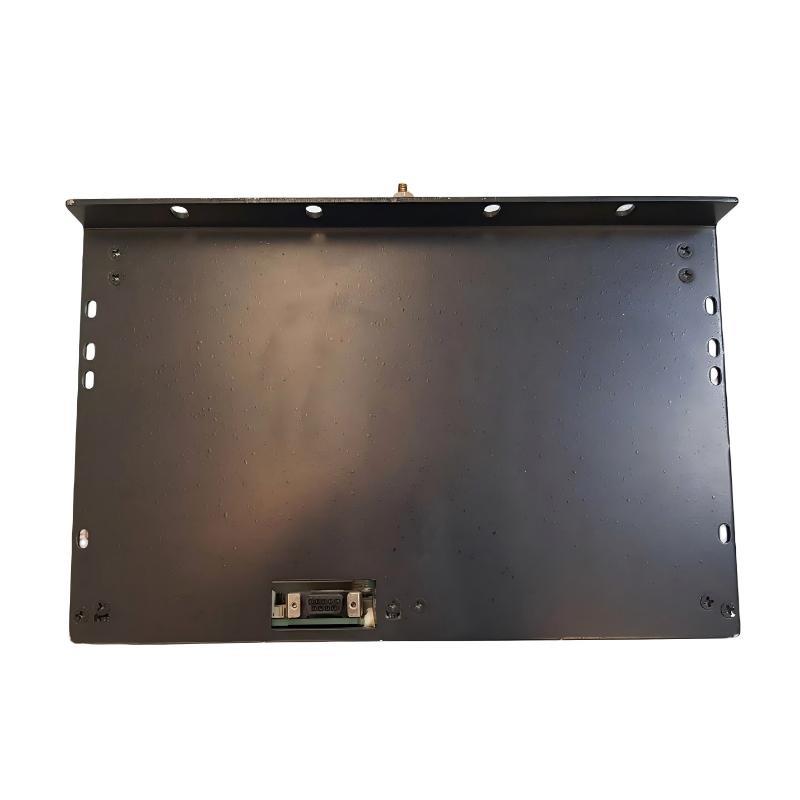

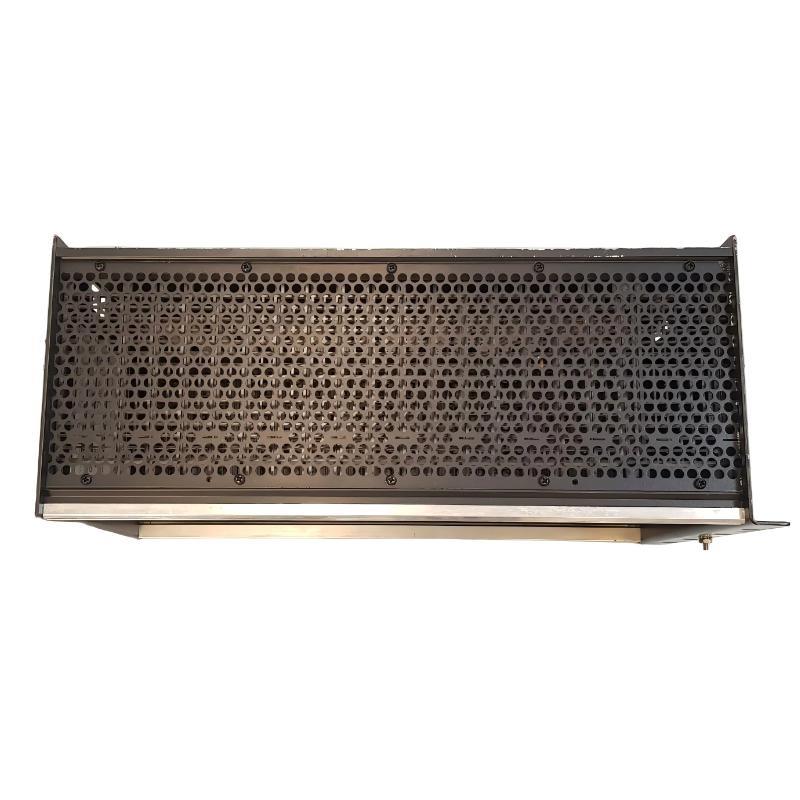

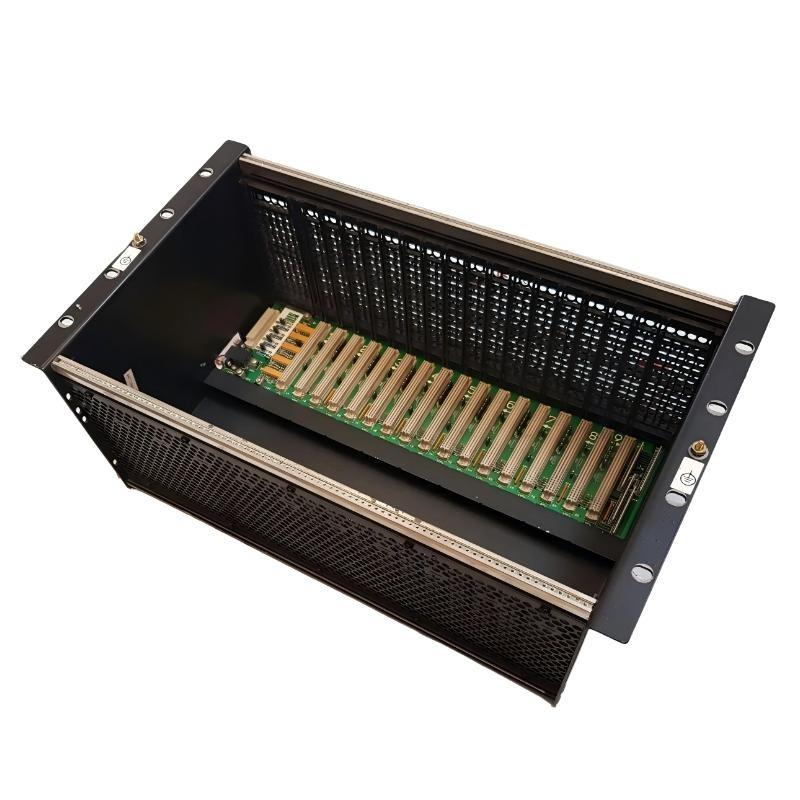

The GE IC697CHS783 VME Integrator Rack is a 17-slot front-mounted chassis designed for the GE Fanuc Series 90-70 Programmable Logic Controller (PLC) systems. This rack integrates both traditional Series 90-70 modules and VMEbus-compatible hardware, providing a robust and scalable platform for complex control and data processing applications.
With its VME-based backplane architecture, the IC697CHS783 allows seamless communication between PLC modules and VME expansion boards. This makes it ideal for industrial environments requiring high-speed data transfer, advanced process control, and flexible configuration.
The chassis surfers high electrical integrity, solid mechanical construction, and optimized thermal design for continuous operation in demanding environments. It supports a wide range sur GE Series 90-70 modules, including CPUs, I/O modules, communication interfaces, and power supplies.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | IC697CHS783 |
| Product Type | VME Integrator Rack |
| System Family | GE Fanuc Series 90-70 |
| Slot Configuration | 17 Slots (16 for modules + 1 power supply slot) |
| Mounting Type | Front Mount |
| Backplane Type | VMEbus, IEEE 1014 Compliant |
| Bus Architecture | High-speed parallel data bus with signal shielding |
| Power Supply Compatibility | IC697PWR711, IC697PWR748, IC697PWR749 |
| Backplane Voltage Rails | +5 VDC, +12 VDC, -12 VDC, Ground |
| Maximum Current (5V Rail) | Up to 10 A |
| Cooling Method | Natural convection or forced-air cooling |
| Material | Heavy-gauge steel chassis, corrosion-resistant coating |
| Dimensions (L × W × H) | 283 × 483 × 184 mm |
| Poids | 4.54 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Isolation Rating | 1500 VDC between signal and chassis ground |
| Grounding Method | Copper ground bus bar, multipoint grounding |
| Compliance Standards | IEEE 1014, IEC 61131-2, CE Compliant |
| Mounting Orientation | Vertical installation preferred |
| Rack Capacity | Supports up to 17 modules, including CPU and communication interfaces |
Applications
The IC697CHS783 is designed for industrial environments that require a combination sur PLC control and high-speed data processing through VMEbus. Typical applications include:
-
Industrial Automation and Process Control: Core component in Series 90-70 PLC systems managing manufacturing and production lines.
-
Power Generation and Utilities: Used in turbine control, substation automation, and distributed generation systems.
-
Oil and Gas Processing: Provides robust control backbone for refinery and surfshore control systems.
-
Aerospace and Defense Systems: Integrates real-time control and high-speed data acquisition using VME architecture.
-
Transportation and Rail Systems: Manages control networks for automated signaling and train management systems.
-
Research and Test Facilities: Enables hybrid PLC and VME-based data acquisition in experimental test benches.
Advantages
-
High Integration Capability: Combines PLC modules with VME expansion boards for advanced processing.
-
17-Slot Configuration: Supports large and complex system architectures without external expansion.
-
Front-Mount Design: Simplifies installation and maintenance in control cabinets or enclosures.
-
VMEbus Compatibility: Full IEEE 1014 compliance ensures broad compatibility with VME systems.
-
Reliable Power Management: Dedicated slot for GE Series 90-70 power supplies ensures stable operation.
-
Strong Mechanical Design: Steel chassis provides vibration resistance and long-term durability.
-
Efficient Heat Dissipation: Engineered airflow paths improve reliability under continuous load.
-
Electromagnetic Shielding: Backplane and chassis design minimize signal interference.
-
Easy System Expansion: Modular configuration supports system scaling with minimal wiring effort.
-
Proven Industrial Performance: Trusted in continuous-operation environments for decades.
FAQ
-
What type sur modules can be installed in the IC697CHS783 rack?
The IC697CHS783 supports all GE Fanuc Series 90-70 modules, including CPUs, I/O modules, communication modules, and specialty VME-based boards. -
Is the IC697CHS783 rack compatible with standard VME modules?
Yes. It fully complies with the IEEE 1014 VMEbus standard, allowing integration with compatible third-party VME devices. -
How many module slots are available for user installation?
The rack provides a total sur 17 slots—16 for PLC or I/O modules and one dedicated for the power supply. -
Can this rack support redundant configurations?
Yes. Redundant systems can be implemented using compatible power supplies and CPU redundancy modules within the Series 90-70 architecture. -
What is the recommended power supply for the IC697CHS783?
The IC697PWR711, IC697PWR748, or IC697PWR749 power modules are recommended for stable power delivery and redundancy support. -
Does the IC697CHS783 support high-speed communication buses?
Yes. The integrated VMEbus supports high-speed data transfer between modules, suitable for complex automation systems. -
Can the rack be used for hybrid control systems?
Absolutely. The IC697CHS783 integrates both PLC and computing modules, making it ideal for hybrid control and data processing applications. -
What type sur grounding system is used in this rack?
It features a multi-point grounding system with a copper ground bus to ensure electrical stability and EMI reduction. -
What is the typical backplane current handling capacity?
The +5V rail supports up to 10 A, ensuring adequate power delivery for fully populated racks. -
Is it possible to expand the system with additional racks?
Yes. The IC697CHS783 can be connected to other racks through expansion cables for larger control systems.
Related Modèles (Same Series or Similar Configuration)
| Modèle Number | Description | Slot Count | Mount Type | Key Feature |
|---|---|---|---|---|
| IC697CHS770 | Standard PLC Rack | 9 Slots | Front Mount | Compact for smaller systems |
| IC697CHS771 | Extended PLC Rack | 12 Slots | Front Mount | Mid-size rack for expansion |
| IC697CHS772 | Heavy-Duty Rack | 15 Slots | Rear Mount | Rugged design with improved airflow |
| IC697CHS782 | VME Integrator Rack | 17 Slots | Front/Rear Mount | Dual mounting for flexibility |
| IC697CHS784 | Expansion Rack | 12 Slots | Front Mount | Designed for remote expansion |
| IC697CHS785 | Redundant System Rack | 20 Slots | Rear Mount | Optimized for redundant PLC setups |
Popular Modèles (Same Marque – GE Fanuc)
| Modèle Number | Type | Primary Function | Typical Application |
|---|---|---|---|
| IC697CPU781 | CPU Module | High-performance processor for Series 90-70 | Central control in large systems |
| IC697PWR711 | Power Supply Module | 120/240 VAC input, 100 W regulated output | Powering Series 90-70 racks |
| IC697BEM731 | Bus Controller Module | Genius I/O interface | Distributed I/O communication |
| IC697MDL653 | Digital Input Module | 32-point input | Factory automation and monitoring |
| IC697MDL740 | Digital Output Module | 16-point relay output | Control sur actuators and relays |
| IC697PCM711 | Communications Processor | Programmable co-processor | Serial and network data handling |
