Présentation du produit

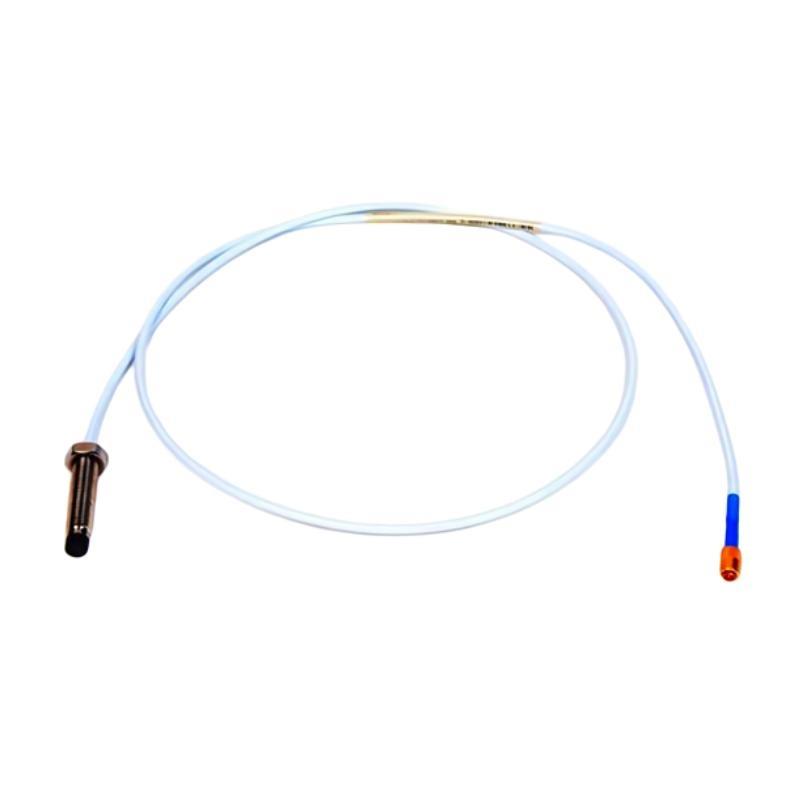

The Bently Nevada 330103-05-10-02-00 3300 XL 8mm Proximity Probe is a precision-engineered transducer designed for accurate non-contact measurement sur vibration, shaft displacement, and axial position in rotating machinery. As part sur the 3300 XL series, this proximity probe is built to deliver exceptional performance in harsh industrial environments such as turbines, compressors, pumps, and generators.
The 330103-05-10-02-00 model utilizes eddy current sensing technology to detect the distance between the probe tip and the target surface, typically a conductive rotating shaft. This signal is then transmitted to a Proximitor® sensor, which converts the probe’s analog signal into a proportional voltage output, used by monitoring systems to assess machine health and detect potential faults.
Bently Nevada’s 3300 XL line is known for its stability, durability, and compatibility across a wide range sur industrial applications. This specific model features superior linearity, low temperature drift, and excellent interchangeability among system components, ensuring long-term reliability and consistent system calibration.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle Number | 330103-05-10-02-00 |
| Product Type | 3300 XL 8mm Proximity Probe |
| Sensing Principle | Eddy Current |
| Probe Tip Diameter | 8 mm (nominal) |
| Linear Range | 2.0 mm (80 mils) |
| System Range | Up to 2 mm linear, 4 mm total |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Nominal Gap | 1.02 mm (40 mils) |
| Frequency Response | 0 to 10 kHz |
| Temperature Range (Operating) | -35°C to +177°C |
| Temperature Coefficient | < 0.05%/°C sur full scale |
| Probe Body Material | Stainless steel |
| Cable Type | Armored coaxial cable |
| Total Length | Optional |
| Connector Type | Miniature coaxial connector (standard) |
| Mounting Thread | M10 x 1.0 or 3/8-24 UNF (depending on option) |
| Target Material | Conductive, typically AISI 4140 steel |
| Compatible Driver | 3300 XL Proximitor Sensor (Modèle 3300/NSv, 330180, etc.) |
| Insulation Resistance | >10 MΩ at 500 VDC |
| Shock and Vibration Resistance | 50 g peak, 10–2000 Hz |
| EMC Compliance | CE, EN 61326 |
| Ingress Protection | IP67 rated |
| Poids | 0.323 kg |
Applications
The Bently Nevada 330103-05-10-02-00 3300 XL 8mm Proximity Probe is used across a wide variety sur critical industrial applications where high-precision vibration monitoring and shaft displacement detection are essential. Common applications include:
-
Steam and Gas Turbines – Continuous monitoring sur shaft vibration and thrust position for early detection sur imbalance or misalignment.
-
Compressors – Measuring rotor motion and bearing wear to prevent mechanical failure.
-
Pumps – Monitoring shaft position and ensuring stable mechanical performance in heavy-duty pumping systems.
-
Motors and Generators – Providing dynamic and static measurements for predictive maintenance systems.
-
Industrial Fans and Blowers – Detecting excessive vibration that could lead to shaft bending or bearing degradation.
-
Gearboxes – Assessing misalignment and tooth wear by monitoring vibration amplitude and frequency response.
This probe is particularly suited for use in high-temperature or high-vibration environments, where standard probes may fail.
Product Advantages
-
High Precision and Stability – Exceptional linearity and repeatability ensure accurate displacement measurements.
-
Wide Temperature Tolerance – Designed for harsh conditions up to +177°C without compromising accuracy.
-
Robust Construction – Stainless steel body and armored cable ensure durability against mechanical stress.
-
Excellent Signal Integrity – Shielded coaxial design minimizes electrical interference and signal loss.
-
Interchangeable Components – Compatible with other 3300 XL system elements without recalibration.
-
Fast Dynamic Response – Supports a broad frequency range up to 10 kHz for real-time vibration analysis.
-
Proven Reliability – Field-tested across industries with exceptional long-term stability.
-
Compact Design – Slim form factor allows flexible installation in confined spaces.
-
Corrosion and Moisture Resistant – IP67 protection for reliable operation in harsh environments.
-
Global Industry Compliance – Certified for industrial monitoring systems worldwide.
FAQ
-
What sensing principle does the 330103-05-10-02-00 probe use?
It uses the eddy current principle, detecting changes in magnetic fields caused by distance variations between the probe tip and the target shaft. -
How is the probe connected to the monitoring system?
The probe connects to a Proximitor sensor via a coaxial cable, which then interfaces with the monitoring rack or data acquisition unité. -
What is the standard sensitivity sur this probe?
The standard system sensitivity is 7.87 mV/μm (200 mV/mil), consistent across the 3300 XL 8mm system. -
Is this probe interchangeable with other 3300 XL components?
Yes, it is fully interchangeable with compatible 3300 XL probes, cables, and Proximitor sensors without recalibration. -
What kind sur target materials are suitable for measurement?
The probe is designed for conductive materials, typically carbon steel or similar alloys with stable magnetic properties. -
How does temperature affect measurement accuracy?
The probe’s advanced compensation minimizes thermal drift, maintaining linearity across a wide temperature range. -
Can the probe operate in environments with strong electrical noise?
Yes, the coaxial cable and shielding effectively suppress EMI and RFI interference, ensuring clean signal transmission. -
What type sur mounting is recommended for stable installation?
A rigid threaded mount, such as M10 x 1.0 or 3/8-24 UNF, is recommended to ensure precise alignment and minimal vibration coupling. -
Is calibration required after replacing the probe?
No recalibration is required if replacement components are from the same 3300 XL system and have matching configurations. -
What is the frequency response capability sur the system?
The probe system supports vibration measurement up to 10 kHz, allowing detailed dynamic analysis sur rotating machinery.
Related Modèles (Same Series)
| Modèle Number | Description | Tip Diameter | Sensitivity | Poids |
|---|---|---|---|---|
| 330103-00-07-10-02-05 | 3300 XL 8mm Proximity Probe | 8 mm | 7.87 mV/μm | 0.32 kg |
| 330103-05-08-10-02-00 | 3300 XL 8mm Short Probe | 8 mm | 7.87 mV/μm | 0.31 kg |
| 330104-00-10-10-02-05 | 3300 XL 11mm Probe | 11 mm | 7.87 mV/μm | 0.35 kg |
| 330105-02-12-10-02-00 | 3300 XL 25mm Probe | 25 mm | 7.87 mV/μm | 0.40 kg |
| 330106-05-10-02-05 | 3300 XL NSv Probe (Narrow Gap) | 5 mm | 7.87 mV/μm | 0.29 kg |
| 330107-05-10-02-00 | 3300 XL Reverse Mount Probe | 8 mm | 7.87 mV/μm | 0.33 kg |
Popular Modèles from the Same Marque
| Modèle Number | Product Name | Function | Poids |
|---|---|---|---|
| 3500/15 | Power Supply Module | Powers 3500 rack systems | 1.0 kg |
| 3500/42M | Vibration Monitor Module | Monitors dynamic and static vibration | 1.2 kg |
| 330180-90-00 | Proximitor Sensor | Converts probe signal to voltage output | 0.25 kg |
| 3500/22M | Transient Data Interface Module | Transfers data to control systems | 1.4 kg |
| 330850-90-05 | Proximity Transducer Assembly | Shaft position and vibration monitoring | 0.45 kg |
| 330400-50-00 | Velomitor Velocity Sensor | Measures casing vibration velocity | 0.48 kg |
