Product Overview

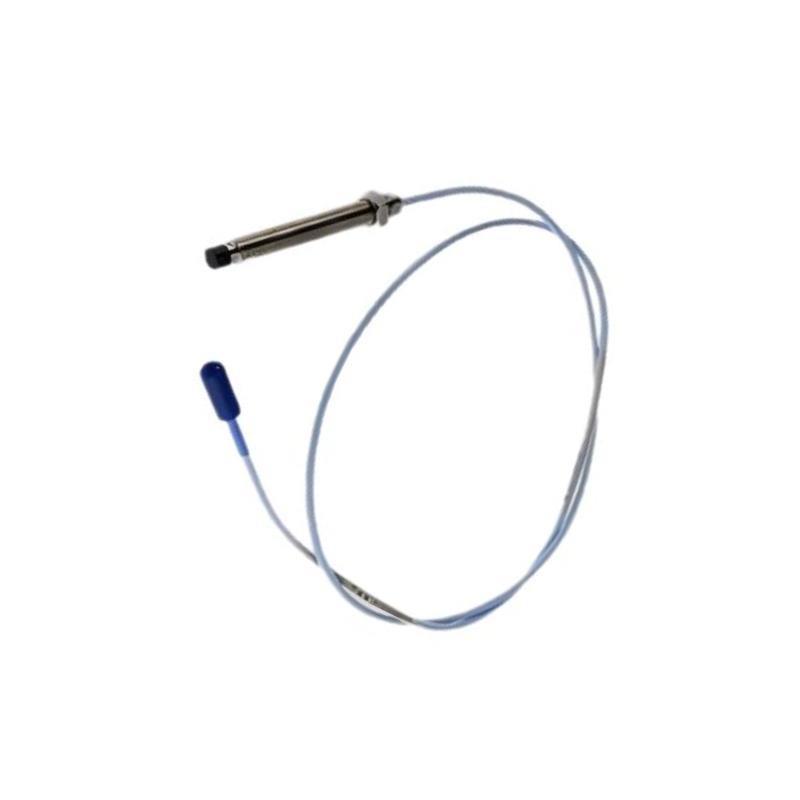

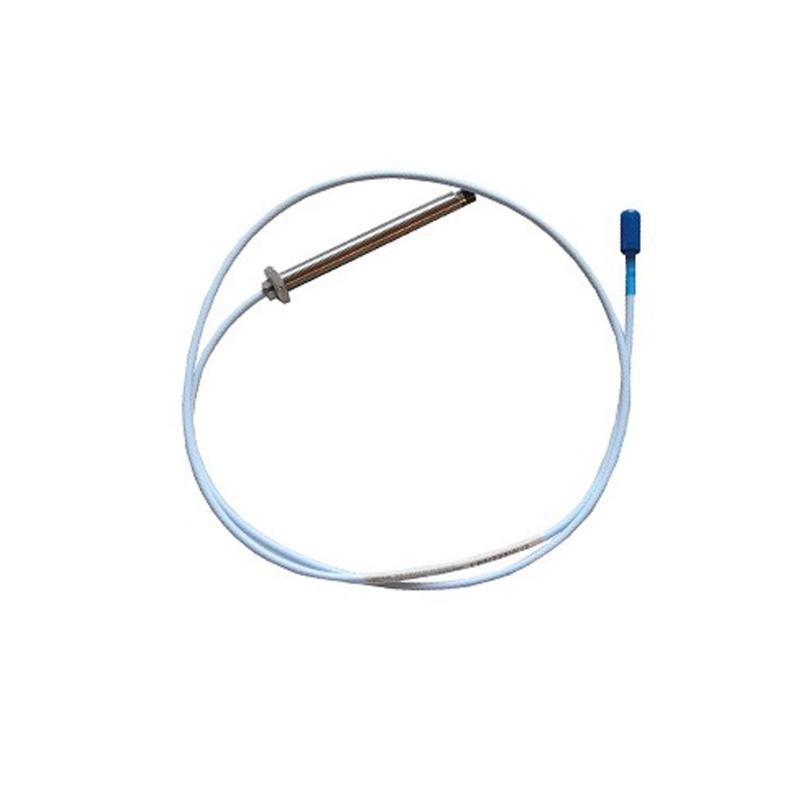

The Bently Nevada 330103‑00‑16‑10‑01‑00 is a rugged, non-contact 8 mm proximity probe from the 3300 XL series, featuring a 10 m integral straight cable. Designed for high-precision shaft vibration and displacement monitoring in critical rotating machinery, it combines a sturdy stainless steel housing with IP68 sealing for reliable performance in harsh industrial conditions.
Key Features
-
8 mm probe tip for precise measurement
-
10 m integral low-noise triaxial cable
-
Straight connector for direct cable routing
-
5/8‑18 UNF threaded body for secure attachment
-
Stainless steel construction ensures corrosion resistance
-
IP68 rating protects against water, dust, and oil
-
High shock resistance (5 000 g) and vibration tolerance (50 g)
-
Factory calibrated—plug‑and‑play compatibility
-
Operates across wide temperature ranges
-
Meets API 670 and CE industrial standards
Technical Specifications
| Specification | Details |
|---|---|
| Modèle Number | 330103‑00‑16‑10‑01‑00 |
| Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Mounting Thread | 5/8‑18 UNF‑2A |
| Sensing Range | 2 mm (80 mils) |
| Linear Range | 0.25–2.0 mm (10–80 mils) |
| Connector Orientation | Straight |
| Cable Length | 10 m integral cable |
| Cable Type | Triaxial coaxial, low noise |
| Probe Material | AISI 304 stainless steel |
| Operating Temp | –35 °C to +177 °C (–31 °F to +351 °F) |
| Storage Temp | –51 °C to +177 °C (–60 °F to +351 °F) |
| Environmental Rating | IP68 when properly installed |
| Vibration Rating | 50 g peak, 10–2 000 Hz |
| Shock Rating | 5 000 g, 1 ms half‑sine pulse |
| Insulation Resistance | >10⁹ Ω at 500 V DC |
| Accuracy | ±0.07 mm (±2.8 mils) typical |
| Dimensions | Total Length : 1.0 meter |
| Poids | 0.323 kg |
| Compliance | API 670, CE |
Industry Applications
-
Power generation turbine shaft monitoring
-
Oil & gas compressor and pump systems
-
Petrochemical process equipment
-
Mining conveyor and crusher drives
-
Marine propulsion and auxiliary systems
-
HVAC and industrial fan shafts
-
Pulp & paper rollers
-
Water and wastewater pump systems
Product Advantages
-
Long 10 m cable enables flexible shaft-to-monitor placement
-
Straight connector simplifies vertical routing
-
Stainless construction resists corrosive and abrasive environments
-
IP68 rating ensures protection in wet or oily areas
-
Non-contact design eliminates wear and friction
-
Factory calibration ensures accuracy from day one
-
High shock/vibration resilience supports rugged machinery
-
Standardized 8 mm probe and 5/8‑18 thread ensure compatibility
-
Meets API 670 for machinery protection systems
-
Maintains signal fidelity over extended cable lengths
Questions fréquentes (FAQ)
-
What is the cable length?
It comes with a 10 m integral cable. -
Is the connector straight or angled?
This model features a straight connector. -
What is the mounting thread?
Uses 5/8‑18 UNF‑2A thread. -
Is it suitable for wet environments?
Yes, it’s IP68 rated when installed correctly. -
Which industries use this probe?
Power generation, oil & gas, petrochemical, marine, mining, HVAC. -
Does it require calibration on-site?
No—factory calibrated for plug‑and‑play setup. -
What is the operating temperature range?
–35 °C to +177 °C. -
How much shock and vibration can it handle?
Up to 5 000 g shock and 50 g vibration. -
Can extension cables be added?
With a 10 m cable, extensions are not typically required. -
What is the accuracy?
±0.07 mm (±2.8 mils) typical.
Related Modèles
| Modèle Number | Description |
|---|---|
| 330103‑00‑05‑10‑01‑00 | 5 m cable, straight connector |
| 330103‑00‑06‑10‑01‑00 | 6 m cable, straight connector |
| 330103‑00‑08‑10‑01‑00 | 8 m cable, straight connector |
| 330103‑00‑10‑10‑12‑00 | 10 m cable, angled connector |
| 330104‑00‑10‑10‑02 | 10 m XL extension cable |
| 330180‑91‑05 | 8 mm Proximitor sensor module |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 3500/22M‑01‑01‑00 | Transient Data Interface (TDI) module |
| 330104‑00‑05‑10‑02 | 5 m XL extension cable |
| 330130‑045‑01‑00 | 4.5 m XL extension cable |
| 330180‑91‑05 | Proximitor sensor module for 8 mm probes |
| 3500/42M‑01‑00 | Dual‑channel vibration monitoring module |
| 1900/65A‑00‑01‑01 | Compact machine monitor for vibration and speed |
