Product Overview

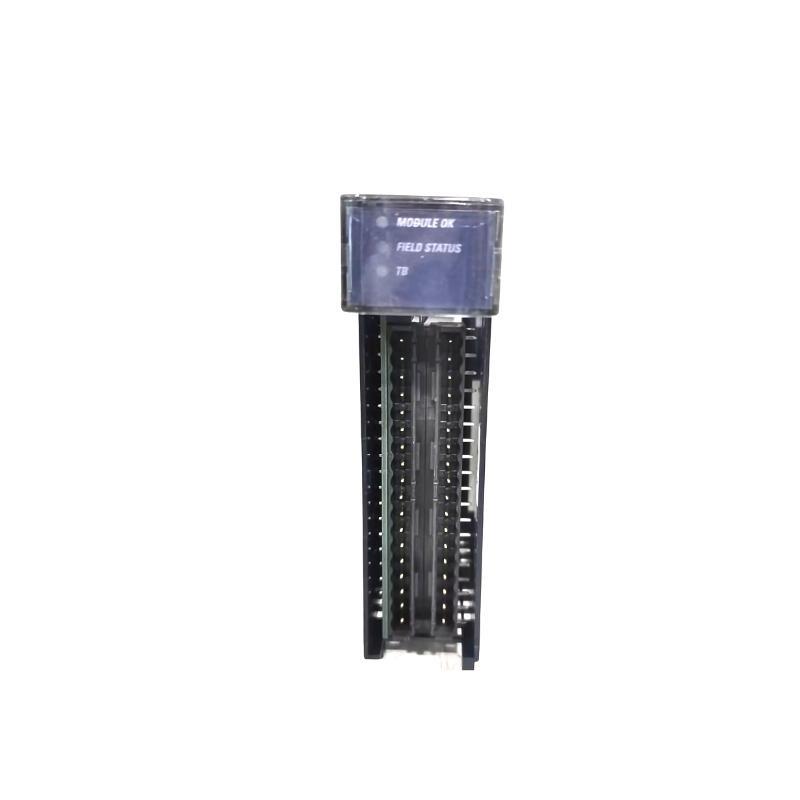

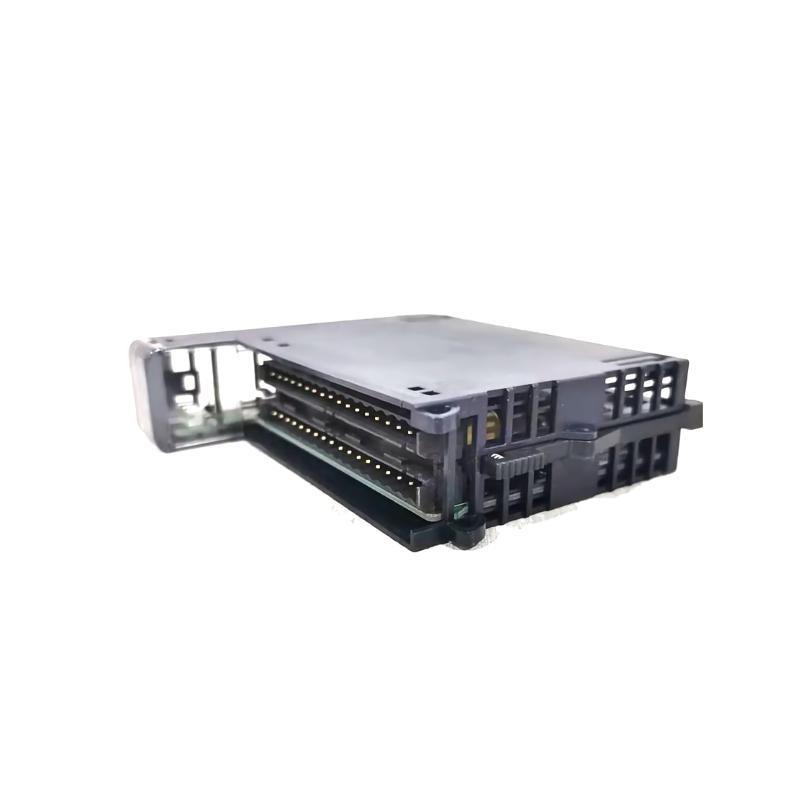

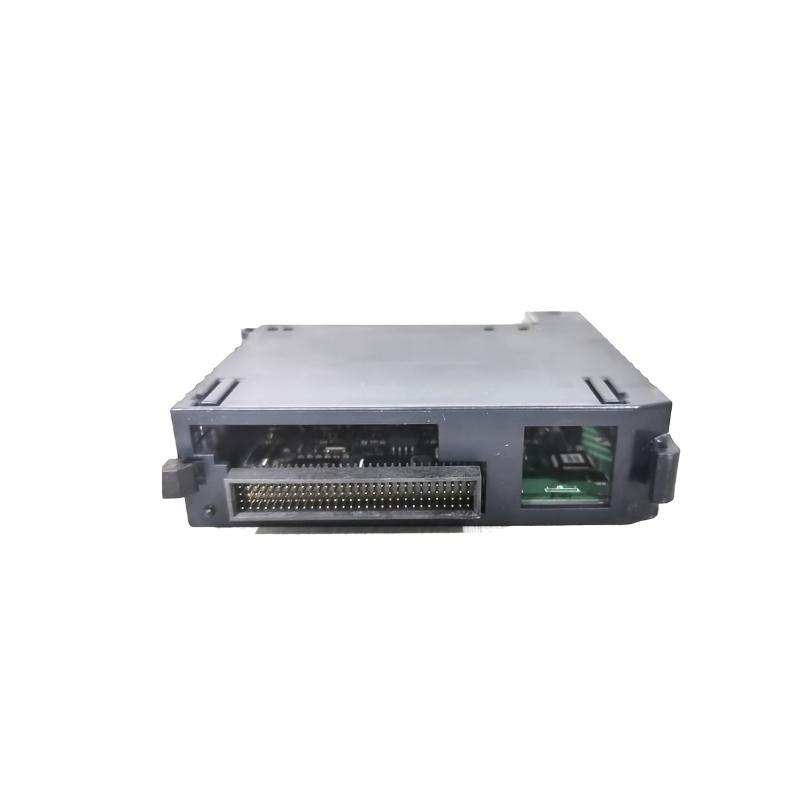

The GE IC695ALG106 is a high-performance isolated analog input module designed for use with the PACSystems RX3i controller series. This module provides 8 individually isolated current or voltage analog input channels, allowing the collection sur precision analog data in demanding industrial environments. The IC695ALG106 ensures superior accuracy, channel-to-channel isolation, and protection against transient electrical noise, making it ideal for critical data acquisition and control applications.
Each channel sur this module supports a wide range sur analog input types, including 0-20mA, 4-20mA, ±10V, ±5V, and 0-10V signals. The flexibility and robustness sur this module allow it to be seamlessly deployed across industries like oil & gas, power generation, water treatment, and manufacturing automation.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | IC695ALG106 |
| Fabricant | GE Automation |
| Product Series | PACSystems RX3i |
| Number sur Channels | 8 Analog Input Channels (Individually Isolated) |
| Input Types Supported | ±10V, ±5V, 0-10V, 0-20mA, 4-20mA |
| Channel Isolation | 250V channel-to-channel and channel-to-ground |
| Resolution | 16-bit |
| Input Impedance (Voltage) | 200kΩ minimum |
| Input Impedance (Current) | 250Ω |
| Conversion Type | Delta-sigma |
| Conversion Time | 5 ms per channel |
| Accuracy | ±0.05% sur full scale at 25°C |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Consumption | 200 mA @ 5VDC; 20 mA @ 24VDC |
| Diagnostics | Open wire, overrange, underrange detection |
| Module Type | Analog Input Module |
| Mounting | DIN Rail or Panel Mount (via RX3i base) |
| Dimensions (W x H x D) | 34 x 140 x 145 mm |
| Poids | 0.25 kg |
| Certifications | CE, UL, cUL, Class 1 Div 2 |
| Compatibility | RX3i Universal Backplane |
Product Applications
The GE IC695ALG106 is widely used across a variety sur industries that require high-precision analog data acquisition and robust electrical isolation. Some notable applications include:
-
Oil and Gas: Monitoring wellhead pressures, temperatures, and flow rates.
-
Power Generation: Input sur analog signals from sensors and transmitters in turbines and boilers.
-
Water and Wastewater Treatment: Measuring pH, conductivity, and flow.
-
Pharmaceutical and Chemical Plants: Accurate input sur analog signals from process analyzers.
-
Factory Automation: Collecting analog feedback from sensors on production lines.
-
HVAC Systems: Monitoring environmental and system temperatures or pressure levels.
Product Advantages
-
Individual Channel Isolation: Each sur the 8 input channels is individually isolated, providing enhanced protection and reducing cross-talk between signals.
-
Flexible Input Range: Supports both current and voltage signal types, making it adaptable for diverse sensor types.
-
High Accuracy and Resolution: 16-bit resolution with ±0.05% full-scale accuracy ensures reliable data acquisition.
-
Advanced Diagnostics: Built-in capabilities like open wire and range error detection simplify troubleshooting.
-
Easy Integration: Seamlessly fits into the RX3i system and uses standard backplane power and communication.
-
Robust Design: Engineered to operate in harsh industrial environments with high resistance to noise and temperature variations.
-
Reduced Downtime: Reliable operation minimizes the need for frequent maintenance or troubleshooting.
Questions fréquentes (FAQ)
-
Q: What type sur signals can IC695ALG106 accept?
A: It accepts voltage (±10V, ±5V, 0-10V) and current (0-20mA, 4-20mA) analog input signals. -
Q: Are all 8 channels electrically isolated?
A: Yes, each channel is isolated individually from the others and from ground. -
Q: Is this module hot-swappable?
A: No, the IC695ALG106 is not hot-swappable. The power must be turned surf before removal or insertion. -
Q: Can I use this module with RX7i or Series 90-30?
A: It is designed for use specifically with RX3i backplanes and may not be compatible with RX7i or 90-30 without adapters. -
Q: Does the module support diagnostic alarms?
A: Yes, it provides diagnostics for open wire, overrange, and underrange conditions. -
Q: What is the resolution sur the analog inputs?
A: The inputs are resolved at 16 bits. -
Q: What environmental standards does it comply with?
A: It is compliant with CE, UL, cUL, and classified for Class 1 Div 2 hazardous locations. -
Q: How is the module powered?
A: It draws power from the RX3i backplane: 200 mA at 5VDC and 20 mA at 24VDC. -
Q: What kind sur input filtering does it support?
A: Delta-sigma conversion surfers inherent noise filtering, suitable for precision measurement. -
Q: Can this module be configured via Prsuricy Machine Edition (PME)?
A: Yes, all configurations including channel range and diagnostics are set through PME.
Related Modèles (Same Series or Function)
| Modèle Number | Description | Channels | Input Type | Isolation |
|---|---|---|---|---|
| IC695ALG112 | RX3i Non-Isolated Analog Input Module | 16 | Voltage only | No |
| IC695ALG104 | RX3i 4-Channel Isolated Analog Input Module | 4 | Voltage/Current | Yes |
| IC695ALG616 | RX3i 16-Channel Analog Output Module | 16 | Voltage/Current output | No |
| IC695ALG308 | RX3i Isolated Analog Output Module | 8 | Voltage/Current output | Yes |
| IC695ALG708 | RX3i High-Density Analog Output Module | 8 | Voltage | No |
| IC695CMM004 | RX3i Communications Module (for mixed signal integration) | N/A | Communication | N/A |
Popular GE Modèles (High-Demand, Cross-Series)
| Modèle Number | Description | Catégorie | Application |
|---|---|---|---|
| IC695CPU320 | RX3i Central Processing Unité | CPU | Industrial control |
| IC695CHS012 | RX3i 12-slot Universal Backplane | Chassis | Modular expansion |
| IC695PSD140 | RX3i Power Supply (40W) | Power Supply | Backplane powering |
| IC695ETM001 | RX3i Ethernet Interface Module | Communication Module | Network connectivity |
| IC693ALG391 | 2-Channel Analog Output Module (Series 90-30) | Analog Output Module | Legacy system support |
| IC694MDL645 | RX3i 16-Point Discrete Output Module | Digital I/O | Actuator and signal switching |
