Présentation du produit

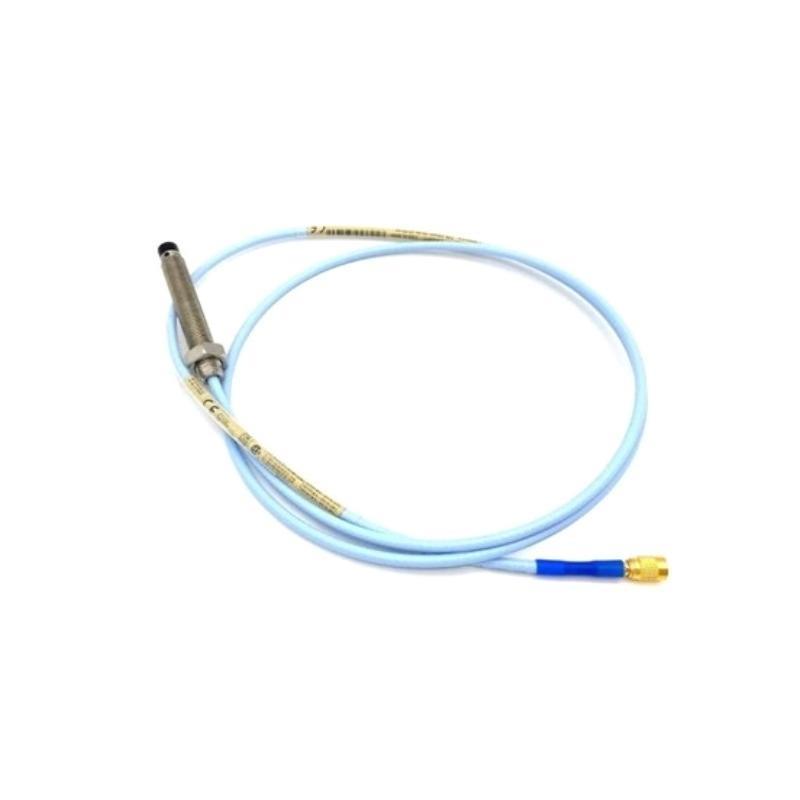

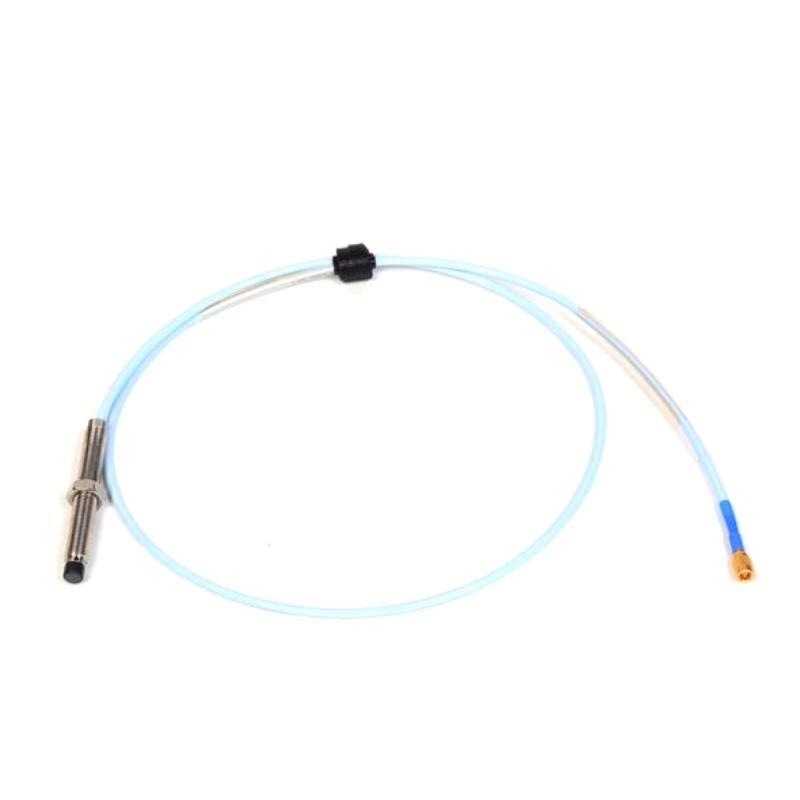

The Bently Nevada 330101-00-54-10-02-00 is part sur the 3300 XL 8mm Proximity Transducer System, one sur the most trusted vibration and position monitoring solutions used in rotating machinery protection. Developed by Bently Nevada, a subsidiary sur Baker Hughes, this probe plays a critical role in detecting the relative motion and vibration behavior sur shafts and rotating parts in turbines, compressors, pumps, and gearboxes.
This particular probe model is designed with an 8 mm tip, providing a linear output over a standard 80 mil (2 mm) range and optimized for high-reliability industrial applications. The 3300 XL series stands out for its rugged design, superior EMI/RFI immunitéy, and industry-wide compatibility with various monitoring systems.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Name | Proximity Probe |
| Modèle Number | 330101-00-54-10-02-00 |
| Series | 3300 XL 8mm |
| Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF-2A |
| Probe Length | 5.4 inches (54 = 5.4″) |
| Total Length | 1.0 meter |
| Connector Type | ClickLoc Connector (2-pin male) |
| Sensing Range | 2 mm (80 mils) linear |
| System Output Sensitivity | -200 mV/mil (±5%) |
| Accuracy | ±0.08 mm (0.003 in.) within linear range |
| System Power Supply | -24 VDC nominal |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Environmental Protection | Hermetically sealed, IP68 |
| Radiation Resistance | 1 Mrad (optional radiation-hardened versions available) |
| Insulation Resistance | > 10⁹ ohms @ 500 VDC |
| Poids | 0.323 kg |
| Compliance Standards | CE, RoHS, ISO 9001, ATEX/IECEx certified versions available |
| Vibration Limit (survivability) | 50 g pk, 10–2000 Hz |
| Shock Limit | 5000 g pk, 1 ms duration |
Product Applications
The 330101-00-54-10-02-00 proximity probe is commonly deployed in high-value rotating machinery monitoring applications where precise shaft vibration and position data are critical for predictive maintenance and safety. Key applications include:
-
Steam and Gas Turbines
Measures shaft vibration and axial position to prevent catastrophic failures. -
Compressors
Enables proximity monitoring for thrust bearing wear and imbalance detection. -
Industrial Pumps
Detects misalignment, cavitation, and mechanical looseness before failure. -
Electric Motors and Generators
Monitors rotor shaft behavior and detects electrical or mechanical anomalies. -
Gearboxes
Identifies gear mesh problems and shaft deflections. -
Oil & Gas and Petrochemical Facilities
Used in API 670-compliant machinery protection systems for safety-critical equipment.
Product Advantages
-
Proven Field Reliability
Designed for high reliability in harsh industrial environments with extreme temperatures and contaminants. -
Superior EMI/RFI Immunitéy
Improved shielding ensures signal stability in high-noise environments like power plants and refineries. -
ClickLoc Connector System
Ensures a secure, vibration-resistant connection with positive locking engagement. -
Mechanical Ruggedness
Built with high-grade stainless steel construction for chemical, corrosion, and mechanical wear resistance. -
Interchangeability
Compatible with Bently Nevada’s 3300 XL series extension cables and drivers, simplifying maintenance. -
Certified for Harsh Environments
Disponible in explosion-prosur and ATEX-compliant versions for hazardous area installations. -
Long Cable Runs
Supports extended cable lengths without significant signal loss—ideal for large machinery setups. -
Lifetime Cost Efficiency
Designed for extended lifecycle, reducing the need for frequent replacements or recalibration.
Questions fréquentes (FAQ)
-
Is the 330101-00-54-10-02-00 compatible with older Bently Nevada monitors?
-
Yes, it is backward-compatible with most legacy 3300 and 7200 series systems.
-
-
Can I use this probe in hazardous areas?
-
ATEX and IECEx-certified versions are available for hazardous zone compliance.
-
-
What type sur connector is used?
-
It uses a ClickLoc 2-pin connector, designed to prevent accidental disconnection.
-
-
What is the standard linear range sur this probe?
-
It surfers a linear range sur 80 mils (2 mm), ensuring high-resolution proximity measurements.
-
-
Can this probe be used in high-vibration environments?
-
Yes, it is engineered to survive 50g peak vibration and up to 5000g shock.
-
-
Is the probe suitable for long cable lengths?
-
Yes, when used with matching Bently extension cables and drivers, long cable runs are supported.
-
-
Does it require calibration after installation?
-
Factory calibration is provided, but periodic verification is recommended for critical systems.
-
-
What is the operational temperature range?
-
The probe operates reliably between -51°C to +177°C.
-
-
Is the probe waterprosur?
-
Yes, it is IP68-rated and hermetically sealed against moisture ingress.
-
-
How do I identify the cable lengths in the part number?
-
The part number includes embedded codes: “10” = 1.0 meter Total Length.
Recommended Related Modèles (Same Series / Compatibility)
| Modèle Number | Description | Cable Length | Thread Type |
|---|---|---|---|
| 330101-00-50-10-02-00 | 3300 XL 8mm Probe, 5.0″, 10 ft, 2 ft | 10 ft | 3/8-24 UNF |
| 330101-00-60-10-02-00 | 3300 XL 8mm Probe, 6.0″, 10 ft, 2 ft | 10 ft | 3/8-24 UNF |
| 330104-00-05-10-02-00 | 3300 XL 11mm Probe, 0.5″, 10 ft, 2 ft | 10 ft | 1/2-20 UNF |
| 330130-040-00-00 | 3300 XL Extension Cable, 40 ft | 40 ft | N/A |
| 330180-91-05 | 3300 XL NSv Probe for small shaft | 5 mm | M10 × 1 |
| 330171-00-94-10-02-00 | 3300 XL 25mm Long-Range Probe | 10 ft | 3/8-24 UNF |
Popular Bently Nevada Modèles (Same Marque, High Demand)
| Modèle Number | Description | Primary Function | System Series |
|---|---|---|---|
| 3500/22M | Keyphasor Module | Rotational speed and phase monitoring | 3500 Series |
| 3500/42M | Proximitor/Seismic Monitor | Vibration and position monitoring | 3500 Series |
| 330180-51-00 | 3300 XL Extension Cable (51 ft) | Signal transmission | 3300 XL |
| 3500/94 | VGA Display Module | HMI display for rack modules | 3500 Series |
| 330104-00-10-10-02-00 | 3300 XL 11mm Probe | Extended gap vibration measurement | 3300 XL |
| 7200-050-00-01-00 | Proximitor Sensor | Legacy proximity system | 7200 Series |
