Présentation du produit

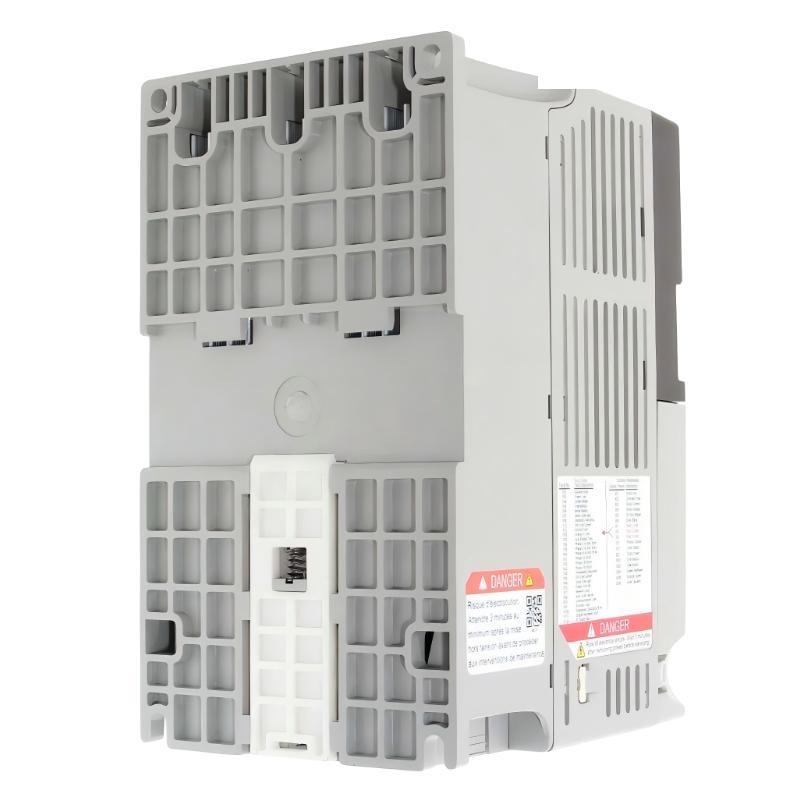

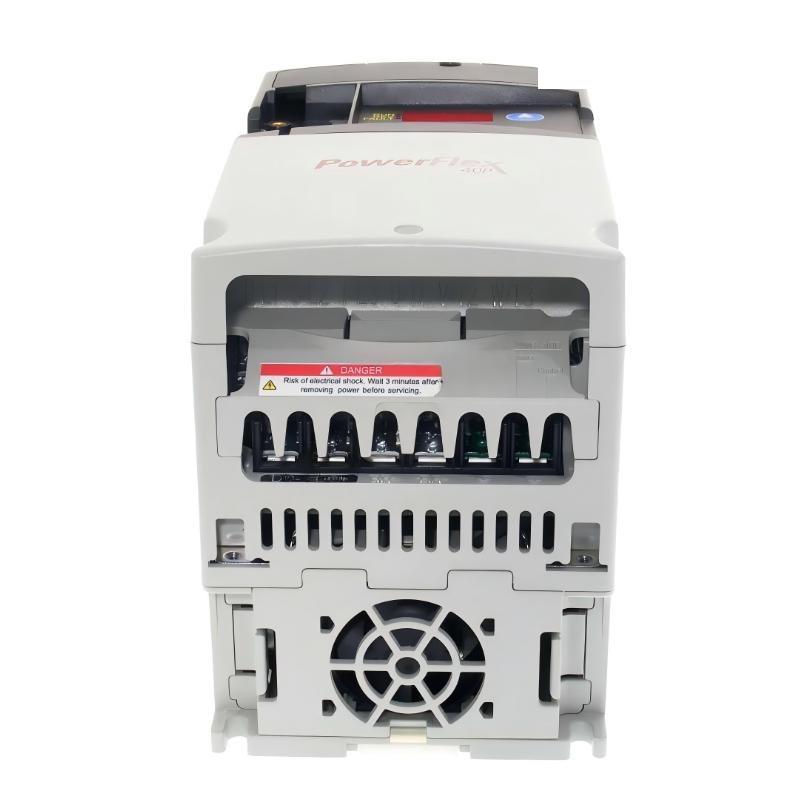

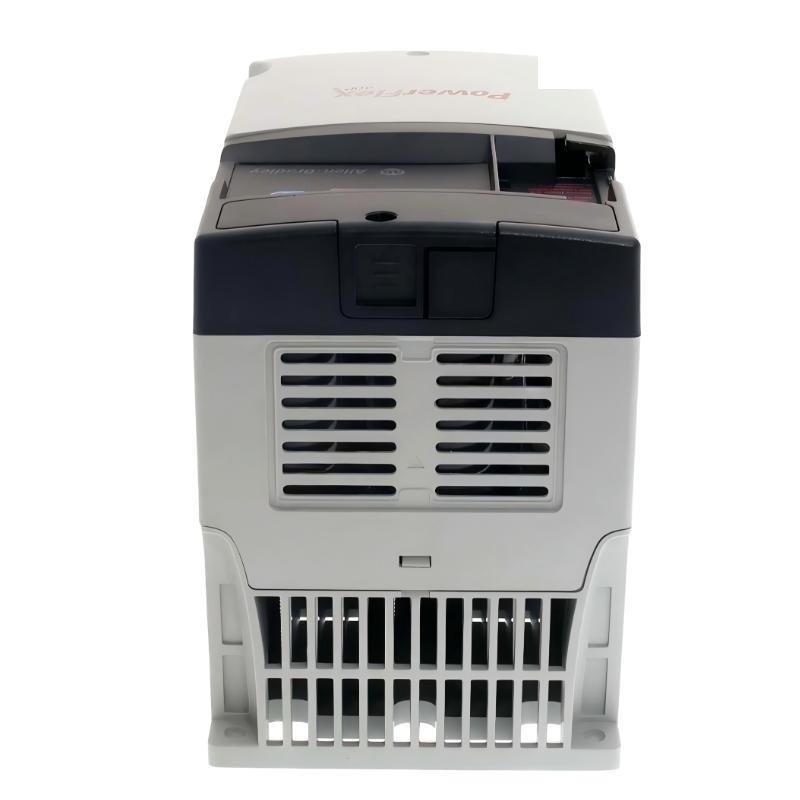

The Allen Bradley 22D-D6P0N104 PowerFlex 40P AC Drive is a compact, medium-power drive designed to provide precise control for three-phase AC motors. With a 3 HP output at 480V AC and 6 amps, it is well suited for light to medium industrial applications such as conveyors, pumps, fans, and small automated machinery.
Featuring a panel-mount design with IP20 (NEMA Type Open) protection, the drive ensures reliable operation in control panels while providing safe motor control. The display allows reset-only functionality, enabling operators to perform basic resets and monitor the drive status without complex setup. Standard protections include overload, overvoltage, undervoltage, and short-circuit protection, which help safeguard both the motor and the drive during operation.
With a Frame Size B, this model balances compactness with effective performance, making it an ideal choice for applications requiring straightforward, efficient, and reliable AC motor control.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Input Voltage | 480V AC, 3-Phase |
| Output Current | 6 A |
| Output Power | 3 HP |
| Frame Size | B |
| Control Type | V/Hz Open Loop Control |
| Display | Reset Only |
| Mounting Type | Panel Mount |
| Environmental Rating | IP20, NEMA Type Open |
| Protection | Overload, Overvoltage, Undervoltage, Short-Circuit Protection |
| Communication | Local control via keypad |
| CE Compliant Filter | Not included |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–70°C |
| Certifications | UL |
| Dimensions | 180 × 100 × 136 mm |
| Poids | 2.2 kg |
Applications
• Conveyors and Material Handling: Provides precise speed and torque control for conveyor belts, small hoists, and automated transfer systems.
• Small Industrial Machinery: Drives mixers, pumps, and other light-to-medium machines.
• Fans and Pumps: Controls HVAC fans and water circulation pumps for smooth operation and energy efficiency.
• Packaging Lines: Ensures smooth operation in automated packaging and assembly machines.
• Water Treatment Systems: Maintains stable pump speeds for consistent process control and reduced energy use.
Advantages
• Compact Design: Frame Size B allows easy panel installation.
• Energy Efficient: Reduces motor energy consumption through precise V/Hz control.
• Easy Operation: Reset-only display provides basic monitoring and reset functions.
• Robust Protection: Built-in protections prevent motor and drive damage.
• Simple Installation: Panel-mount design enables quick and secure setup.
• Reliable Performance: Suitable for light to medium industrial applications requiring consistent operation.
