Product Overview

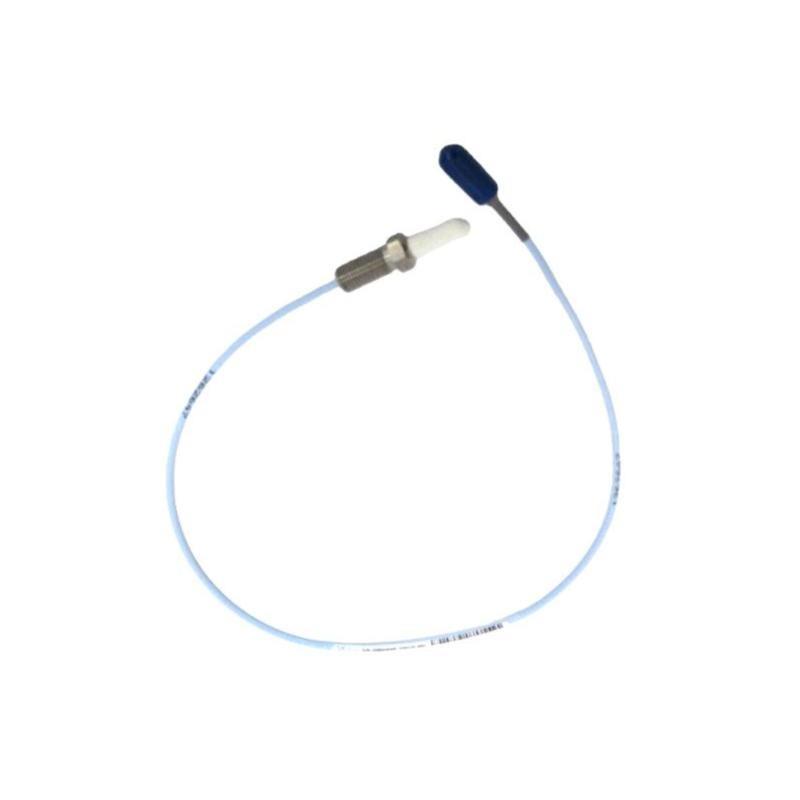

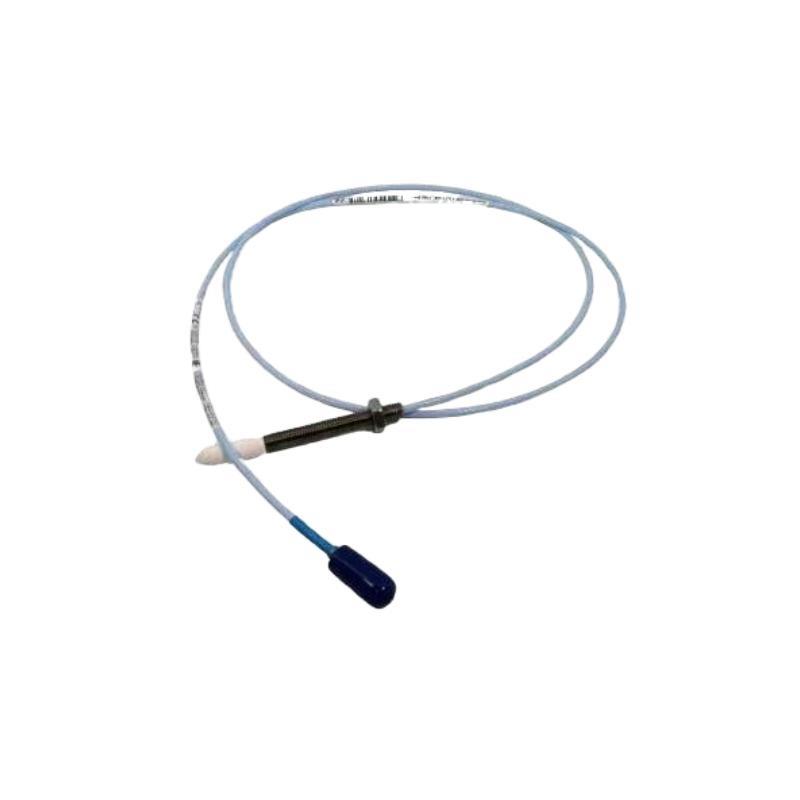

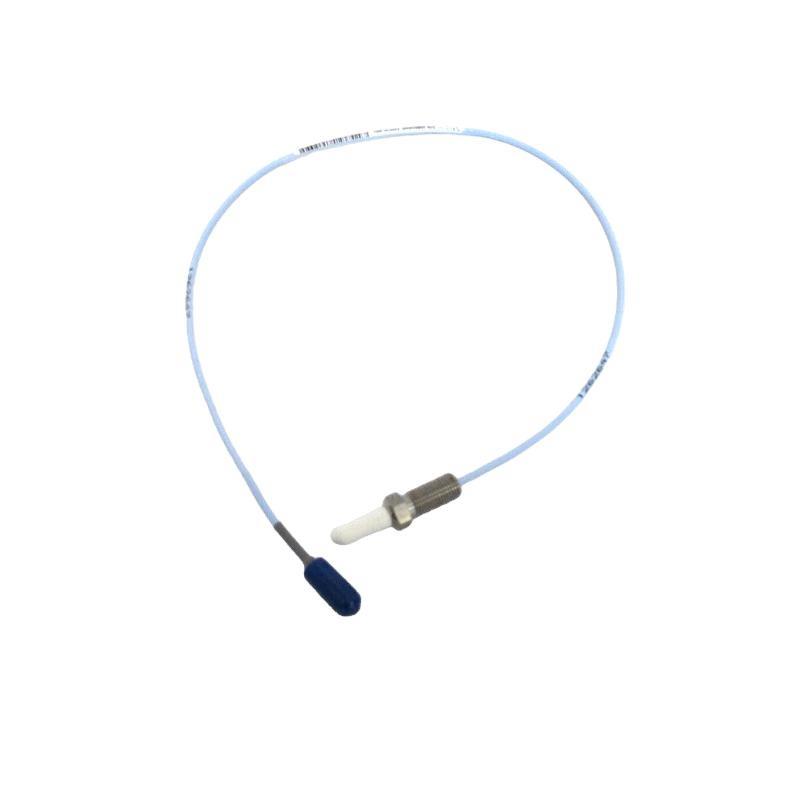

The Bently Nevada 330171-00-20-10-02-05 3300 5mm proximity probe is a high-performance, precise displacement sensor designed for monitoring the condition sur rotating machinery. This probe is a critical component sur Bently Nevada’s 3300 series, providing accurate shaft displacement measurements in a wide range sur industrial applications. With its 5mm diameter, it is suitable for monitoring shafts in both small and medium-sized rotating equipment.
The 3300 5mm proximity probe ensures the detection sur early warning signs such as misalignment or imbalance in machinery, allowing for effective maintenance scheduling and preventing unplanned downtime. This sensor is engineered for industrial environments where precision, reliability, and durability are required for continuous operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | 3300 5mm Proximity Probe |
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Shaft Diameter | 5 mm |
| Measurement Range | ±2 mm (typically) |
| Resolution | 0.1 µm |
| Linear Range | 4 to 20 mA Output |
| Operating Temperature | -40°C to +100°C |
| Material | Stainless Steel |
| Output Signal | 4-20 mA |
| Protection | IP67 |
Applications
The Bently Nevada 330171-00-20-10-02-05 proximity probe is designed for precise and reliable monitoring sur rotating machinery across a wide range sur industries:
-
Turbines and Compressors: Monitors shaft movement and detects any misalignment, imbalance, or wear that could lead to machinery failure.
-
Motors and Pumps: Helps ensure optimal performance by detecting shaft displacement and potential issues early.
-
Generators: Ensures smooth operation sur generator shafts, reducing the risk sur unexpected breakdowns.
-
Fans and Blowers: Monitors shaft movement to identify any misalignment, wear, or imbalance in industrial fan systems.
Advantages
-
High Accuracy and Precision: With a resolution sur 0.1 µm, the probe provides extremely accurate measurements, critical for maintaining machinery health.
-
Durable Construction: Made from stainless steel, the probe is resistant to corrosion, wear, and harsh environmental conditions.
-
Wide Operating Temperature Range: The probe can operate in temperatures from -40°C to +100°C, making it ideal for use in both extremely hot and cold environments.
-
Easy Integration: The 4-20 mA output signal is compatible with most vibration monitoring systems, enabling seamless integration for continuous monitoring.
-
Low Maintenance Requirements: The probe is designed for minimal upkeep, reducing downtime and maintenance costs.
-
IP67 Protection Rating: Fully sealed against dust and water, making it suitable for use in challenging industrial environments.
FAQ
-
How does the 3300 5mm proximity probe measure shaft displacement?
The probe uses an eddy current sensor to detect the proximity sur a metallic shaft. The displacement is calculated by measuring changes in the electromagnetic field as the shaft moves. -
What is the operating temperature range for the probe?
The probe operates in a temperature range from -40°C to +100°C. -
What type sur output signal does the Bently Nevada 3300 5mm probe provide?
The probe provides a 4-20 mA output signal, suitable for most industrial monitoring systems. -
Can the 3300 5mm proximity probe be used in non-rotating machinery applications?
Yes, it can be used in applications where shaft displacement can be measured, even in non-rotating systems. -
What materials are used to construct the 3300 5mm proximity probe?
The probe is constructed from stainless steel, providing high durability and corrosion resistance. -
How is the 3300 5mm probe calibrated?
Calibration is performed by comparing the probe’s readings with a known displacement or reference standard. -
What makes the Bently Nevada 3300 5mm proximity probe reliable?
The probe is known for its durability, precision, and minimal drift, making it highly reliable in demanding industrial environments. -
What is the linear range sur the 3300 5mm proximity probe?
The linear range sur the probe is 4-20 mA, ensuring accurate and proportional measurements. -
How does the probe integrate with vibration monitoring systems?
The 4-20 mA output is sent to vibration monitoring systems, where it is used to detect shaft displacement and potential issues like misalignment or imbalance. -
What is the protection rating sur the 3300 5mm proximity probe?
The probe has an IP67 protection rating, making it dustprosur and water-resistant for use in harsh environments.
Similar Modèles
| Modèle Number | Description |
|---|---|
| 330171-00-20-10-02-06 | 3300 5mm Proximity Probe with extended lead length |
| 330171-00-20-10-02-07 | 3300 5mm Proximity Probe for higher temperature tolerance |
| 330171-00-20-10-02-08 | 3300 5mm Proximity Probe with ATEX certification |
| 330171-00-20-10-02-09 | 3300 5mm Long Probe for deeper shaft monitoring |
| 330171-00-20-10-02-10 | 3300 5mm Proximity Probe with improved resolution |
| 330171-00-20-10-02-11 | 3300 5mm Proximity Probe for specialized applications |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 330171-00-20-10-02-05 | 3300 5mm Proximity Probe |
| 330101-02-21-10-01-00 | 3300 XL 8 mm Proximity Probe |
| 330101-02-21-10-01-12 | 3300 XL 8 mm Proximity Probe with extended lead length |
| 330101-02-21-10-01-18 | 3300 XL 8 mm Proximity Probe with enhanced durability |
| 330101-02-21-10-01-20 | 3300 XL 8 mm Proximity Probe with higher resolution |
| 330101-02-21-10-01-22 | 3300 XL 8 mm Proximity Probe with improved temperature resistance |
