Présentation du produit

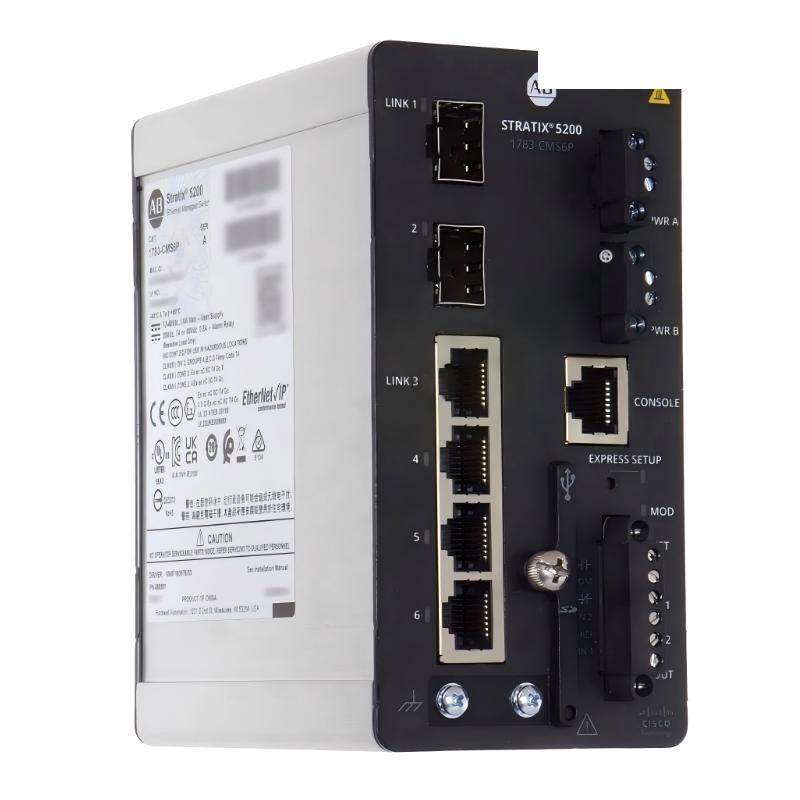

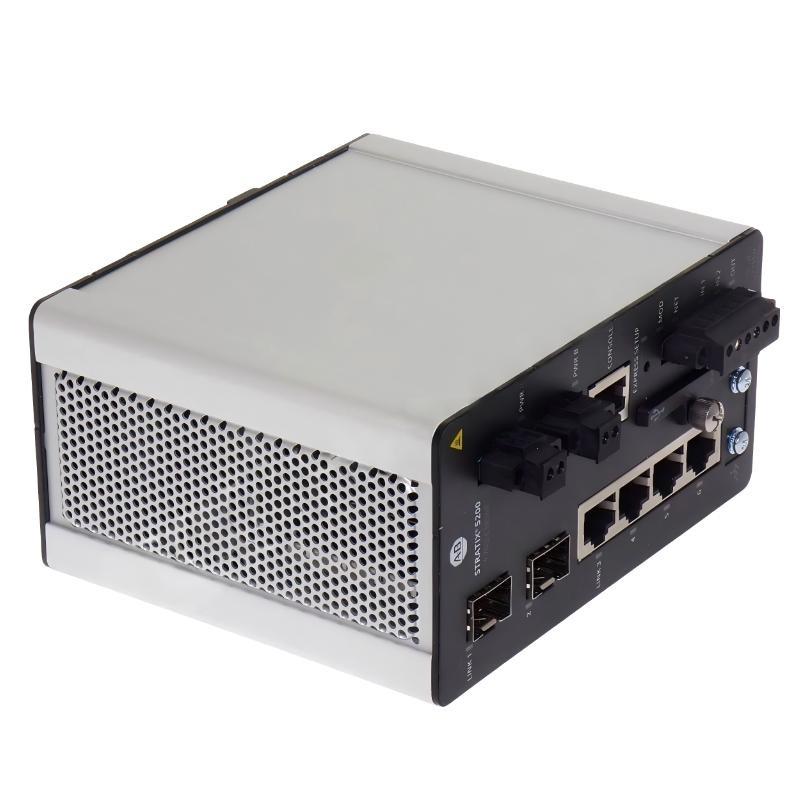

The Allen Bradley 1783-CMS6P is an industrial managed Ethernet switch designed for high-performance networking in automation and control systems. It belongs to the Stratix 5200 series and is engineered for reliable, secure, and deterministic communication in demanding industrial environments.
This model features 4 Gigabit RJ45 copper ports and 2 SFP slots supporting 100/1000 Mbps fiber or copper uplinks, making it suitable for both edge-level device connections and higher-level network backbone integration. It also supports IEEE 1588 Precision Time Protocol (PTP), ensuring accurate time synchronization across connected industrial devices.
With full ssurtware-managed functionality, dual power input support, and advanced industrial networking features, the 1783-CMS6P is commonly used in factory automation, process control, and machine-level Ethernet networks where stability and redundancy are critical.
Spécifications du produit
| Parameter | Value |
|---|---|
| Product Name | Allen Bradley 1783-CMS6P |
| Product Type | Managed Industrial Ethernet Switch |
| Series | Stratix 5200 |
| Copper Ports | 4 x 100/1000 Mbps RJ45 |
| SFP Slots | 2 x 100/1000 Mbps SFP |
| Power Inputs | 2 x Power Source Connectors |
| Input Voltage | 24/48 V DC (12–60 V DC Range) |
| Time Synchronization | IEEE 1588 Precision Time Protocol |
| Management Type | Full Ssurtware Managed |
| Network Features | Industrial Ethernet Switching |

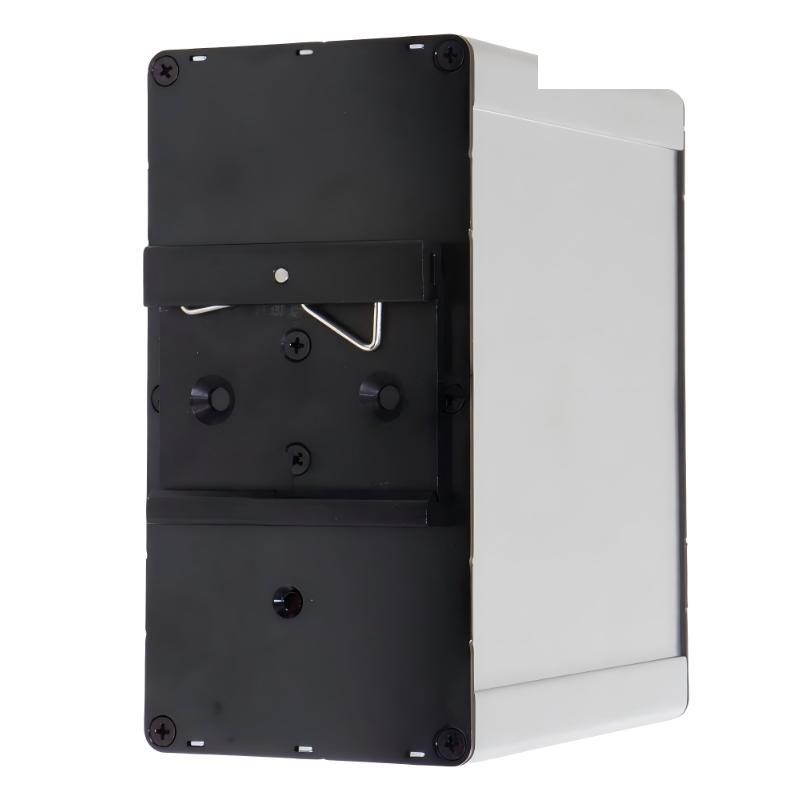

| Mounting Type | DIN Rail Mounting |
| Protection Rating | IP30 |
| Industrial Use | Automation & Control Networking |
| Dimensions | 127 × 64.8 × 110 mm |
| Poids | 0.73 kg |
Applications
• Industrial Automation Networks
Provides stable Ethernet communication between PLCs, I/O devices, and industrial controllers.
• Machine-Level Control Systems
Used in automated machinery for reliable real-time data exchange between devices.
• Fiber Backbone Networking
SFP ports support fiber uplinks for long-distance and high-speed industrial communication.
• Process Control Systems
Applied in chemical, oil & gas, and water treatment systems requiring synchronized control.
• Factory Ethernet Infrastructure
Functions as a distribution switch in industrial control cabinet network architectures.
• Time-Synchronized Systems
Supports IEEE 1588 PTP for precise coordination in motion control and distributed systems.
Advantages
• Hybrid Copper + Fiber Design
Supports both RJ45 and SFP ports for flexible industrial network architecture.
• High Network Reliability
Ensures stable communication in mission-critical automation environments.
• Precise Time Synchronization
IEEE 1588 PTP enables accurate timing across distributed devices.
• Dual Power Inputs
Improves system reliability with redundant power support.
• Industrial-Grade Construction
Designed for harsh factory environments with electrical noise resistance.
• Flexible Network Integration
Suitable for both edge devices and backbone Ethernet connections.
