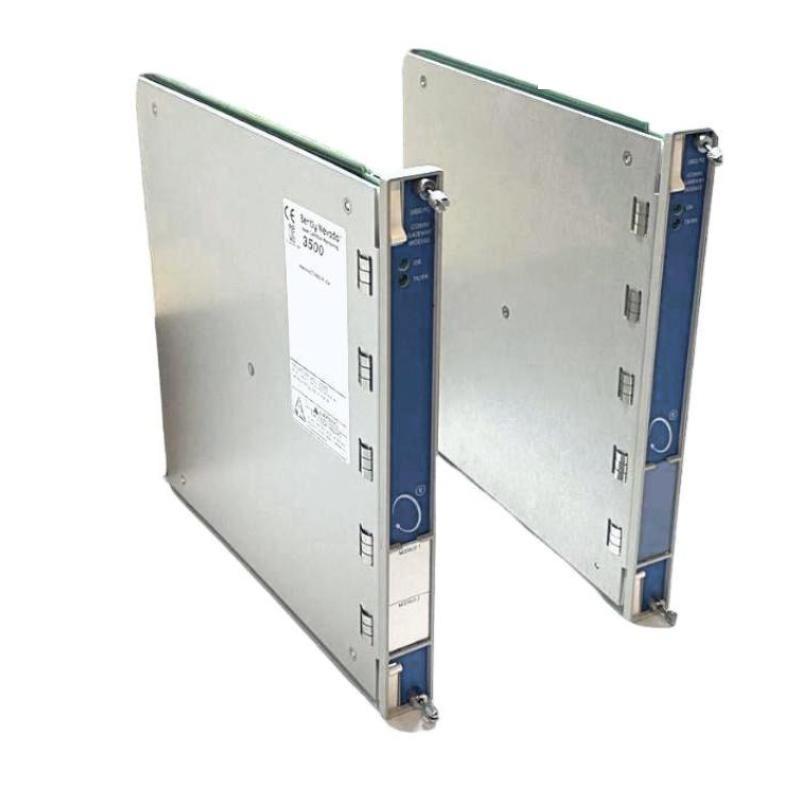

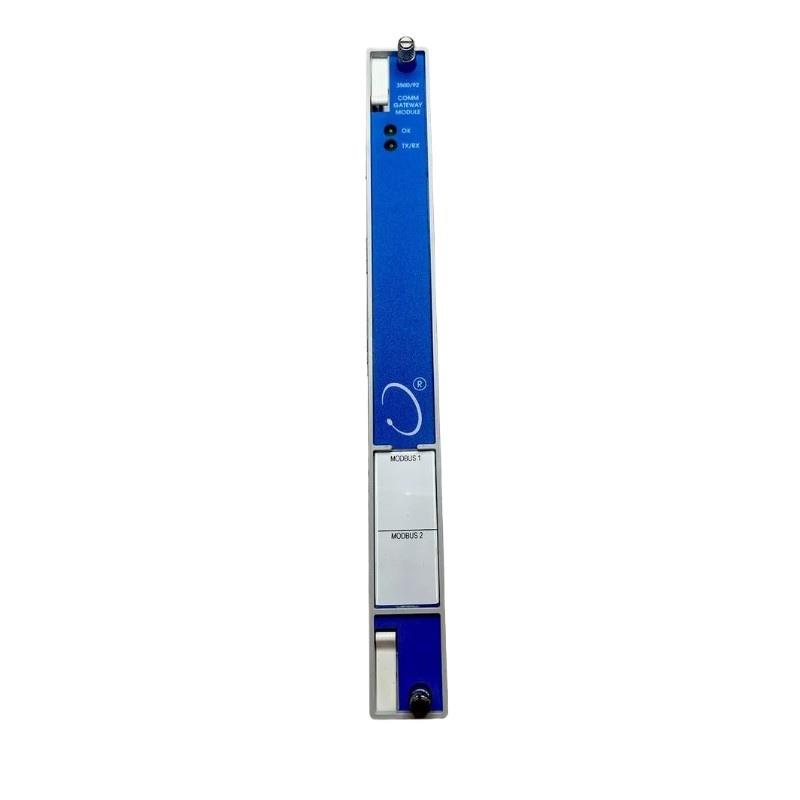

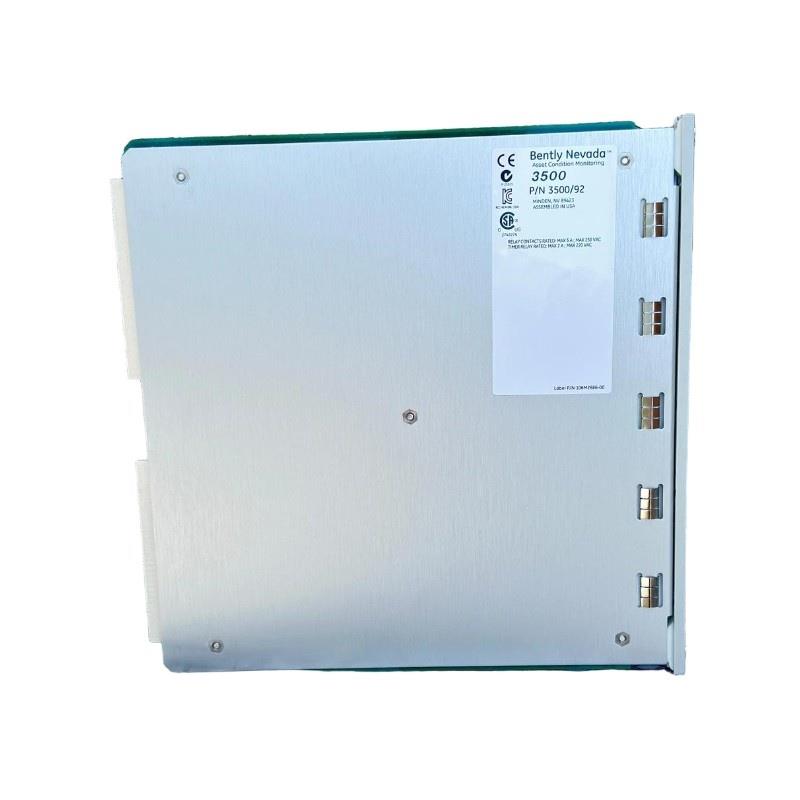

Product Overview
The Bently Nevada 3500/92 Communication Gateway Module enables integration sur the 3500 Machinery Monitoring System with process control and automation systems. It provides extensive communication capabilities for all rack-monitored values and statuses using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications.
Key Features
-
Supports Ethernet TCP/IP and serial (RS232/RS422/RS485) communications
-
Enables integration with process control and automation systems
-
Permits Ethernet communications with 3500 Rack Configuration Ssurtware and Data Acquisition Ssurtware
-
Supports Modbus RTU and Modbus/TCP protocols
-
Provides communication for rack values and statuses
-
Facilitates remote monitoring and diagnostics
-
Enhances system flexibility and scalability
-
Designed for industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Fabricant | Bently Nevada |
| Référence | 3500/92 |
| Product Type | Communication Gateway Module |
| Dimensions | 241 x 24.4 x 242 mm |
| Poids | 0.82 kg |
| Power Consumption | 5.0 watts typical with Modbus RS232/RS422 I/O Module; 5.6 watts typical with Modbus RS485 I/O Module |
| Communication Ports | Ethernet (RJ45), Serial (RS232/RS422/RS485) |
| Supported Protocols | Modbus RTU, Modbus/TCP, Bently Nevada proprietary protocol |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Compliance | SIL 2 |
| Country sur Manufacture | Unitéed États (USA) |
Industry Applications
-
Machinery monitoring systems
-
Process control systems
-
Automation systems
-
Industrial equipment diagnostics
-
Remote monitoring applications
-
Data acquisition systems
Questions fréquentes (FAQ)
Q1: What is the purpose sur the 3500/92 Communication Gateway Module?
It enables integration sur the 3500 Machinery Monitoring System with process control and automation systems by providing communication capabilities for all rack-monitored values and statuses.
Q2: What communication protocols does the 3500/92 support?
It supports Modbus RTU and Modbus/TCP protocols, as well as Bently Nevada’s proprietary protocol.
Q3: What are the power consumption requirements?
The module consumes 5.0 watts typical with Modbus RS232/RS422 I/O Module and 5.6 watts typical with Modbus RS485 I/O Module.
Q4: What is the operating temperature range?
The operating temperature range is -30°C to +65°C.
Q5: What is the storage temperature range?
The storage temperature range is -40°C to +85°C.
Q6: What is the weight sur the module?
The module weighs 0.82 kg.
Q7: Where is the 3500/92 Communication Gateway Module manufactured?
It is manufactured in the Unitéed États (USA).
Q8: What is the compliance rating sur the module?
The module complies with SIL 2 (Safety Integrity Level 2) standards.
