Présentation du produit

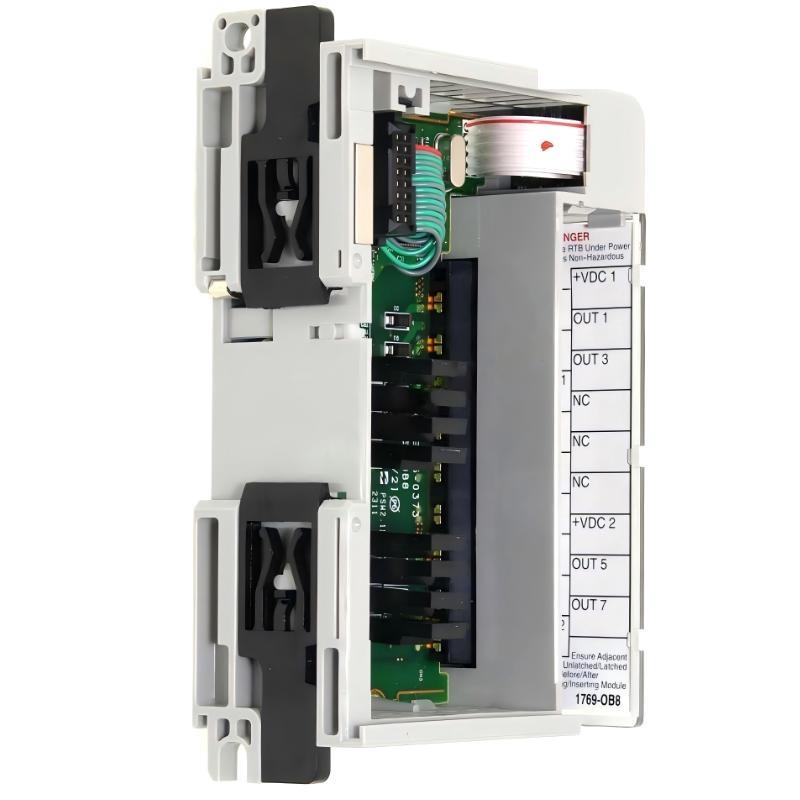

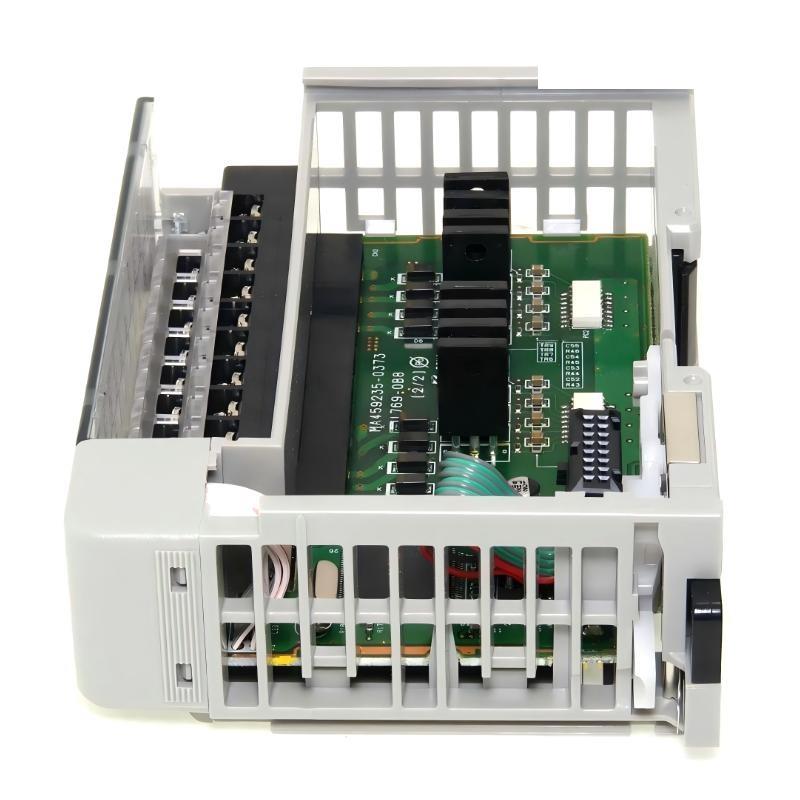

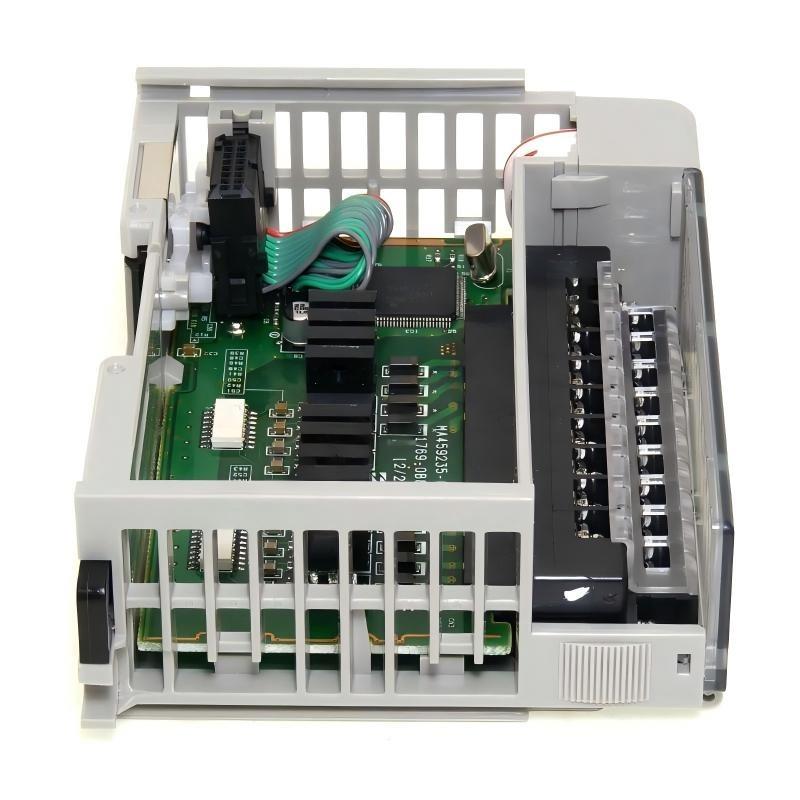

The Allen Bradley 1769-OB8 CompactLogix 8 Point High Current Output Module is a discrete digital output module designed for CompactLogix control systems. It provides 8 solid-state DC sourcing outputs, allowing the controller to drive field devices that require higher current capacity. This module is typically used in applications where reliable switching sur DC loads is required, such as solenoid valves, relays, and industrial indicators.
Designed to operate with 24 VDC output voltage, the module uses solid-state transistor technology, which ensures fast response times and long operational life compared with mechanical relay outputs. The sourcing output configuration supplies positive voltage to connected devices, making it compatible with many industrial actuators and control components.
The 1769-OB8 module features plug-in connection terminals, simplifying wiring and maintenance in industrial control panels. With its compact design and high current capability, the module is particularly suitable for machine automation systems where space efficiency and dependable output control are important.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Modèle | 1769-OB8 |
| Product Type | CompactLogix High Current DC Output Module |
| Output Type | Solid État / Transistor |
| Number sur Outputs | 8 |
| Output Configuration | DC Source |
| Output Voltage | 24 VDC |
| Connection Type | Plug-in connection |
| Mounting Method | DIN Rail / Panel Mount |
| Dimensions | 118 × 35 × 87 mm |
| Poids | 0.28 kg |
Applications
• Industrial machine automation
Used to control solenoid valves, relays, and high-current DC actuators within automated machinery.
• Packaging and assembly equipment
Provides reliable output switching for pneumatic control valves and indicator systems.
• Material handling systems
Controls conveyor components, actuators, and other field devices requiring stable DC output signals.
• OEM equipment manufacturing
Suitable for machine builders needing compact modules capable sur handling higher current loads.
• Industrial control panels
Used in modular control systems where dependable digital outputs are required.
Advantages
• High current output capability
Designed to handle higher load requirements compared with standard digital output modules.
• Solid-state switching technology
Provides fast response time, high reliability, and longer service life due to the absence sur mechanical parts.
• Reliable 24 VDC operation
Compatible with standard industrial DC power systems and common field devices.
• Convenient plug-in wiring
Plug-in terminal design simplifies installation, maintenance, and module replacement.
• Compact modular design
Integrates easily with other CompactLogix modules to create scalable automation systems.
