Présentation du produit

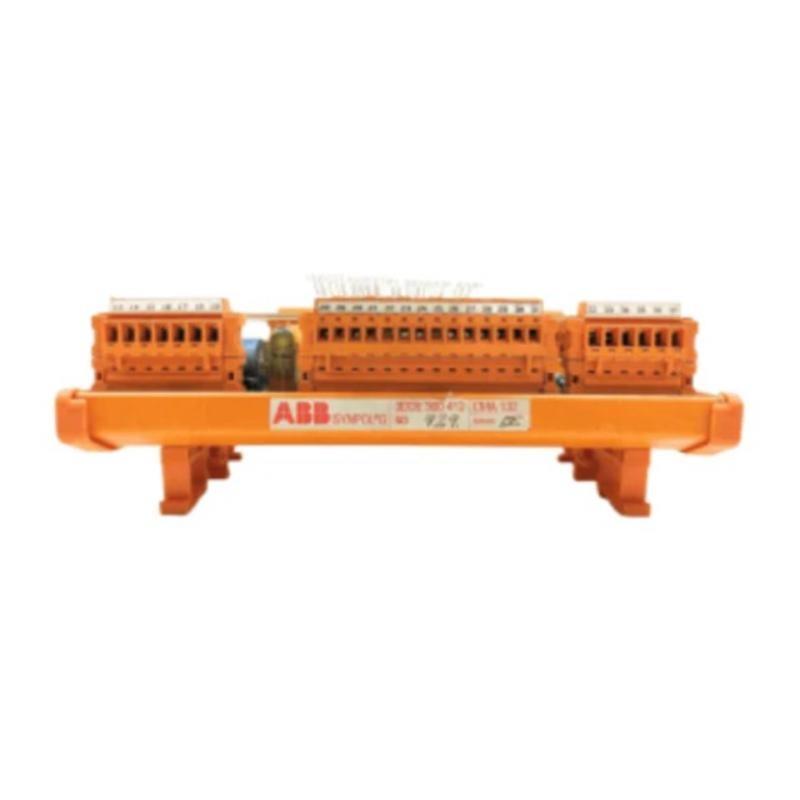

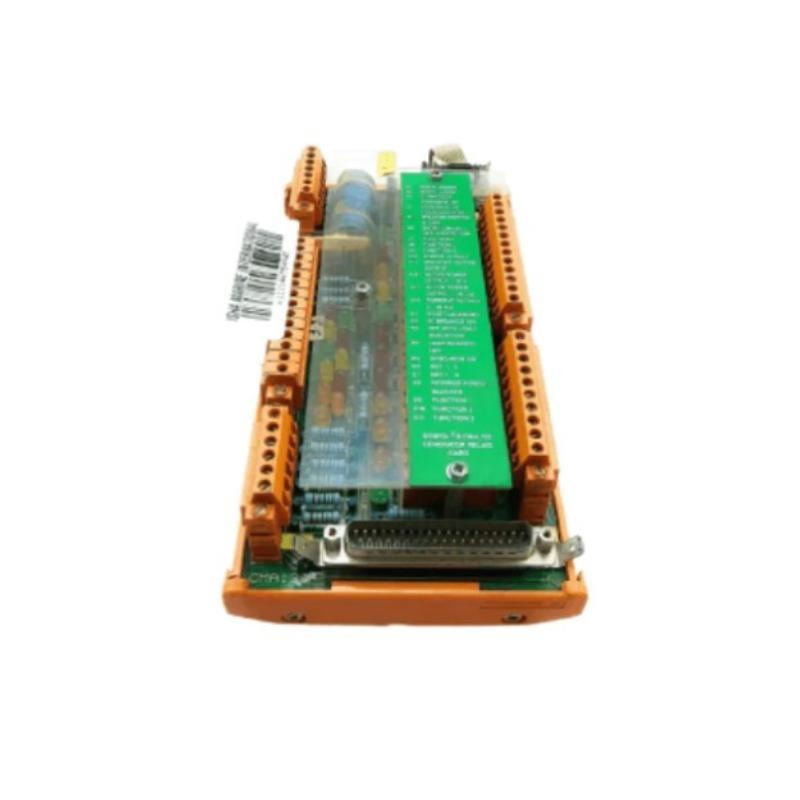

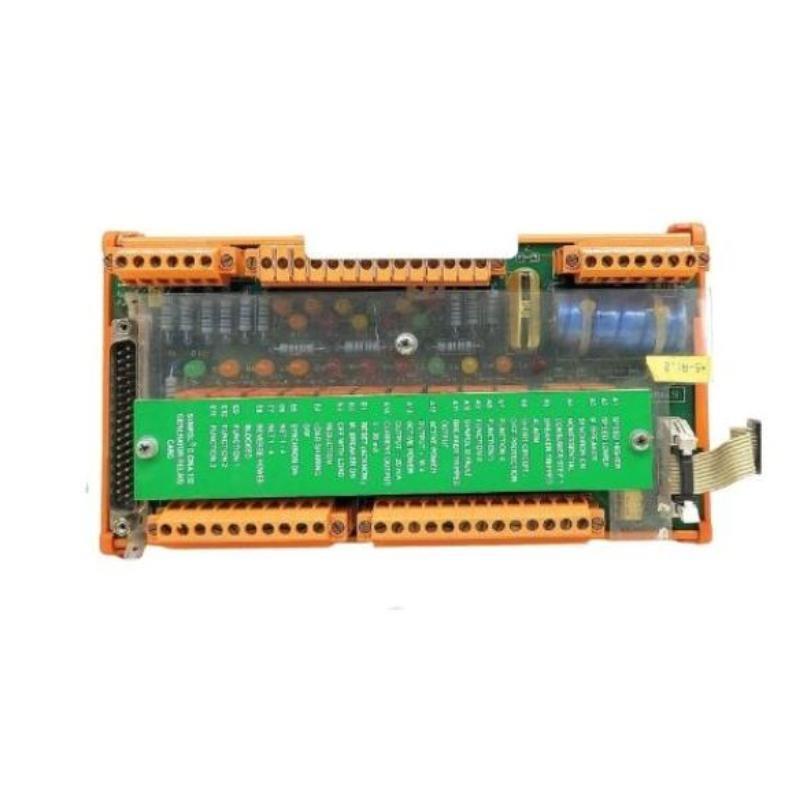

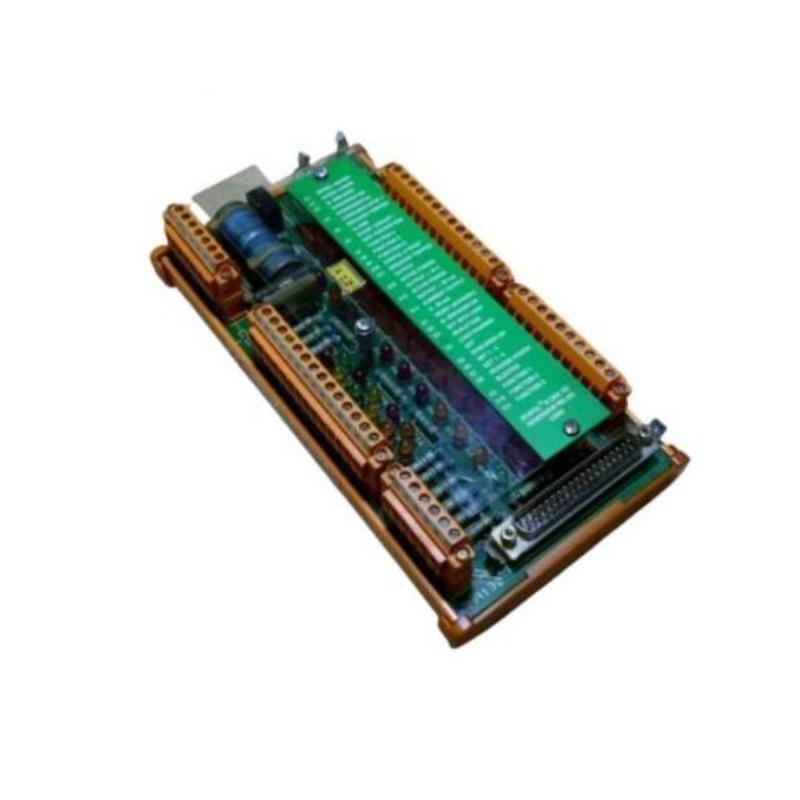

The ABB CMA132 3DDE300412 Generator Relay Terminal Block is an industrial-grade terminal block designed to support generator relay protection, signal transmission, and electrical connectivity in complex power systems. Manufactured by ABB, a global leader in industrial automation and power technologies, this terminal block is engineered for reliability, durability, and precise signal handling in harsh environments such as power plants and substations.
This product ensures safe and efficient wiring connections for relay outputs and control circuits associated with generators, enabling seamless protection, monitoring, and control functions. The robust design, high electrical insulation, and compact structure make the CMA132 3DDE300412 a preferred choice for demanding electrical installations requiring dependable generator protection infrastructure.
Key Features
-
High-reliability terminal block for generator relay protection circuits
-
Supports stable signal transmission and control operations
-
Compact design optimized for space-saving installation
-
High dielectric strength ensures operator and equipment safety
-
Suitable for harsh industrial environments with high mechanical stability
-
Facilitates easy wiring, maintenance, and inspection
-
Manufactured to ABB’s stringent quality and safety standards
-
Compatible with ABB control, protection, and monitoring systems
-
Long service life reduces maintenance frequency
-
Ideal for integration into generator panels and protection cubicles
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle | CMA132 3DDE300412 |
| Product Type | Generator Relay Terminal Block |
| Electrical Rating | 250 V AC/DC, 16 A |
| Insulation Voltage | 400 V |
| Contact Resistance | ≤ 5 mΩ |
| Dielectric Strength | ≥ 2.5 kV |
| Operating Temperature Range | -25°C to +70°C |
| Material | Flame-retardant, high-strength thermoplastic |
| Mounting Type | DIN Rail or Panel Mounted |
| Connection Type | Screw Terminals |
| Wire Size Range | 0.5 mm² to 6 mm² (22-10 AWG) |
| Dimensions | 120 x 80 x 40mm |
| Poids | 0.5 kg |
| Certifications | CE, RoHS, IEC Compliance |
| Application Compatibility | Generator Panels, Protection Relays, Switchgear |
Industry Applications
The ABB CMA132 3DDE300412 Generator Relay Terminal Block is widely utilized across various industries that require generator protection, electrical reliability, and high-performance relay interconnection solutions. Typical application fields include:
-
Power Generation Facilities: Generator control panels, relay protection circuits, and signal distribution
-
Substations and Electrical Distribution Networks: Connection sur protective relays to field devices
-
Industrial Automation Systems: Reliable terminal connections for relay-based safety and control functions
-
Marine and Offshore Platforms: Generator protection and relay interfacing in demanding environments
-
Renewable Energy Installations: Wind farms, hydroelectric plants, and solar generator relay panels
-
Heavy Industries: Mining, steel plants, petrochemical facilities requiring robust relay terminal blocks
Product Advantages
The ABB CMA132 3DDE300412 surfers multiple operational and technical benefits, making it a reliable choice for critical generator protection systems:
-
Superior Reliability: Engineered with ABB’s advanced manufacturing standards, providing consistent performance under high electrical and mechanical loads
-
Space-Saving Design: Compact structure facilitates optimized space usage within crowded control panels
-
Enhanced Safety: High dielectric strength and insulation properties ensure maximum operator and equipment protection
-
Easy Installation and Maintenance: User-friendly screw terminal connections simplify wiring and inspections
-
Durability in Harsh Environments: Resistant to vibrations, temperature fluctuations, and industrial contaminants
-
Standard Compliance: Fully meets international safety and performance standards (IEC, CE, RoHS)
-
Seamless System Integration: Compatible with ABB relay protection systems and generator monitoring equipment
-
Reduced Downtime: Long operational life cycle minimizes maintenance needs, increasing system uptime
-
Versatile Application: Suitable for various voltage and signal types, adaptable across industries
-
Proven ABB Quality: Backed by ABB’s global reputation for reliable electrical products and solutions
Questions fréquentes (FAQ)
-
What is the primary function sur the ABB CMA132 3DDE300412?
It serves as a terminal block for secure and efficient electrical connections in generator relay protection circuits. -
Is this terminal block suitable for high-voltage applications?
It is rated for up to 250 V AC/DC circuits with high dielectric strength, suitable for generator relay panels and medium-voltage systems. -
Can it be installed on standard DIN rails?
Yes, the CMA132 3DDE300412 is designed for DIN rail or panel-mounted installations. -
What is the wire size range supported?
It accommodates wire sizes from 0.5 mm² to 6 mm² (22 to 10 AWG). -
Is the terminal block resistant to harsh environments?
Yes, it is built with flame-retardant materials and surfers high mechanical stability suitable for industrial conditions. -
What certifications does this product carry?
It complies with CE, RoHS, and relevant IEC standards for safety and environmental compliance. -
What materials are used in its construction?
High-strength, flame-retardant thermoplastic materials are used for superior durability. -
Is this terminal block compatible with ABB protection relays?
Absolutely, it is specifically designed to integrate with ABB relay protection and monitoring systems. -
What industries typically use this terminal block?
It is used in power plants, substations, renewable energy installations, marine applications, and industrial automation. -
What is the expected service life sur the CMA132 3DDE300412?
It surfers a long operational life with minimal maintenance under normal operating conditions.
Recommended Related or Similar ABB Modèles
| Modèle Number | Description |
|---|---|
| CMA131 3DDE300411 | Generator Relay Terminal Block, Similar Variant |
| CMA133 3DDE300413 | Enhanced Generator Terminal Block, High Current |
| CMA140 3DDE300420 | Terminal Block for Protection Relays |
| CMA132-HV | High Voltage Version sur CMA132 |
| CMA132-IP67 | IP67 Rated Sealed Terminal Block for Outdoors |
| CMA142 3DDE300422 | Compact Generator Terminal Block with Indicators |
