Présentation du produit

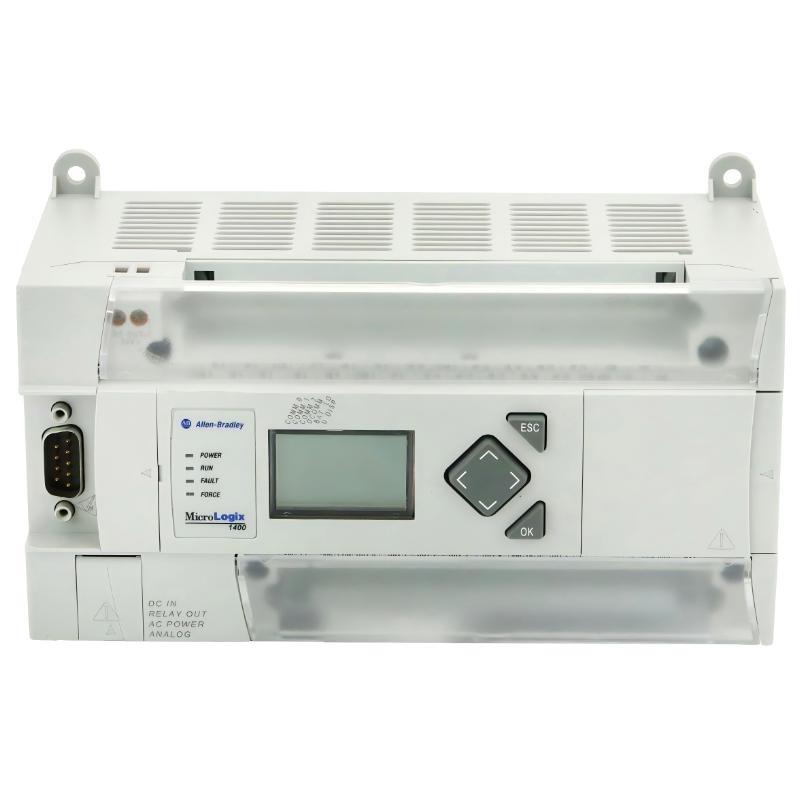

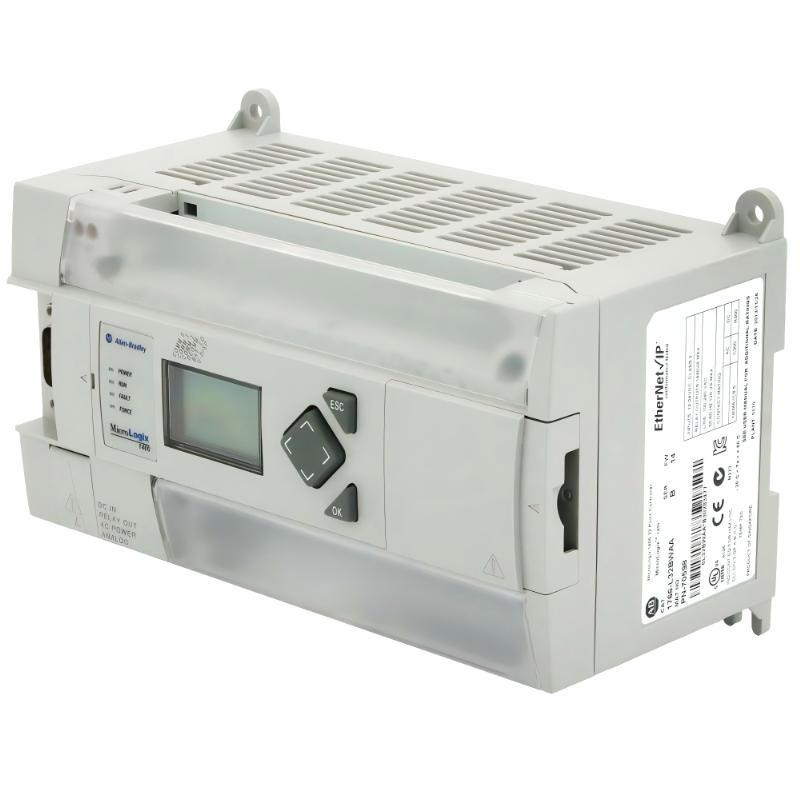

The Allen-Bradley 1766-L32BWAA MicroLogix 1400 Programmable Controller is a versatile PLC designed for small to medium industrial control applications. Manufactured by Rockwell Automation under the Allen-Bradley label, this controller provides discrete relay outputs and analog I/O capabilities, allowing precise control sur machinery and process automation systems.
With 12 discrete relay outputs, 4 analog inputs (12-bit, 0–10 VDC), and 2 analog outputs (12-bit, 0–10 VDC), the 1766-L32BWAA can manage a variety sur input/output devices and execute complex control logic. The controller features 20 KB sur user memory for storing ladder logic programs and process data, supporting moderately sophisticated automation tasks.
This controller operates on 120/240 VAC power supply, with an operating frequency sur 47–63 Hz and a power consumption sur 120 VA. It is engineered to provide stable and reliable performance across standard industrial conditions and integrates seamlessly with MicroLogix 1400 expansion modules for scalable system configurations.
The 1766-L32BWAA is widely used in manufacturing machines, material handling systems, process control lines, and building automation. Its combination sur relay outputs, analog I/O, and expandable memory makes it a flexible solution for engineers seeking reliable PLC control for both discrete and analog processes.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Type | Programmable Controller |
| Series | MicroLogix 1400 |
| Fabricant | Allen-Bradley (Rockwell Automation) |
| Discrete Outputs | 12 Relay Outputs |
| Analog Inputs | 4 Channels, 12-bit, 0–10 VDC |
| Analog Outputs | 2 Channels, 12-bit, 0–10 VDC |
| User Memory | 20 KB |
| Power Supply | 120/240 VAC |
| Operating Frequency | 47–63 Hz |
| Power Consumption | 120 VA |
| Controller Architecture | MicroLogix 1400 |

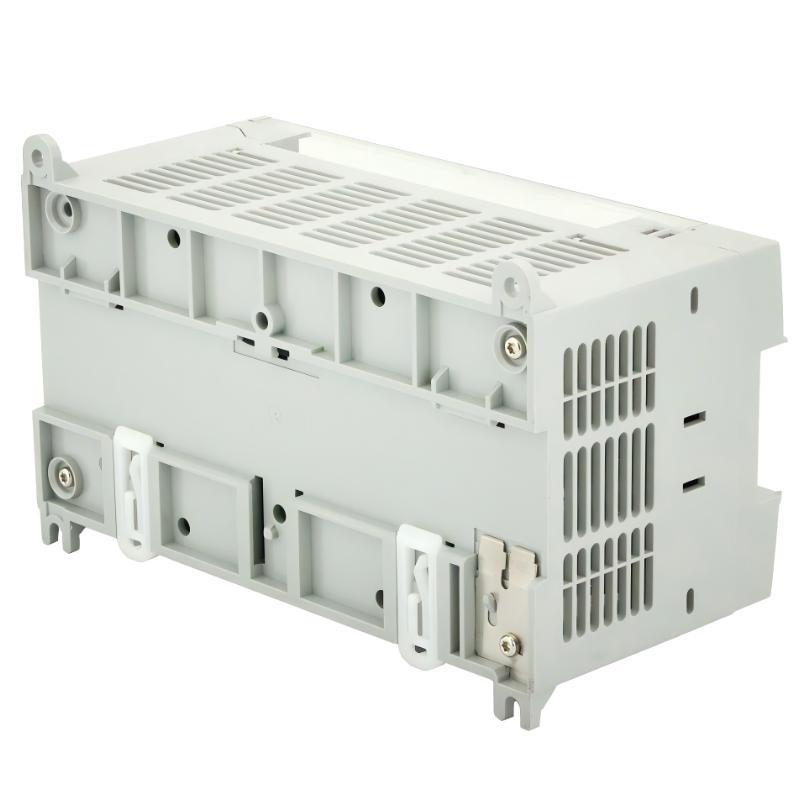

| Mounting Method | DIN Rail or Panel Mount |
| Operating Temperature | 0°C to +55°C |
| Enclosure Rating | IP20 |
| Dimensions | 90 × 180 × 87 mm |
| Poids | 0.9 kg |
Applications
• Machine Automation
Controls discrete devices, motors, and actuators in assembly, packaging, and production machines.
• Analog Process Control
Handles analog inputs and outputs for precise measurement and control sur temperature, pressure, or flow in industrial systems.
• Material Handling Systems
Coordinates conveyors, sorting equipment, and automated storage systems using relay and analog outputs.
• Building Automation
Manages lighting, HVAC, and energy systems with combined digital and analog control.
• Process Sequencing
Executes ladder logic programs to control sequential operations and multi-step processes in manufacturing lines.
• Remote Monitoring and Diagnostics
Integrates with operator interfaces and SCADA systems via standard protocols for system monitoring and troubleshooting.
Advantages
• Combined Digital and Analog Control
Supports both relay outputs and analog I/O channels for versatile automation applications.
• Expandable Memory
20 KB sur user memory allows storage sur more complex control programs and process routines.
• Reliable Industrial Operation
Engineered for stable performance under standard industrial electrical and environmental conditions.
• Seamless Integration
Compatible with MicroLogix 1400 expansion modules and Allen-Bradley automation systems.
• Flexible Application Support
Suitable for discrete control, analog process control, and combined automation tasks in industrial environments.
• Modular System Design
Allows addition sur expansion modules to increase I/O capacity without replacing the core controller.
• Energy Efficient
Optimized power consumption (120 VA) for continuous operation in control panels.
• High Reliability
Maintains consistent performance under industrial conditions, minimizing downtime.
• Advanced Diagnostics
Supports monitoring sur outputs, system errors, and communication status.
• Ease sur Programming
Compatible with RSLogix ssurtware for ladder logic program development, debugging, and system configuration.
