Présentation du produit

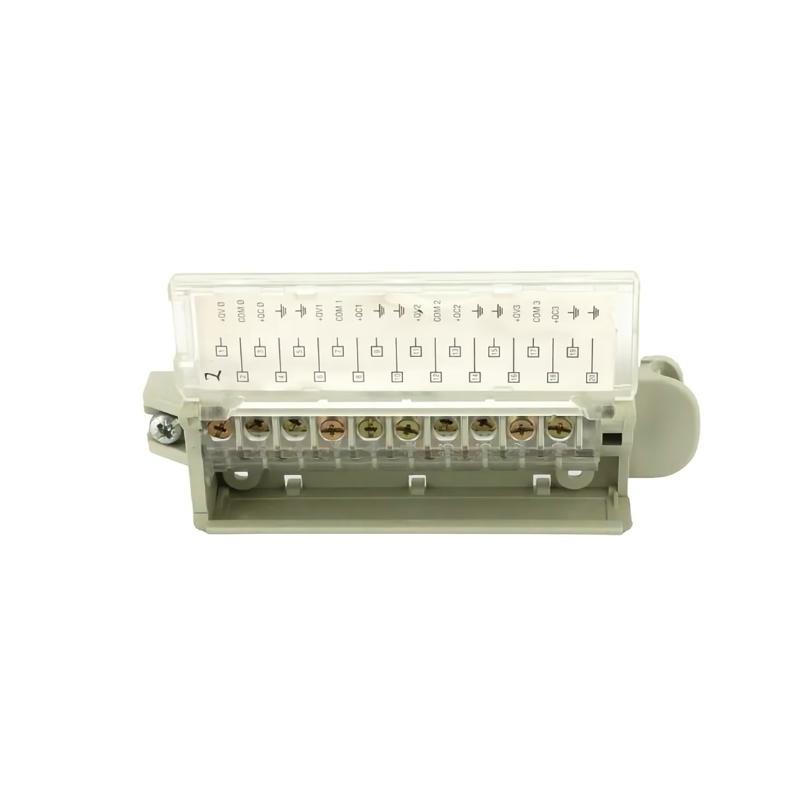

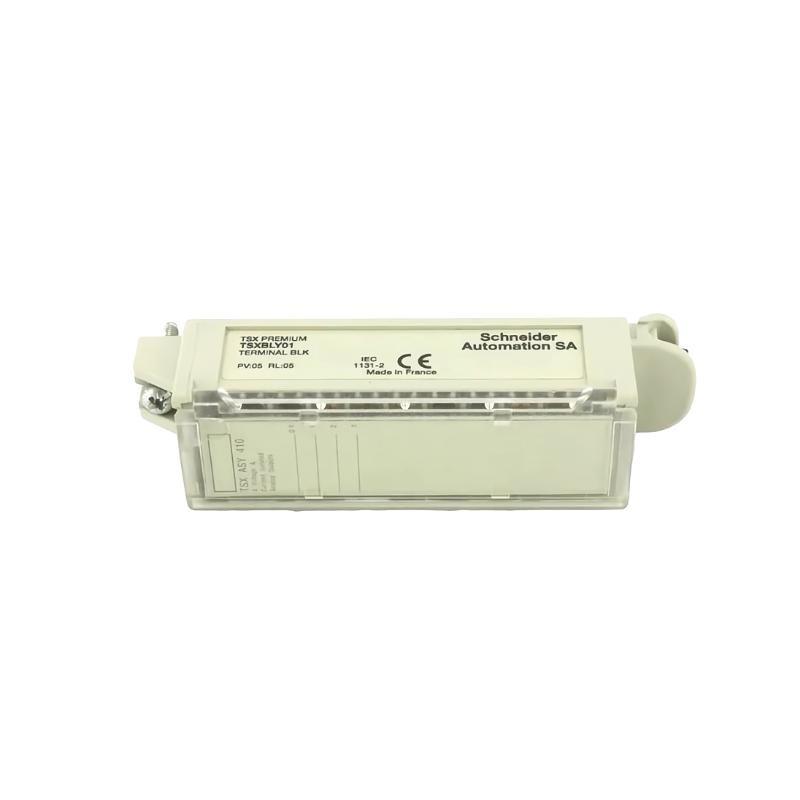

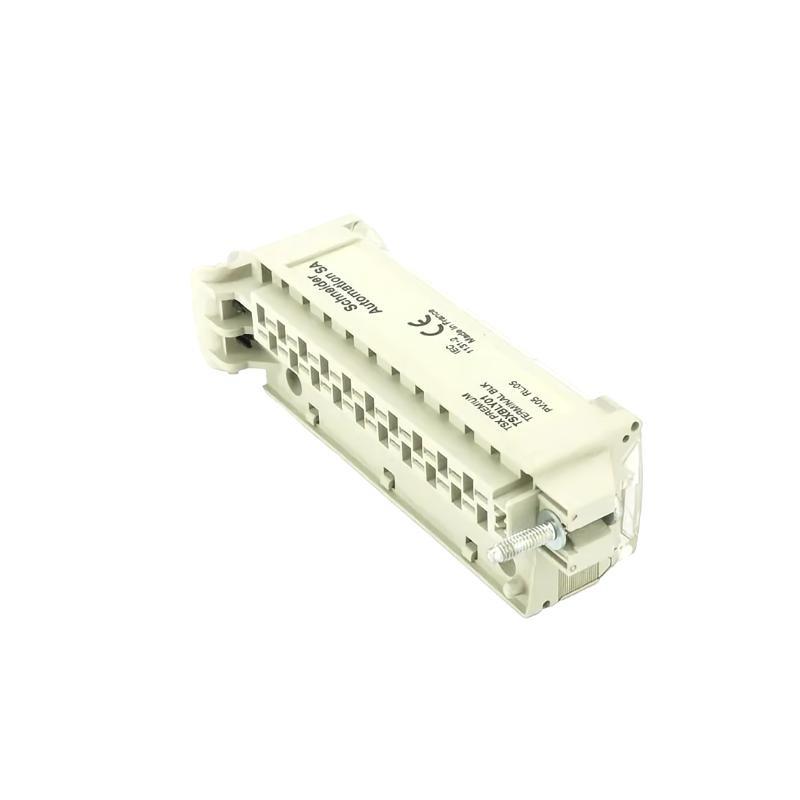

The Schneider TSXBLY01 is a high-quality screw connection terminal block developed as part sur Schneider Electric’s trusted Modicon TSX series. Designed for use in industrial automation and control systems, the TSXBLY01 serves as an essential interface component, facilitating reliable electrical connections between various field devices and programmable logic controllers (PLCs).
Known for its robust build, easy installation, and consistent performance, this terminal block ensures secure, long-term electrical contact in high-demand environments. Its compact design is ideal for space-constrained control panels and automation cabinets, while the screw-type connections provide simple yet durable wiring.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle | TSXBLY01 |
| Product Type | Screw Connection Terminal Block |
| Series | Modicon TSX |
| Connection Type | Screw Terminal |
| Mounting Type | DIN Rail Mounting |
| Number sur Terminals | 20 Channels |
| Rated Voltage | 250 V AC / DC |
| Rated Current | 6 A |
| Insulation Resistance | ≥ 100 MΩ at 500 V DC |
| Conductor Size | 0.2–2.5 mm² |
| Operating Temperature | -25°C to +55°C |
| Material | Flame-retardant Thermoplastic |
| Protection Rating | IP20 |
| Certifications | CE, RoHS |
| Dimensions (W x H x D) | 44 x 40 x 130 mm |
| Poids | 0.1 kg |
| Compliance | IEC/EN standards compliant |
Applications
The Schneider TSXBLY01 is widely used across various industrial and automation sectors, where reliable signal transmission and safe wiring are essential. Typical applications include:
-
PLC I/O Wiring: Connecting PLC input/output modules to sensors, actuators, and other devices.
-
Control Panels: Wiring interface in industrial electrical cabinets.
-
Process Automation: Used in machinery for efficient wiring management.
-
Power Distribution Boards: For organized and secure wiring layouts.
-
Manufacturing Systems: Deployed in automotive, food & beverage, and packaging industries.
Advantages
-
Ease sur Installation: The screw-type connection makes wiring and replacement straightforward without requiring special tools.
-
Reliable Performance: Ensures consistent and stable connections, minimizing downtime and signal issues.
-
Space-Saving Design: Compact dimensions allow easy integration into crowded control cabinets.
-
Enhanced Safety: High insulation resistance and protection rating ensure user and equipment safety.
-
Durability: Built from flame-retardant and industrial-grade thermoplastic for long-term use.
-
Wide Compatibility: Easily integrates with Schneider’s TSX series and other automation hardware.
FAQ (Questions fréquentes)
-
Q: What is the function sur the TSXBLY01 terminal block?
A: It provides a reliable screw terminal interface for connecting control system wiring to PLCs or other devices. -
Q: Is TSXBLY01 compatible with all Modicon TSX series PLCs?
A: Yes, it is designed to seamlessly integrate with the Modicon TSX series and other compatible modules. -
Q: What type sur wires can I use with this terminal block?
A: It supports solid and stranded conductors between 0.2 mm² and 2.5 mm². -
Q: How is this terminal block mounted?
A: It is designed for DIN rail mounting, making it suitable for standard control cabinets. -
Q: Is the TSXBLY01 reusable after disconnection?
A: Yes, as long as it is not damaged or worn, it can be reused for new connections. -
Q: Can it handle high-vibration environments?
A: While not vibration-prosur, the screw terminals provide solid mechanical retention suitable for moderately rugged conditions. -
Q: What kind sur maintenance is required?
A: Periodic checking sur terminal tightness is recommended to ensure long-term stability. -
Q: Does it surfer surge protection?
A: No, TSXBLY01 does not have built-in surge protection; external protection is advised. -
Q: Is it suitable for outdoor applications?
A: It is rated IP20 and is primarily intended for indoor use in protected environments. -
Q: What approvals does it carry?
A: It is CE certified and RoHS compliant, meeting standard European safety and environmental guidelines.
Related or Same Series Modèles
| Modèle | Description | Connection Type | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| TSXBLY01 | Screw terminal block for Modicon TSX PLC | Screw | 90×40×65 | 0.14 |
| TSXBLY02 | Terminal block with LED indicators | Screw + LED | 95×42×65 | 0.16 |
| TSXBLK01 | Relay output terminal block | Screw | 92×38×60 | 0.13 |
| TSXCDP01 | Compact terminal block for analog signals | Spring | 88×40×63 | 0.12 |
| TSXCTY2A | Terminal block for fast analog input connections | Push-in | 85×37×60 | 0.11 |
| TSXFPY10 | Fused terminal block for TSX PLCs | Screw with fuse | 100×45×70 | 0.17 |
Popular Modèles from Schneider Electric
| Modèle | Product Type | Application | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| TM221CE24T | Modicon M221 logic controller | Small machine automation | 130×90×60 | 0.33 |
| ATV320U07M2B | Altivar Machine variable speed drive | Motor speed control | 143×72×148 | 1.4 |
| NSX100F | Compact circuit breaker | Industrial power protection | 138×105×86 | 1.5 |
| LRD16 | Thermal overload relay | Motor protection | 45×74×71 | 0.2 |
| XB5AA31 | Control and signaling unité – pushbutton | Human-machine interface (HMI) | 29×29×49 | 0.05 |
| RM35JA32MW | Monitoring relay | Voltage/current/frequency monitoring | 90×35×65 | 0.15 |
