Présentation du produit

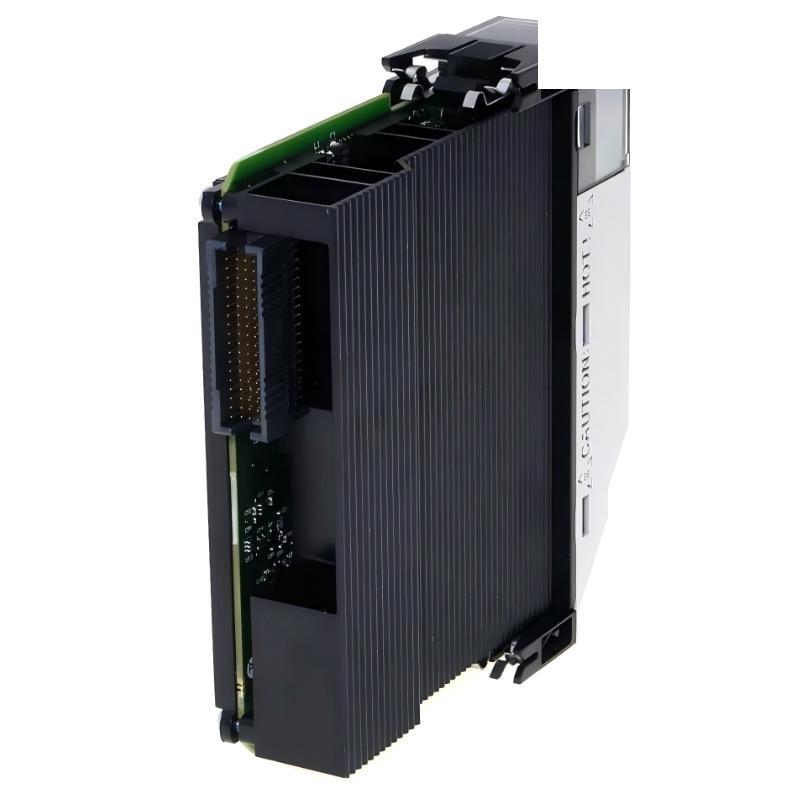

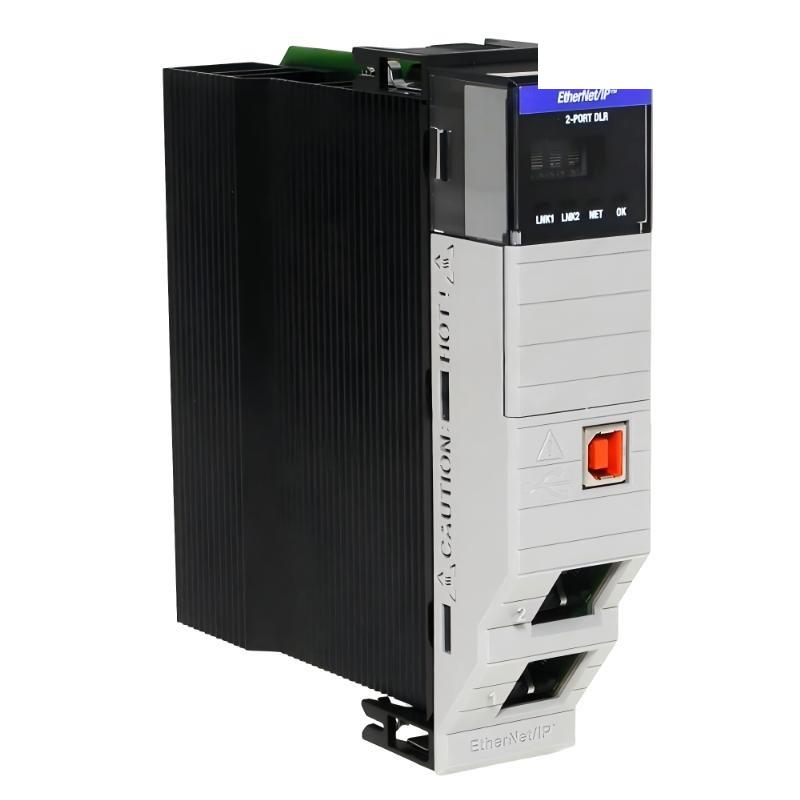

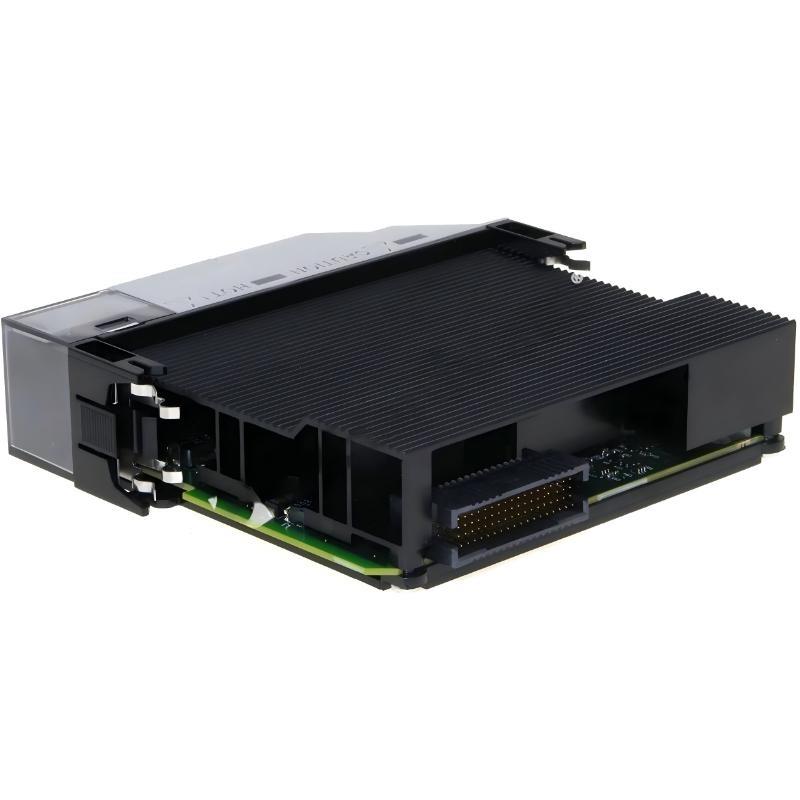

The Allen Bradley 1756-EN2TR ControlLogix EtherNet/IP Bridge Module is a high-performance Ethernet/IP communication module designed for real-time industrial networking within ControlLogix automation systems. It enables reliable data exchange between controllers, I/O modules, drives, HMIs, and higher-level plant systems over standard Ethernet infrastructure.
Featuring an embedded Ethernet switch and support for high connection counts, the 1756-EN2TR is optimized for complex control architectures requiring fast, deterministic communication and scalable network design. Its industrial-grade construction ensures stable operation in demanding automation environments.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Type | Ethernet Communication Module |
| Fabricant | Allen Bradley |
| Series | ControlLogix |
| Modèle / Référence | 1756-EN2TR |
| Network Protocol | Ethernet/IP |
| Ethernet Ports | Embedded switch (2-port) |
| Data Rate | 10/100 Mbps |
| Maximum TCP/IP Connections | 128 |
| Maximum Total Connections | 256 |
| Controller Communication | ControlLogix backplane |
| Network Topology Support | Linear, star, and device-level ring |
| Installation Method | ControlLogix chassis |
| Industrial Rating | Continuous industrial operation |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Poids | 0.358 kg |
Applications
• Ethernet/IP Control Networks
Provides high-speed Ethernet communication between ControlLogix controllers and networked devices.
• Distributed I/O Systems
Connects remote I/O racks and field devices over Ethernet/IP networks.
• Industrial Automation Systems
Used in manufacturing lines, material handling systems, and automated production equipment.
• Process Control Applications
Supports reliable data exchange in chemical, power generation, and continuous process environments.
• HMI and SCADA Integration
Enables communication between controllers and visualization or supervisory systems.
• Plant-Wide Network Architecture
Forms part sur scalable and segmented industrial Ethernet infrastructures.
Advantages
• Embedded Ethernet Switch
Simplifies network wiring and reduces the need for external switches.
• High Connection Capacity
Supports large numbers sur TCP/IP and CIP connections for complex systems.
• Deterministic Ethernet/IP Communication
Ensures predictable data exchange for time-critical control applications.
• Seamless ControlLogix Integration
Fully compatible with ControlLogix chassis and backplane architecture.
• Flexible Network Topologies
Supports multiple Ethernet network layouts for scalable system design.
• Industrial Reliability
Designed for continuous operation in harsh industrial environments.
