Présentation du produit

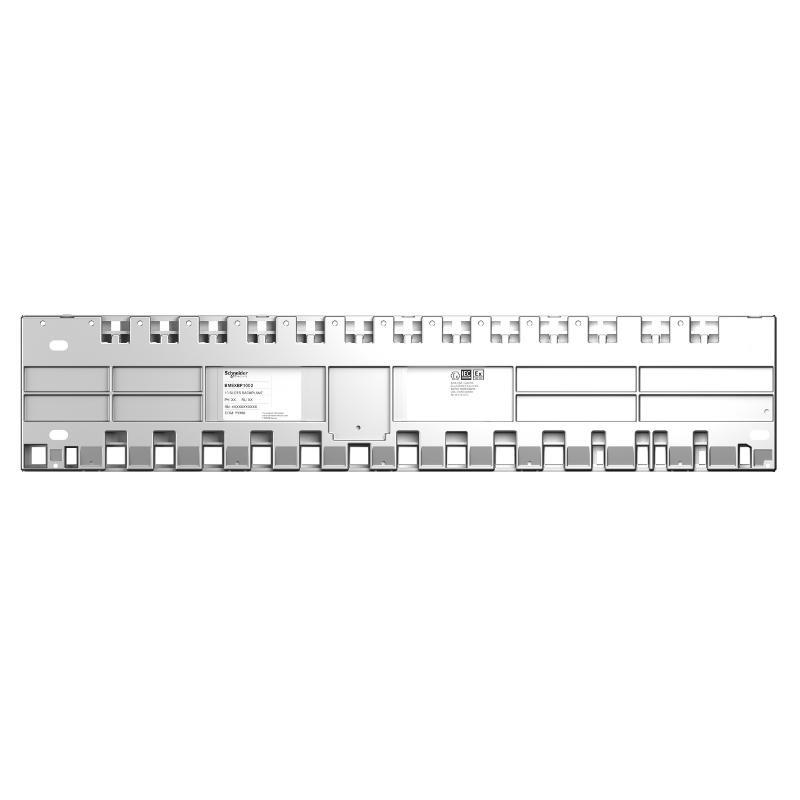

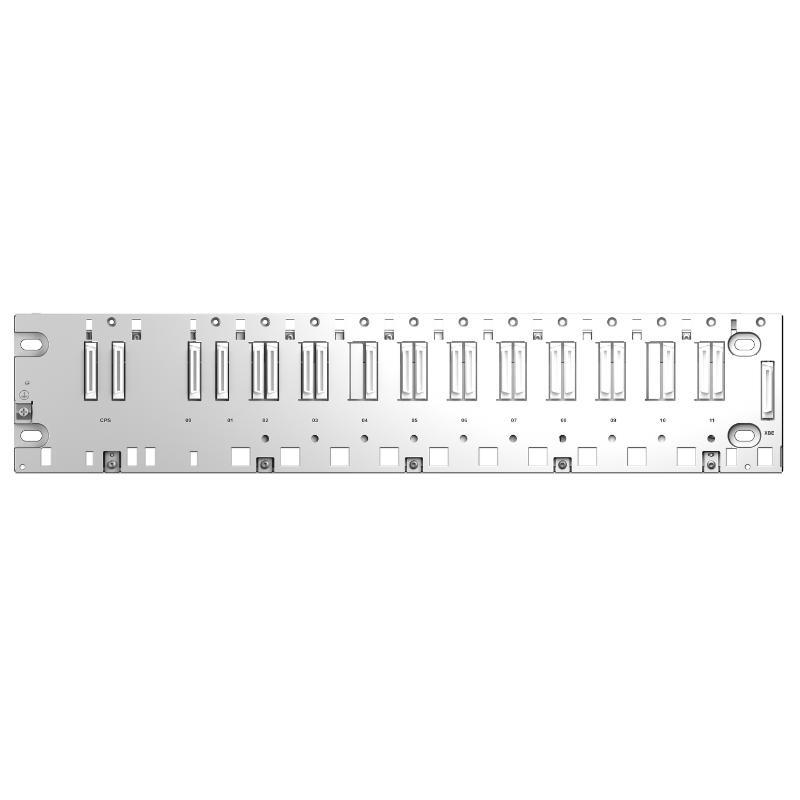

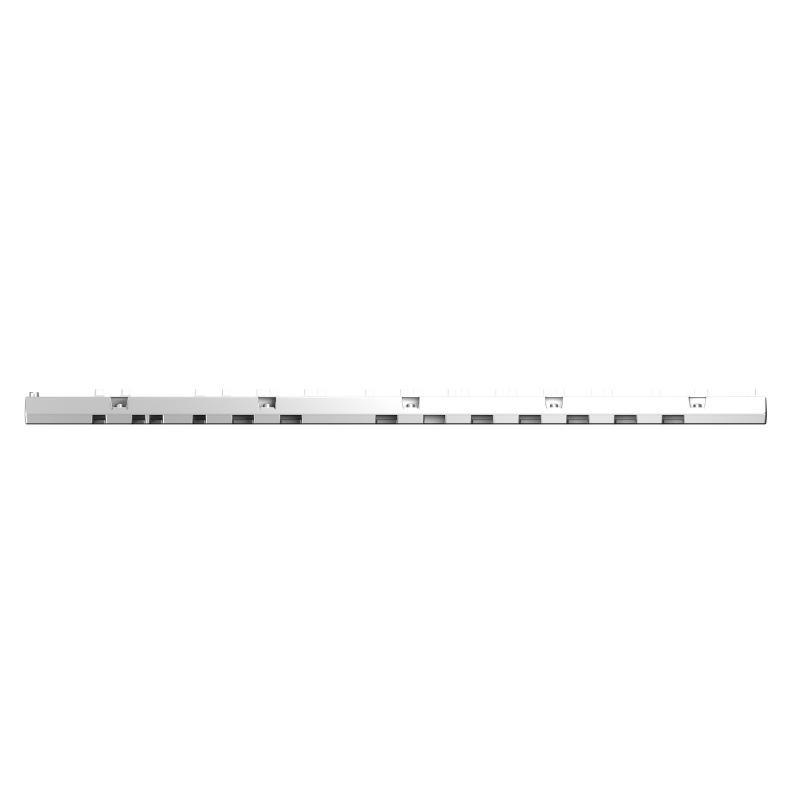

The Schneider BMEXBP1002 10-slot Ethernet Backplane is a key infrastructure component within the Modicon X80 automation platform, providing a unified mechanical and communication foundation for PLC and I/O systems.
It is designed to host processor, communication, and I/O modules in a single rack, ensuring stable power distribution and deterministic internal data exchange. The backplane enables all installed modules to operate as an integrated system with high reliability and consistency.
The BMEXBP1002 supports both local rack installations and remote Ethernet I/O architectures, allowing flexible system layouts based on application requirements. This flexibility makes it suitable for centralized control cabinets as well as distributed automation systems connected over Ethernet networks.
Built for industrial environments, the backplane is engineered to withstand demanding operating conditions while maintaining long-term system stability. It is widely used in applications where continuous operation, scalability, and robust system design are essential.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Type | Ethernet Backplane |
| Modèle | BMEXBP1002 |
| Series | Modicon X80 |
| Number sur Slots | 10 |
| Supported Module Types | CPU, I/O, Communication, Power Supply |
| System Architecture | Local rack and remote Ethernet I/O |
| Compatible PLCs | Modicon M340, Modicon M580, Modicon Quantum |
| Backplane Function | Power distribution and internal data bus |
| Installation Method | Control cabinet mounting |
| Environmental Design | Industrial and harsh environment rated |
| Dimensions | 506.2 × 19 × 105.11 mm |
| Poids | 1.37 kg |
Product Applications
• Structural base for Modicon X80 PLC and I/O systems
• Installation sur processor, communication, and I/O modules in automation racks
• Local control cabinets in industrial automation systems
• Remote Ethernet I/O stations connected to Modicon M580 or Quantum PLCs
• Process control, manufacturing, infrastructure, and energy automation
• Systems requiring modular expansion and high operational stability
Product Advantages
• Provides a stable mechanical and electrical foundation for X80 modules
• Ensures reliable internal communication across all installed slots
• Supports centralized and distributed Ethernet-based architectures
• Modular slot design allows flexible system scaling
• Industrial-grade construction suitable for harsh environments
• Contributes to high system availability and deterministic performance
