Présentation du produit

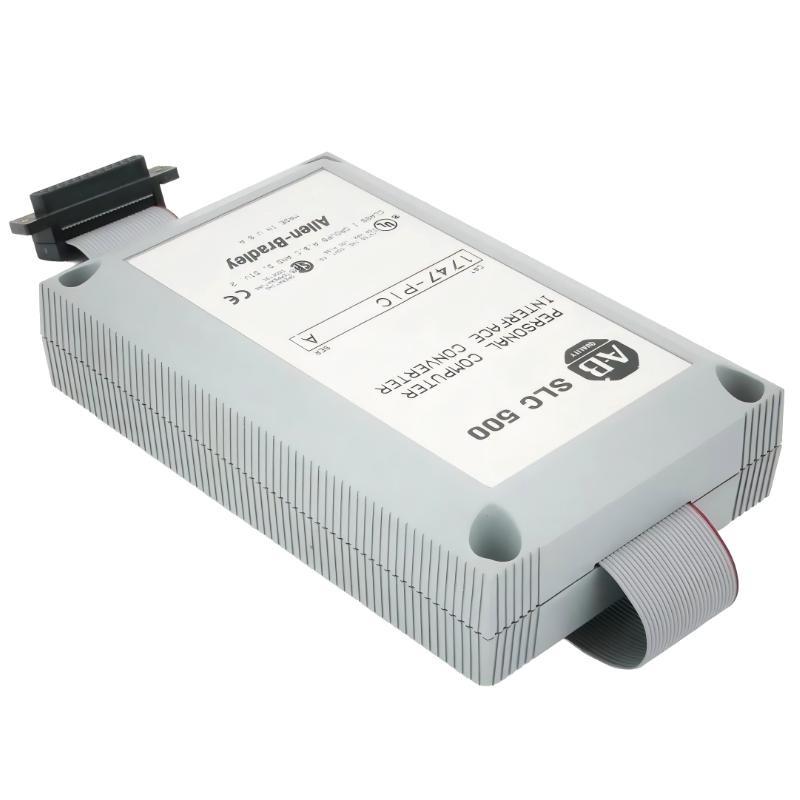

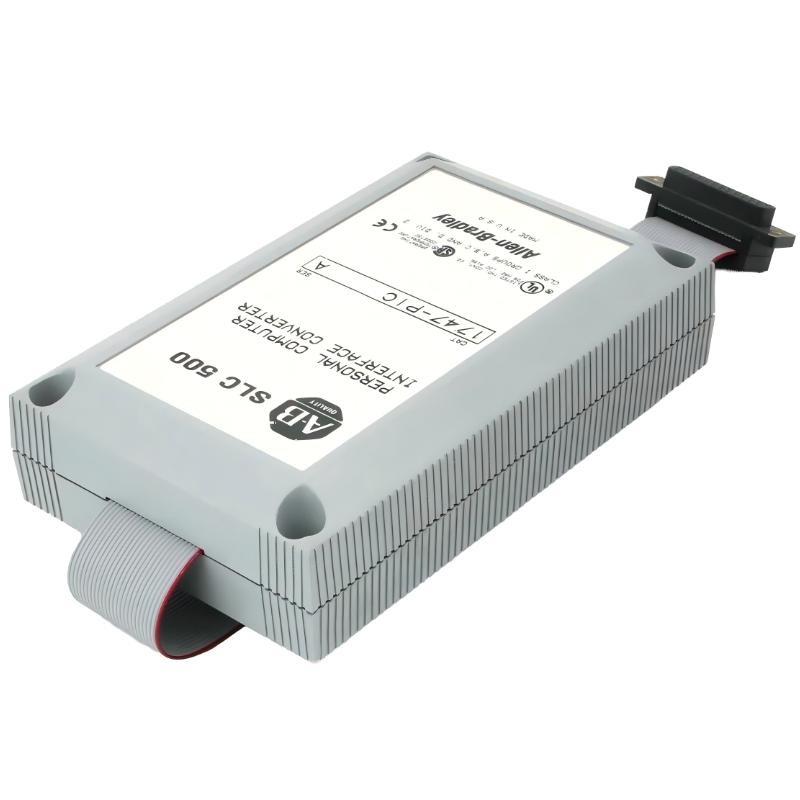

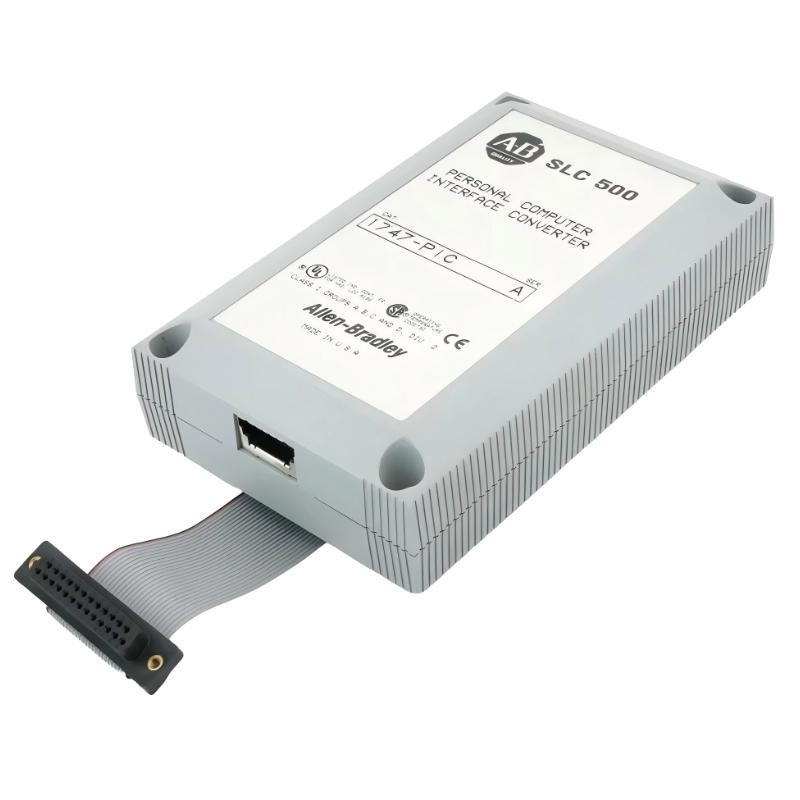

The Allen-Bradley 1747-PIC Interface Converter is a communication interface device designed for SLC™ 500 programmable controller systems, specifically for use with the SLC 5/03 series processors. Its primary role is to convert RS-232 serial communication to RS-485 (DH-485), enabling reliable communication between a programming terminal and SLC 500 controllers.
The 1747-PIC is commonly used as a programming and diagnostic interface, allowing engineers to connect a PC or handheld programming device to DH-485 networks. By handling signal conversion and protocol compatibility, it ensures stable data exchange without requiring internal communication modules.
This interface converter is widely applied in legacy and long-life automation systems where DH-485 remains an essential communication standard. Its straightforward operation and proven reliability make it a standard accessory in SLC 500 maintenance and commissioning workflows.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Type | Interface Converter |
| Compatible Platform | SLC 500 |
| Supported Processor Series | SLC 5/03 |
| Communication Conversion | RS-232 to RS-485 (DH-485) |
| Network Type | DH-485 |
| Host Interface | RS-232 Serial |
| Connector Type | 25-pin D-sub connector |
| Function | Programming and communication interface |
| Installation Method | External inline communication device |
| Application Role | PC-to-controller communication |
| Dimensions | 120 × 100 × 30 mm |
| Poids | 0.25 kg |
Applications
• Programming and commissioning sur SLC 5/03 controllers via DH-485 networks
• System diagnostics and troubleshooting, enabling direct communication with controllers
• Maintenance operations in legacy SLC 500 installations
• Temporary or permanent programming access where internal communication modules are not available
• DH-485 network access from standard RS-232 serial devices
• Industrial automation environments using established Allen-Bradley communication standards
Advantages
• Reliable RS-232 to DH-485 conversion, ensuring stable communication with SLC 5/03 controllers
• Simple external interface design, requiring no internal controller modifications
• Standard 25-pin connector, compatible with common industrial serial cabling
• Proven DH-485 communication support, widely used in SLC 500 systems
• Portable and service-friendly, ideal for field maintenance and diagnostics
• Robust industrial construction, suitable for plant-floor environments
