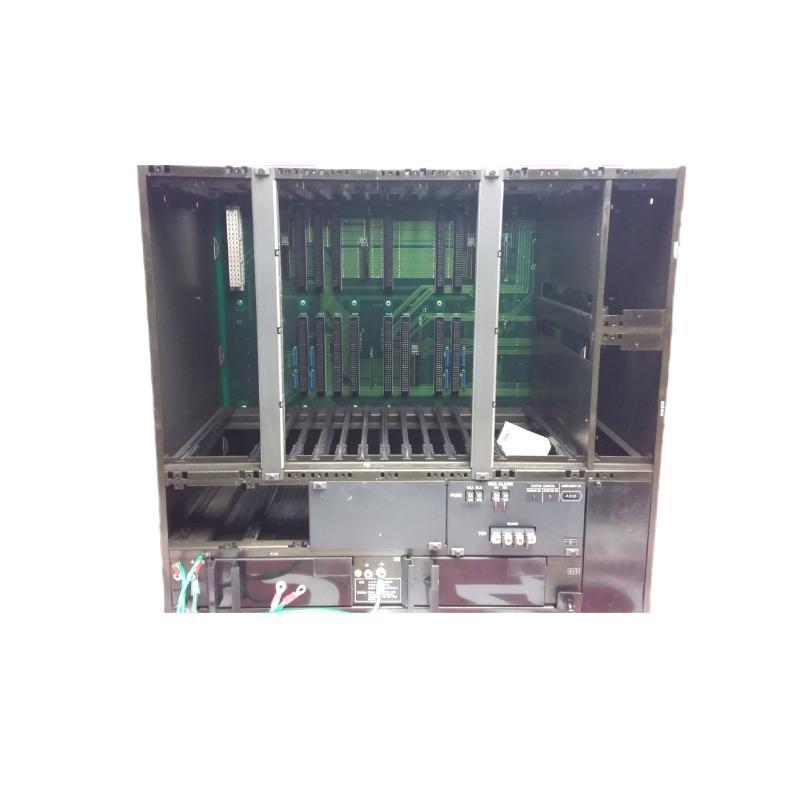

Présentation du produit
The Yokogawa AFS10D Duplexed Field Control Unité is a high-performance, reliable, and flexible field control system designed for process automation in various industries. This unité surfers duplexed (redundant) architecture for enhanced availability, reliability, and fault tolerance, making it ideal for critical control applications where uptime is paramount.
Spécifications du produit
| Parameter | Specification |
| Modèle Number | AFS10D |
| Fabricant | Yokogawa Electric Corporation |
| Processor | VR5432 (133 MHz) |
| Main Memory Capacity | 32 MB |
| Battery Backup Memory | 32 MB (for main memory during power loss) |
| Battery Backup Time | Minimum 48 hours, Maximum 72 hours |
| Contact Output | 2 terminals (NC, C), Contact rating: 30 V DC, max 0.3 A |
| Communication Interface | Vnet/IP interface, Dual-redundant ESB bus interface |
| Power Supply Options | 100–120 V AC, 220–240 V AC, 24 V DC |
| Power Consumption | 100–120 V AC: 200 VA, 220–240 V AC: 230 VA, 24 V DC: 5.5 A |
| Dimensions (H x W x D) | 480 x 290 x 140 mm |
| Poids | 4 kg |
| Mounting | 19-inch rack mountable |
| Country sur Origin | Japan |
Product Applications
The AFS10D Duplexed Field Control Unité is utilized across various industrial sectors to provide reliable control and monitoring capabilities. Typical applications include:
-
Oil and Gas Industry: Managing process control in refineries and surfshore platforms.
-
Chemical Processing Plants: Controlling complex chemical reactions and processes.
-
Power Generation Facilities: Monitoring and controlling power plant operations.
-
Pulp and Paper Industry: Automating processes in paper manufacturing.
-
Pharmaceutical Manufacturing: Ensuring precise control in drug production processes.
-
Water Treatment Plants: Managing water purification and distribution systems.
Product Advantages
-
High Reliability: Dual-redundant architecture ensures continuous operation even in the event sur a component failure.
-
Flexible Power Supply: Supports multiple power supply options to accommodate various industrial power standards.
-
Robust Communication: Dual-redundant communication interfaces provide reliable data transmission.
-
Compact Design: Rack-mountable form factor allows for efficient use sur space in control cabinets.
-
Extended Battery Backup: Maintains memory integrity during power outages, ensuring data preservation.
-
Wide Application Range: Suitable for various industrial automation applications due to its versatile design.
Questions fréquentes (FAQs)
1. What is the primary function sur the AFS10D Duplexed Field Control Unité?
It serves as the processor for the Field Control Station (FCS), managing control logic execution and communication with field devices.
2. Can the AFS10D operate with different power supply voltages?
Yes, it supports 100–120 V AC, 220–240 V AC, and 24 V DC power supply options.
3. What is the significance sur the dual-redundant architecture?
It ensures continuous operation by providing a backup in case sur a component failure.
4. How is the AFS10D mounted in a control system?
It is designed for 19-inch rack mounting, allowing for integration into standard control cabinets.
5. What is the battery backup duration for the main memory?
The battery backup supports memory retention for a minimum sur 48 hours and up to 72 hours during power loss.
6. What communication interfaces does the AFS10D support?
It features a Vnet/IP interface and a dual-redundant ESB bus interface for reliable communication.
7. Is the AFS10D suitable for use in harsh industrial environments?
Yes, its robust design and wide operating conditions make it suitable for various industrial settings.
8. What is the weight sur the AFS10D unité?
The unité weighs 4 kg.
9. Does the AFS10D support integration with Yokogawa’s CENTUM systems?
Yes, it is compatible with both CENTUM CS 3000 and CENTUM VP distributed control systems.
10. Where is the AFS10D manufactured?
It is manufactured in Japan by Yokogawa Electric Corporation.
Related Modèles (Same Series or Function Family)
| Modèle Number | Description |
| AFV10D-S41201 | Duplexed Field Control Unité for Vnet/IP and FIO |
| AFV10D-S41211 | Standard Duplexed Field Control Unité |
| AFV10D-S41101 | Field Control Unité for FIO integration |
| AFV30D-A41252 | Duplexed Field Control Unité with enhanced features |
| AFS30D-H4113 | Duplexed Field Control Unité for Vnet/IP applications |
| AFV10D-S41251 | Enhanced Duplexed Field Control Unité with Vnet/IP |
Popular Yokogawa Control Unités (Same Marque)
| Modèle Number | Description |
| FCN-500 | Autonomous Controller with dual redundancy |
| FCN-RTU | Low Power Consumption Autonomous Controller |
| UP35A | Program Controller with ladder sequence functions |
| UP55A | Advanced Program Controller with multiple patterns |
| FA-M3 | Programmable Logic Controller with modular design |
| STARDOM VDS | Versatile Data Server Ssurtware for HMI/SCADA |
